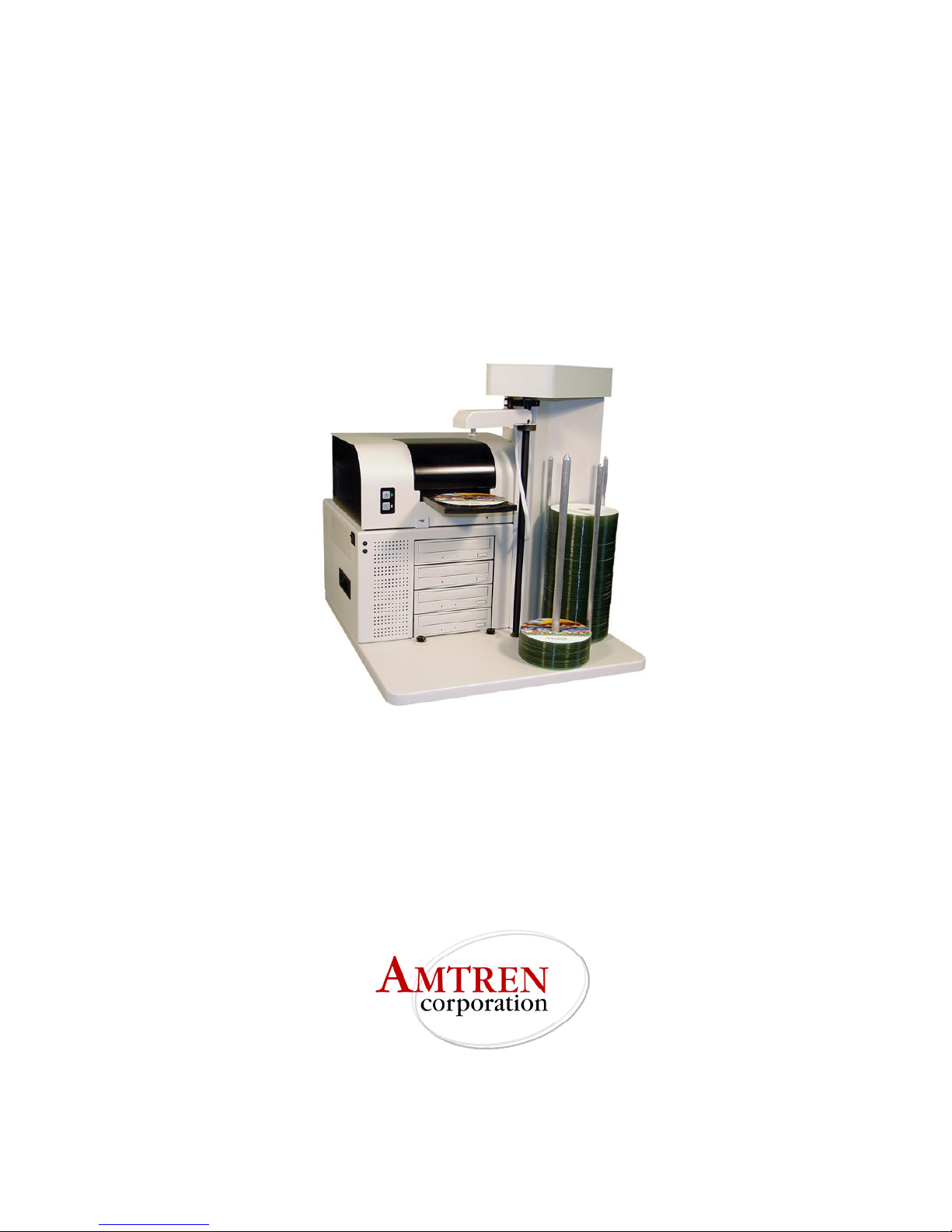

Amtren FlexWriter SE4 Manuale utente
FlexWriter SE4
CD
CDCD
CD-
--
-DVD PUBLISHING UNIT
DVD PUBLISHING UNITDVD PUBLISHING UNIT
DVD PUBLISHING UNIT
Set Up Guide
www.amtren.com Page 1
1.1 Accessory Pack
Before starting the installation, please verify the following accessories are included in the ac-
cessory pack. Please contact our service center immediately if any of the items shown below
are missing.
1. Color Ink et Cartridge for Disc Printer (27C)
2. Black Ink et Cartridge for Disc Printer (26B)
3. USB Cable
4. Firewire© Cable
5. PCI Firewire© Card
6. Printer Fan Filter—Spare
7. AC Power Cords (2)
8. Printer Power Module
9. Registration Card—Warranty
10. Discus Install CD
11. FlexWare Install CD
12. Manual
13. Input Spindles (3) and Output Spindle (1)
Order replacement cartridges online www.discink.com
1.0 HARDWARE SETUP
www.amtren.com Page 2
There may be slight variations in the appearance of each item.
www.amtren.com Page 3
1.2 Attach Spind es & Remove Tape
Please install the input and output spindles that were packaged in the accessory pack as
shown below.
Printer
Contro s
Reject
Disc Area
Disc Input
Blank media and
masters will go
here between the
three (3) input
spindles. Unit
holds 200 discs.
Disc Output
Burned discs and
masters are placed
here. Will hold
200discs.
Screw each of the
three (3) input spin-
dles into each outer
hole.
Screw the output
spindle down
over the bolt
Remove the tape from
the printer door and
pickarm
www.amtren.com Page 4

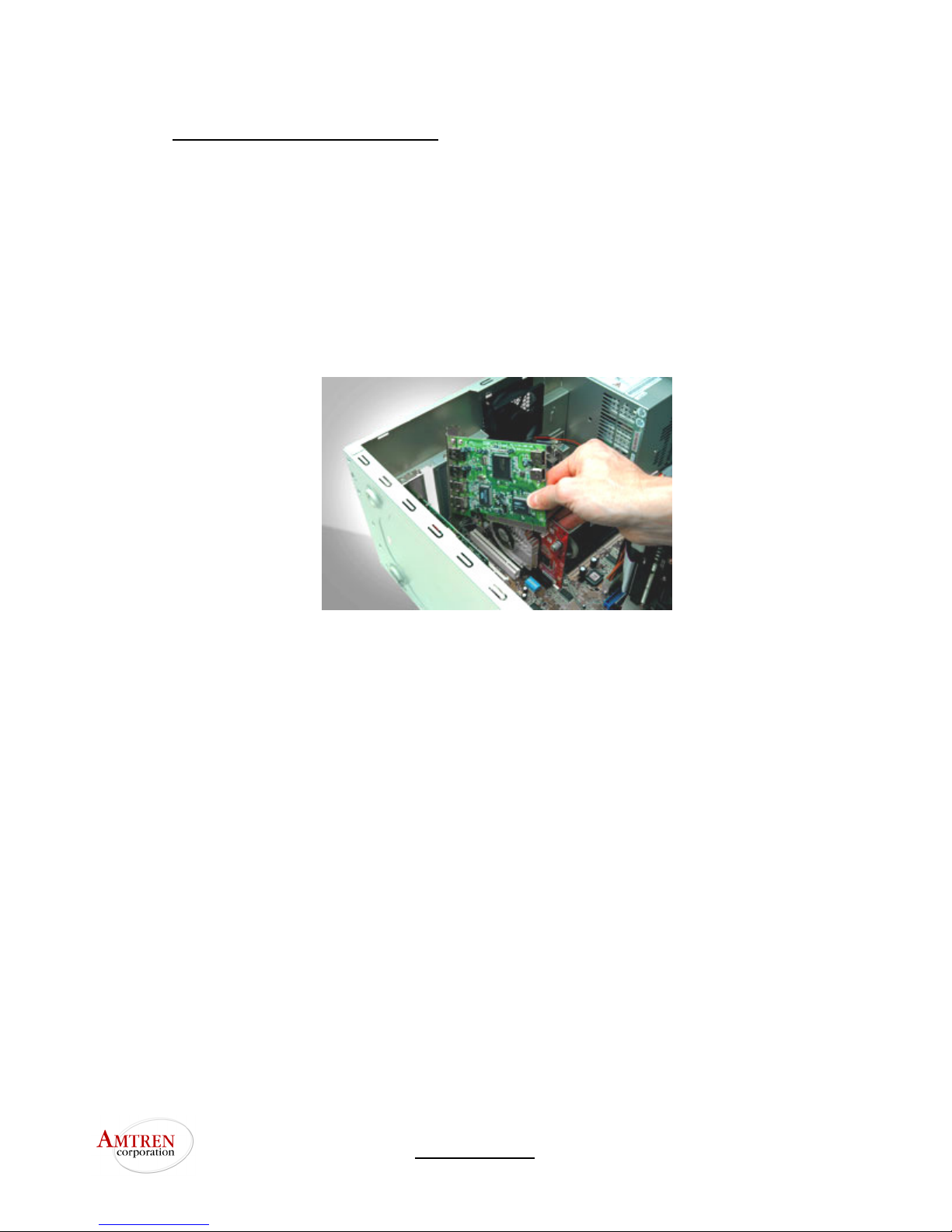

1.3 Insta PCI Firewire© Card
You will need to install the PCI Firewire® card in your PC. Please refer to the documentation
that came with your PC if necessary. Windows XP will install the necessary drivers for the
Firewire® card automatically.
Carefu y insta the provided Firewire©
card in an avai ab e PCI s ot in your PC.
www.amtren.com Page 5

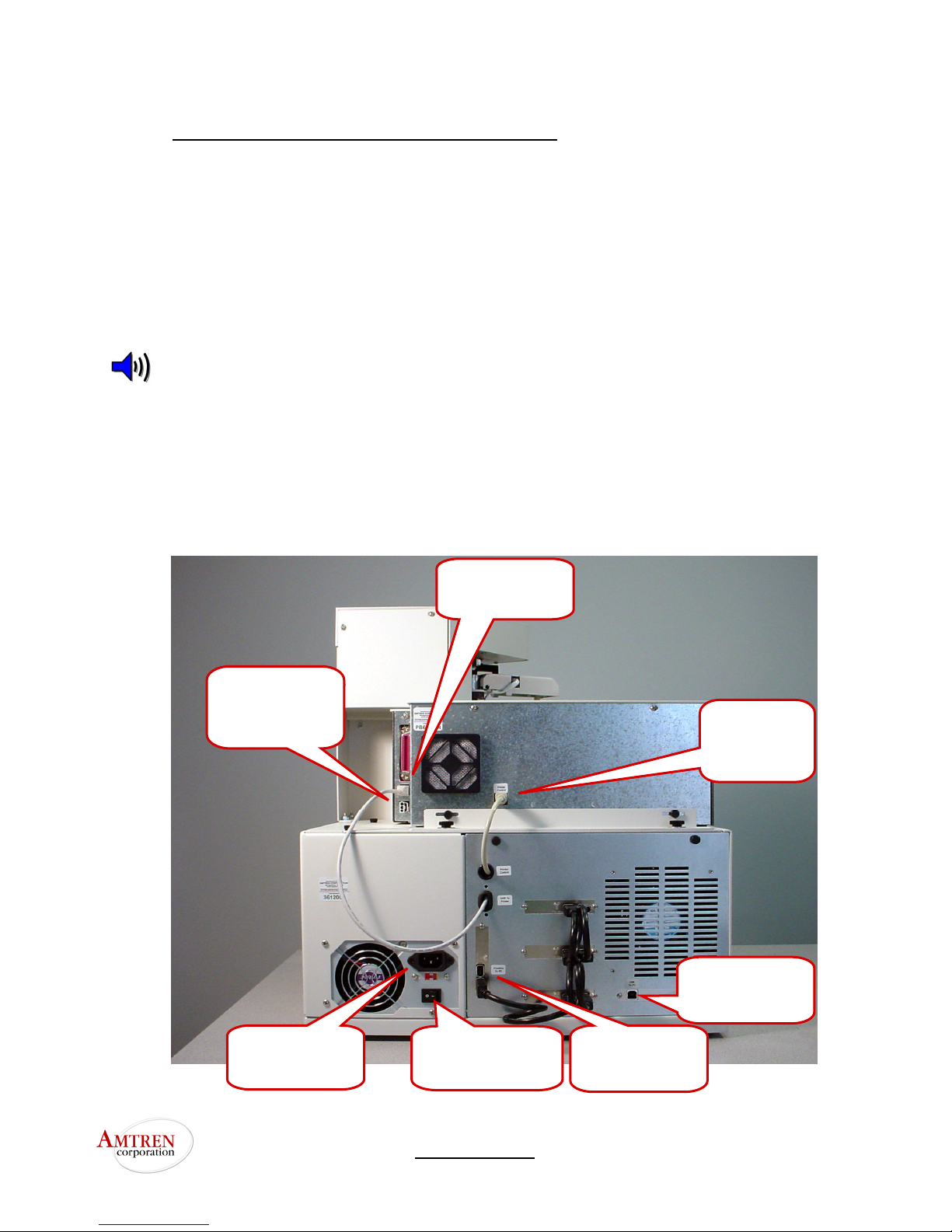

1.4 Connect the Cab es and App y Power
Plug the Firewire© cable into the connector labled “Firewire©” to PC on the rear of the FlexWriter unit.
Plug the other end of the Firewire© cable into a Firewire© port on your PC.
Plug the USB cable into the connector labeled “USB to PC” located on the rear of the FlexWriter unit.
Connect the other end of the USB cable into available USB port on your PC.
Plug the power cord into the power supply of the FlexWriter, also located on the rear side. Plug into a
standard 115V AC outlet. Use of a common plug strip with AC filtering, as is common with most
high-end computers, is recommended for the FlexWriter.
NOTE: If the unit is to be located in an area where the utility or power company experiences
frequent outages, utilizing a UPS is strongly recommended.
Plug the second power cord into the AC power adapter that was provided with the disc printer and
plug into a standard 115V AC outlet. Plug the other end into the power connector on the rear of the
printer.
Power
Connection
DC Modu e
USB Printer
Connection
Printer
Contro
DIN Cab e
1 USB to PC
Connection
Power Supp y
Switch
AC Power
Connection
Firewire©
Connection
www.amtren.com Page 6
1.5 Review Connections
P ease review your entire unit and be sure that you have the fo owing:
USER CONNECTION
Two power connections
1. AC power to the publisher unit
2. AC power to the printer’s power supply module DC output to the printer unit
1 USB cab e connected to your PC
3. USB cable from your PC connects to the USB ports on the rear of the FlexWriter labeled
“USB to PC.”
1 Firewire© cab e connected to your PC
4. Firewire© cable from your PC connects to the Firewire© ports on the rear of the Flex-
Writer labeled “Firewire© to PC.”
FACTORY CONNECTION
5. Printer control cable (5 Pin DIN) connects the base autoloader to the printer.
6. USB printer cable connects the printer to the base autoloader.
NOTE: The cables listed in numbers 5 and 6were factory connected, please verify their
connection.
www.amtren.com Page 7

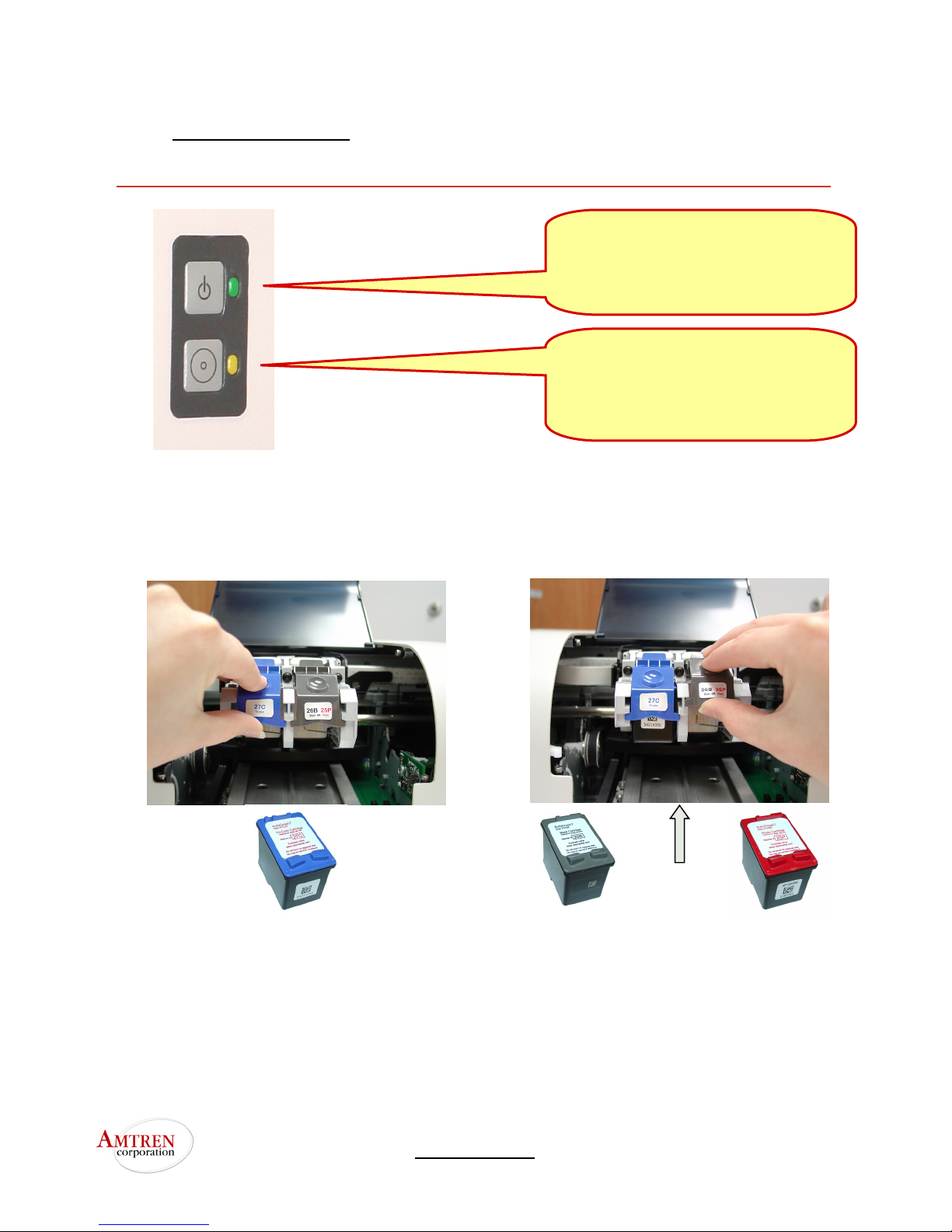

1.6 Insta Cartridges
The Disc Printer powers up automatica y, you do not need to press any buttons.
Lifting up the front plastic cover of the printer will cause the ink cartridge holder to slide into the center
of the opening, thus enabling you to replace the ink cartridges.
Unpack the included ink cartridges. Be sure to remove the tape from the cartridges. DO NOT
TOUCH the meta contacts or ink nozz es.
The color cartridge, 27C slides in the front of the left cartridge holder. The black cartridge, 26B OR the
photo cartridge, 25P, slides in the front of the right cartridge holder. Please see the next pages for car-
tridge installation details.
The ink cartridges used by the Disc Printer can be ordered online anytime day or night. Ground Ship-
ping is free and orders generally ship the same day. Go to www.discink.com for complete details.
You may also call discink.com toll free 800-392-4659.
The Top Button on the Disc
Printer controls power. This
button can be used to RESET
the Printer.
The lower button is to operate
the Disc Tray. This is normally not
required unless you print labels
manually from Discus.
OR
26B black
25P photo 27C color
www.amtren.com Page 8

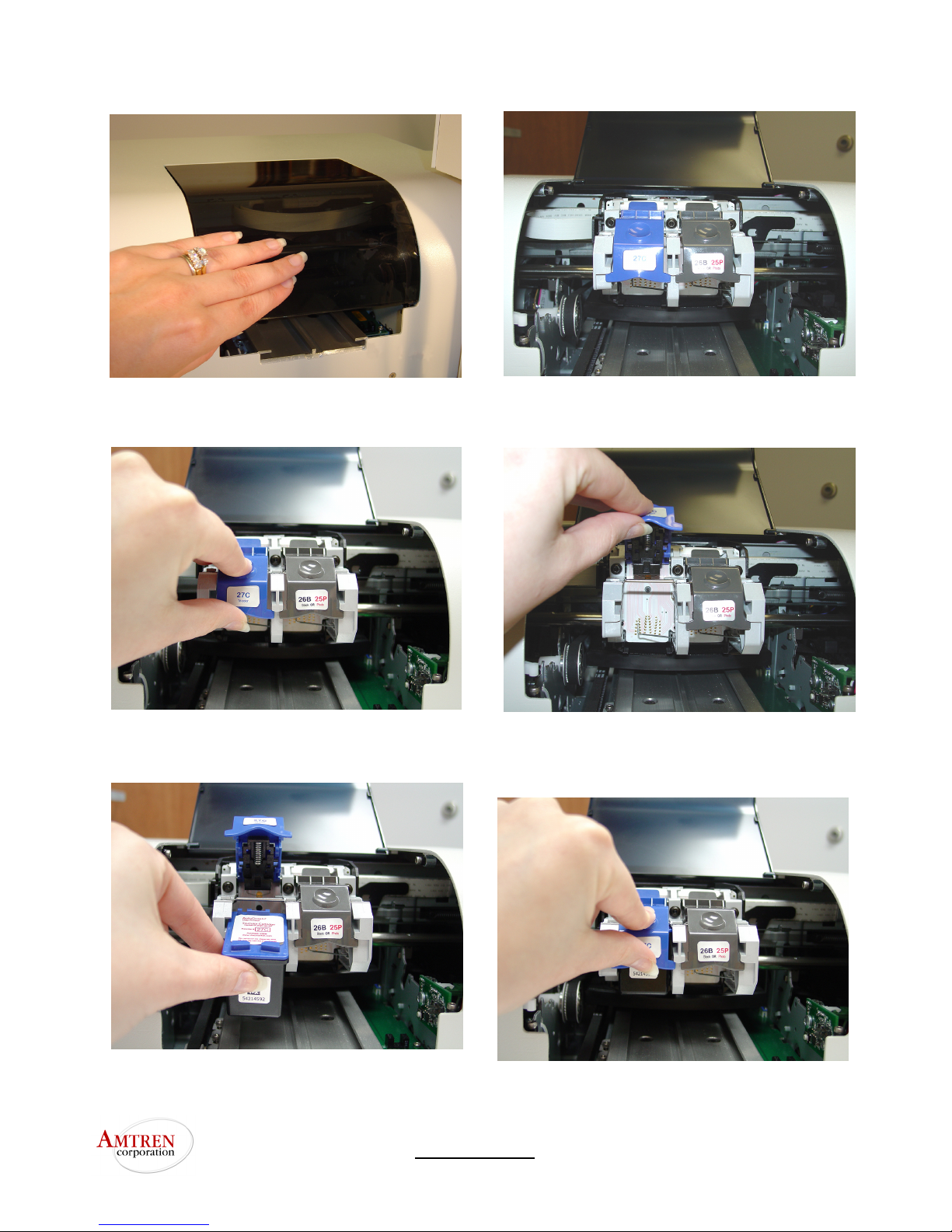

Open the front cover.
Gent y pu the co or ( eft)
cartridge ho der atch, marked
27C forward and upward.
Raise the cartridge ho der atch.
Gent y s ide the co or cartridge, marked
27C, into the
front of the eft cartridge ho der.
C ose the atch unti it snaps shut.
The cartridge ho der wi s ide to the center.
www.amtren.com Page 9
Repeat the previous steps to insta the b ack
cartridge, marked 26B, in the right cartridge
C ose the printer door. The printer
wi initia ize the cartridges.
The printer may take a minute to initialize the cartridges,
during which time the LEDs will blink and the carriage will
move.
After the ink cartridges are successfully installed, the yel-
low LED will shine steadily.
If the yellow LED continues to flash—remove and reinsert
the cartridges.
Order replacement cartridges online www.discink.com
26B black
25P photo
OR
Six Color
Photographic Printing!
For even higher quality, 6-color printing, order the optional
25P photo cartridge instead of the black 26B cartridge.
