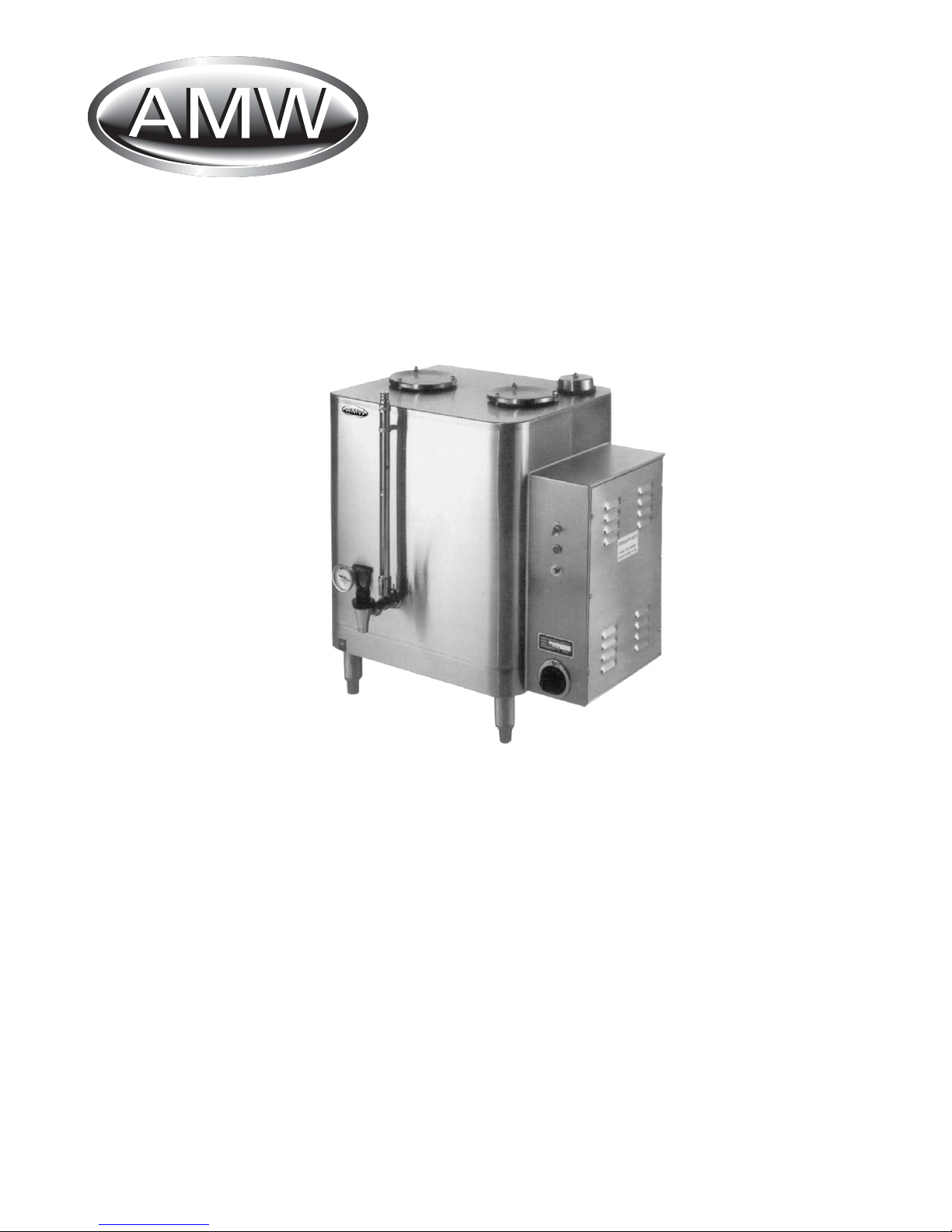

Hot Water Boiler
Automatic - Heavy Duty - Non Pressure
Models 815, 830, 850
Electric
Features:
• Durable Construction
All A.I.S.I. type 304, 18-8 stainless steel
• Constant Temperature
Water temperature is maintained between 190º and 200ºF
(88º and 93ºC)
• Automatic refill of water compartment
Water compartment automatically refills and reheats as needed.
• Low water cutoff System
Protects heating elements from burn out, at start-up or in operation.
Easy to operate:
• Dial Thermometer with color-marked brew zone.
• Thermostat adjustable from front
Knob on thermostat has four marked positions: Brew, Hold,
Night Standby and Off.
Serviceable
• Drain valve in bottom
• Control drawer with all electronic components is
accessible from side.
Hot Water Boiler
Automatic - Heavy Duty - Non Pressure
Grindmaster® Coffee Grinders and Brewers • PrecisionBrew™ Brewing Systems • Espressimo® Espresso Machines
Crathco® Hot Beverage Dispensers • Crathco® Cold and Frozen Beverage Dispensers • AMW Coffee and Tea Systems
Tel (502) 425-4776 • Fax (502) 425-4664 • 1-800-695-4500 (USA & Canada only)
P.O. Box 35020 • Louisville, KY 40232 • USA
www.grindmaster.com • email: info@grindmaster.com
© Grindmaster Corporation, 1995
PRINTED IN USA
0807 Form # AM-214-02
GPH RECOVERY
Model
Gallon
Draw
Off
Heater
Size
50°F
Inlet
Water
140°F
Inlet
Water
1 Phase
Max.
Amps
815 15
5.5 KW
208V/1PH 13 32 25
7 KW
240V/1PH 18 44 29
830 30 12 KW 30 74 57
850 50 15 KW 38 90 72
Electric Heat
Specify electric service desired. Standard is dual voltage 120/240V
or 120/208V single phase 3 wire (neutral wire required).
Specials: 120/208 Volt 3-PH, 4 Wire Specify Option 21A
240 Volt 3-PH, 3 Wire Specify Option 21B
480 Volt 3-PH, 3 Wire Specify Option 21C
Note: Control circuit is 120 Volt AC. In addition, a ground wire
must be supplied.
Recommended Options
OPT. 79 Extra water faucet, no gage, front or back.
Model
Number A B C Work
Height
815 18” 15” 11-1/4” 24”
830 21” 16-3/4” 12-1/2” 27”
850 21” 16-3/4” 12-1/2” 32”
FAUCET CLEARANCE 8 1/4” MIN.

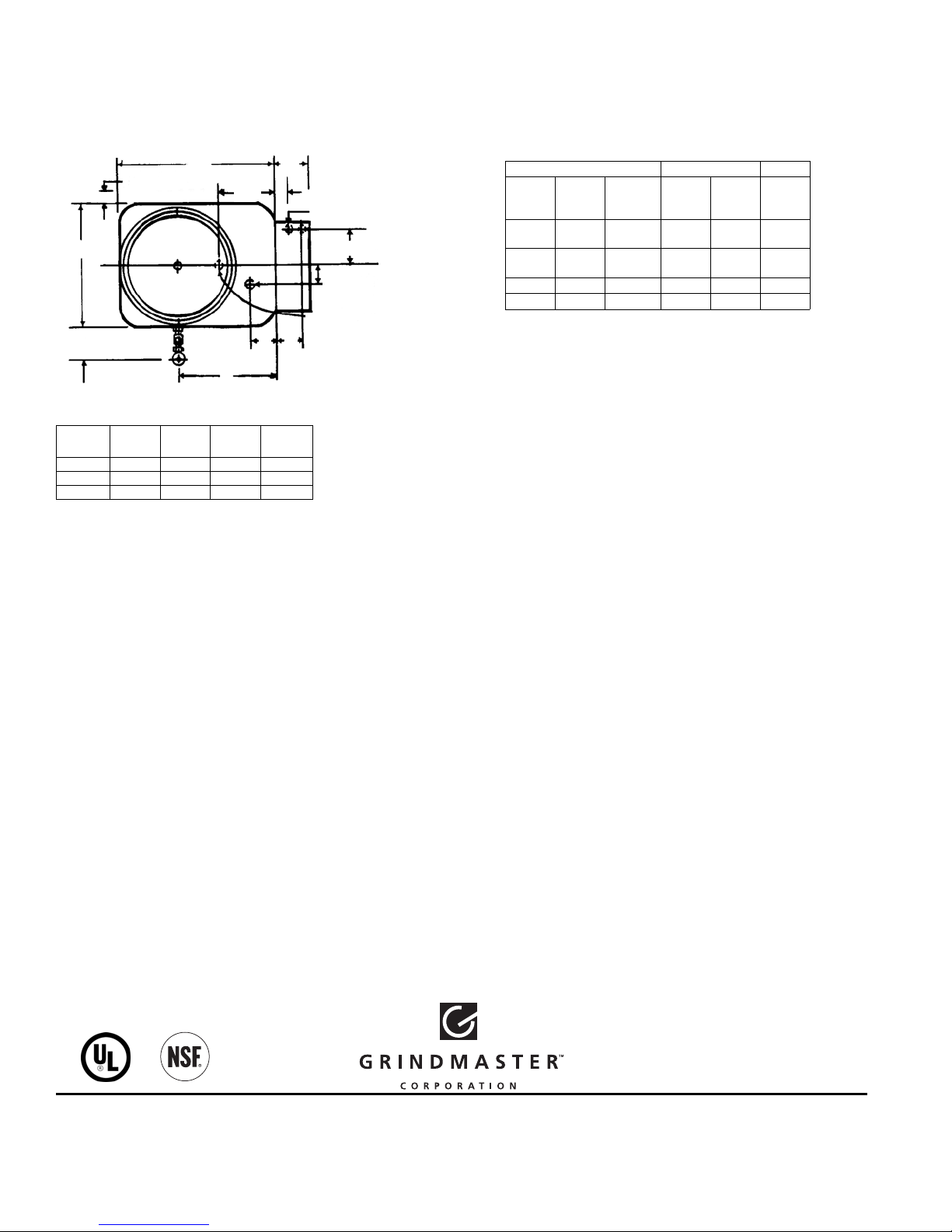

ROUGHING-IN DATA
5”
8”
2 1/4”
3 1/2”
1 1/4”
4 1/2”
4 1/4”
3/8” FPT
WATER
INLET
ELECTRICAL
INPUT
2 1/2”
A
C
B
C
L1 1/4”
