AMX DUX-SCL Manuale utente
USER MANUAL
DUX-SCL
HDMI SCALER
2USER MANUAL - DUX-SCL
HDMI SCALER
Table of Contents
IMPORTANT SAFETY INSTRUCTIONS...................................................................03
INTRODUCTION.....................................................................................................04
PACKING LIST .......................................................................................................05
SPECIFICATIONS ...................................................................................................06
PANEL OVERVIEW.................................................................................................08
SCALER SWITCH ...................................................................................................10
INSTALL HARDWARE ............................................................................................11
RS232 CONTROL...................................................................................................12
TROUBLESHOOTING .............................................................................................13
APPENDIX: API COMMAND...................................................................................14
3
USER MANUAL - DUX-SCL
HDMI SCALER

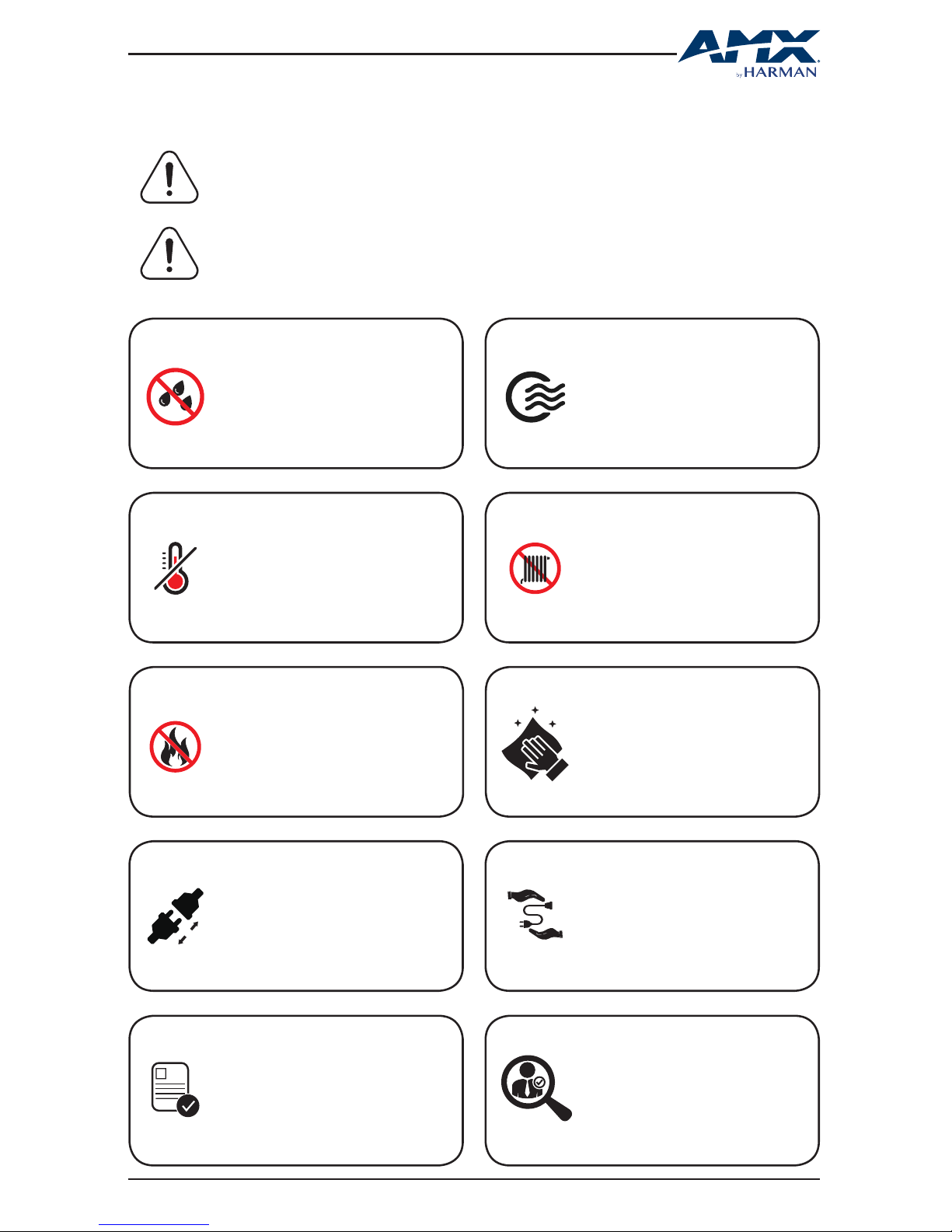

IMPORTANT SAFETY INSTRUCTIONS
NOTE:
We reserve the right to change the content from time to time without notice.
WARNINGS:
To reduce the risk of fire, electric shock or product damage, please observe
the following Safety Instructions while installing and operating the product:
Do not expose this apparatus
to rain, moisture, dripping or
splashing. No objects filled with
liquids, such as vases, shall be
placed on the apparatus.
To prevent risk of electric
shock or fire hazard due to
overheating, do not obstruct
the unit’s ventilation openings
with newspapers, tablecloths,
curtains, and similar items.
Do not install near any heat
sources such as radiators,
heat registers, stoves, or other
apparatus (including amplifiers)
that produce heat.
Do not place sources of naked
flames, such as lighted candles,
on the unit.
Clean this apparatus only with
dry cloth.
Protect the power cord from
being walked on or pinched
particularly at plugs.
Refer all servicing to qualified
service personnel.
Unplug this apparatus during
lightning storms or when un-
used for long periods of time.
Only use attachments/accesso-
ries specified by the manufac-
turer.
Do not install or place this
unit in a bookcase, built-in
cabinet or in another confined
space. Ensure the unit is well
ventilated.
4USER MANUAL - DUX-SCL
HDMI SCALER
INTRODUCTIONS
DUX-SCL is an HDMI Scaler allowing users to match native resolutions of their displays
and is designed to use with standard displays, HDMI Matrix switchers, etc., where HDMI
is used.
DUX-SCL accepts input resolutions from 800 x 600 to 1920 x 1200 (VESA) and 480p to
2160p (SMPTE) and supports output resolution 1280 x 768, 1280 x 800, 1920 x 1200,
3840 x 2160 and Auto Scaler (VESA) and 1280 x 720P, 1920 x 1080P (SMPTE). Such
variety of output resolution options provide users more freedom while adjusting their
video signal for the best result.
DUX-SCL installs a SCALER switch for manual adjustment of output resolutions. When
connected to a control PC through RS232, the device can be controlled through API
command.
DUX-SCL is ideal for applications where high quality video scaling or 4K-1080P down-
scaling is required due to the mix use of displays in different aspect ratio or preferred
timing. Seamless switching is realizable while DUX-SCL is working with DUX-8C or DUX-
8D HDMI Matrix.
Features
HDMI Input and Output both support up to 4K@60Hz 4:4:4 8bit.
HDCP 2.2 compliant.
Supports scaling output adjustment by SCALER DIP switch.
Seamless switching when using with DUX-8C or DUX-8D Matrix.
5
USER MANUAL - DUX-SCL
HDMI SCALER
PACKING LIST
1 x DUX-SCL
1 x Power Adapter (12 VDC, 1.5A)
1 x Phoenix Male Connector (3.5 mm, 3-pin)
2 x Mounting Brackets
1 x User Manual
6USER MANUAL - DUX-SCL
HDMI SCALER
SPECIFICATIONS
Technical
Input 1 x HDMI IN
Input Signal Type TMDS
Input Resolution
• VESA:
800x6008, 1024x7688, 1280x7688, 1280x8008,
1280x9608, 1280x10248, 1360x7688, 1366x7688,
1440x9008, 1600x9008, 1600x12008, 1680x10508,
1920x12008
• SMPTE:
720x480P7,8, 720x576P6, 1280x720P6,7,8,
1920x1080P6,7,8, 3840x2160P2,3,5,6,8, 4096x2160P2,3,5,6,8
1 = @ 23.98 Hz, 2 = @ 24 Hz, 3 = @ 25 Hz,
4 = @ 29.97 Hz, 5 = @ 30 Hz, 6 = @ 50 Hz,
7 = @ 59.94 Hz, 8 = @ 60 Hz;
Input Video Level 0.5-1.2 V p-p
Output 1 x HDMI OUT
Output Signal Type HDMI: TMDS
Audio Output S/PDIF OUT
Audio Format LPCM 2.0, Dolby 2.0, Dolby 5.1;
Output Resolution
• VESA:
1280x7688, 1280x8008, 1920x12008, 3840x21605,8, and
Auto Scaler
• SMPTE:
1280x720P8, 1920x1080P8
1 = @ 23.98 Hz, 2 = @ 24 Hz, 3 = @ 25 Hz,
4 = @ 29.97 Hz, 5 = @ 30 Hz, 6 = @ 50 Hz,
7 = @ 59.94 Hz, 8 = @ 60 Hz;
Video Impedance 100 Ω
Maximum Pixel Clock 594 MHz
Control
Control Method RS232
7
USER MANUAL - DUX-SCL
HDMI SCALER
General
Operating Temperature / RH 32°F ~ 113°F (0°C ~ 45°C)
10% ~ 90%, non-condensing
Storage Temperature / RH -4°F ~ 140°F (-20°C ~ 70°C)
10% ~ 90%, non-condensing
Power Supply 12 VDC 1.5A
Power Consumption 8 W (Max.)
ESD Protection
Human-body model:
• ±8 kV (Air-gap discharge)
• ±4 kV (Contact discharge)
Dimension (W × H × D) 110 mm × 25 mm × 150.1 mm
Weight 0.5 kg
Certification CE, FCC
8USER MANUAL - DUX-SCL
HDMI SCALER
PANEL OVERVIEW
1 2 3 4
Item Name Description
1 HDMI IN Connects to an HDMI source device.
2 SCALER SWITCH Adjusts the Output scaling.
3 HDMI OUT Connects to an HDMI display device.
4 S/PDIF OUT Connects to an audio system for digital audio signal output.
Front Panel
9
USER MANUAL - DUX-SCL
HDMI SCALER
1 2 3 4
Item Name Description
1 DC 12V Connects the Power Adapter provided.
2 POWER LED On: DUX-SCL is powered on.
Off: DUX-SCL is powered off.
3 RS232 For RS232 serial communication or firmware upgrading.
4 USB Connector Connects to a flash drive for upgrading.
Rear Panel
10 USER MANUAL - DUX-SCL
HDMI SCALER
SCALER SWITCH
DUX-SCL installs a “SCALER” Switch for manual adjustment of the scaling output.
By default, the SCALER Switch is in “Auto Scaler” position (all switches are set to 000
or upward). Users are allowed to set DUX-SCL to desired scaling output resolution by
using the SCALER Switch.
0
1
1 2 3
Default Setting: Auto Scaler
DIP SWITCH SCALING OUTPUT RESOLUTION
0 0 0 Auto Scaler (Default)
0 0 1 3840 x 2160@60Hz
0 1 0 3840 x 2160@30Hz
0 1 1 1920 x 1080@60Hz
1 0 0 1920 x 1200@60Hz
1 0 1 1280 x 800@60Hz
1 1 0 1280 x 720@60Hz
1 1 1 1024 x 768@60Hz
