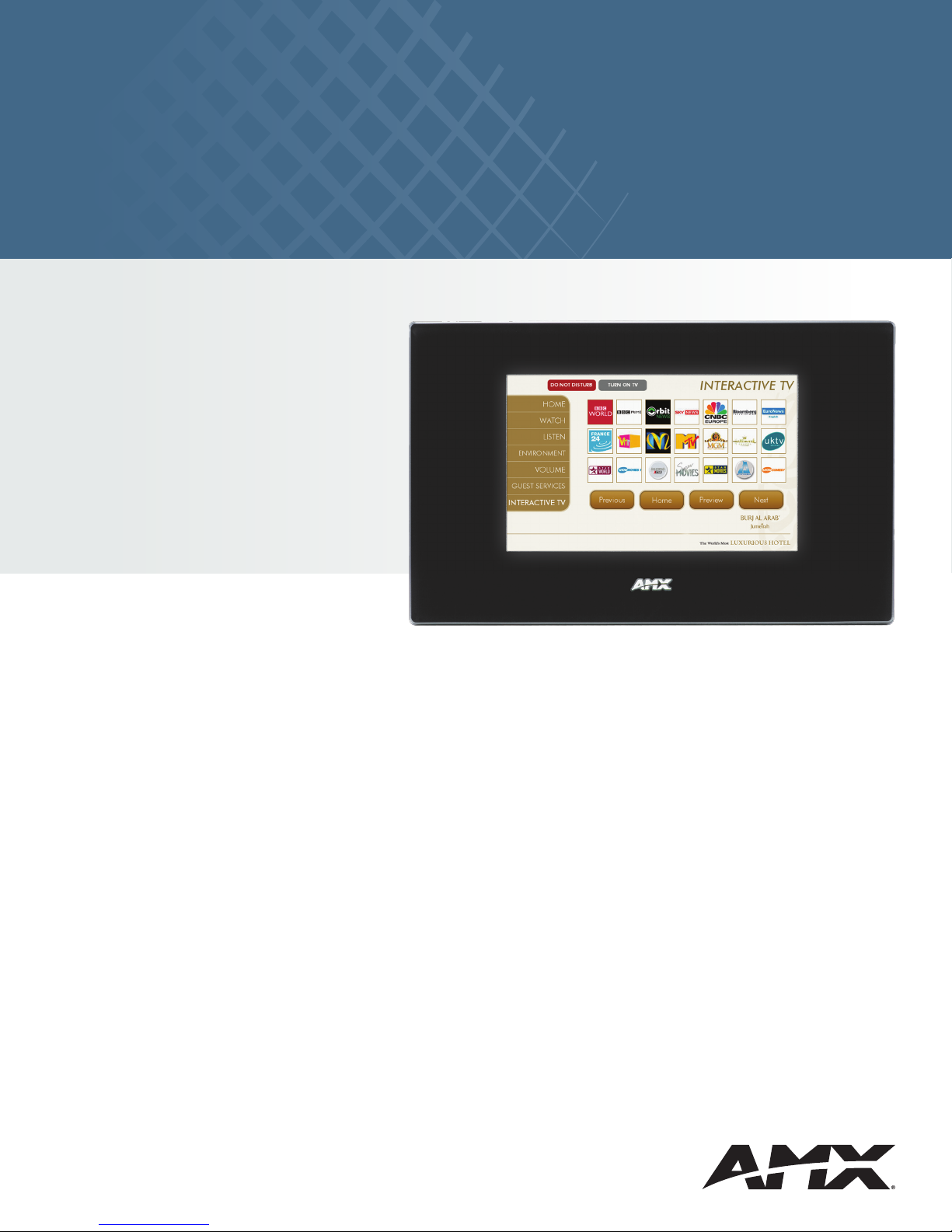

MVP-5100 DATA SHEET

Modero®Touch Panels

5.2” Modero

V i e w P o i n t ®IR

Widescreen

Touch Panel

The MVP-5100 brings a new level of simplicity to the 5.2” MVP family. The MVP-5100 is a 5.2” Touch

Panel built on the same lightning fast processor as the MVP-5200i and offers the same eye-popping, crisp,

clean, high-resolution graphics in an ultra-light compact design that is easy to carry around the home or

ofﬁce. The MVP-5100 offers cost-effective, one-way IR communication, perfect for controlling third party

IR devices from the bedroom to the conference room.

ULTRA BRIGHT WIDESCREEN DISPLAY

With 800x480 pixel resolution, the MVP-5100 is our brightest touch panel display. Colors are displayed crisply, clearly and

accurately. Its 16x9 screen size provides plenty of widescreen multimedia display options.

INCREASED INFRARED CAPABILITY

The MVP-5100 offers a total of ten IR ports: (1) 38kHz AMX port, (1) 455kHz AMX port, and (8) user-deﬁned IR ports for

direct communication with third party IR-enabled equipment.

• Ultra-light,compactandthinformfactor

• Fasterprocessingandenergyefcient

• High-glossblackstyling

• Chargingoptionsincludetablechargingstation(MVP-TCS52)andwallchargingstation(MVP-WCS52)

(kickstand not available)

• Justtherightfeaturesandjusttherightprice

• (10)IRports:(1)38kHzAMX,(1)455kHzAMX,(8)userIR

MVP-5100 DATA SHEET

3000 RESEARCH DRIVE, RICHARDSON, TX 75082 • 800.222.0193 • 469.624.8000 • +1.469.624.7400 • 469.624.7153 fax • www.amx.com

MVP-5100 (FG5966-08)

DIMENSIONS (HWD)

4 5/8” x 7 1/2” x 3/4” (11.7 cm x 19.1 cm x 2.0 cm)

POWER

110-240VAC +/- 10%, 50/60Hz

MINIMUM POWER SUPPLY REQUIRED

PS3.0 Power Supply (FG423-30):

All MVP-5100 models are shipped with this power supply

POWER MODES

•ON: All necessary modules are powered up and device remains online with

the Netlinx Master.

•STANDBY: LCD/backlight shutdown. Panel resumes the ON mode

instantly upon screen touch.

•FULL-OFF: Power to all peripherals and components is turned off.

Reboot required to wake.

CERTIFICATIONS

•FCC Part 15 Class B and CE

•IEC60950

BATTERY DURATION

•Three hours of continuous use

•2.5 days of normal use (25% On, 25% Standby, 50% Off)

MEMORY

•128 MB NAND FLASH

•256 MB Mobile DDRAM

WEIGHT

1.2 lbs (0.6 kg)

SCREEN PROPERTIES

•Contrast Ratio: 400:1

•Screen Resolution: 800 x 480 pixels WVGA

•Aspect Ratio: 16 x 9

•Brightness (Luminance): 300 cd/m2

•Display Colors: 262,144 colors (18-bit color depth)

•Dot/Pixel Pitch: 180 dpi

•Panel Type: TFT Color Active-Matrix

VIEWING ANGLE

+/- 60° (horizontal) and + 80°/- 40° (vertical)

OPERATING/STORAGE ENVIRONMENTS

•Operating Temperature: 0° C (32° F) to 40° C (104° F)

•Operating Humidity: 20% - 85% RH

•Storage Temperature: -20° C (-4° F) to 60° C (140° F)

•Storage Humidity: 5% - 85% RH

INCLUDED ACCESSORIES

•PS3.0 Power Supply (FG423-30)

•Stylus (pre-installed onto the left side of the unit)

•Integrated battery

MVP-5100

(Front View)

MVP-5100

(Right View)

MVP-5100

(Isometric View)

5.00

[127 mm]

7 1/2”

(19.1 cm)

4 5/8”

(11.7 cm)

3/4”

(2.0 cm)
