Ananda D15 Manuale utente
D15
Manual
Page 1of 11
Content
A. About the Manual................................................2
B. Appearance and size.............................................2
Material and Color..............................................2
Illustration....................................................2
Diagram.........................................................3
C. Product Functions...............................................3
D. Bottom Definition...............................................5
E. Installation....................................................5
F. Operation.......................................................6
1. Switch on/off................................................6
2.Turning on/off the lights.....................................7
3. Pas level and Walking Assistant Mode.........................8
4. Battery Capacity .............................................9
5. Error Code ...................................................9
G. Wire harness....................................................9
H. Q&A ...........................................................10
I. Quality commitment and warranty coverage.......................10
Warranty ......................................................10
Exception......................................................11
Error Code........................................................11
Page 2of 11
A. About the Manual
This Manual aims to help you to learn about installing and operating
D15-MSUP display.
B. Appearance and size
Material and Color
D15-MSUP display using emerald green LED display, 3 button operation,
light and beautiful appearance, and clear interface. Four-layer PCB, nylon
buckle, ABS shell, the material of the shell allows normal use at temperatures
from -20 ℃to 60 ℃, and can guarantee good mechanical properties.

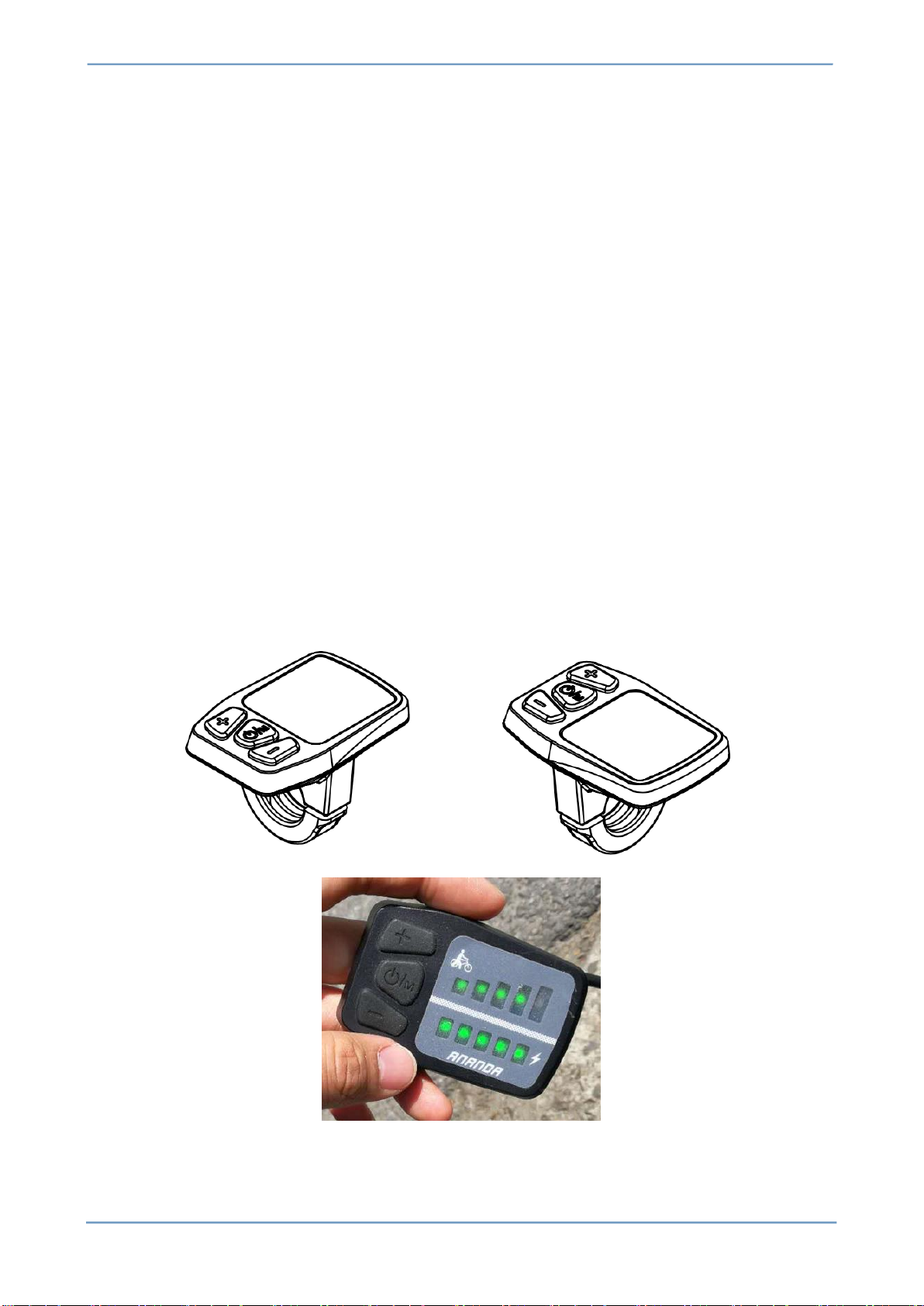

Illustration
Pic 2-1
Page 3of 11

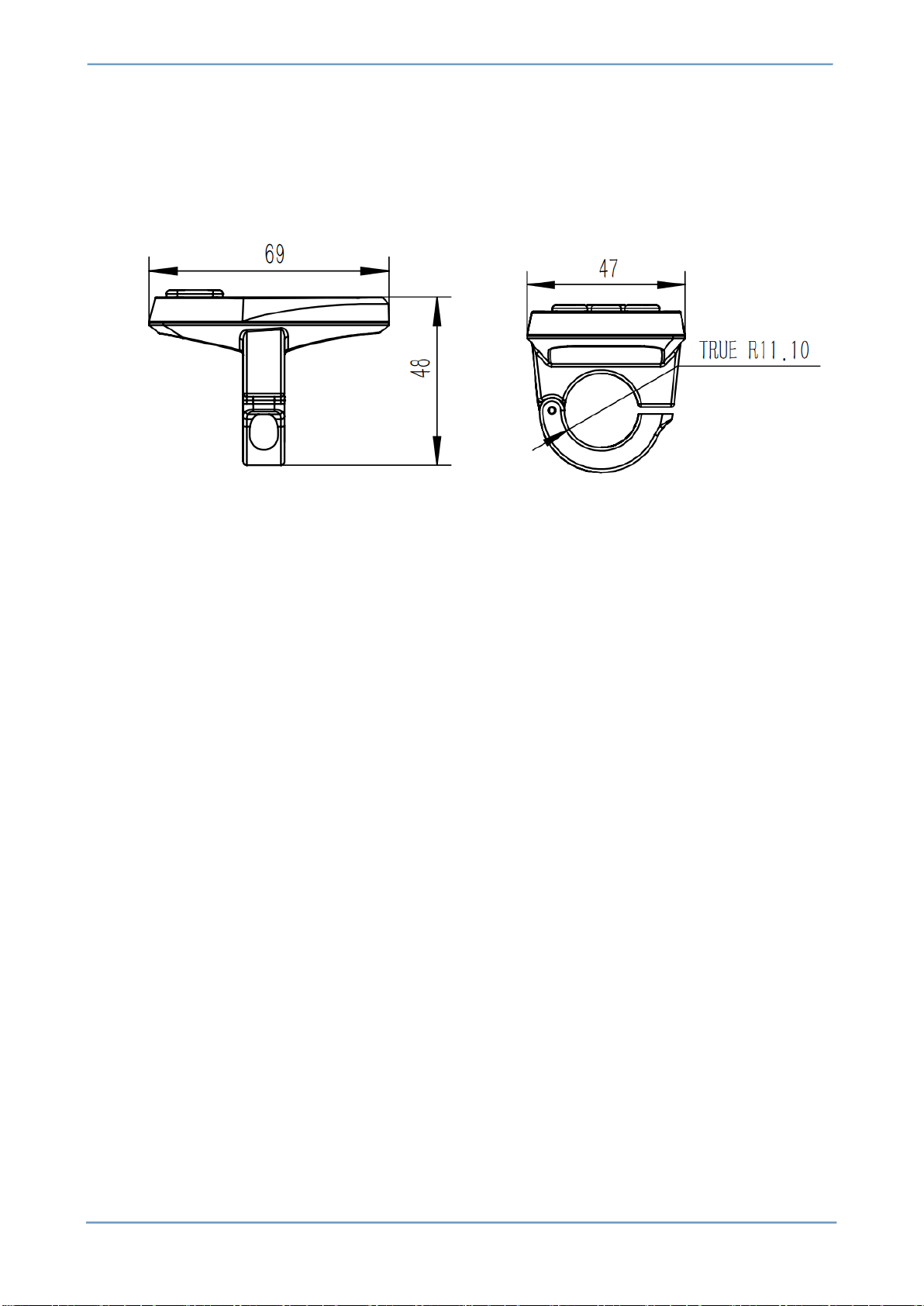

Diagram (mm)
Pic 2-2
C. Product Functions
D15-MSUP display is an emerald green LED display. It can match the
24V/36V/48V battery with wide voltage and integrate the headlight switch
function. This instrument communicates with the corresponding controller and
battery by UART communication. The main functions of D15 are: (as shown in
Pic 3-1 below)
◆Light Status
◆Pas Level
◆Battery Capacity
◆Error Code
◆Walking Assistant
Page 4of 11
Pic 3-1
Display Area
When the display is turned on, there will be an LED marquee, which is
very cool. The interface design and LED selection are clearly visible even in
the sun; and it is not glaring, making people look comfortable. The refreshing
design of the display interface and the unique design scheme make the
customer more convenient to use. As shown in Pic 3-2 below:
Plus
On/ Off
Minus
Remain battery
Pas level
Page 5of 11
Pic 3-2
D. Bottom Definition
D15-MSUPequipped with 3 buttons. Including key, open key, minus key.
Pic 4

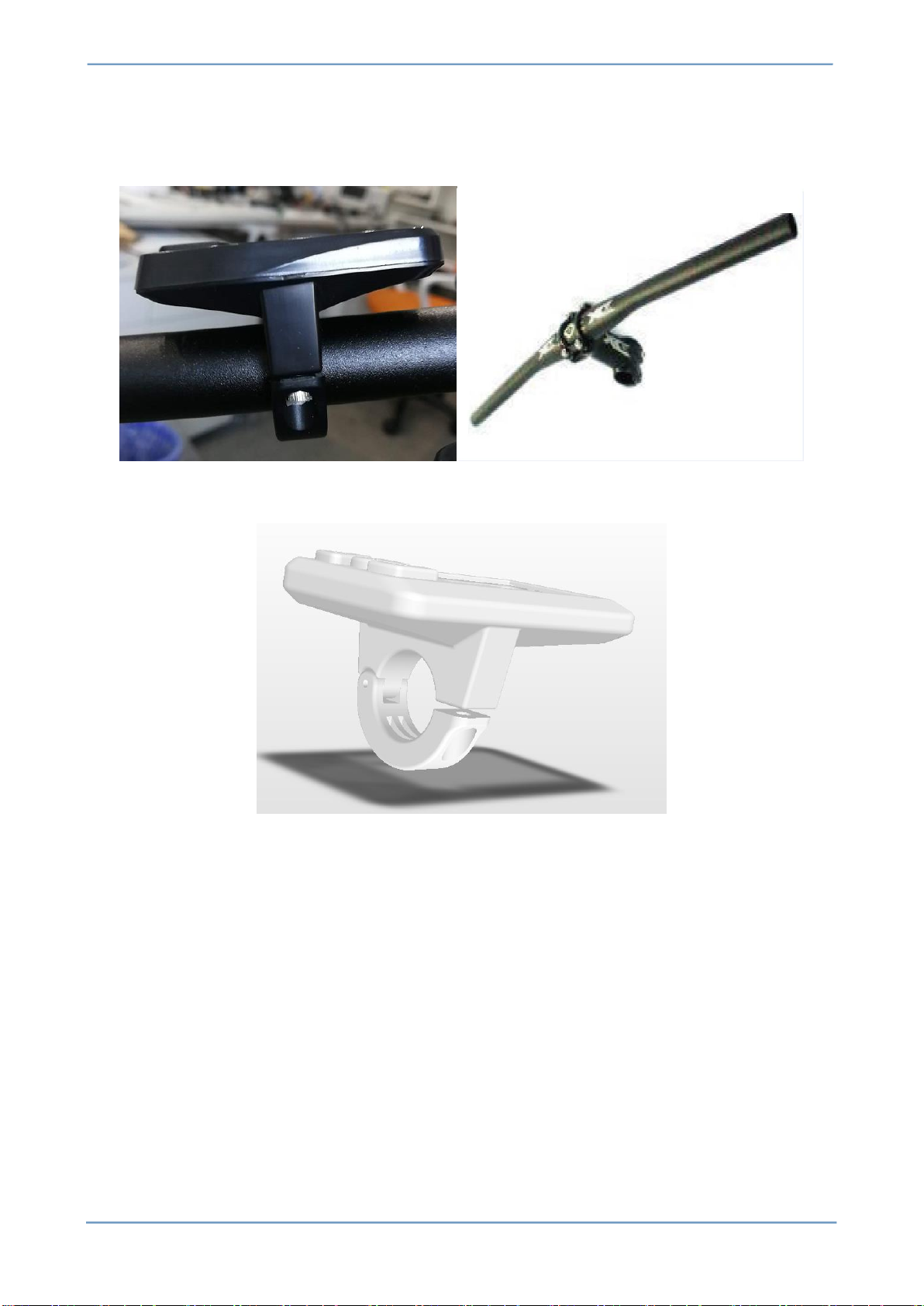

E. Installation
Fix the display and bolt on the handlebar, adjust the proper angle of view,
and screw on the bolt in an easy-to-manipulate position. Tighten the screws to
complete the installation.
Plus
On/ Off
Minus
Page 6of 11
Insect bolt on the handlebar
Tighten the screws to complete the installation
F. Operation
1.Switch on/off
Long press the key for 1 second, the display is turned on, there will be
LED marquee when the power is turned on, the power assisted gear
defaults to 1st gear, the right LED light will have corresponding battery
power indication, and the instrument provides the controller working power.
In the power on state, press and hold the key for 2 seconds to turn off the
Page 7of 11
power system. In the off state, the meter no longer uses the battery's power
supply, and the meter's leakage current is less than 1μA. The operation
process is as shown in Pic 6-1:
Pic 6-1
2. Turning on/off the lights
In the power-on state, long press the button for 2 seconds and the
headlights turn on; press and hold the button for 2 seconds to turn off the
headlights. As shown in Pic 6-2:
Pic 6-2
In the power-on state, long press
the button for 2 seconds and the
headlights turn on; press and hold
the button for 2 seconds to turn off
the headlights
Long press 1s to star; long
press 2 s to turn off
Page 8of 11
3. Pas level and Walking Assistant Mode
In the power-on state, the pas position is 5 segments of LED display. By
adding and subtracting keys, the electric vehicle assist gear position is
switched, and the motor output power is changed. The instrument output
power range is 0-5 oas. (The pas range is adjustable, after starting. The
power assist file defaults to 1 file), and the LEDs on the left side of the
booster gear are displayed in order from bottom to top. Pressing and holding
the minus button does not release, it will enter the walking assistant mode,
at which point all the LEDs will flash. Release the minus button to exit the
waking assistant mode and the pas LED stops flashing. (any pas level can
be entered) The walking assistant mode and pas display are shown in Pic
6-3:
Pic 6-3
During working, press Plus to
add Pas, default is 0-5
During working, press Minus to
decrease pas, and long press to
start Walking Assistant Mode
Page 9of 11

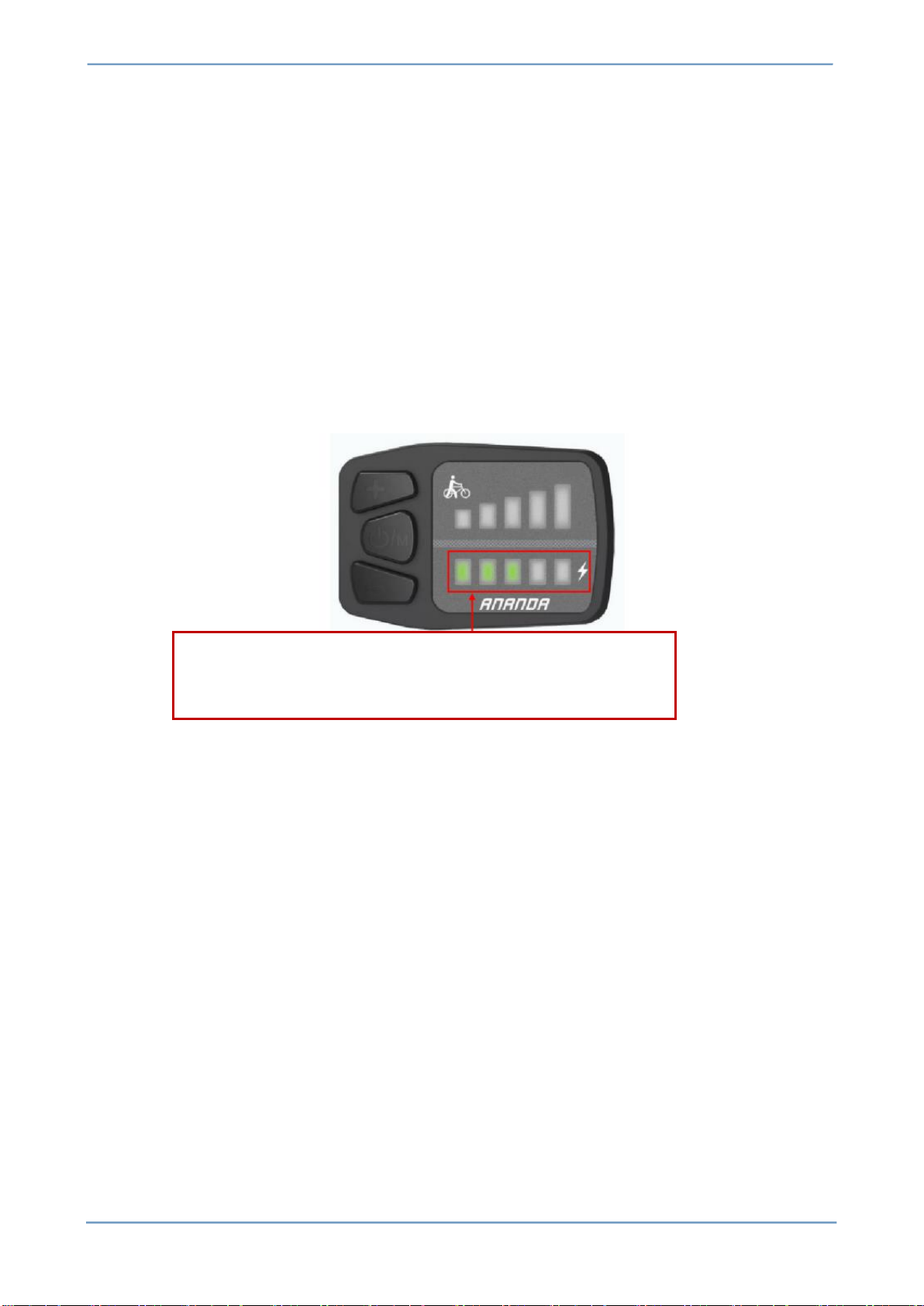

4. Battery Capacity
The battery power is displayed in 5 segments. When the battery is fully
charged, the right LED is fully illuminated; when the battery is under voltage,
the right LED flashes and needs to be charged immediately. The battery level
is displayed from bottom to top in increments. As shown in Pic 6-4:
Pic 6-4
5. Error Code
When the electric vehicle's electronic control system fails, the meter LED
will flash to display the error code. And stop normal work, only when the fault
is eliminated can exit the fault display interface (even if the meter is turned off
without troubleshooting, the instrument will not work normally after restarting
the instrument), the error reason displayed is detailed in the attached error
code list.
G. Wire harness
The 5-segment LED display shows that the power is increased
from bottom to top.When the battery is under voltage, the first LED
on the right side flashes and needs to be charged immediately.
