Andersen A2 Manuale utente
www.andersen-ev.com
A2
A2-012020V1

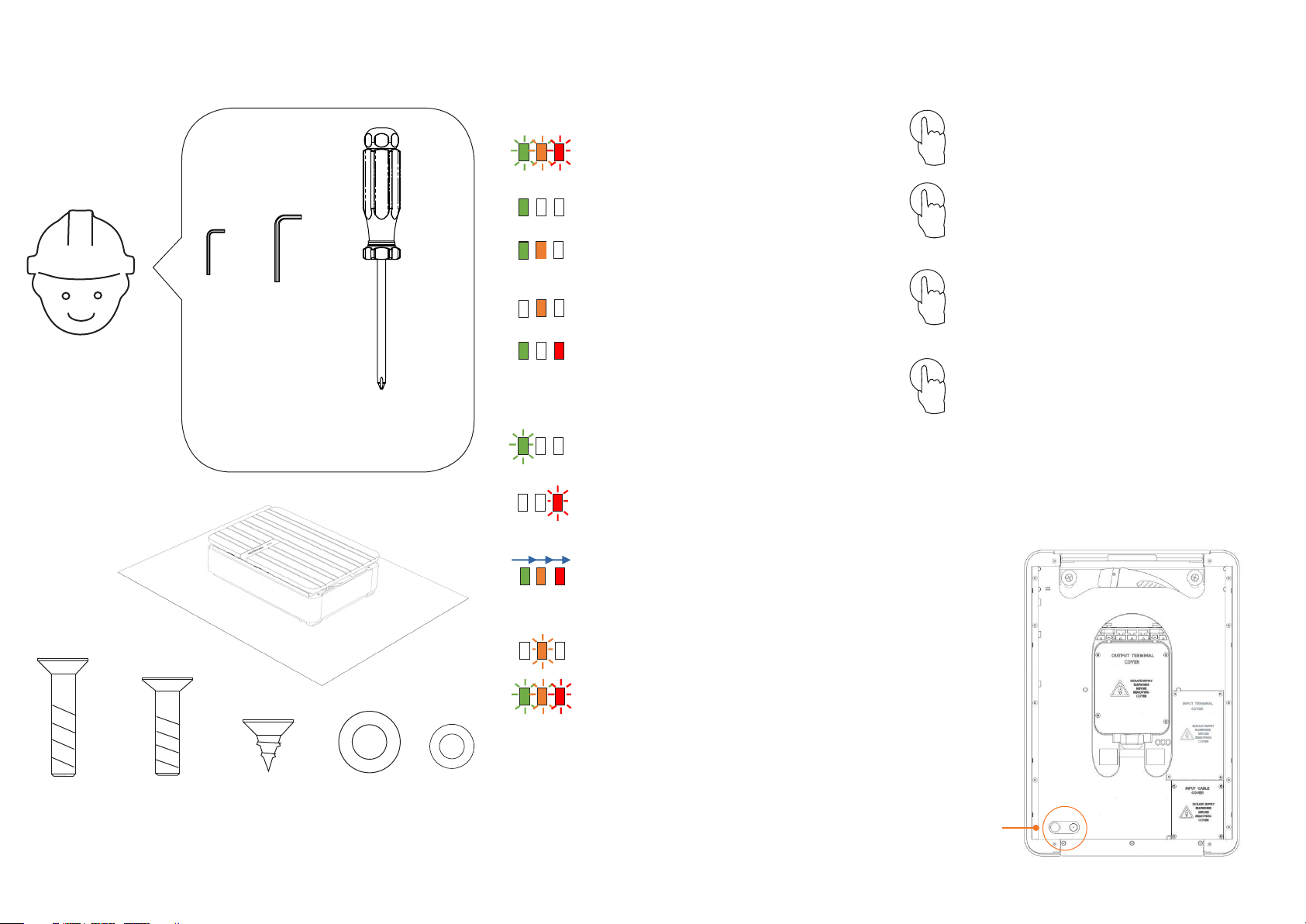

2mm and 3mm
alan key
screwdriver
philips head
(cross head)
x29
M3 x 16mm
long screw
x4
M5 x 8mm
counter
sunk screw
x2
6mm
washer
x2
6mm
penny
washer
ANDERSEN A2
x2
M5 x 12mm
long screw
OPERATION LED STATUS
System powering up. Red, Amber, Green
LED flash together twice a second
Standby State (solid green)
Vehicle connected state (solid green & solid
amber)
Vehicle charging state (solid amber)
Charge point locked or awaiting scheduled
charge (solid green & solid red)
ERROR & UPDATE LED STATUS
Disconnected from network/cloud (green
LED flash every 5 seconds)
RCM or charge error (blip red every sec-
ond)
Firmware upgrade (sequence of green,
amber, red for duration of upgrade)
SETUP LED STATUS
Wifi Setup (Amber LED flash once per second)
Reset warning. Red, Amber, Green LED flash
4 times per second.
SETUP MULTI FUNCTION OPERATION
Reset RCM (Two button presses)
Enter Network setup mode (Three button
presses)
Exit Network setup mode
(One button press)
Enter unit reset mode (Five button presses)
+ Exit Timeout 30 secs
x2
x3
x1
Multi function
button located
at the bottom
left inside the
cable slot
x5

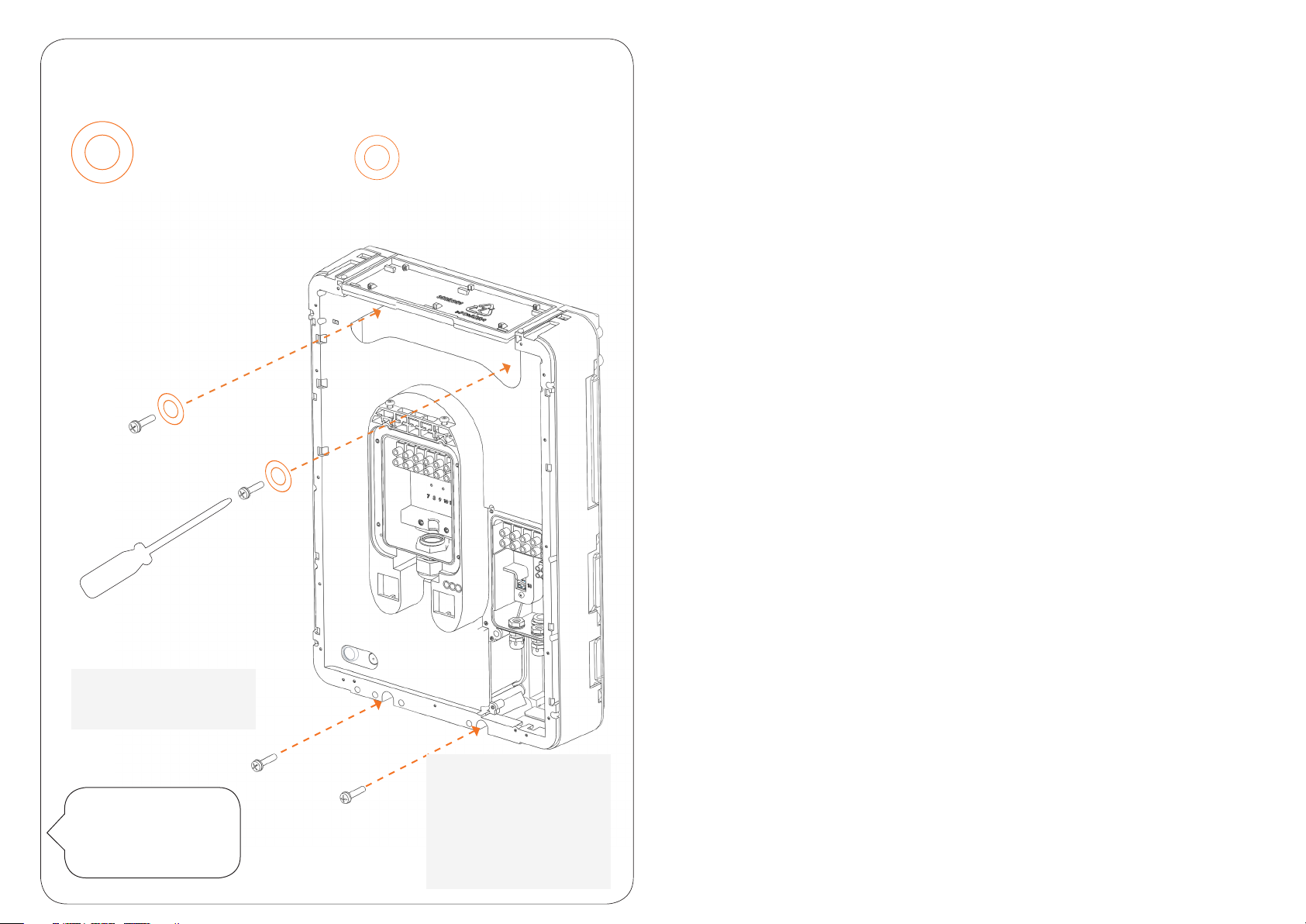

Step 1: Fix A2 unit to wall
TIP!
Drill template on the
bottom of the unit
Notes:
If the mounted
surface is uneven use
spacers to ensure
the unit core is sitting
flush to the wall
x2
6mm penny washer
we don’t provide
these screws
x2
6mm washer
Step 2: Prepare A2 core for supply
cable entry
Fig:1
Default cable entry is
from the rear See Fig: 1
Bottom entry drill out cable entry
section with 20 25mm hole saw,
see Fig :2
Use rubber grommet from the rear
cable entry hole
Note:
this can be done on wall
Fig 1
Fig 1
Step 3: Terminate supply power cable
Single Phase installation Three Phase installation
Note:
HI TUFF cable not
recommended, It
is very dicult to
terminate
Important.
Make sure the
gland is tightened
after cable
installation
TIP!
Suggested cable
types PVC or
SWA
x29
M3 x 16mm
long screw
EL1
NEL1
NL2 L3
Single Phase installation Three Phase installation
Incoming single
phase supply
Incoming three
phase supply
Step 4: Terminate sensor & data cables
AEPS (Advanced Earth
Protection System) Sensor
* Optional
Solar CT sensor cable
* Optional
Dynamic fuse CT sensor
cable
* Optional
Ethernet CAT5E/CAT 6
* Optional
To AEPS sensor
Refer to earth
protection pamphlet for
installation information
To solar CT
Note: Fix CT clamp
to PV inverter supply.
Orientation can be
determined during
testing.
Recommended Cable:
Shielded twisted
pair e.g. CAT5e/CAT6
To dynamic fuse CT
Note: Fix CT clamp
to incoming supply.
Orientation can be
determined during
testing. Sensor orientation
can be adjusted in
dashboard using a load
reference i.e. kettle 3Kw
Recommended Cable:
Shielded twisted
pair e.g. CAT5e/CAT6
To network router
If you have questions use our
helpful support resources
www.andersen-ev.com/support
support@Andersen-ev.com
+44 (0) 203 8904510
Andersen Chat
Step 5: Terminate vehicle side
charge cable
Single Phase cable Three Phase cable
EL1
NL2 L3
P
Important.
Ensure cable
stress relief
clamp is
correctly
tightened
Important.
Make sure
the gland is
tightened
after cable
installation!
EL1
NL2 L3
P
Step 5: Terminate vehicle side
charge cable
Single Phase cable Three Phase cable
EL1
NL2 L3
P
Important.
Ensure cable
stress relief
clamp is
correctly
tightened
Important.
Make sure
the gland is
tightened
after cable
installation!
EL1
NL2 L3
P
Step 6: Fit weather project covers
A: Fit Output terminal cover
Ensure seals are correctly
positioned and fixing
screws correctly torqued to
2.5nM
B: Fit input terminal cover
Ensure seals are correctly
positioned and fixing
screwscorrectly torqued
to 2.5nM
C: Fit input supply cover
Ensure seals are correctly
positioned and fixing
screwscorrectly torqued
to 2.5nM
x12
M3 x 16mm long
countersunk screw
steel
Torque setting must be
2.5nM

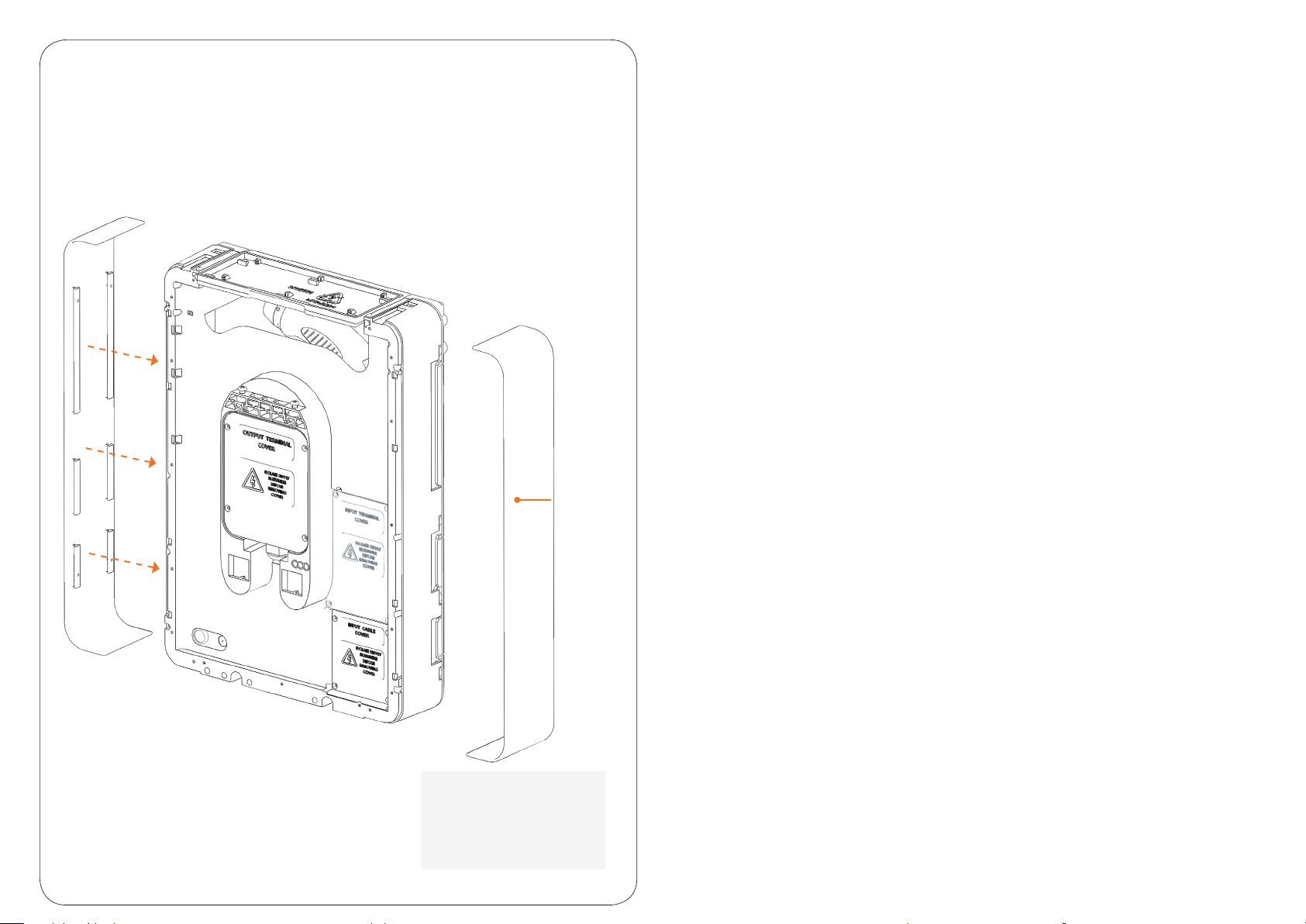

Step 7: Fit side panels
Click input
side panels
Note:
For further tips and
tricks see our support
videos
