Angenieux OPTIMO ULTRA COMPACT Manuale utente
User manual
OPTIMO ULTRA
COMPACT
User manual V1.1
Ref : 66070209AA
2
All rights reserved.
THALES LAS FRANCE ANGÉNIEUX division. Photos and drawings are not contractually binding. The data is given for information.
THALES LAS FRANCE ANGÉNIEUX division reserves the right to change the performances of its products without notice.
This document is the full and sole property of THALES LAS FRANCE ANGÉNIEUX division. Any reproduction, rights of reproduction,
translation, modification, publication on material or digital medium in whole or in part of the document, is strictly forbidden.
Before using the product described in this manual, be sure to read and understand all respective instructions. This instruction manual
applies to Optimo Ultra Compact lens.
Miscellaneous
3
Congratulations on the purchase of Angénieux Optimo Ultra Compact. The Optimo Ultra Compact provides full frame 46.3mm image
circle coverage with a minimum 2.9 T-stop and have identical colorimetry than the legacy Optimo zooms, and Optimo Primes.
Available with PL mount, it is the perfect companion for your digital camera.
Optimo Ultra compact has support Cooke/i and is ARRI LDS2 ready.
This user manual describes the different configurations and uses of your lens. If you need additional information, don’t hesitate to
contact us at [email protected]. Additional product documentation is available on the Angénieux website at the
service and support page: https://www.angenieux.com/service-and-support/.
Foreword
4
0 - Safety information............................................................................................................................................2
1 - What’s in the box? ...........................................................................................................................................2
2 –Technical information......................................................................................................................................2
3 - General view and installation ...........................................................................................................................2
4 - Spare parts and optional accessories ..............................................................................................................2
5 - Electronics specifications.................................................................................................................................2
6 - Ajustements.....................................................................................................................................................2
7 - Maintenance recommendations.......................................................................................................................2
8 - Outline drawings..............................................................................................................................................2
9 –Engraving distances detail ..............................................................................................................................2
Contents
5
CAUTION
Always follow these guidelines to ensure against injury to yourself or others and damage to the system or other objects.
This safety information comes in addition to the product specific operating instructions in general and must be strictly observed
for safety reasons.
Read and understand all safety and operating instructions before you operate or install the lens.
Do not use accessories or attachments that are not recommended by Angénieux, as they may cause hazards and invalidate
the warranty.
Do not attempt to repair any part of the system. Repairs must only be carried out by authorized Angénieux Service Centers.
WARNINGS
Handle any lens with care.
Do not expose lens to water or moisture.
Do not subject the lens to severe shocks.
Never insert objects of any kind into any part of the lens if these are not clearly qualified for the task in the manual.
Do not remove any paint marked screws.
Changing camera lenses should be done in a dry and dust-free environment. If this is not possible, take extra care that no dust
enters the camera while the lens is off.
Keep the protective caps on the lens when not set on camera or not in operation.
Follow the cleaning instructions in this manual to avoid damage of the lens.
Do not look at high intensity light directly through any lens.
0 - Safety information
6
STORAGE CONDITIONS
Store any lens in a dry place where the temperature does not exceed –40°C and +70°C (- 40°F and + 158°F).
Do not store the lens in places where it may be subject to extreme temperatures, direct sunlight, high humidity, severe vibration,
or strong magnetic fields.
Condensation: When moving the lens from a cold to a warm location or when the lens is used in a damp environment,
condensation may appear on glass surfaces and on internal or external electrical connections. Operating the lenses while
condensation is present may result in damage to the equipment. Condensation on the optical components may have a visible
effect on the output images. To prevent condensation, store the lens in a dry area. If the lens is in a humid area, dry it and
store it a plastic bag with desiccant before using it. After moving the lens from cold to warm and humid environment, wait for
some time for the lens to warm up to the ambient temperature to avoid condensation.
TEMPERATURE OF OPERATION
Any lens is designed to be used between - 20°C and + 45°C (- 4°F and + 113°F).
The opto-mechanical design is passively athermalized. It allows Optimo Ultra Compact to prevent from a back focus shift with
temperature changes.
RECYCLING AND ENVIRONMENT
Follow the guidance sets up by your local authority for recycling the Optimo Ultra Compact.
0 - Safety information
7
1 - What’s in the box?
In case you require any assistance or noticed a missing or broken item please
Set of 9x color shims for back focus
adjustment (see section 6)
Optimo Ultra Compact
Box
Levers x2
Intermediate lens
brackets x2
Product information and
QR code link to access
to the user manual
21XXXXX
8
ANGENIEUX OPTIMO ULTRA COMPACT
CONFIGURATION
FF/VV
Zoom ratio
2,7x
Focale Length (mm)
37-102
Maximum aperture
T2.9
Minimum Object Distance (ft)/(m)
2' / 0,6m
Image coverage (mm)
46,3
Weight (kg / lbs)
2,6 / 5,73
Front diameter (mm)
114
Max diameter (mm)
114
Length (front to mount) (mm)
235mm = 9 1/4 in
Mounts
PL
Internal focus
Yes
Iris scales 2 opposite scales
2 opposite scales
Angular rotation of iris ring (°)
71,4°
Iris gear drive
126 teeth, pitch 32
Zoom scales
2 opposite scales
Angular rotation of zoom ring (°)
150°
Zoom gear drive
126 teeth, pitch 32
Focus scales
2 opposite scales, metric
or footage marked
Angular rotation of focus ring (°)
310°
Focus gear drive
126 teeth, pitch 32
Angular Field of View (for Full-Frame :40.96x21.6mm)
Focal Length
37mm / 102mm
Horizontal angular field of view
57.3° / 22.7°
Object dimensions at MOD (mm)
449 x 237 / 159 x 84
2 –Technical information
9

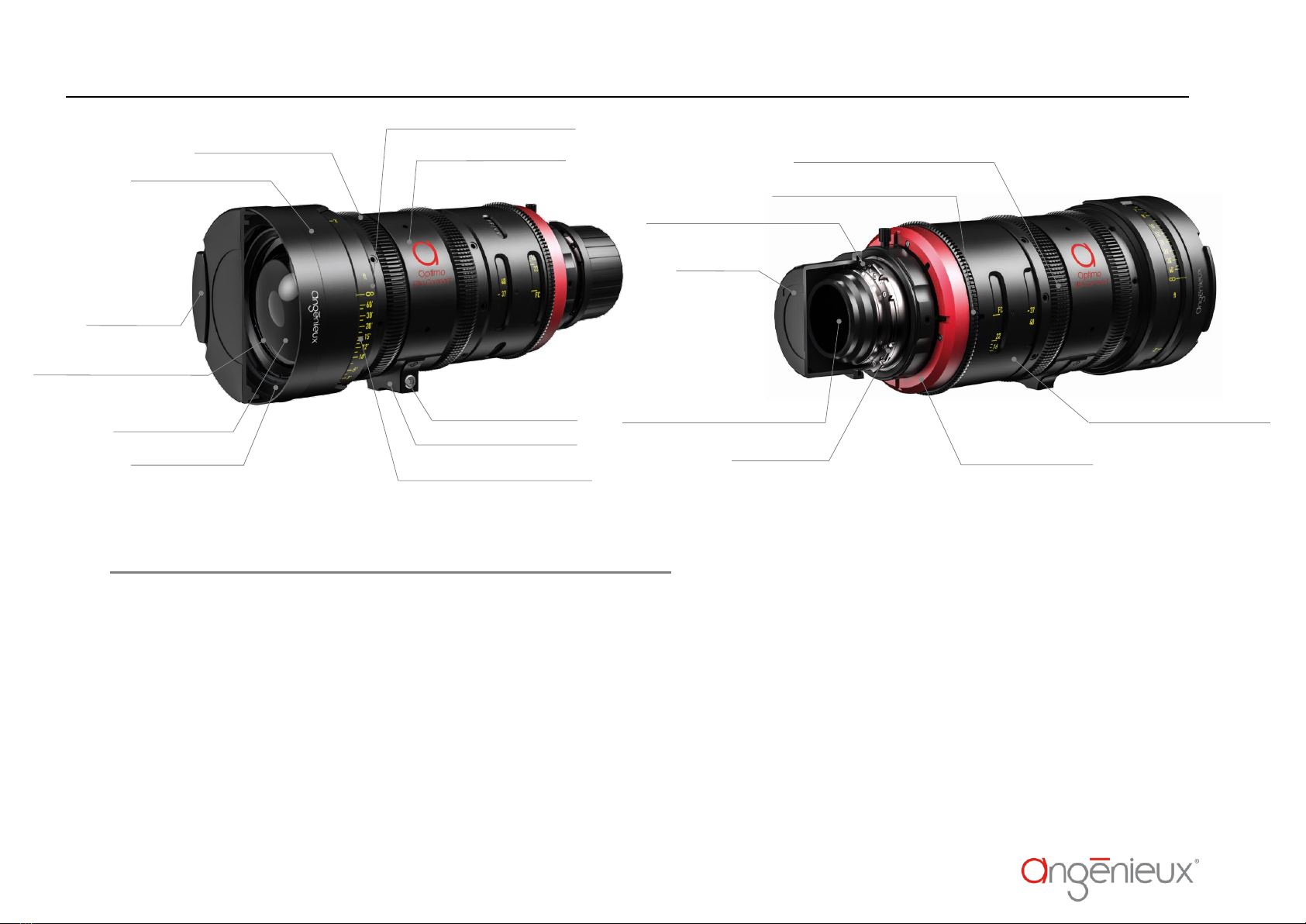

0 - Front cap
1 - Front protective glass
2 - Front element
4 - Front brand ring
5 - Engraved focus ring
Swappable feet ◄►meter
(see more in section 7)
Available in option
6 - Focus gear ring
7 - Lens support
8 - LEMO connector
9 - Focus ring screws (x3)
10 - Middle brand ring
3 - Front cover
12 - Connector for metadata
16 - Engraved zoom gear ring
18 - Zoom & iris index ring
15 –engraved iris gear ring
17 - Deco red ring
14 - PL mount
11 - Rear cap
13 - Rear Filter Sub assembly
For a standard installation on camera please proceed as below:
- Remove the rear cap (11) and make sure the rear filter (13) is clean. If not, please refer to maintenance (section 7)
- Make sure the Optimo Ultra Compact PL mount (14) and camera mount are perfectly clean
- Mount the Optimo Ultra Compact on the camera mount with electronic pins (12) in the correct orientation. Lock the camera
mount
- Remove the front cap (0) and make sure the front element (2) is clean. If not, please refer to maintenance (section 7)
- While using motors, to prevent damaging the lens mechanisms make sure the motors are calibrated properly before operating
them
3 - General view and installation
10
In case you need additional spare parts, please contact your local reseller or our service team at:angenieuxserv[email protected].
SPARE PARTS
(0) - Front cap
0311819
(2) - Front element
To be defined
(3) –Front cover
66068379AA
(4) - Front brand ring
66069059AA
(5) - Engraved focus ring
To be defined
(6) - Focus gear ring
66066724AA
(7) - Lens support / (8) - LEMO connector
66066730AA / 0319314
(9) - Focus ring screws (x3)
0990297
(10) - Middle brand ring
66069060AA
(11) - Rear cap
0311816
(12) - Connector for metadata
66066447AA
(13) - Rear Filter
66066659AA
(14) - PL mount
66066785AA
(15) - Iris gear ring
66069632BA
(16) - Engraved zoom gear ring
66066723BA
(17) - Deco red ring
66066352AA
(18) - Zoom & iris index ring
66066722AA
Flange shim set of 9 shims (see size detail in section 6)
0321060
Screws for lens support including LEMO connector holder (x2 with thread lock)
0982467
Screws for camera interface metadata connector (x2)
0913327
Screw for middle brand ring (x1)
0984957
Screws for front brand ring (x3)
0982397
Screw for zoom and iris index ring (x3)
0984957
Screws for engraved focus ring (x3)
0990297
ADDITIONAL ACCESSORIES COMPATIBLE
Lemo to USB cable for computer electronic settings
66068093AA
Electronic setting software to be downloaded
https://www.angenieux.com/service-and-support/
(1) - Front protective glass
66069167AA
Additional feet / meter focus ring (swapping procedure section 6)
Feet: 66066725BA / Meter: 66066725CA
4 - Spare parts and optional accessories
