ANSEL 2515

108M Wireless Router

Specifications are subject to change without notice. ANSEL is a registered trademark of

ANSEL DE MEXICO S DE R.L. DE C.V., Other brands and product names are

trademarks or registered trademarks of their respective holders.

FCC STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

•Consult the dealer or an experienced radio/ TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following

two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that

may cause undesired operation.

FCC RF Radiation Exposure Statement

This equipment complies with FCC RF radiation exposure limits set forth for an

uncontrolled environment. This device and its antenna must not be co-located or

operating in conjunction with any other antenna or transmitter.

“To comply with FCC RF exposure compliance requirements, this grant is applicable to

only Mobile Configurations. The antennas used for this transmitter must be installed to

provide a separation distance of at least 20 cm from all persons and must not be

co-located or operating in conjunction with any other antenna or transmitter.”

CE Mark Warning

This is a class B product. In a domestic environment, this product may cause radio

interference, in which case the user may be required to take adequate measures.

Package contents

The following contents should be found in your box:

¾One 2515 108Mbps Wireless Router

¾One AC power Adapter for 2515 108Mbps Wireless Router

¾Quick Installation Guide

¾One Resource CD for 2515 108Mbps Wireless Router, including:

•This Guide

•Other Helpful Information

)Note:

If any of the listed contents are damaged or missing, please contact the retailer from

whom you purchased the 2515108Mbps Wireless Router for assistance.

COMMENT

Chapter 1. About this Guide ...................................................................... 1

1.1 Purposes ........................................................................................................1

1.2 Conventions ...................................................................................................1

1.3 Overview of this User Guide...........................................................................1

Chapter 2. Introduction .............................................................................. 2

2.1 Overview of the Router...................................................................................2

2.2 Features .........................................................................................................2

2.3 Panel Layout ..................................................................................................3

2.3.1 The Front Panel ...................................................................................................3

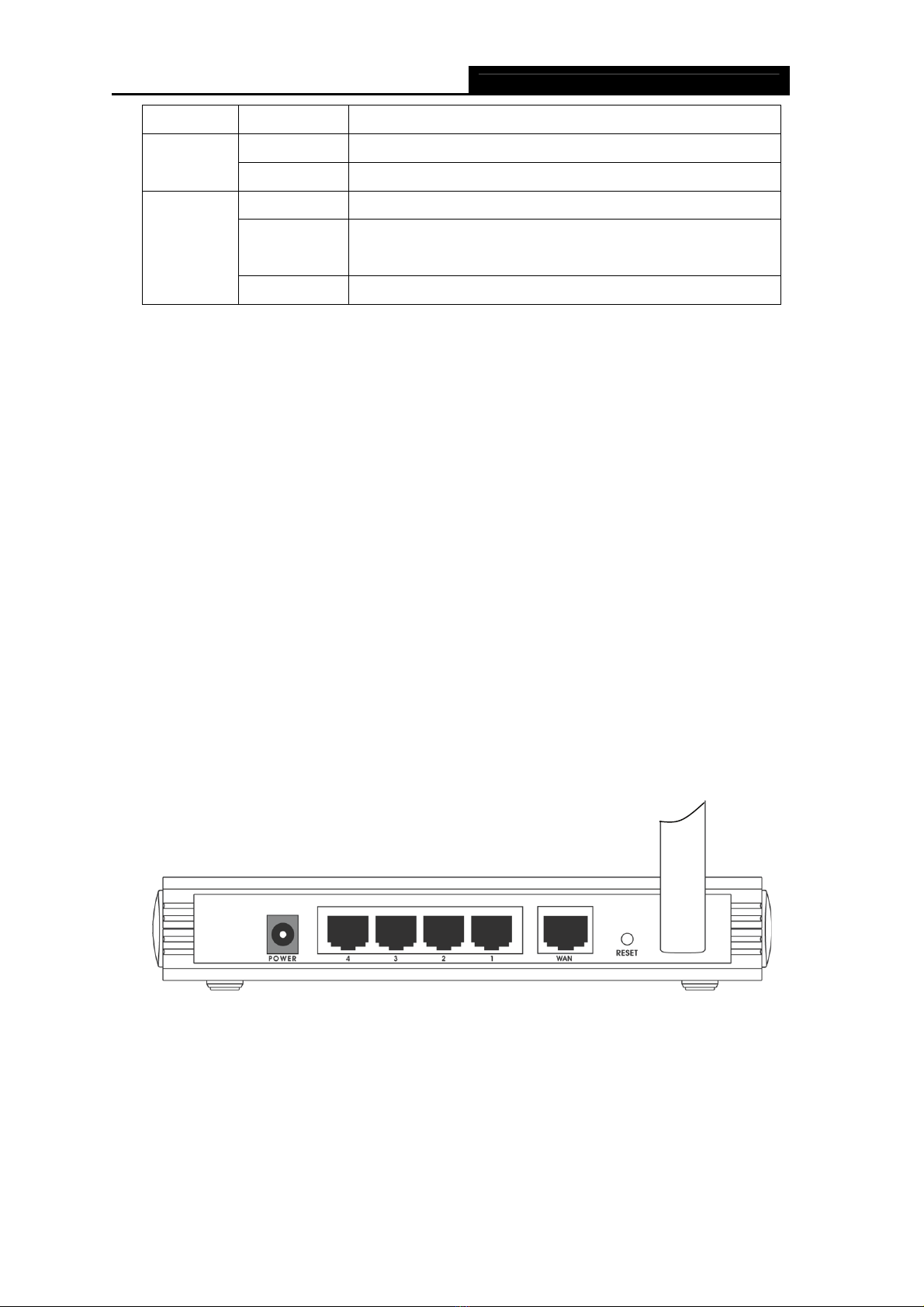

2.3.2 The Rear Panel....................................................................................................4

Chapter 3. Connecting the Router ............................................................ 5

3.1 System Requirements ....................................................................................5

3.2 Installation Environment Requirements..........................................................5

3.3 Connecting the Router ...................................................................................5

Chapter 4. Quick Installation Guide .......................................................... 7

4.1 TCP/IP configuration ......................................................................................7

4.2 Quick Installation Guide .................................................................................9

Chapter 5. Configuring the Router.......................................................... 13

5.1 Login.............................................................................................................13

5.2 Status ...........................................................................................................13

5.3 Quick Setup..................................................................................................14

5.4 Network ........................................................................................................15

5.4.1 LAN ....................................................................................................................15

5.4.2 WAN...................................................................................................................15

5.4.3 MAC Clone.........................................................................................................26

5.5 Wireless........................................................................................................27

5.5.1 Wireless Settings ...............................................................................................27

5.5.2 MAC Filtering .....................................................................................................30

5.5.3 Wireless Statistics..............................................................................................33

5.6 DHCP ...........................................................................................................34

5.6.1 DHCP Settings...................................................................................................34

5.6.2 DHCP Clients List ..............................................................................................35

5.6.3 Address Reservation .........................................................................................36

5.7 Forwarding ...................................................................................................37

5.7.1 Virtual Servers ...................................................................................................37

5.7.2 Port Triggering ...................................................................................................39

5.7.3 DMZ ...................................................................................................................40

5.7.4 UPnP..................................................................................................................41

5.8 Security ........................................................................................................42

5.8.1 Firewall...............................................................................................................42

5.8.2 IP Address Filtering............................................................................................43

5.8.3 Domain Filtering.................................................................................................45

5.8.4 MAC Filtering .....................................................................................................46

5.8.5 Remote Management ........................................................................................48

5.8.6 Advanced Security.............................................................................................49

5.9 IP & MAC Binding Setting ............................................................................50

5.9.1 Binding Setting...................................................................................................51

5.9.2 ARP List .............................................................................................................52

5.10 Static Routing............................................................................................53

5.11 DDNS........................................................................................................54

5.11.1 Dyndns.org DDNS .............................................................................................54

5.11.2 Oray.net DDNS ..................................................................................................55

5.11.3 Comexe.cn DDNS..............................................................................................56

5.12 System Tools ............................................................................................57

5.12.1 Time ...................................................................................................................57

5.12.2 Firmware ............................................................................................................58

5.12.3 Factory Defaults.................................................................................................59

5.12.4 Backup and Restore ..........................................................................................59

5.12.5 Reboot ...............................................................................................................60

5.12.6 Password ...........................................................................................................60

5.12.7 Log .....................................................................................................................61

5.12.8 Statistics.............................................................................................................61

Appendix A: FAQ ......................................................................................... 62

Appendix B:Configuring the PCs ............................................................... 67

Appendix C: Specifications......................................................................... 71

Appendix D: Glossary ................................................................................. 72

Appendix E: Contact Information ............................................................... 74

2515 108M Wireless Router User Guide

Chapter 1.About this Guide

Thank you for choosing the 2515 108Mbps Wireless Router. This router provides dedicated

solution for Small Office/Home Office (SOHO) networks. With your network all connected, your

local wired or wireless network can share Internet access, files and fun for multiple PCs through

one ISP account.

It adopts 108M Super G™WLAN Transmission Technology, which offers the highest

throughput performance available on the market today, and data rates of up to 108Mbps. In

dynamic 108M mode, the router can attach IEEE 802.11b, 802.11g and 108Mbps Super G™

devices at the same time in an integrated environment.

It adopts 2x to 3x eXtended Range™WLAN transmission technology so that transmission

distance is 2-3 times of traditional IEEE 802.11g and IEEE 802.11b solutions, up to 855.36m

tested in China. The transmission range is extended to 4-9 times.

It is an easy Web-based setup for installation and management. Even though you may not be

familiar with the router, this guide will make configuring the router easy. Before installing the

router, please look through this guide to know all the router’s functions.

1.1 Purposes

This Guide tells you how to use the 2515 108Mbps Wireless Router.

1.2 Conventions

The router mentioned in this guide stands for 2515 108Mbps Wireless Router.

1.3 Overview of this User Guide

Chapter 1: About this Guide

Chapter 2: Introduction

Chapter 3: Connecting the Router

Chapter 4: Quick Installation Guide

Chapter 5: Configuring the Router

Appendix A: FAQ

Appendix B: Configuring the PC

Appendix C: Specifications

Appendix D: Glossary

Appendix E: Contact Information

2515 108M Wireless Router User Guide

Chapter 2.Introduction

2.1 Overview of the Router

The 2515 108Mbps Wireless Router integrates 4-port Switch, Firewall, NAT-router and Wireless AP.

Its design is dedicated to Small Office/Home Office (SOHO) wireless network solutions. The 2515

108Mbps Wireless Router will allow you to connect your network wirelessly better than ever, sharing

Internet Access, files and fun, easily and securely.

In the most attentive wireless security, the 2515 108Mbps Wireless Router provides multiple

protection measures. It can be set to turn off the wireless network name (SSID) broadcast so that

only stations that have the SSID can be connected. The router provides wireless LAN

64/128/152-bit WEP encryption security, and WPA/WPA2 and WPA-PSK/WPA2-PSK

authentication, as well as TKIP/AES encryption security. It also supports VPN Pass-through for

sensitive data secure transmission.

The 2515 108Mbps Wireless Router complies with the IEEE 802.11g and IEEE 802.11b standards

and adopts 108M Super G™WLAN transmission technology so that the data transmission rate is

up to 108Mbps. It adopts 2x to 3x eXtended Range™WLAN transmission technology so that

transmission distance is 2-3 times that of traditional IEEE 802.11g and IEEE 802.11b solutions, up to

a distance of 855.36m tested in China. Transmission range is extended to 4-9 times. It is compatible

with all IEEE 802.11g and IEEE 802.11b products.

The 2515 108Mbps Wireless Router provides flexible access control so that parents or network

administrators can establish restricted access policies for children or staff. It has built-in NAT and

DHCP server supporting static IP address distributing. It also supports Virtual Server and DMZ host

for Port Triggering needs, and remote management and log so that network administrators can

manage and monitor the network in real time.

The 2515 108Mbps Wireless Router is easy-to-manage. Quick Setup is supported and friendly

help messages are provided for every step. So you can configure it quickly and share Internet

access, files and fun.

2.2 Features

¾Complies with IEEE 802.11g, IEEE 802.11b, IEEE 802.3, IEEE 802.3u standards.

¾1 10/100M Auto-Negotiation RJ45 WAN port, 4 10/100M Auto-Negotiation RJ45 LAN ports,

supporting Auto MDI/MDIX.

¾Adopts 2x to 3x eXtended Range™ and 108M Super G™ wireless LAN transmission

technology.

¾Supports 108/54/48/36/24/18/12/9/6Mbps or 11/5.5/3/2/1Mbps data transfer rates.

2515 108M Wireless Router User Guide

¾Provides WPA/WPA2, WPA-PSK/WPA2-PSK authentication, TKIP/AES encryption security.

¾Shares data and Internet access for users, supporting PPPoE, Dynamic IP, Static IP, L2TP,

PPTP, BigPond Cable Internet access.

¾Supports Virtual Server, Special Application and DMZ host.

¾Supports UPnP, Dynamic DNS, Static Routing, VPN Pass-through.

¾Detachable reverse SMA connector Antenna.

¾Connecting Internet on demand and disconnecting from the Internet when idle for PPPoE.

¾Built-in NAT and DHCP server supporting static IP address distributing.

¾Built-in firewall supporting IP address filtering, Domain Name filtering, and MAC address

filtering.

¾Supports connecting/disconnecting from the Internet on a specified time of day.

¾Supports access control, parents and network administrators can establish restricted access

policies based on time of day for children or staff.

¾Provides 64/128/152-bit WEP encryption security and wireless LAN ACL (Access Control

List).

¾Supports Flow Statistics.

¾Supports ICMP-FLOOD, UDP-FLOOD, and TCP-SYN-FLOOD filter.

¾Ignores Ping packets from WAN or LAN ports.

¾Supports firmware upgrade.

2.3 Panel Layout

2.3.1 The Front Panel

The front panel of the 2515 consists of several LED indicators, which is designed to indicate

connections. View from left to right. The next table describes the LEDs on the front panel of the

router.

Figure 2-1 Front Panel sketch

LEDs descriptions:

Name Status Description

Off Power off

PWR On Power on

On The router is initializingSYS

Flashing The router is working properly

2515 108M Wireless Router User Guide

Off The router has a hardware error

Off There is no wireless device linked to the router

WLAN Flashing The Wireless function is enabled

Off There is no device linked to the corresponding port

On There is a device linked to the corresponding port but no

activity

WAN,1-4

Flashing There is an active device linked to the corresponding port

2.3.2 The Rear Panel

The rear panel contains the following features. (View from left to right)

¾AC power socket: Please use the power adapter which is supplied with the 2515 108Mbps

Wireless Router only, the use of a different adapter may result in product damage.

¾Four 10/100Mbps RJ45 LAN ports for connecting the router to the local PC(s)

¾RJ45 WAN port for connecting the router to a cable/DSL Modem, or Ethernet

¾Factory Default Reset button

There are two ways to reset the router's factory defaults:

1) Use the Factory Defaults function on System Tools -> Factory Defaults page in the

router's Web-based Utility.

2) Use the Factory Default Reset button: First, turn off the router's power. Second, press

and hold the default reset button then turn on the router's power, until the SYS LED lights

up (about 3 seconds). Last, release the reset button and wait for the router to reboot.

)Note:

Ensure the router is powered on before it restarts completely.

¾Wireless antenna

Figure 2-2 Rear Panel sketch

Indice

Altri manuali Ansel Router wireless

Ansel

Ansel MIMO XR 2615 Manuale utente

Manuali Router wireless popolari di altre marche

Milesight

Milesight UG67 Manuale utente

Airlogic

Airlogic AirSync Class 1 Manuale del proprietario

Samsung

Samsung WCH730B Manuale utente

TELEFONICA

TELEFONICA USB Adapter Manuale utente

NETGEAR

NETGEAR PowerLINE WiFi 1000 Series Manuale utente

Askey

Askey RAC2V1K Manuale utente

Alloy

Alloy WLF2454AP-S Manuale utente

TP-Link

TP-Link TL-WR542G Manuale utente

NETGEAR

NETGEAR WNR2000v4 Manuale utente

Hama

Hama 53120 Manuale utente

Intellinet

Intellinet 524582 Manuale utente

Asus

Asus RT-N10P Manuale utente

D-Link

D-Link DIR-506L Manuale utente

Sapido

Sapido GR297n Manuale utente

Asus

Asus DSL-N55U Manuale utente

AMTC

AMTC WR7502 Manuale utente

Compaq

Compaq CP-2W - iPAQ Connection Point Manuale utente

SMC Networks

SMC Networks WBR14-N2 FICHE Manuale utente
