Antari F-4D Fazer Manuale utente

F-4 Fazer

User Manual

English ．Français ．Deutsch

User Manual - English

Safety Information

Please read the following safety information carefully before operating the

machine. This information includes important safeguards about installation,

usage, and maintenance. Pay attention to all warning labels and instructions in

this manual and printed on the machine.

If you have questions about how to operate the machine safely, please contact your local

Antari dealer for help.

․Keep this device dry.

․Always connect to a grounded circuit to avoid risk of electrocution.

․Before connecting machine to power, always check voltage indicate on machine

match to your local AC voltage. Do not use the machine if AC power voltage does

not match.

․Disconnect the machine from AC power before servicing and when not in use.

․This product is for indoor use only! Do not expose to rain or moisture. If fluid is

spilled, disconnect AC power and clean with a damp cloth. If fluid is spilled onto

electronic parts, immediately unplug the machine and contact your local Antari

dealer for advice.

․No user serviceable and modifiable parts inside. Never try to repair this product,

an unauthorized technician may cause damage or malfunction to the machine.

․For adult use only. Never leave the machine running unattended.

․Intall the machine in a well-ventilated area. Provide at least 50 cm space around

the machine.

․Never add flammable liquid of any kind to the machine.

․Make sure there are no flammable materials close to the machine while operating.

․Only use Antari fluid. Other fluid may lead to heater clog and malfunction.

․If the machine fails to work, unplug the machine and stop operation immediately.

Contact your local Antari dealer for advise.

․Before transporting the machine, make sure the fluid tank is completely drained.

․Fog fluid may present health risks if swallowed. Do not drink fog fluid. Store it

securely. In case of eye contact or if fluid is swallowed, immediately look for

medical advice.

Unpacking and Inspection

Immediately upon receiving the machine, carefully unpack the carton, check the content to

ensure that all parts are present and have been received in good condition. If any parts

appear damaged or mishandled from shipping, notify the shipper immediately and retrain

the packing material for inspection.

What is included: 1 x F-4 Fazer

1 x Power Cord

1 x Fluid Tank

1 x User Manual

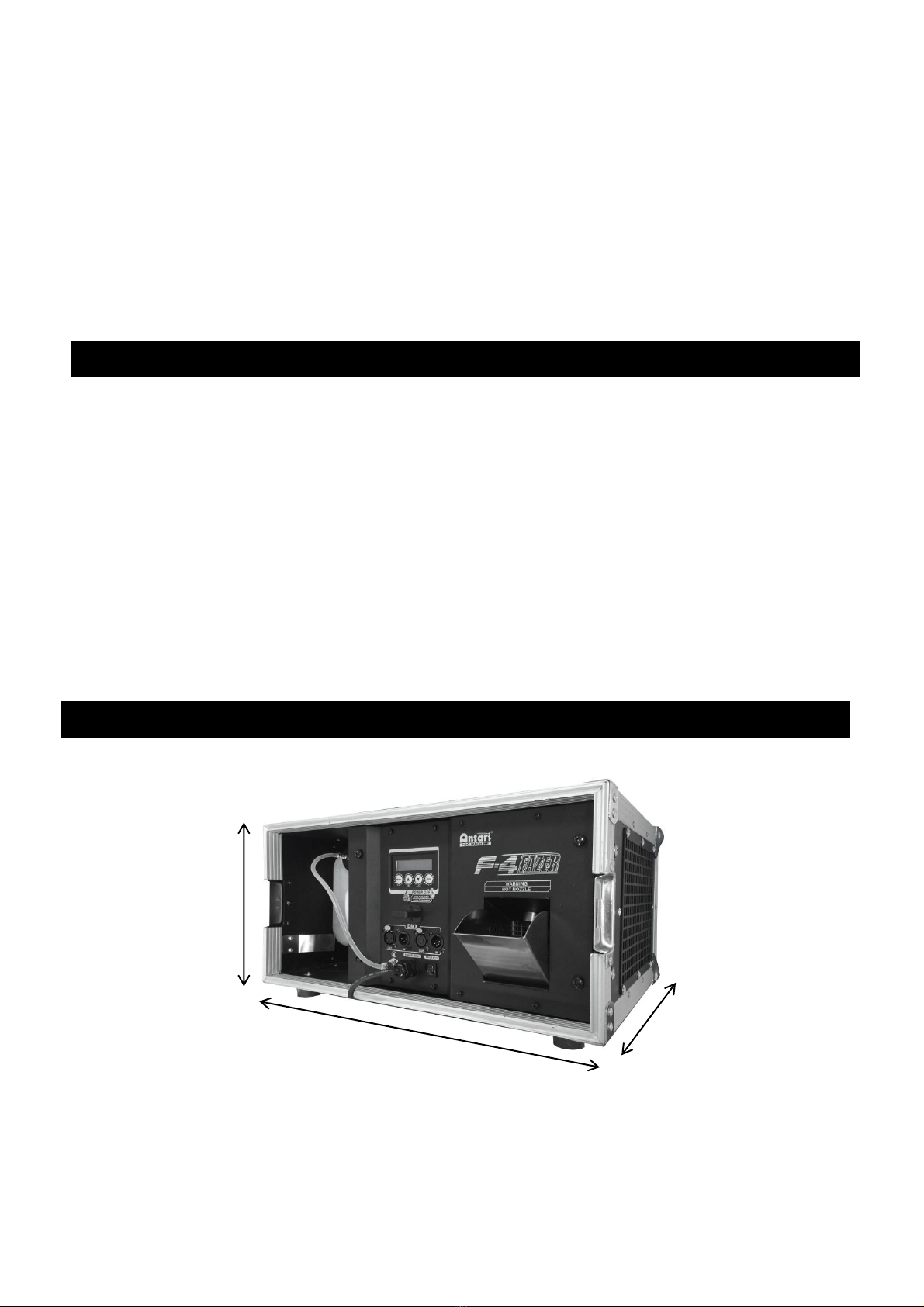

Product Dimensions

535mm

465mm

225mm

Product Overview

Setting Up

Step 1: Place the machine on a flat surface and in a suitable large area with at least 50 cm

open space around the machine.

Step 2: Fill the fluid tank with Antari approved fluid.

Step 3: Connect the machine to suitable rated power supply.To determine the power

requirement for the machine refer to the label on the back of the machine.

Always connect the machine to a protected circuit and ensure it is properly

grounded to avoid risk of electrocution.

Step 4: Turn on the machine and allow it to heat up. Heat up takes approximatly 60 Sec.

Once the machine has reached operating temperature, the display will show Ready to

Faze. Now the machine is ready for operation.

Step 5: To start making haze, press the Volume button on the control panel.

Step 6: To turn off the machine, hold the STOP button for 3 seconds; the machine will

automatically run a self-cleaning process and shut down after the process is done.

XLR 5-Pin DMX Connector

Blue LCD screen, Timer

mode, Volume mode

Fog Output Nozzle

XLR 3-Pin DMX Connector

WDMX Wireless Solution

Language Setting

To switch the language used for the control interface, press the [Menu] button BEFORE

turning on the machine and HOLD it until the LCD screen flashes twice. After the two

flashes, press [Menu] to choose the language: English and 中文 (Chinese).

Operation

Control Panel Operation

The machine can be operated with the onboard digital control interface.

Button

Function

[MENU]

Scroll through setting menu

[UP]/[TIMER]

Up/Activate Timer fucntion

[DOWN]/[VOLUME]

Down/Activate Volume function

[STOP]

Deactivate Timer/Volume function

Hold 3 seconds to start self-cleaning process

Control Menu

Set interval from 1 to 999 seconds

Timer

Interval XXX Sec

Antari F-4

Ready To Faze

Set duration from 1 to 999 seconds

Set output volument from 1 to 100 %

Set output volume from 1 to 100 %

Set fan speed from 20 to 100%

Set DMX/W-DMX address from 1 to 511

Turn On/Off W-DMX

Unlink from a W-DMX transmitter

Turn On/Off run last setting function

DMX Connector Pin Assignment

The machine provides a 3- or 5-pin XLR connector for DMX connection. The diagram below

indicates pin assignment information.

Timer

Duration XXX Sec

Timer

Output XXX %

Volume

Output XXX %

Fan Speed

XXX %

DMX-512

Address: XXX

DMX Mode

SYNC

Run Last Setting

W-DMX Power

W-DMX Reset

W-DMX

Address: XXX

DMX Mode

CH1

DMX Mode

CH2

Function

Ground

Data-

Data+

DMX Operation

Making the DMX Connection –Connect the machine to a DMX controller or to one of the

machines in the DMX chain. The machine uses a 3-pin or 5-pin XLR connector for DMX

connection, the connector is located on the front of the machine.

Address Setup –Use control menu to set DMX address. The machine occupies 2 control

channels. The starting address is defined as the first channel from which the machine will

respond to the controller. Always double check to make sure there are no overlapping

channles in order to control the machine correctly.

DMX Channel Function

Channel 1

DMX Value Range

Function

Faze Output Level

0 –5

Faze Off

6 –255

Faze Output 1 –100%

Channel 2

DMX Value Range

Function

Fan Output Level

0 –5

Fan 20%

6 –255

Fan 21 –100%

Fluid

Only use Antari FLG water-based liquid for the F-4 Fazer. The machine is tested and

calibrated with this liquid to get the best output performance. Warranty will be void if any

other type of liquid is used, improper use of liquid may lead to machine failure and

malfunction.

Service and Maintenance

․Do not allow the machine to become contaminated.

․Remove dust from air vents with air compressor, vacuum or a soft brush.

․Only use a damp cloth to clean the casing.

․Before storing run distilled water through the system to help avoid condensing the

pump or heater.

․It is recommended to run the machine on a monthly basis in order to achieve best

performance and output condition.

․Excessive dust, liquid and dirt built up will degrade performance and cause

overheating.

Replacing the Fuse

Disconnect AC power before replacing fuse. Only replace fuse with same type

and rating.

Step 1: Disconnect power cord from supply.

Step 2: Use a flat-head screwdriver to release fuse holder.

Step 3: Replace fuse with exact same type and rating as indicated below.

Step 4: Reinsert fuse holder.

Fuse

110 –120V = 15A 250V

220 –240V = 7A 250V

Status Messages

Machine heating up

Machine ready for operation

Machine has detected overheat on heater unit and will not

operate, please contact local distributor/dealer for service and

support.

Machine can not heat up and will not operate. Please contact

local distributor/dealer for service and support.

Technical Specifications

Input voltage 110-120V 60Hz

220-240V 50Hz

Fuse 110 –120V = 15A 250V

220 –240V = 7A 250V

Power Consumption AC 120V/230V, 1500W

Warm-up time 60 Sec. (approx.)

Max. operating time 10 hrs max. output

Fluid tank capacity 5 L

Fluid consumption 7 ml/min.

Compatible fluid Antari FLG water-based fluid

Control option DMX 512, Manual, Adjustable haze volume and fan speed

DMX channels 2 channels, haze volume and fan speed

Power connection Power Cord

DMX data connection 3-pin and 5-pin XLR

Dimensions L 554 x W 274 x H 464 m

Dry weight 20.3 kg

Antari F-4

Ready To Faze

Warming Up

Warning!

Heater Overheat

Warning!

Temp Error
