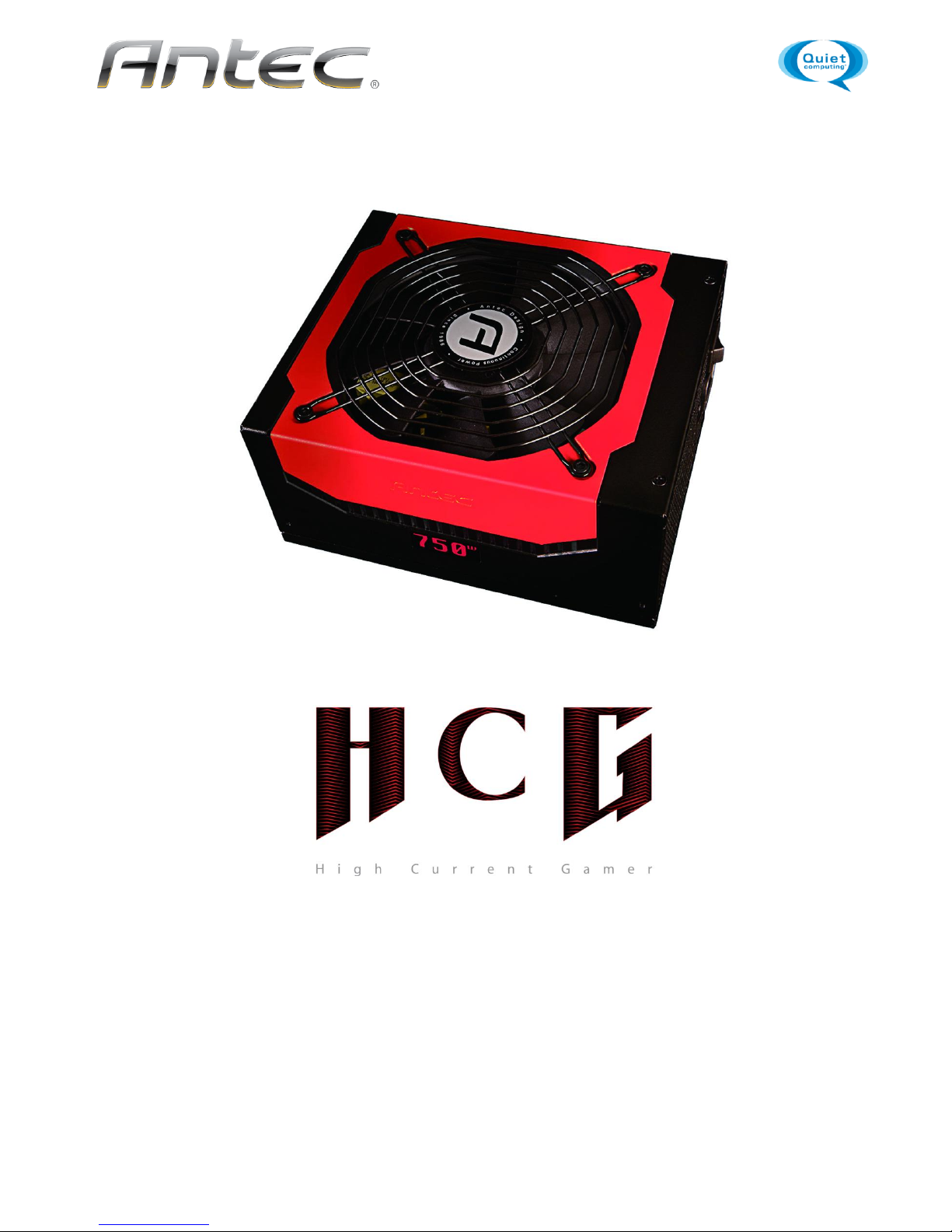

Antec HCG-750 Manuale utente

Over Power Protection (OPP), Surge & Inrush Protection (SIP) and Brown-Out Protection (BOP).

Sometimes the PSU will “latch” into a protected state. You will need to power off the PSU and clear the

fault before it will function again. There are no user-replaceable fuses in your HCG-750.

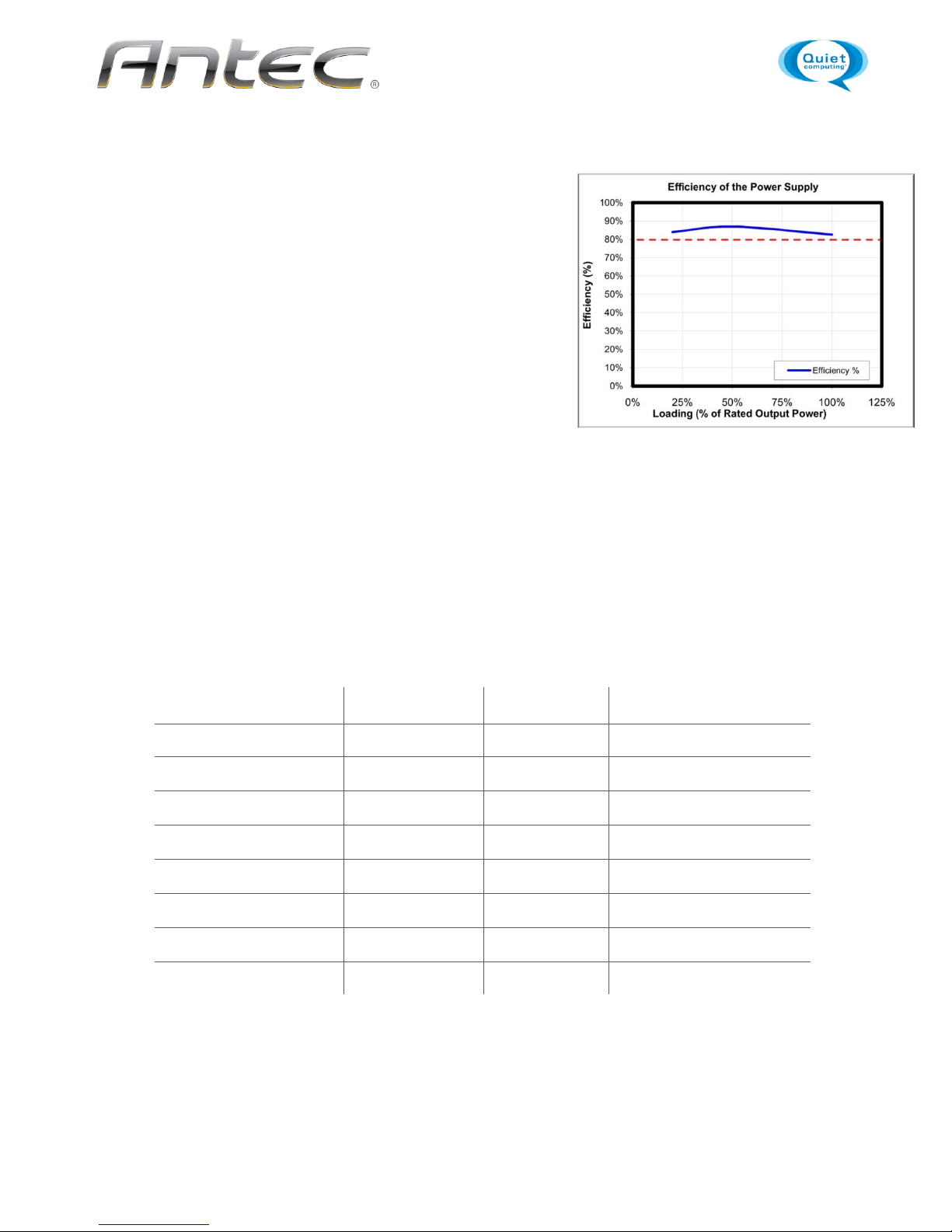

80 PLUS® CERTIFICATION

80 PLUS® certification is the most widely recognized

independent standard in power supply efficiency. An

80 PLUS® certified power supply uses less energy and

generates less heat to stay cooler, run quieter and last

longer. The HCG-750 has been 80 PLUS® BRONZE

certified to be at least 82% efficient at a wide range of

operating loads; this will lower your operating costs

and help protect the environment.

POWER OUTPUT

To see the output capacity and regulation for each different voltage, see table 1.

TABLE 1

Output Voltage

Load Max.

Regulation

Ripple & Noise

+12V₁

40A

± 5%

< 120 mV

+12V₂

40A

± 5%

< 120 mV

+12V₃

40A

± 5%

< 120 mV

+12V₄

40A

± 5%

< 120 mV

+3.3V

25A

± 5%

< 50 mV

+5V

25A

± 5%

< 50 mV

-12V

0.5A

± 10%

< 120 mV

+5Vsb

± 5%

< 50 mV

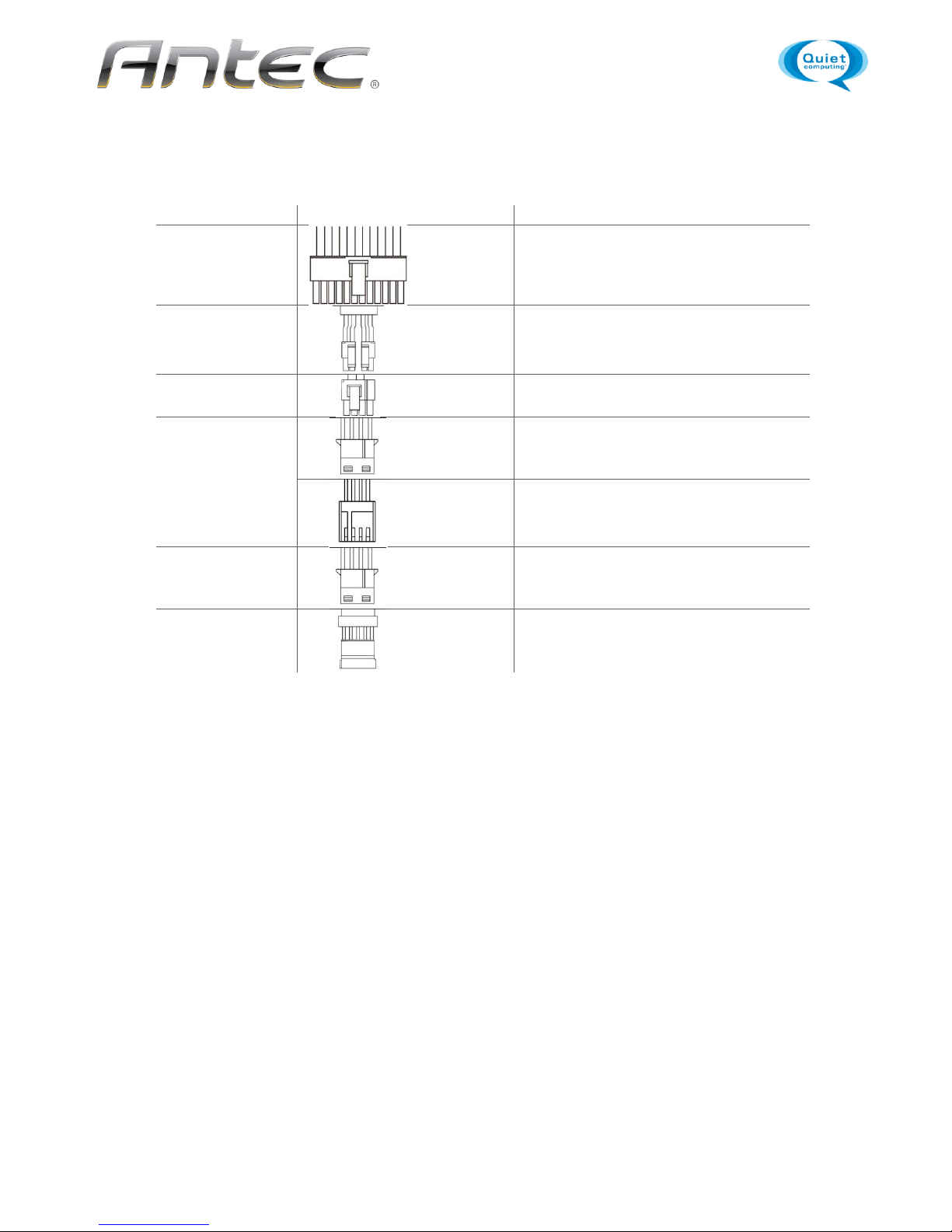

TABLE 2

Cable Quantity

Connectors

Description

X 1

24(20+4)-pin Motherboard

X 1

8(4+4)-pin ATX12V/EPS12V

X 2

8(6+2)-pin PCI-E

X 3

Molex

X 1

FDD

X 3

Molex

X 3

SATA

INSTALLATION

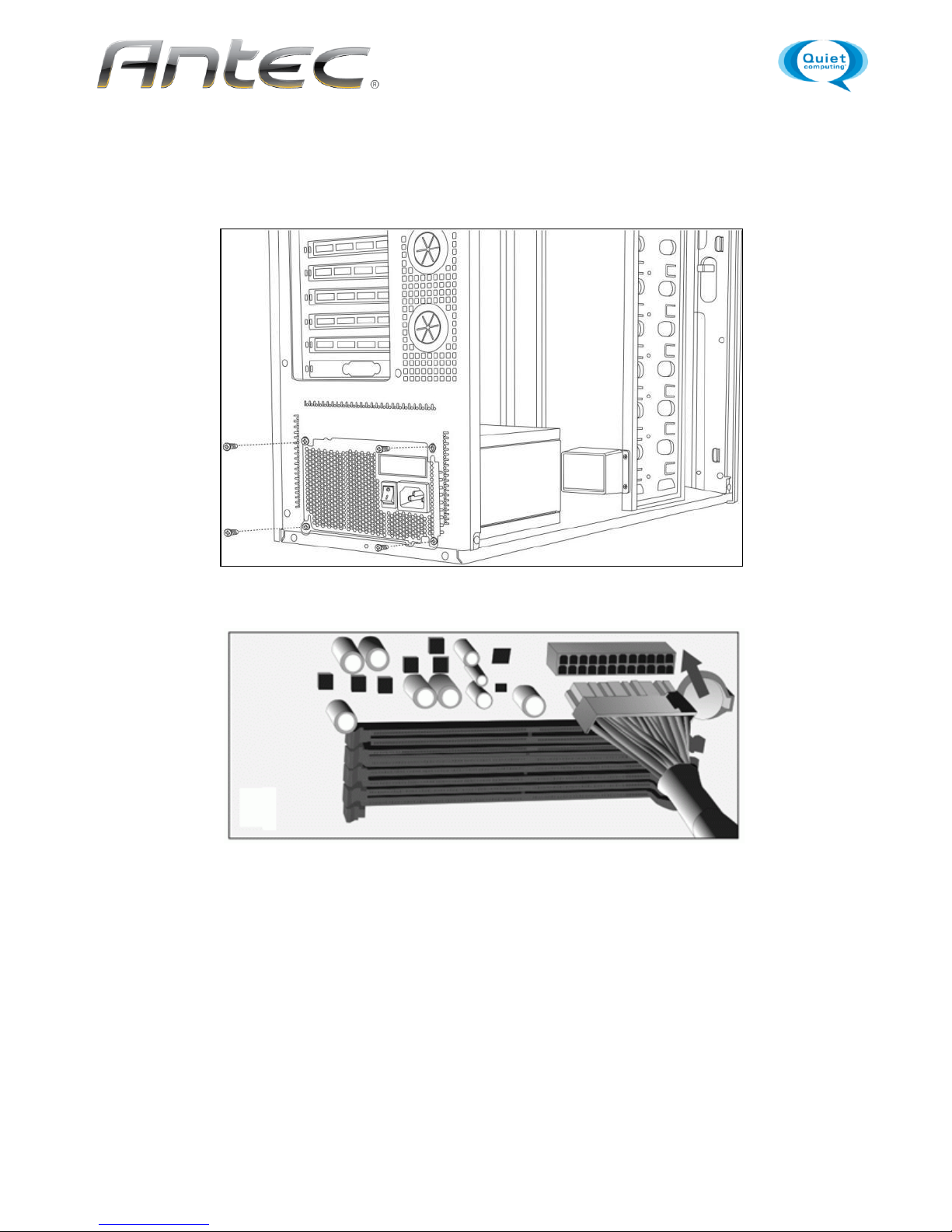

Install the PSU into either the top or bottom of your case with the four screws provided. Refer to your

case manual if you are unsure where the power supply should be installed.

Connect the 24-pin main power connector to your motherboard.

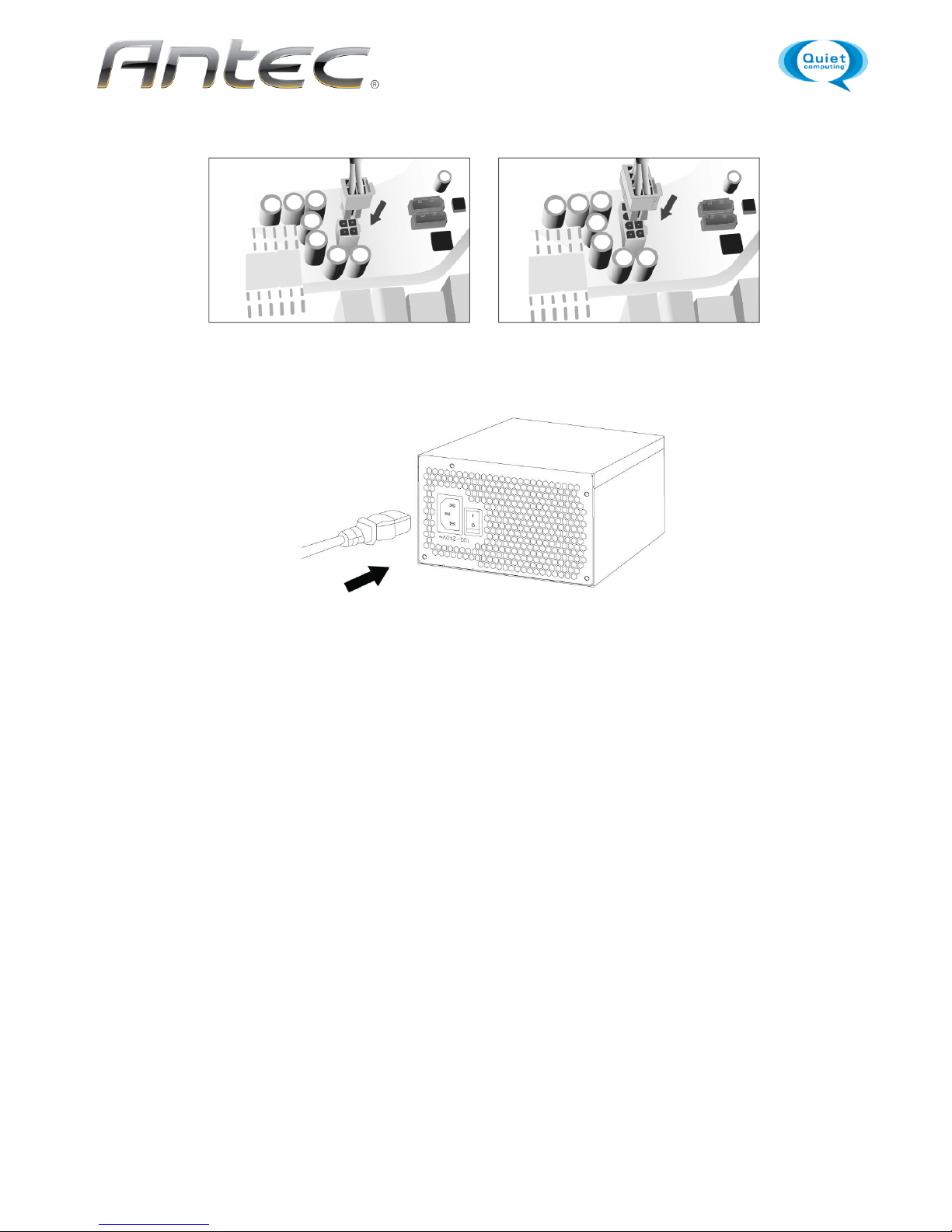

Connect the 8-pin or 4+4-pin connector for the CPU. If your motherboard has an 8-pin socket with a

cover on some of the openings, we recommend that you remove the cover and use the 8-pin

connector.

Note: Please also refer to your motherboards manual for any special instructions.

Connect the AC power cord to the power supply AC inlet. Be sure to use the heavy-duty cord supplied

with your PSU.

PCI-E graphics cards use different amounts of power. For some, a single 6-pin connector is sufficient,

making the hardwired connector the preferred choice. More powerful cards use multiple connectors,

including the advanced 8-pin PCI-E connector. The 8-pin PCI-E connector on the PSU can be used as

either a 6- or 8-pin connector.

Hard drives, optical drives (CD/DVD/BluRay™) and other accessories will use either the older 4-pin

Molex connector or the newer 15-pin SATA connector. 4-pin Molex connectors have two black, one

yellow and one red wire. The SATA connector has an additional orange power wire.

When you have all the connections secured, turn the switch on the PSU to the “|” position.

Technical Support:

www.antec.com/support

USA & Canada

1-800-22ANTEC

[email protected]

Europe

+49-(0)40-226-139-22

[email protected]

Asia

+886 (0)800-060-696

[email protected]

Visit us on Facebook for contests, information & support

USA & Canada

facebook.com/AntecInc

Europe

facebook.com/AntecEurope

facebook.com/AntecUK

Australia & New Zealand

facebook.com/AntecAU

India

facebook.com/AntecIndia

Israel

facebook.com/AntecIsrael

Philippines

facebook.com/AntecPH

Singapore

facebook.com/AntecSG

Sweden

facebook.com/AntecSweden

Antec, Inc.

47900 Fremont Blvd., Fremont, CA 94538 / USA

Tel: 510-770-1200 - Fax: 510-770-1288

www.antec.com

Specifications are subject to change without prior notice. Actual product(s) and accessories may differ from illustrations. Omissions and printing errors

excepted. Content of delivery might differ in different countries or areas. Some trademarks may be claimed as the property of others.

Reproduction in whole or in part without written permission is prohibited.
