HCG-850M

POWER SUPPLY

USER’S MANUAL

HCG-850M

Antec’s HCG M power supplies are the perfect combination of power and efficiency. The HCG M

features special heavy-duty High Current connectors and cabling that supply extreme levels of power,

and superb efficiency thanks to 80 PLUS® BRONZE certification and Active PFC. HCG M’s innovative 16-

pin sockets create a new level of flexibility by doubling the modular connectivity, supporting two

different 8-pins connectors and even future connectors of 10, 12, 14 or 16-pins. Highest-quality

connectors, Japanese-brand capacitors, and a quiet 135 mm double ball bearing fan complete the

package. CircuitShield™ makes the HCG-850M safe and reliable in any environment with its seven

industrial-grade protections. If loads of power, High Current engineering and extreme efficiency are

what you’re after, the HCG M is the PSU for you.

STANDARDS AND FEATURES

The connectors and power specifications of the HCG-850M PSU are all compatible with ATX12V v2.32

and EPS12V v2.92 specifications. The HCG-850M features Universal Input, which automatically senses

when you connect the power supply to any AC power source between 100 - 240V without setting a

voltage switch. This power supply also features Active Power Factor Correction (PFC), which improves

the power factor value of the power supply by altering the input current wave shape, helping to power

transmission across the grid.

SYSTEM PROTECTION

A variety of industrial-grade safety circuitry will help protect your computer: Over Current Protection

(OCP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Short Circuit Protection (SCP),

Over Power Protection (OPP), Over Temparature Protection (OTP) & Surge & Inrush Protection (SIP).

Sometimes the PSU will “latch” into a protected state. You will need to power off the PSU and clear the

fault before it will function again. There are no user-replaceable fuses in your HCG-850M.

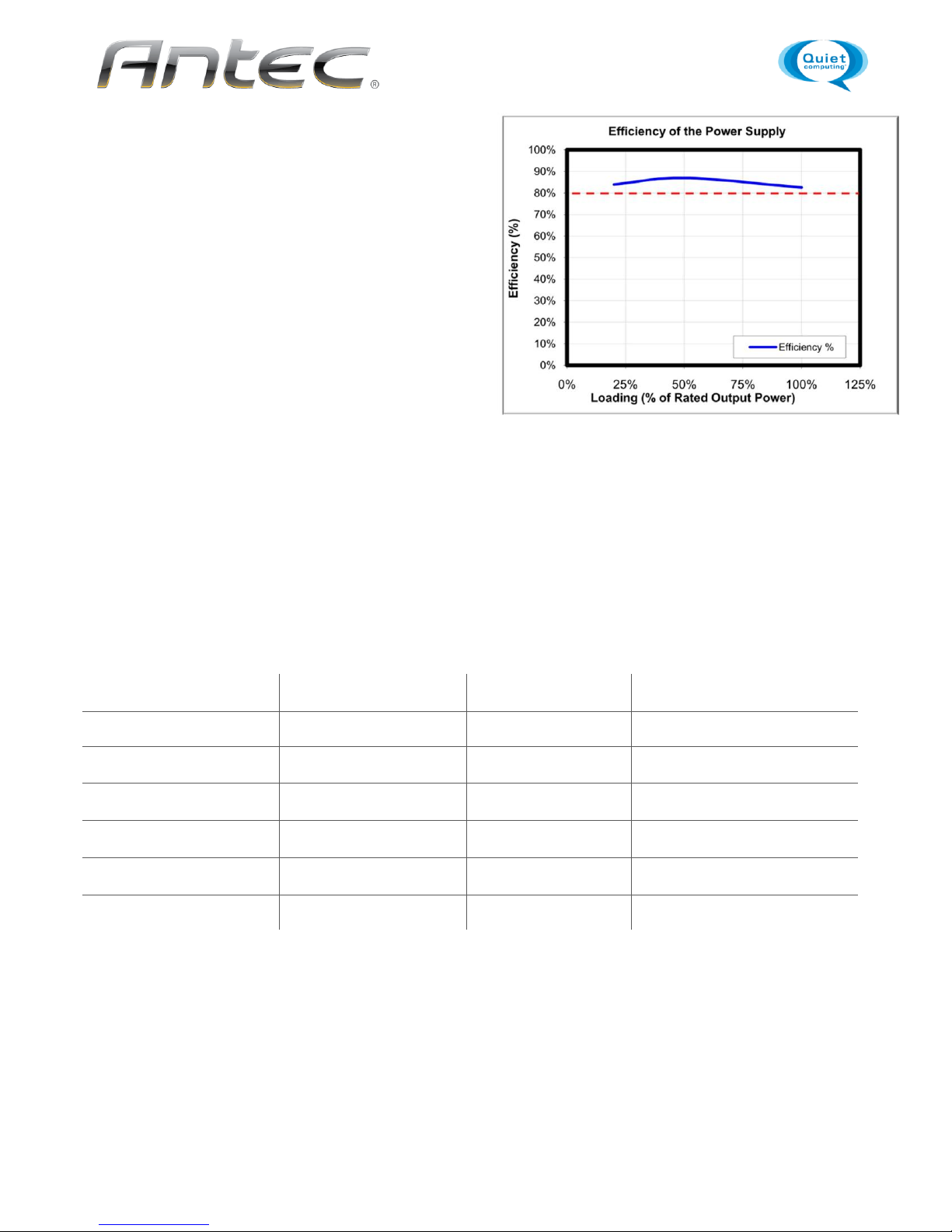

80 PLUS® CERTIFICATION

80 PLUS® certification is the most widely recognized

independent standard in power supply efficiency.

An 80 PLUS® certified power supply uses less

energy and generates less heat to stay cooler, run

quieter and last longer. The HCG-850M has been 80

PLUS® BRONZE certified to be at least 82% efficient

at a wide range of operating loads; this will lower

your operating costs and help protect the

environment.

POWER OUTPUT

To see the output capacity and regulation for each different voltage, see table 1.

TABLE 1

Output Voltage

Load Max.

Regulation

Ripple & Noise

+12V₁

40A

± 5%

< 120 mV

+12V₂

40A

± 5%

< 120 mV

+3.3V

25A

± 5%

< 50 mV

+5V

25A

± 5%

< 50 mV

-12V

0.5A

± 10%

< 120 mV

+5Vsb

± 5%

< 50 mV

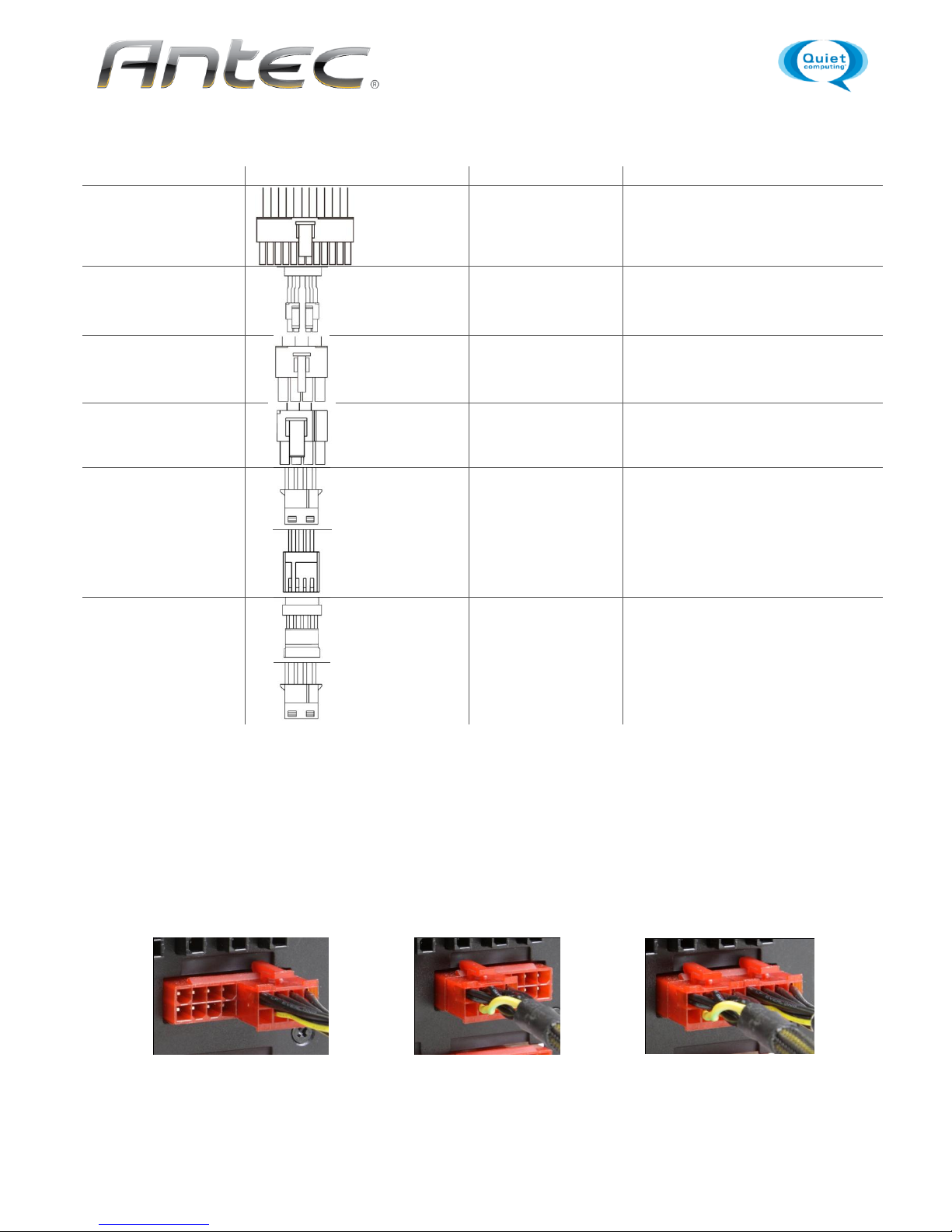

TABLE 2

Cable Quantity

Connectors

Socket

Description

X 1

Fixed cable

24(20+4)-pin Motherboard

X 1

Fixed cable

8(4+4)-pin ATX12V/EPS12V

X 1

16-pin

8-pin EPS12V

X 2

16-pin

8(6+2)-pin PCI-E

X 3

5-pin

Molex + FDD

X 1

X 3

5-pin

SATA + Molex

X 1

MODULAR CABLE JACKS

There are five 5-pin black jacks and two 16-pin black jack on the back of your HCG-850M PSU. These

jacks are for the optional cables that come with your power supply.

Caution: Please connect only cables provided with this HCG-850M. Other cables may not be

compatible!

You can connect 1 or 2 modular 8-pin cables into any of the 16-pin sockets

INSTALLATION

Install the PSU into either the top or bottom of your case with the four screws provided. Refer to your

case manual if you are unsure where the power supply should be installed.

Connect the 24-pin main power connector to your motherboard.

Connect the 8-pin or 4+4-pin connector for the CPU. If your motherboard has an 8-pin socket with a

cover on some of the openings, we recommend that you remove the cover and use the 8-pin

connector.

Note: Please also refer to your motherboards manual for any special instructions.

Connect the AC power cord to the power supply AC inlet. Be sure to use the heavy-duty cord supplied

with your PSU.

PCI-E graphics cards use different amounts of power. For some, a single 6-pin connector is sufficient,

making the hardwired connector the preferred choice. More powerful cards use multiple connectors,

including the advanced 8-pin PCI-E connector. The 8-pin PCI-E connector on the PSU can be used as

either a 6- or 8-pin connector.

Hard drives, optical drives (CD/DVD/BluRay™) and other accessories will use either the older 4-pin

Molex connector or the newer 15-pin SATA connector. 4-pin Molex connectors have two black, one

yellow and one red wire. The SATA connector has an additional orange power wire.

When you have all the connections secured, turn the switch on the PSU to the “|” position.

Technical Support:

www.antec.com/support

USA & Canada

1-800-22ANTEC

[email protected]

Europe

+49-(0)40-226-139-22

[email protected]

Asia

[email protected]

Visit us on Facebook for contests, information & support

USA & Canada

facebook.com/AntecInc

Europe

facebook.com/AntecEurope

facebook.com/AntecUK

Australia & New Zealand

facebook.com/AntecAU

India

facebook.com/AntecIndia

Israel

facebook.com/AntecIsrael

Philippines

facebook.com/AntecPH

Antec, Inc.

47900 Fremont Blvd., Fremont, CA 94538 / USA

Tel: 510-770-1200 - Fax: 510-770-1288

www.antec.com

Specifications are subject to change without prior notice. Actual product(s) and accessories may differ from illustrations. Omissions and printing errors

excepted. Content of delivery might differ in different countries or areas. Some trademarks may be claimed as the property of others.

Reproduction in whole or in part without written permission is prohibited.
