02. BUILD

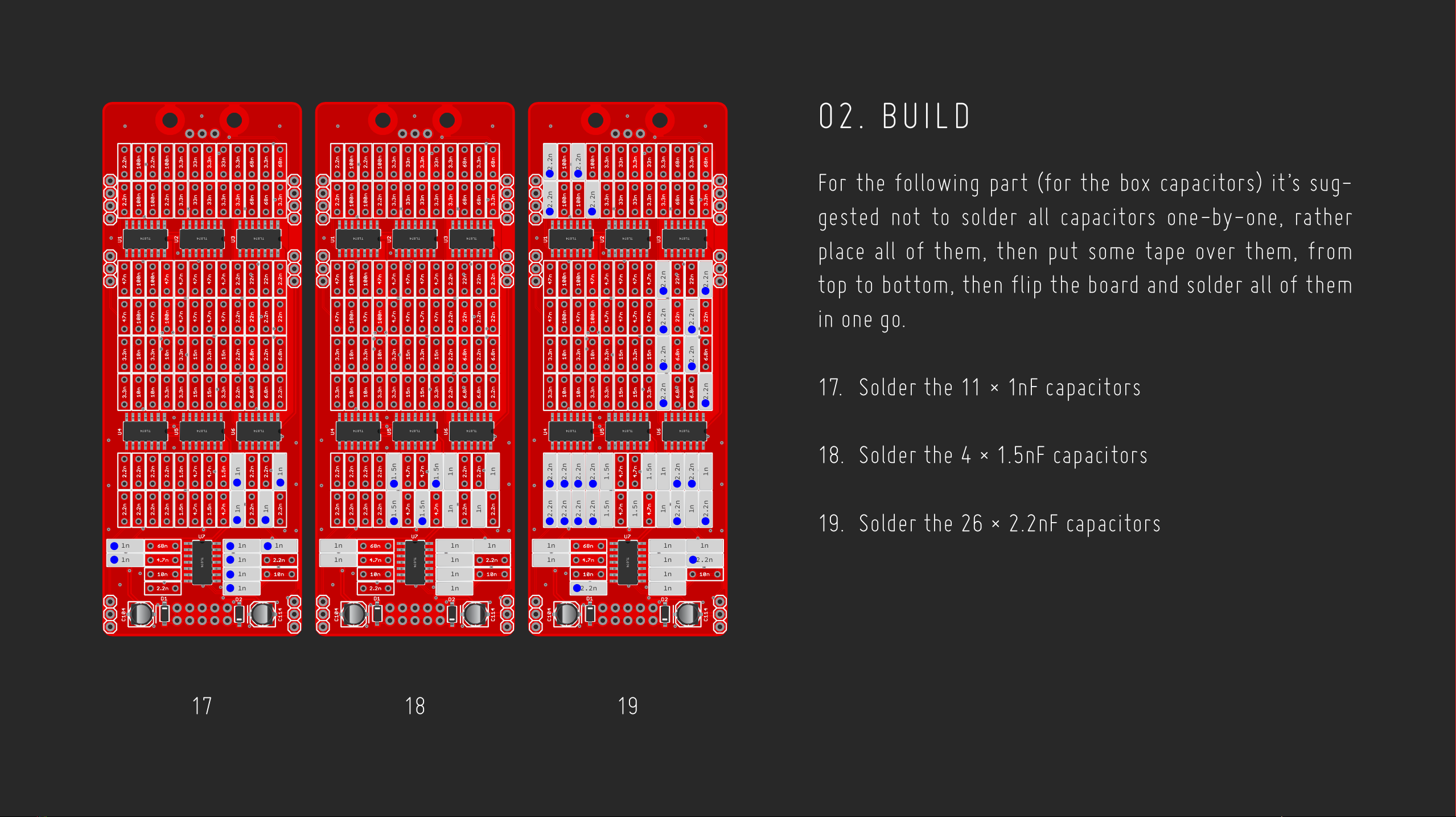

For the following part (for the box capacitors) it’s sug-
gested not to solder all capacitors one-by-one, rather
place all of them, then put some tape over them, from
top to bottom, then flip the board and solder all of them
in one go.
17. Solder the 11 × 1nF capacitors
18. Solder the 4 × 1.5nF capacitors
19. Solder the 26 × 2.2nF capacitors
