Anztec QC-7610Q Manuale utente

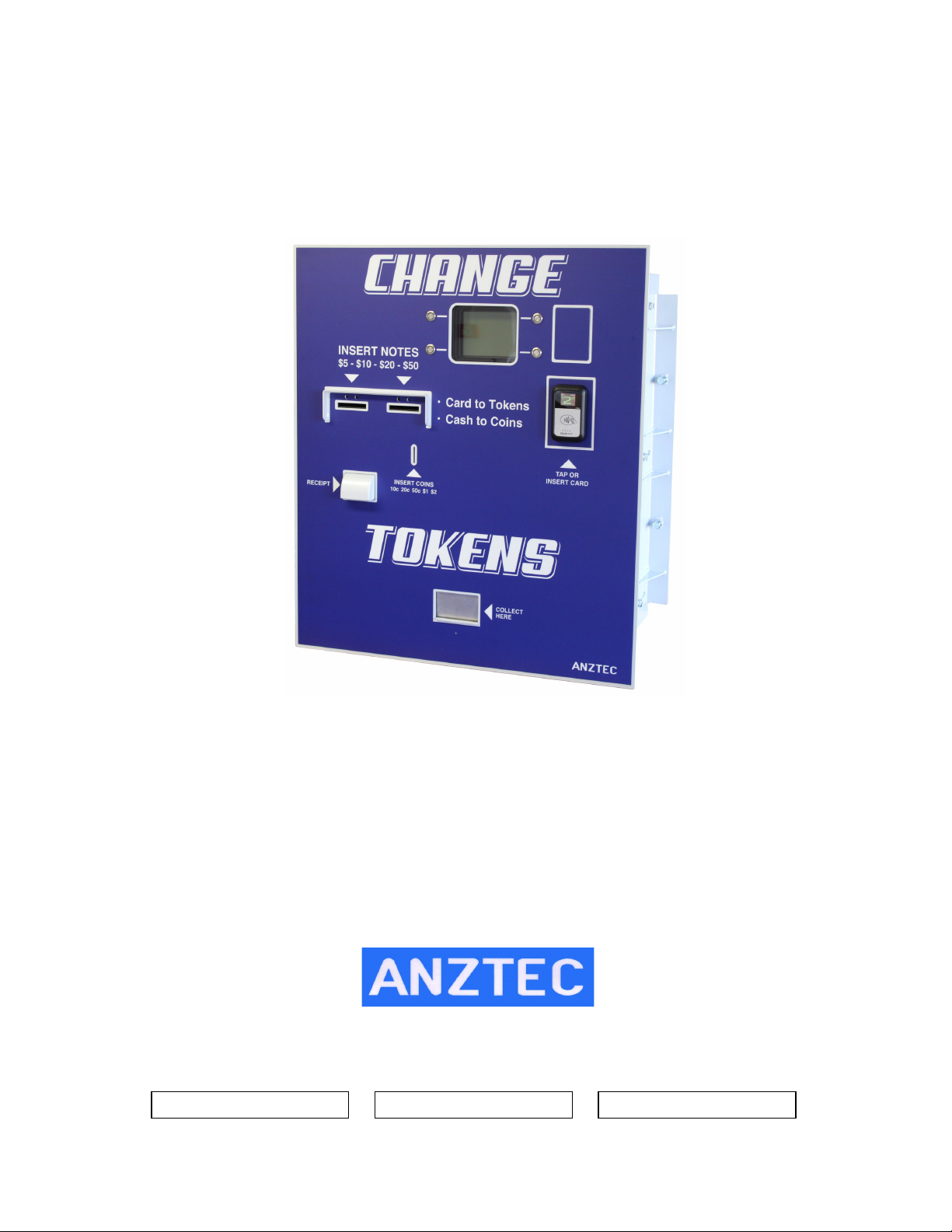

QC-7610Q

Instruction Manual

Anztec Limited, 7C Birmingham Drive, Christchurch, New Zealand Phone +64 3 338 3139,

www.anztec.com email:sales@anztec.com

Software Ver.

Serial #

Key #

QC-7610Q Rev 1.0 Page 2

While every effort has been made to ensure that the information contained in this literature is accurate, Anztec

reserves the right to amend the size and specifications of this machine in line with its policy of continuing

improvement and development

QC-7610Q Rev 1.0 Page 3

Contents

Contents ................................................................................................................................... 3

Security..................................................................................................................................... 4

Warning .................................................................................................................................... 5

Configuration ........................................................................................................................... 5

Installation................................................................................................................................ 6

Initial Start Up ...................................................................................................................................... 6

Attendant Menu Management ................................................................................................ 7

Overview ..............................................................................................................................................7

Entering The Attendant Menu ..............................................................................................................7

Refills ...................................................................................................................................................8

Print Accountancy ................................................................................................................................9

Clear Short Term Meters .................................................................................................................... 10

Event Log ........................................................................................................................................... 10

Hopper Count ..................................................................................................................................... 11

Status .................................................................................................................................................. 12

Web Interface ......................................................................................................................... 13

Accessing the Web Interface .............................................................................................................. 13

Login screen ....................................................................................................................................... 14

Configuration...................................................................................................................................... 15

Configure Network......................................................................................................................... 16

Configure Card Values ................................................................................................................... 18

Configure Clock ............................................................................................................................. 19

Configure System ........................................................................................................................... 20

Configure Site................................................................................................................................. 21

Configure Pushover ........................................................................................................................ 22

Configure Reports .......................................................................................................................... 22

Configure Receipt........................................................................................................................... 23

Configure Ecommerce.................................................................................................................... 25

Configure Hardware ....................................................................................................................... 26

Meters ................................................................................................................................................. 27

Short Term Meters.......................................................................................................................... 27

Long Term Meters .......................................................................................................................... 27

Historical Turnover Meters ............................................................................................................ 27

Ecommerce Status .............................................................................................................................. 29

Alerts .................................................................................................................................................. 30

User .................................................................................................................................................... 31

Password............................................................................................................................................. 31

Installing Printer Paper ......................................................................................................... 32

Loading paper – Auto Load................................................................................................................ 32

Unloading paper ................................................................................................................................. 34

Mounting Guide ..................................................................................................................... 35

Recommended Wall Cutout................................................................................................................ 36

QC-7610Q Rev 1.0 Page 4

Security

As with any piece of cash handling equipment security is paramount to ensure the theft of money,

tokens, credit card details etc does not occur.

Once a machine or component is delivered to a distributor or end user it is their responsibility to ensure

that the machine or component is kept secure at all times.

Opening the secure cabinet to perform cash clearance, refills, and routine maintenance may expose the

machine to security compromises. The distributor or end user must manage security issues using their

own documented security procedures.

Anztec accepts no responsibility for security compromises caused by lapses or deficiencies in

distributor or end user security procedures or controls.

While by no means a comprehensive list, the following are some suggested guidelines to help keep the

machine secure:

Track and Log

 Location of the machine.

 Who opened a machine, for what reason, and when.

 Components removed from machine for repair or replacement.

Inspection

 Check exterior of the machine regularly for tampering.

 Check for installations that are unsecured or substandard. This includes associated equipment

such as cables and network routers/modems.

 Look regularly for non standard items fitted to the exterior such as card skimming devices.

 Look regularly for non standard items fitted to the interior.

Monitor

 Have the machine within view of the attendant.

 Make sure the machine is in a well illuminated area.

 Use video surveillance to monitor the machine in unattended areas.

Personnel

 Ensure your employees are familiar with the operation of the machine.

 Check your employees are suitably qualified and authorized for any cash handling and

maintenance work that is required.

 Limit and monitor access to cabinet keys to reduce the chance of theft or tampering.

 Monitor third parties who access the machine for any reason.

The fitting of machine components not directly supplied by Anztec may result in security being

compromised. Anztec accepts no responsibility if this situation occurs.

QC-7610Q Rev 1.0 Page 5

Warning

Configuration

The QC-7610Q is configured to customer or distributor specifications prior to leaving Anztec’s

production facility.

Configuration includes items such as the designation of hoppers as coin or token, the value of those

coins or tokens, and additional bonus payout features. The Accountancy meters that are available are

also dependant on configuration.

If you require further information on the configuration of the equipment you have received please

contact your supplier.

Warning

Never remove, unplug, or replace any components inside this machine

without first turning off the mains power. Failure to comply may result in

damage to your machine and void your warranty.

QC-7610Q Rev 1.0 Page 6

Installation

Initial Start Up

To prepare your QC-7610Q for use, you need to:

1. Unpack and install the equipment supplied.

2. Open the Main Door of the machine.

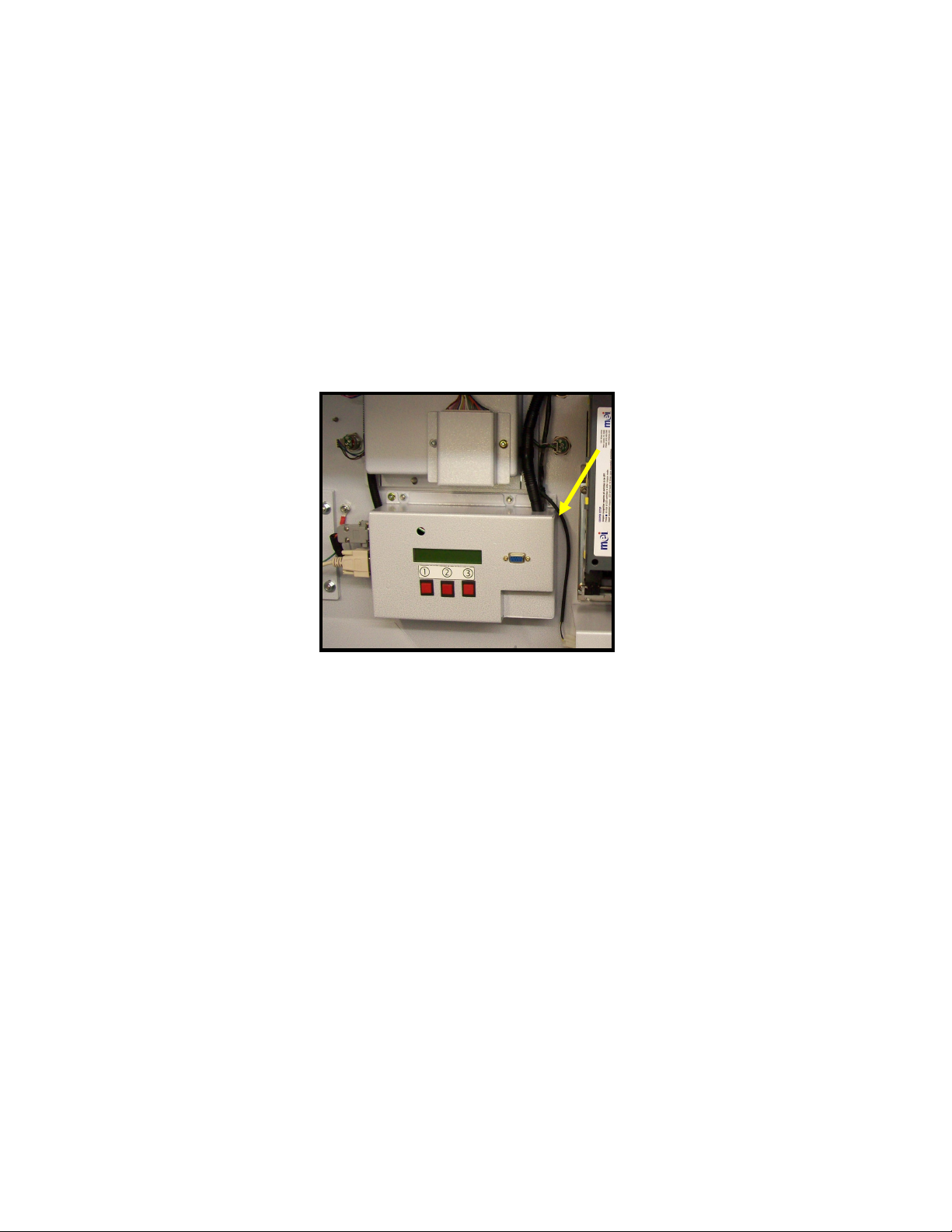

3. Plug the QC-7610Q power cord into the internal three pin socket. Plug the other end into a

mains supply outlet. Use the P-clip supplied to strain relief the power cord.

4. Plug your network cable into the RJ45 network socket.

5. Switch the unit on using the Mains Switch on the Power Supply Front Panel

6. Fit printer paper if not pre-loaded. (See section later in this manual)

7. Reset the Long and Short term meters through the Configure System option in the

Configuration Menu accessed via the web interface. (See section later in this manual)

8. At the machine load tokens and coins via the Refills option in the machine Attendant display

menu. (See section later in this manual)

QC-7610Q Rev 1.0 Page 7

ATTENDANT MENU

A=Up B=Down

 1 : Refills

2 : Print Accy

ATTENDANT MENU

Press # to enter

attendant mode

Attendant Menu Management

Overview

Once you have installed the QC-7610Q, you can enter the Attendant Menu to perform the following

functions when required:

 Access Event Log

 Print Accountancy

 Manage Refills

 Clear Short Term Meters

Entering The Attendant Menu

To enter the Attendant Menu on the QC-7610Q, unlock and open the main door, and then press the #

key.

Once this is done the Attendant Menu will appear on the attendant LCD inside the machine.

Use the A and B buttons on the keypad scroll up and down through the Attendant Menu.

Press the number button on the keypad that corresponds to the Attendant Menu sub-menu you wish to

enter.

A list of the sub menus is as follows:

1. Refills

2. Print Accountancy

3. Clear Short Term Meters

4. Event Log

5. Hopper Count

0. Status

To exit the Attendant Menu close the main door.

QC-7610Q Rev 1.0 Page 8

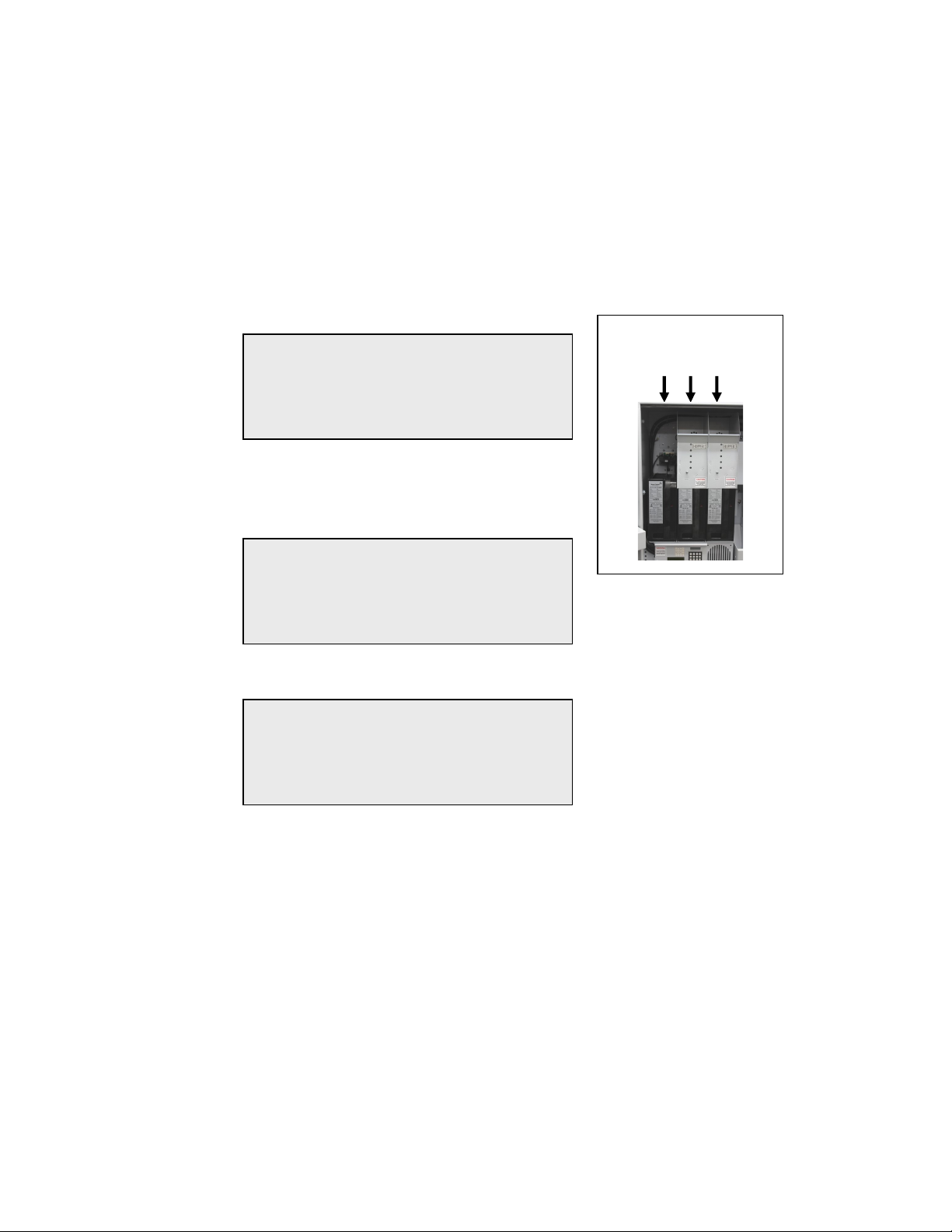

Hopper 1 - $X.XX

Enter value to add

$X.XX coins

#=ok *Cancel

Refill hopper

Hopper 1: $X.XX

Add xxx coins (X)

#=ok *Cancel

REFILLS-HOPPERS

1 : $X.XX 3: $X.XX

2 : $X.XX

Refills

To refill a Token or Coin hopper:

1. Insert your tokens or coins into the appropriate hopper while it is in situ, taking care to

ensure you know the number of inserted tokens or coins.

2. Enter the Attendant Menu and using the A and B buttons scroll up and down through the

Attendant Menu until you see the Refills option, and then press button 1.

3. The Refills Hopper menu will appear.

4. Press Button 1.

5. Enter the number of tokens or coins for the selected

hopper and press #.

6. Press # to confirm or * to cancel.

7. Repeat steps 5 to 7 to refill the other hopper denominations.

8. To exit this menu and return to the Attendant Menu, press the * button.

Hopper Location

Hop1

Hop2

Hop3

QC-7610Q Rev 1.0 Page 9

ACCOUNTANCY

1: Short Term Meters

2: Long Term Meters

3: User Defined

Print Accountancy

The QC-7610Q has the ability to print meter information while in the Attendant Menu.

The following information will be printed:

 Current Hopper Levels

 Hopper Refills

 Cash Clearances

 Coins Accepted

 Notes Accepted

 Purchases

 Hopper Payouts

 Totals

1. Press button 2 to enter Print Accountancy Menu.

2. Press button 1 to print Short Term Meters, 2 to print Long Term Meters or 3 to print User

Defined meters.

3. To exit this menu and return to the Attendant Menu, press the * button

QC-7610Q Rev 1.0 Page 10

RAM CLEAR

Enter PIN

#= Clear *Cancel

Event Log

Event X

Event Y

Event Z

Clear Short Term Meters

The QC-7610Q has Short Term Meters which you can clear while in the Attendant Menu.

1 Press button 7 to enter Clear Short Meters Menu.

2 Enter the PIN and press the # button clear the Short Term Meters.

3 To exit this menu and return to the Attendant Menu, press the * button.

Event Log

The QC-7610Q has the ability to display recent events while in the Attendant Menu.

1. Press Button 4 while in the Attendant Menu to enter the Event Log.

2. Using the A and B buttons scroll up and down through the events to view.

3. To exit this menu and return to the Attendant Menu, press the * button
