Anzzi SP-AZ078 Manuale utente
Have questions? Call us at 305-614-4070or visit us at www.ANZZI.com
PRODUCT REGISTRATION∗
IMPORTANT: YOURWARRANTYWILLNOT BE RECOGNIZEDUNLESSTHISCARD IS
FULLY COMPLETEDAND RETURNEDORONLINEREGISTRATIONIS COMPLETED.
To ensure that your warranty is registered and confirmed please do one of the following:
1.
Register online at www.swcorp.com/register. You will be asked to fill out the same
information you would in the registration card. Registering online is fast, secure and
ensures we receive your information.
2.
Complete, cut-out and mail the registration card below.By returning this registration
card we confirm the date of purchase for your new product. This confirmation will allow
us to process any warranty claims.
Mail the card to: 5701 NW 35 Avenue, Miami, FL 33142
Product Registration Card
Name
.....................................................................................
Address
...........................................................................................................................
City...............................................State
...........................
Zip
..............................
Phone
...........................................
Email
...........................
.........................................
Date of Purchase ...........................
Installer’s Name
.....................................................................
Phone ................................................................................
I have read the Owner’s Manual carefully and understand and agree that any installation, operation or maintenance of the product must be
done strictly in accordance with instructions and guidelines contained in the owner’s manual and installation guide.
Signature____________________________________________________________Date______________________________________________
CUT ALONG
DOTTED LINE.
pg. 1

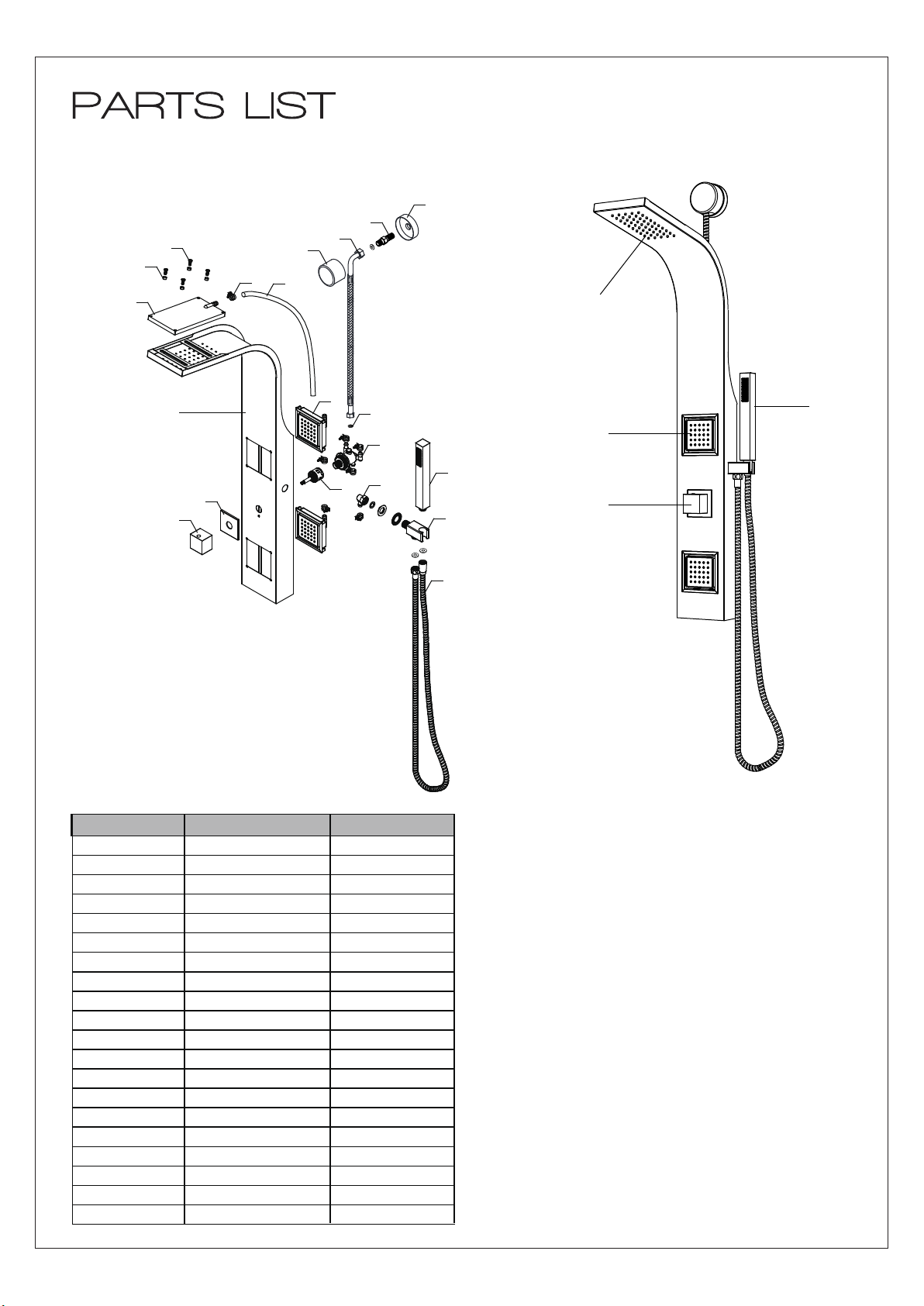

PARTS LIST
C. Body Jets
A. Shower Head
B. Diverter
D. Hand Shower
1
7
8
13
14
15
16
17
18
19
20
910
11
12
2
3
4
56
Component no. Component Material
1
body
s/s
2
head shower
3
pad
EPDM
4
screw 1
s/s
5
clip
s/s
s/s
6
pvc hose
pvc
7
ABS
8
9
10
11
12
13
14
15
braided hose
s/s
16
17
18
knob
knob plate cover
zinc
19
20
ABS
various
various
cap
ABS
base
flow restricter
hand shower
ABS
hand shower holder
ABS
flexible hose
s/s
body jets
ABS
one way joint
ABS
faucet
brass
long- short connector
brass
function cartridge
A
C
D
B
pg. 2

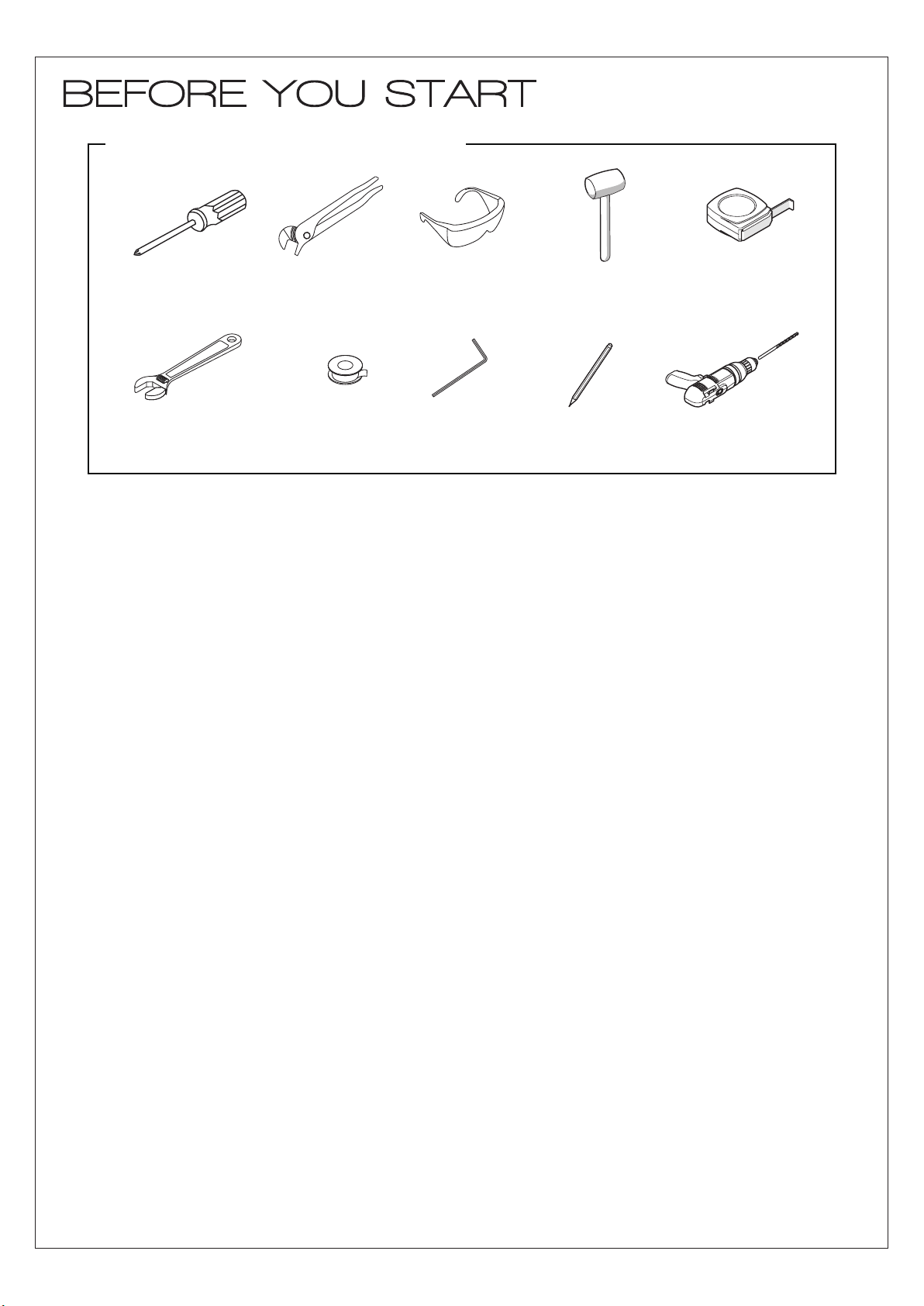

BEFORE YOU START
Recommended Items
Screwdriver Channel Locks
Adjustable Wrench Allen key Pencil Electric drill
G TapeRubber hammeroggles
Teflon tape
Read Before Using Your New Shower Panel
Congratulations on purchasing our Shower Panel. Your new shower panel will be a great addition to
your bathroom for years to come. Our luxury Shower Panel brings a spa experience into your life in
the comfort of your personal bathroom. Adding the shower panel as a modification to your present
shower will allow you to enjoy the pleasures of massaging body spray jets. Furthermore. The shower
panel will operate with your existing plumbing supply lines with standard line pressure and flow rates.
Before using our Shower Panel, please read this document carefully and thoroughly.
The instructions and safety information in this document are essential to the safe operation of your
new unit. Additionally, neglect or improper or incorrectly performed installation, maintenance or repair,
including failure to follow the applicable care and cleaning instructions may affect your new product's
warranty.
IMPORTANT.
1. Prior to installation. please make sure your package is intact. Look over the product and contact
your dealer or ANZZI if you find damaged sections.
2. In order to install this shower panel, simple understanding of plumbing techniques will be necessary.
Please contact your dealer or a professional plumber if you are unfamiliar with plumbing techniques
or have questions.
3. This shower panel is designed for indoor use only. It is not intended for outdoor or other uses.
4. The product is provided with flexible supply hoses. It would be better putting stop valves between the
hoses and water supplies.
5. Product could function between 20-125 supply pressure. Using pressure reducing valve while the
pressure is too high.
Have questions? Call us at 305-614-4070or visit us at www.ANZZI.com
pg. 3
70"
17.71"
12.68"

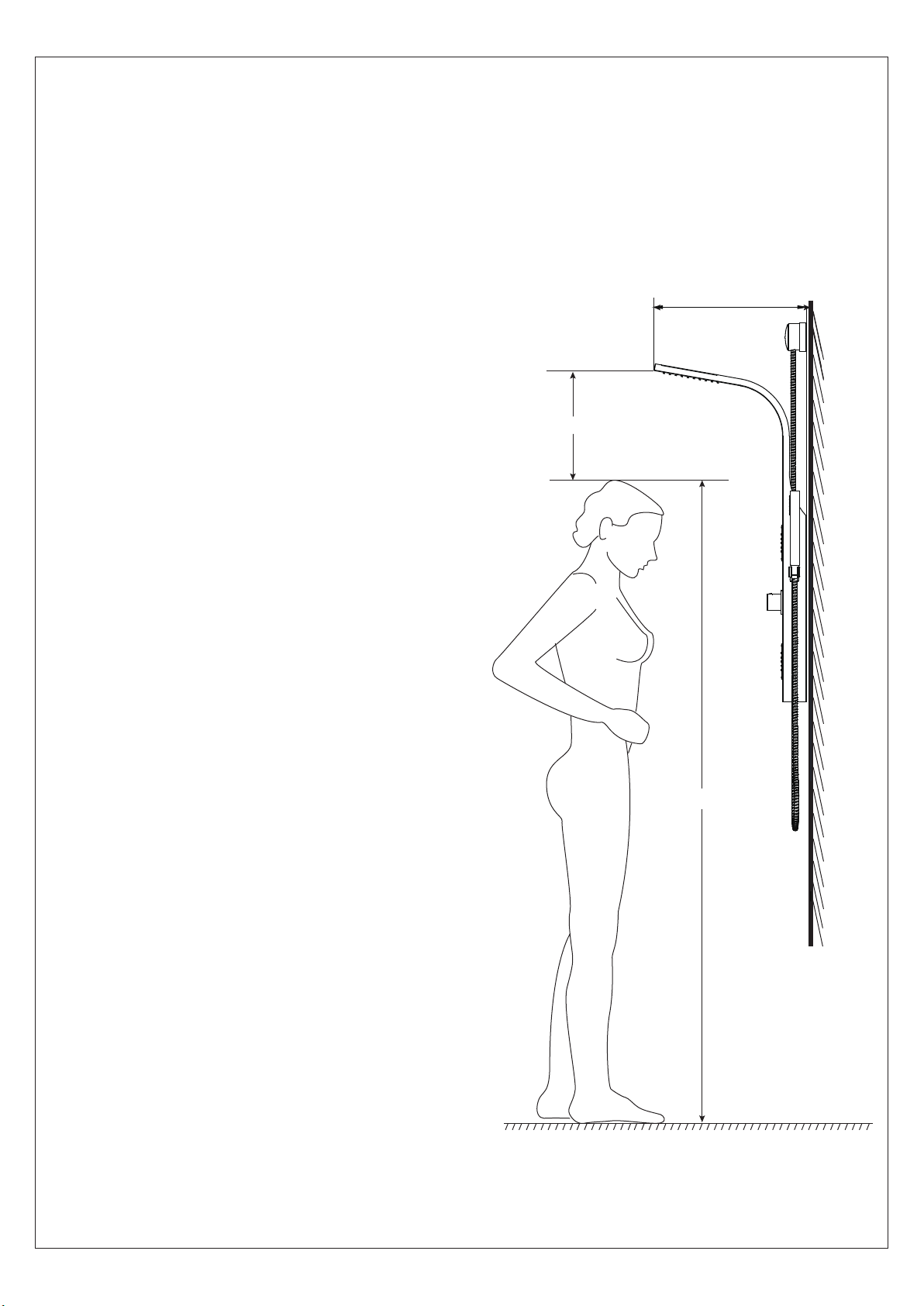

Mounting the Brackets of the Shower Panel
-It is recommended that the shower panel be mounted at a
height that will make the unit accessible to people with varying
heights. Establish the percise height and position of the unit on
the wall. We recommend to leave a 12.68"(32cm) space between
the shower head and the average height of the people in the
house as well as a minimum distance of 1"(2.5cm) from the
ceiling.(Figure A)
-The height you choose shall allow the shower panel to
completely cover up the connection points for the cold and
hot water supplies. In order to determine your installation
location of the shower panel, you should use a tape
measure and a pencil.
(or some type of marking tool).
Figure A
pg. 4

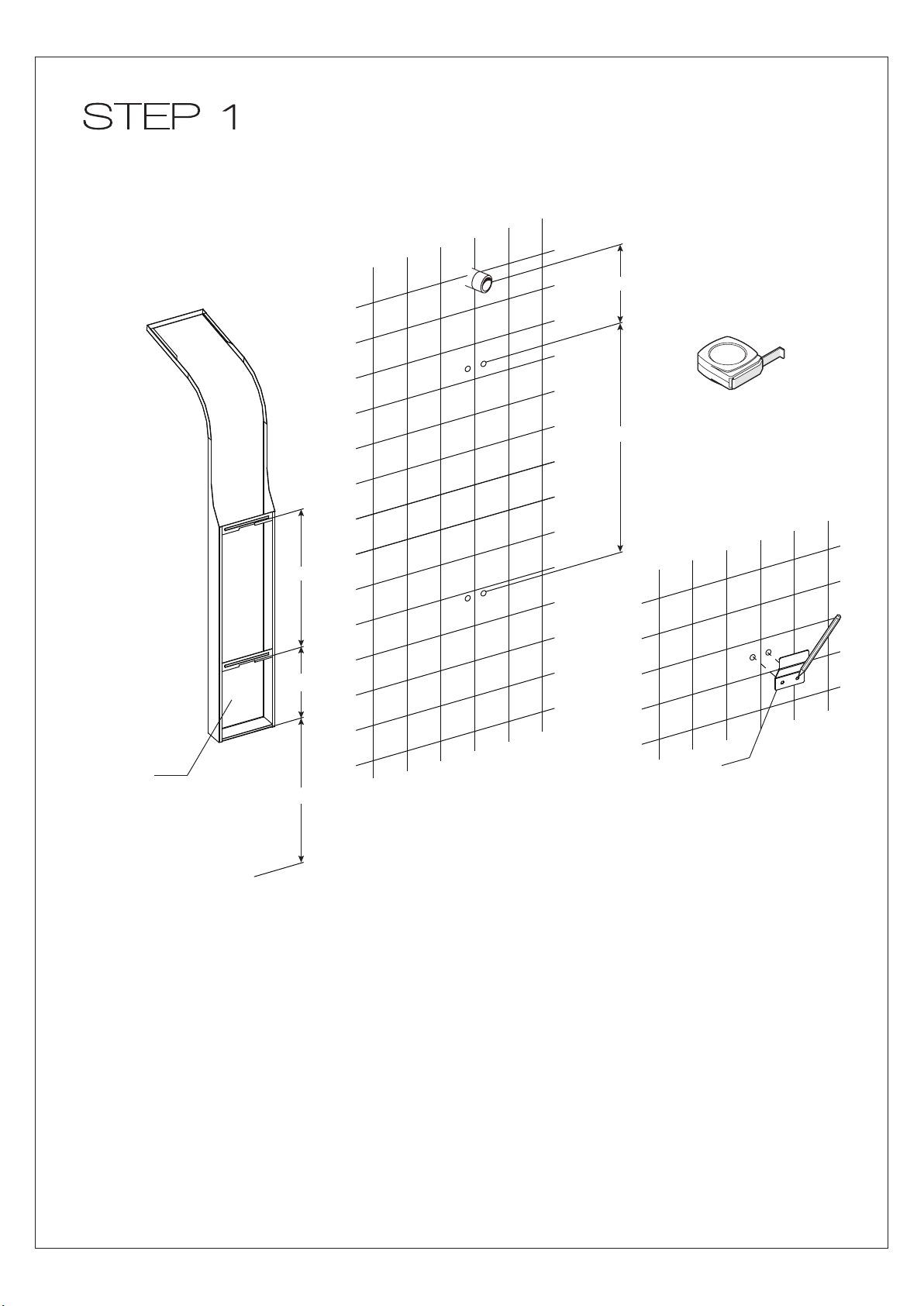

STEP 1
13.4"
1-1 Measure the distance Abetween the floor and the bottom of the shower column.
Measure the distance Bbetween the bottom of the shower column and the back bracket.Measure the distance Cbetween the brackets at the back of the shower column body (1)
1-2 Project this measurement onto the wall in order to install the mounting brackets (2)
1-3 Mark the postion of each screw holes of both mounting brackets(2) on the wall using a pencil.
②Tape
B
C
A
①5"-16.5"
1-4 The recommended height of water is 5-16.5 inches.
Have questions? Call us at 305-614-4070or visit us at www.ANZZI.com
pg. 5

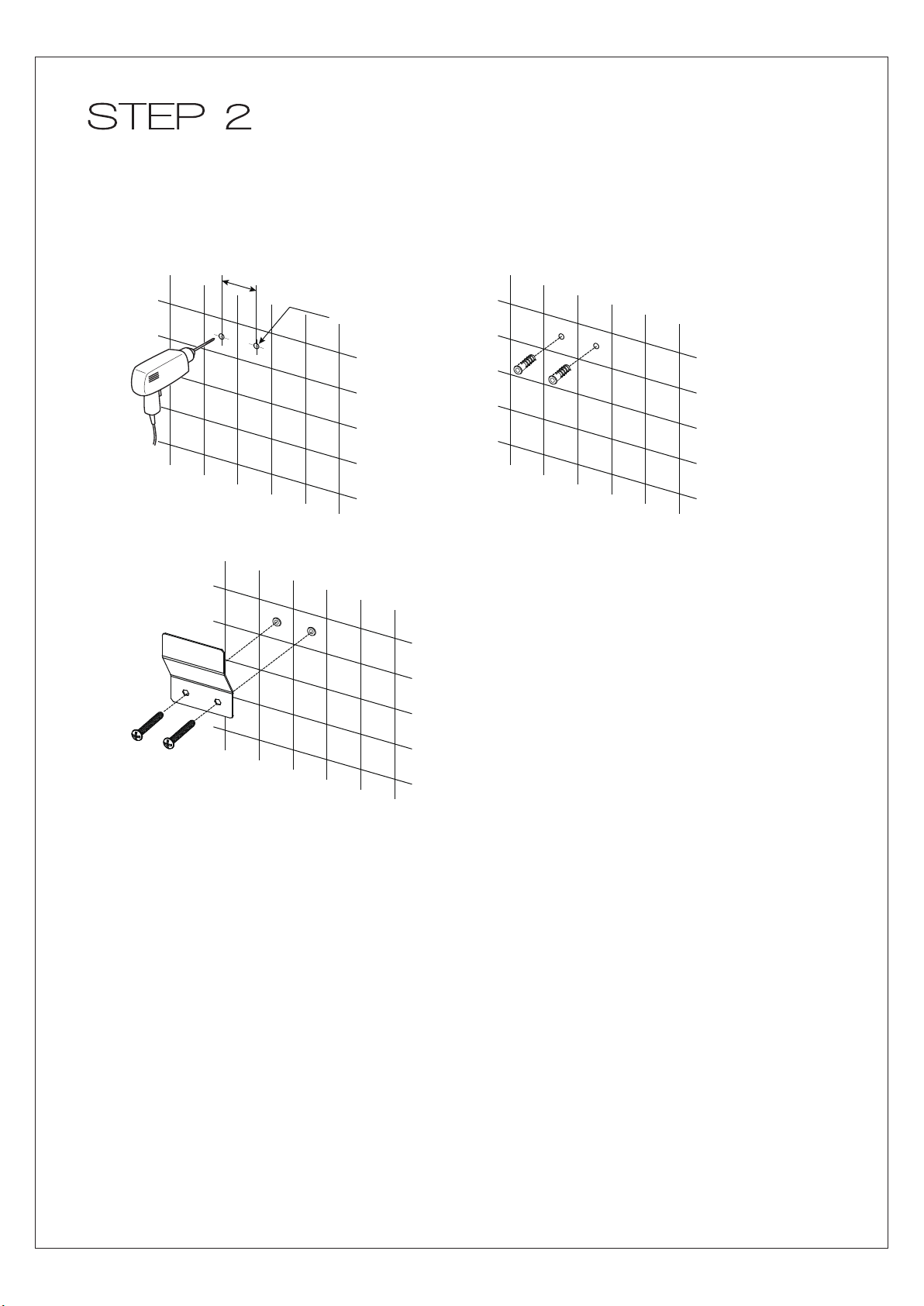

STEP 2
Figure A
Before drilling any holes for the shower panel brackets, be sure there are no hidden
cables or pipelines aligned with the desired drilling position.
2-1 Drill the two holes for the top bracket 1” apart at the desired height.
2-2 Drill the two holes for the bottom bracket 1” apart below the top bracket.
IMPORTANT
Figure B
2-3 Insert the wall anchors into the pre-drilled holes as shown in Figure B.
2-4 Place the shower panel brackets aligned with the drilled holes and secure the brackets
by tightening the screws.
Figure C
1"
Ø0.24"
Have questions? Call us at 305-614-4070or visit us at www.ANZZI.com
pg. 6

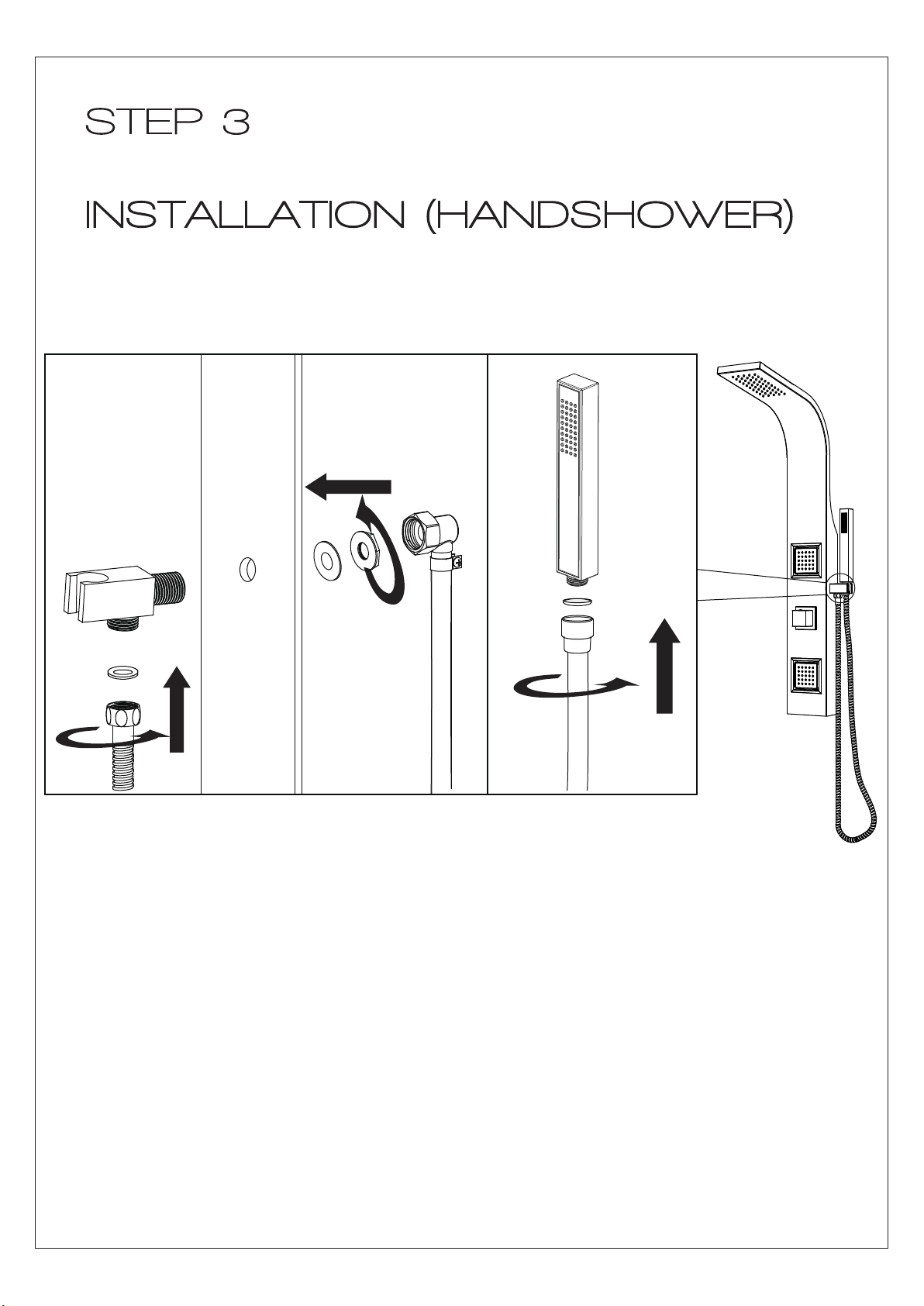

STEP 3
INSTALLATION (HANDSHOWER)
Insert the shower holder through the pre-drilled hole on the shower panel.
Connect the water supply hose to the shower holder,as shown.
Make sure all washers are inserted to prevent leakage.
Once the shower panel is fully installed and hung on the bracket, you can install the hand
shower hose to the holder connection.
3-1
Connecting the hand shower to the hose, as shown.3-4
3-2
3-3
Have questions? Call us at 305-614-4070or visit us at www.ANZZI.com
pg. 7

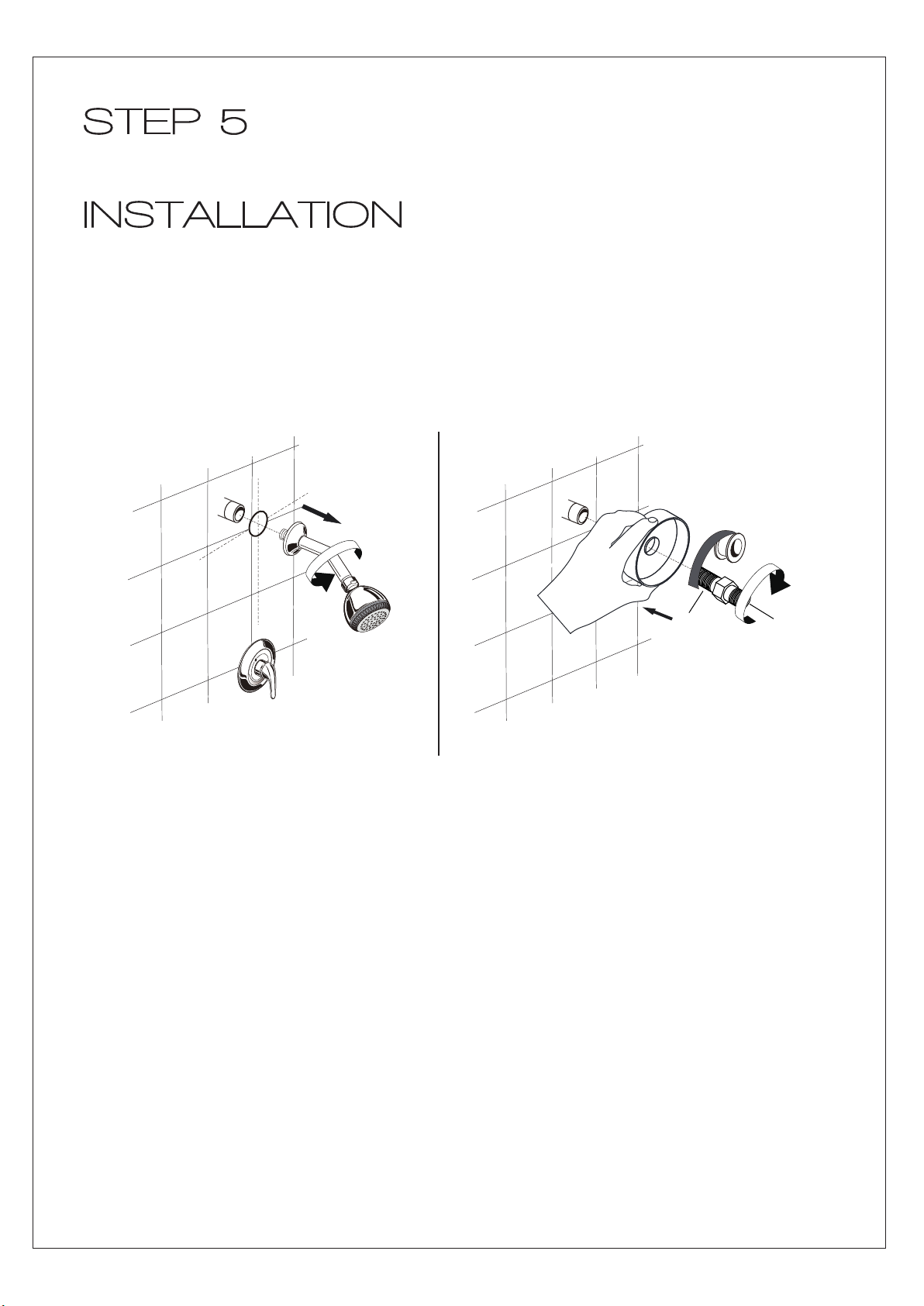

STEP 5
INSTALLATION
Remove the existing shower head and shower arm assembly.
Hold the plastic base against the wall.Wrap plumber tape around "A"position
of adapter threads. Connect the adapter to the existing outlet.
5-1
5-2
A long
B short
Have questions? Call us at 305-614-4070or visit us at www.ANZZI.com
pg. 8

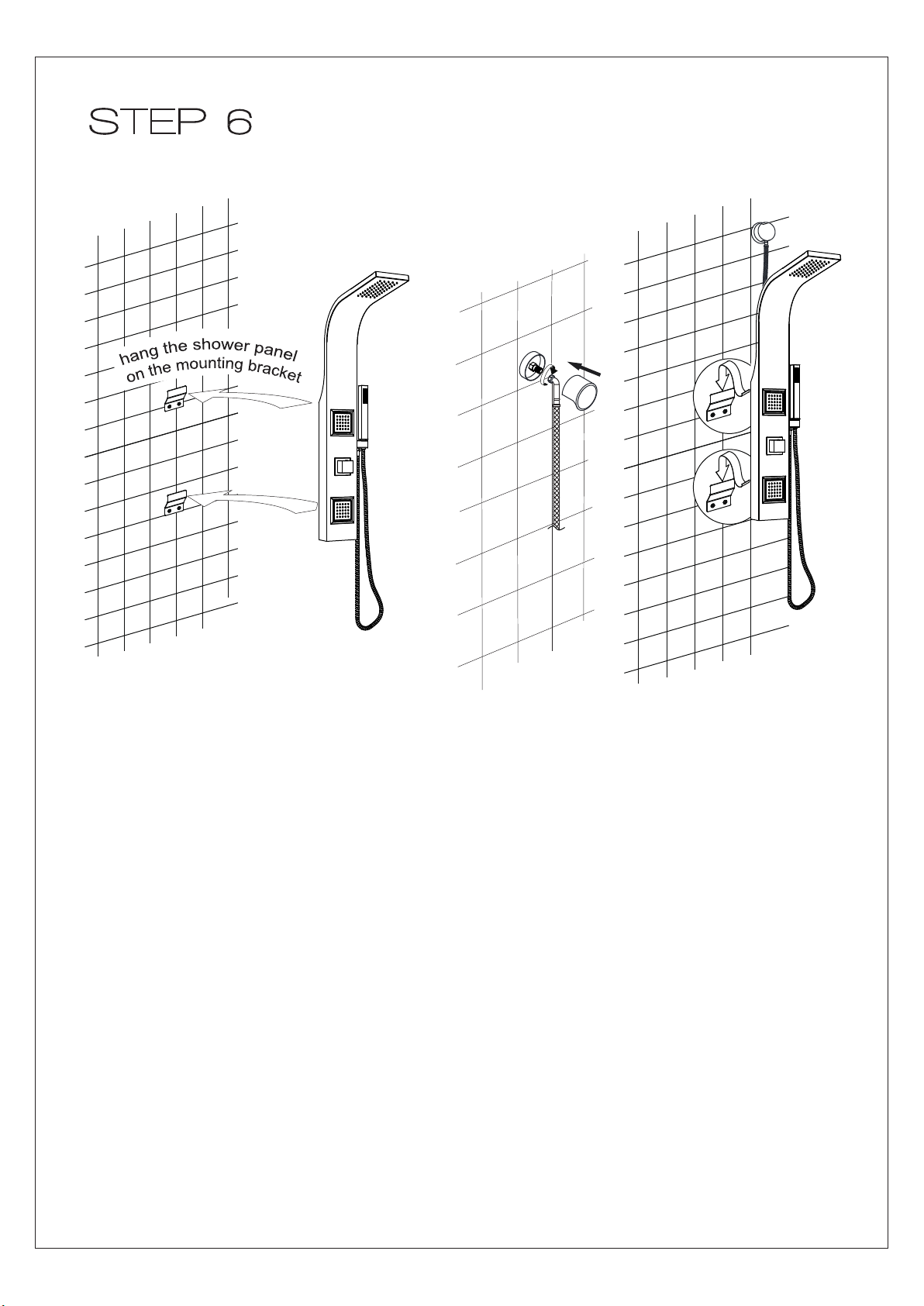

STEP 6
The mixing valve will not function properly if the connections are incorrect.
Before hanging the shower panel onto the wall, turn on shut-off valves and test all water
functions of the shower panel and check all connections for leaks.
Make sure that the hoses are in the shower panel enclosure.
Connect shower panel water supply hose to the existing plumbing and the mixing valve.
6-1
6-2
Slide the shower panel down until it rests on the mounting brackets you installed. The shower
panel must be seated onto the mounting brackets by pulling down the shower panel.
6-3
Have questions? Call us at 305-614-4070or visit us at www.ANZZI.com
