SMART All-in-One User Manual

A2272PWHT

www.aoc.com

TABLE OF CONTENT

SAFETY ....................................................................................................................................4

National Conventions....................................................................................................................4

Power ................................................................................................................................................5

Installation ........................................................................................................................................6

Cleaning ............................................................................................................................................7

Other.................................................................................................................................................8

SETUP.......................................................................................................................................9

Contents of the Box......................................................................................................................9

Adjusting Viewing Angle.................................................................................................................9

Connecting the Monitor ............................................................................................................ 10

Multi-Touch Screen ..................................................................................................................... 11

Connecting usb keyboard & mouse ........................................................................................ 12

Setting up the USB keyboard.............................................................................................. 12

ADJUSTING......................................................................................................................... 13

Setting Optimal Resolution ....................................................................................................... 13

Windows Vista ....................................................................................................................... 13

Windows 8 ............................................................................................................................. 14

Windows ME/2000 ............................................................................................................... 15

OPERATING INSTRUCTIONS....................................................................................... 16

Hotkeys.......................................................................................................................................... 16

OSD Setting.................................................................................................................................. 17

Luminance............................................................................................................................... 18

Image Setup ............................................................................................................................ 19

Color Setup............................................................................................................................ 20

Picture Boost ......................................................................................................................... 21

OSD Setup.............................................................................................................................. 22

Extra......................................................................................................................................... 23

Exit............................................................................................................................................ 24

LED Indicator ............................................................................................................................... 24

STARTING WITH ANDROID.......................................................................................... 25

Customizing your Home Screen.............................................................................................. 26

Viewing the Apps Gallery........................................................................................................... 26

Browsing the Internet................................................................................................................. 26

Using the On-screen Keyboard................................................................................................ 27

Connecting to Network ............................................................................................................ 27

Adjusting the Settings for Android .......................................................................................... 28

Android Software Update ......................................................................................................... 30

DRIVER ................................................................................................................................. 31

Monitor Driver ............................................................................................................................ 31

Windows 8 ............................................................................................................................. 31

Windows 7 ............................................................................................................................. 36

Windows Vista ....................................................................................................................... 40

Windows 2000 ...................................................................................................................... 42

Windows ME.......................................................................................................................... 42

i-Menu ............................................................................................................................................ 43

e-Saver............................................................................................................................................ 44

Screen+.......................................................................................................................................... 45

TECHNICAL SUPPORT (FAQ)....................................................................................... 46

Troubleshoot ................................................................................................................................ 46

Error Message & Possible Solution.......................................................................................... 47

No Signal................................................................................................................................. 47

Input Not Support................................................................................................................ 47

APPENDIX ........................................................................................................................... 48

Plug And Play................................................................................................................................. 48

Keyboard And Mouse ................................................................................................................. 48

Specifications ................................................................................................................................ 50

Preset Display Modes ................................................................................................................. 51

For HDMI................................................................................................................................ 52

Pin Assignments............................................................................................................................ 53

REGULATION..................................................................................................................... 54

EUROPE......................................................................................................................................... 54

TAIWAN........................................................................................................................................ 55

USA................................................................................................................................................. 55

CANADA...................................................................................................................................... 56

MEXICO........................................................................................................................................ 57

BRAZIL .......................................................................................................................................... 57

KOREAN ....................................................................................................................................... 57

FCC Notice .................................................................................................................................. 57

WEEE Declaration....................................................................................................................... 58

WEEE Declaration for India...................................................................................................... 59

SERVICE ................................................................................................................................ 60

Warranty Statement for Europe .............................................................................................. 60

Warranty Statement for North & South America (excluding Brazil) .............................. 62

Ease Programe.............................................................................................................................. 64

SAFETY

NATIONAL CONVENTIONS

The following subsections describe notational conventions used in this document.

Notes, Cautions, and Warnings

Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in

italic type.

These blocks are notes, cautions, and warnings, and they are used as follows:

NOTE:

A NOTE indicates important information that helps you make better use of your monitor..

CAUTION:

A CAUTION indicates either potential damage to hardware or loss of data and tells you

how to avoid the problem.

WARNING:

A WARNING indicates the potential for bodily harm and tells you how to avoid the

problem. Some warnings may appear in alternate formats and may be unaccompanied by

an icon. In such cases, the specific presentation of the warning is mandated by regulatory

authority.

POWER

The monitor should be operated only from the type of power source indicated on the

label. If you are not sure of the type of power supplied to your home, consult your dealer

or local power company.

The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding)

pin.This plug will fit only into a grounded power outlet as a safety feature. If your outlet

does not accommodate the three-wire plug, have an electrician install the correct outlet,

or use an adapter to ground the appliance safely. Do not defeat the safety purpose of the

grounded plug.

Unplug the unit during a lightning storm or when it will not be used for long periods of

time.This will protect the monitor from damage due to power surges.

Do not overload power strips and extension cords. Overloading can result in fire or

electric shock.

To ensure satisfactory operation, use the monitor only with UL listed computers which

have appropriate configured receptacles marked between 19V, 3.42A

The wall socket shall be installed near the equipment and shall be easily accessible.

For use only with the attached power adapter (Output 19VDC) which have UL, CSA listed

license (Only for monitors with power adapter).

Manufacturers:

1) TPV ELECTRONICS(FUJIAN) CO., LTD model:ADPC1965

2) SHENZHEN HONOR ELECTRONICS CO., LTD. / model:ADS-65LSI-19-1 19065G

INSTALLATION

Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the

monitor falls, it can injure a person and cause serious damage to this product. Use only

a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with

this product. Follow the manufacturer’s instructions when installing the product and use

mounting accessories recommended by the manufacturer.A product and cart combination

should be moved with care.

Never push any object into the slot on the monitor cabinet. It could damage circuit parts

causing a fire or electric shock. Never spill liquids on the monitor.

Do not place the front of the product on the floor.

If you mount the monitor on a wall or shelf, use a mounting kit approved by the

manufacturer and follow the kit instructions.

Leave some space around the monitor as shown below. Otherwise, air-circulation may be

inadequate hence overheating may cause a fire or damage to the monitor.

See below the recommended ventilation areas around the monitor when the monitor is installed

on the wall or with the stand:

Installed on the wall

4 inches

10cm

4 inches

10cm

4 inches

10cm

11 7/8 inches

30cm

Leave at least this space

around the set.

Installed with stand

4 inches

10cm

4 inches

10cm

11 7/8 inches

30cm

Leave at least this space

around the set.

4 inches

10cm

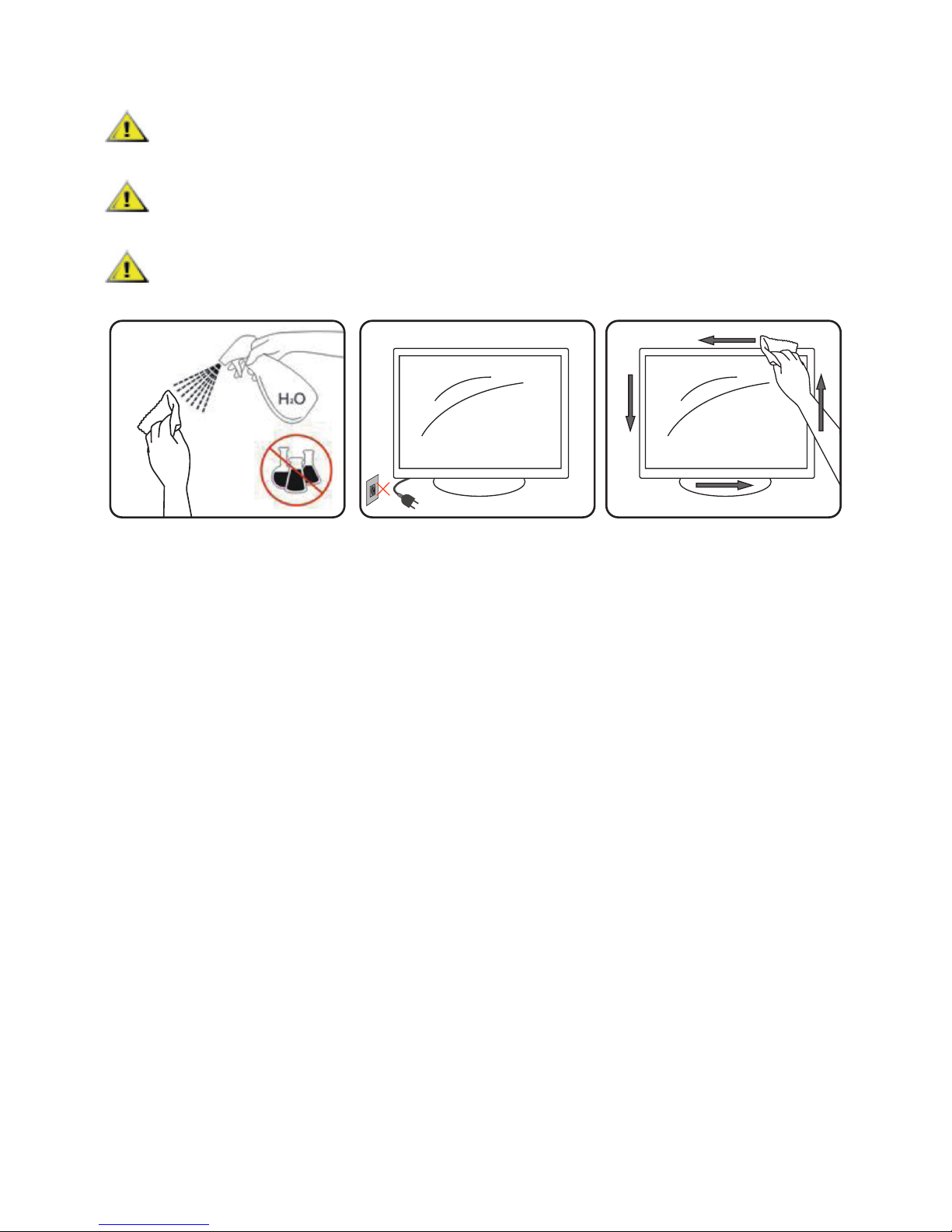

CLEANING

Clean the cabinet regularly with cloth.You can use soft-detergent to wipe out the stain,

instead of strong-detergent which will cauterize the product cabinet.

When cleaning, make sure no detergent is leaked into the product.The cleaning cloth

should not be too rough as it will scratch the screen surface.

Please disconnect the power cord before cleaning the product.

OTHER

If the product is emitting a strange smell, sound or smoke, disconnect the power plug

IMMEDIATELY and contact a Service Center.

Make sure that the ventilating openings are not blocked by a table or curtain.

Do not engage the LCD monitor in severe vibration or high impact conditions during

operation.

Do not knock or drop the monitor during operation or transportation.

For display with glossy bezel the user should consider the placement of the display as the

bezel may cause disturbing reflections from surrounding light and bright surfaces.

SETUP

CONTENTS OF THE BOX

1. LCD Monitor

2. CD Manual

3. Power Cord

4. Power Adapter

5. D-SUB Cable

6. Audio Cable

7. USB Cable (upstream)

8. HDMI Cable

9. USB Keyboard

10. USB Mouse

• Not all signal cables (D-SUB,Audio, USB , HDMI cables) and Keyboard , Mouse will be provided

for all countries and regions. Please check with the local dealer or AOC branch office for

confirmation.

ADJUSTING VIEWING ANGLE

• For optimal viewing, it is recommended to look at the full face of the monitor, and then adjust

the monitor’s angle to your own preference.

• Hold the stand so you will not topple the monitor when you change the monitor’s angle.

• You are able to adjust the tilted angle to 15°or 57°.

15° 57°

• Do not touch the LCD screen when you change the angle. It may cause damage or break the

LCD screen.

• It is recommended to stabilize with a fixed point in order to lock the stand if the tilted angle is

equal to or over 20°.

• Do not adjust the tilted angle less than 20°.The monitor may fall caused by instability.

• Pay attention not to bounce back the stand while adjusting the tilted angle.

CONNECTING THE MONITOR

Cable connections at the back of monitor:

1. Power Input 7. USB Port

2. SD Card Slot (SD/SDHC/SDXC/

MMC/MS/MS-Pro) 8. USB Port (Micro USB)

3. D-SUB Signal Input 9. USB Port

4. HDMI Signal Input 10. Audio In

5. RJ45 (10/100Mbps) 11. Earphone Out

6. USB Port 12. Kensington Lock

To protect equipment, always turn off the PC and monitor before connecting.

1. Connect the power cable to the AC port on the back of the monitor.

2. Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the other

end to the computer’s D-Sub port.

3. Optional – (Requires a video card with HDMI port) – Connect one end of the HDMI cable to

the back of the monitor and connect the other end to the computer’s HDMI port.

4. Turn on your monitor and computer.

5. Video content supporting resolution:VGA / HDMI: 1920 x 1080/60Hz (Maximum)

If your monitor displays an image, installation is complete. If it does not display an image, please

refer Troubleshooting on page 46.

Indice

Altri manuali AOC Scrivania

AOC

AOC M92 Manuale utente

Manuali Scrivania popolari di altre marche

HP m9060n - Pavilion - Elite Scheda tecnica

Asus

Asus E210 Series Manuale utente

Dell

Dell Inspiron 600m Manuale utente

Dell

Dell Inspiron 3662 Manuale utente

TotalFlow

TotalFlow uFLO Manuale utente

HP Presario SV7000 - Desktop PC Manuale utente

HP ProDesk 400 G5 Manuale

Logitech

Logitech MK320 Manuale utente

Dell

Dell XPS 730 H2C Manuale utente

Sony

Sony Vaio Series Manuale utente

Sony

Sony VGC-LT32E - Vaio All-in-one Desktop Computer Manuale utente

Alto

Alto MD 250 Manuale utente

Lenovo

Lenovo ThinkCentre Edge 72 Manuale

Lenovo

Lenovo ThinkStation D20 Manuale

Arbor Technology

Arbor Technology FPC-7800 Series Manuale utente

Sony

Sony VAIO VGX-TP1 Series Manuale utente

Asus

Asus Eee Box B204 Manuale utente

Dell

Dell Optiplex 9010 All In One Manuale utente
