AOC 2330V Manuale utente

2330V User’s Manual

The following subsections describe notational conventions used in this document.

Notes, Cautions, and Warnings

Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type. These

blocks are notes, cautions, and warnings, and they are used as follows:

NOTE: A NOTE indicates important information that helps you make better use of your computer

system.

CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how

to avoid the problem.

WARNING: A WARNING indicates the potential for bodily harm and tells you how to avoid the

problem.Some warnings may appear in alternate formats and may be unaccompanied by an icon. In

such cases, the specific presentation of the warning is mandated by regulatory authority.

The monitor should be operated only from the type of power source indicated on the label. If you are not sure

of the type of power supplied to your home, consult your dealer or local power company.

The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will

fit only into a grounded power outlet as a safety feature. If your outlet does not accommodate the three-wire

plug, have an electrician install the correct outlet, or use an adapter to ground the appliance safely. Do not

defeat the safety purpose of the grounded plug.

Unplug the unit during a lightning storm or when it will not be used for long periods of time. This will protect

the monitor from damage due to power surges.

Do not overload power strips and extension cords. Overloading can result in fire or electric shock.

To ensure satisfactory operation, use the monitor only with UL listed computers which have appropriate

configured receptacles marked between 100 - 240V AC, Min. 5A

The wall socket shall be installed near the equipment and shall be easily accessible.

For use only with the attached power adapter (Output 12Vdc) which have UL,CSA listed license (Only for

monitors with power adapter).

Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure

a person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table

recommended by the manufacturer or sold with this product. Follow the manufacturer’s instructions when

installing the product and use mounting accessories recommended by the manufacturer. A product and cart

combination should be moved with care.

Never push any object into the slot on the monitor cabinet. It could damage circuit parts causing a fire or

electric shock. Never spill liquids on the monitor.

Do not place the front of the product on the floor.

If you mount the monitor on a wall or shelf, use a mounting kit approved by the manufacturer and follow the

kit instructions.

Leave some space around the monitor as shown below. Otherwise, air-circulation may be inadequate hence

overheating may cause a fire or damage to the monitor.

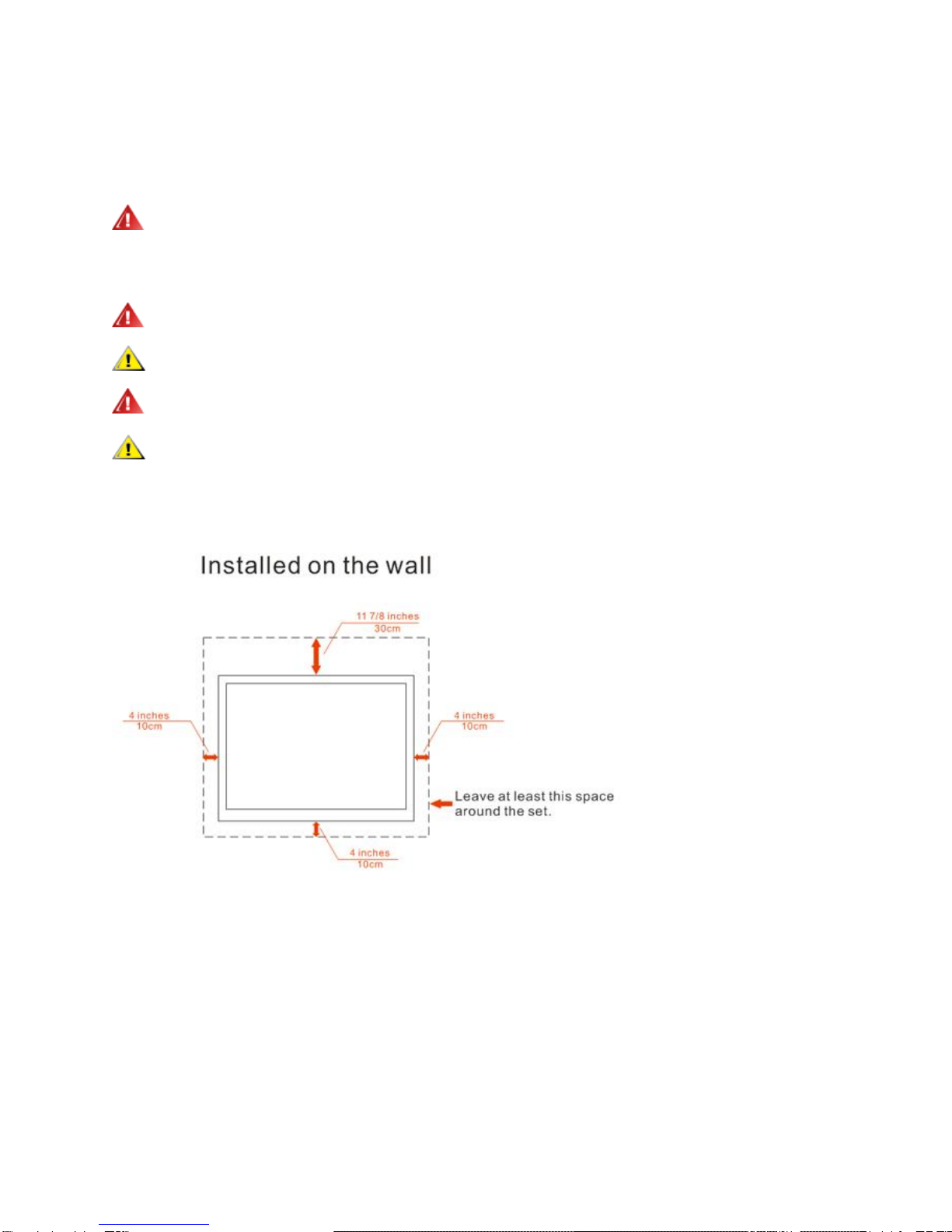

See below the recommended ventilation areas around the monitor when the monitor is installed on the wall or on the

stand:

Clean the cabinet regularly with the cloth provided. You can use soft-detergent to wipe out the stain, instead of

strong-detergent which will cauterize the product cabinet.

When cleaning, make sure no detergent is leaked into the product. The cleaning cloth should not be too rough

as it will scratch the screen surface.

Please disconnect the power cord before cleaning the product.

If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and

contact a Service Center.

Make sure that the ventilating openings are not blocked by a table or curtain.

Do not engage the LCD monitor in severe vibration or high impact conditions during operation.

Do not knock or drop the monitor during operation or transportation.

Notes:

Analog cable or DVI cable is not available for all countries and regions, please check with the dealer or official

department of AOC for confirmation .

Please setup or remove the base following the steps as below.

For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor's angle

to your own preference.

Hold the stand so you will not topple the monitor when you change the monitor's angle.

You are able to adjust the monitor's angle from -5° to 20 °.

NOTE:

Do not touch the LCD screen when you change the angle. It may cause damage or break the LCD screen.

Cable Connections On Back of Monitor and Computer

1. Power

2. Analog (DB-15 VGA cable)

3.DVI

To protect equipment, always turn off the PC and LCD monitor before connecting.

1. Connect the power cable to the AC port on the back of the monitor.

2. Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the other end to the

computer's D-Sub port.

3. (Optional –Requires a video card with DVI port) - Connect one end of the DVI cable to the back of the

monitor and connect the other end to the computer’s DVI port.

4. Turn on your monitor and computer.

If your monitor displays an image, installation is complete. If it does not display an image, please refer

Troubleshooting.

Preparing to Install An Optional Wall Mounting Arm.

This monitor can be attached to a wall mounting arm you purchase separately. Disconnect power before this

procedure. Follow these steps:

1. Remove the base.

2. Follow the manufacturer's instructions to assemble the wall mounting arm.

3. Place the wall mounting arm onto the back of the monitor. Line up the holes of the arm with the holes in the

back of the monitor.

4. Insert the 4 screws into the holes and tighten.

5. Reconnect the cables. Refer to the user's manual that came with the optional wall mounting arm for

instructions on attaching it to the wall.

Noted : VESA mounting screw holes are not available for all models, please check with the dealer or official

department of AOC.

Distance between the wall-mount holes : 100 x 100 mm

Screw specification for wall-mount : M4 x 10

The recommended resolution for this monitor is 1920 by 1080. To setup the monitor to this resolution, follow the steps below.

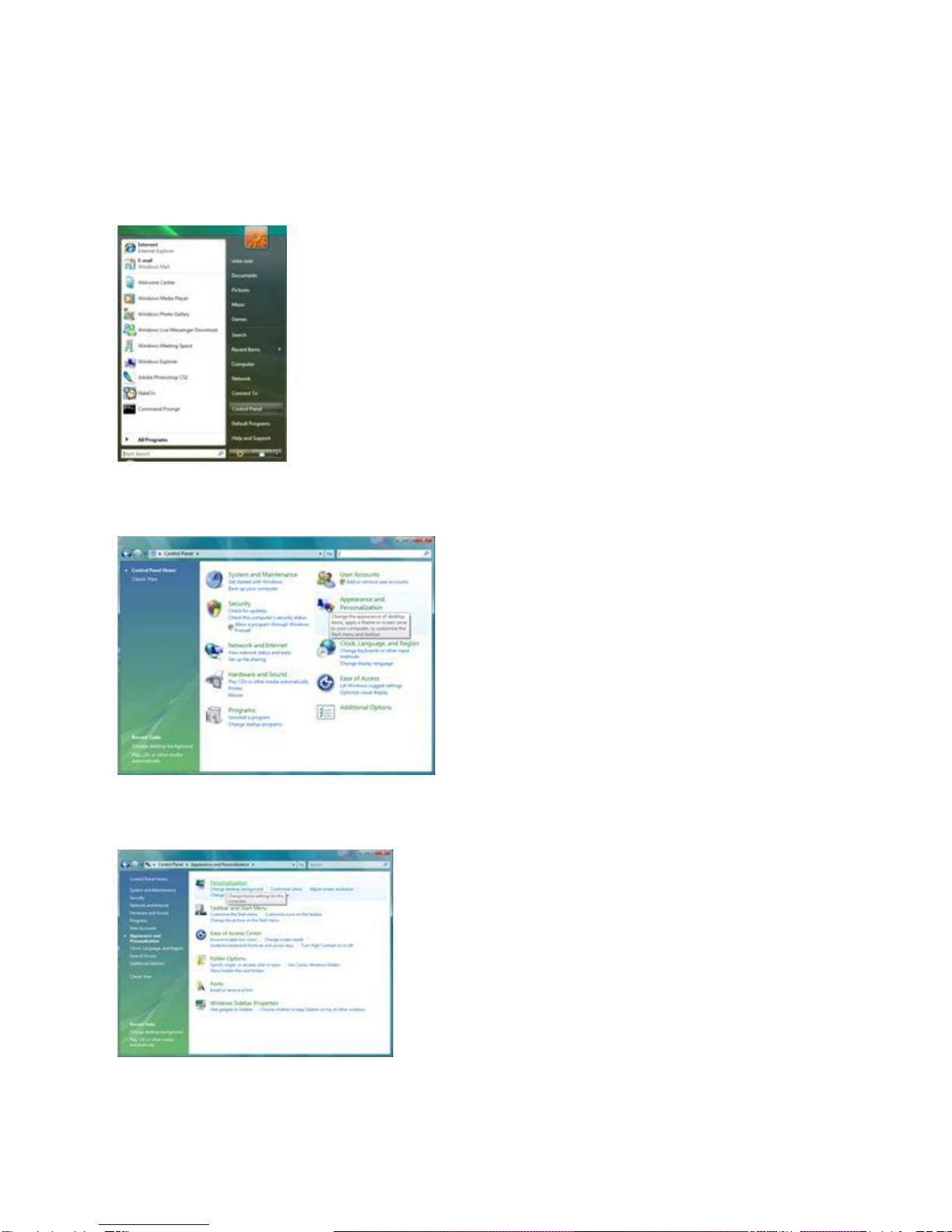

For Windows Vista:

1 Click START.

2 Click CONTROL PANEL.

3 Click Appearance and Personalization.

4 Click Personalization
