1. The Rel unit starts flashing, you can press the HISTORY WEATHER button to confirm and
enter the relative pressure value setting.
2. The air pressure value starts flashing.
3. You can adjust it manually according to the data from the local meteorological station.
You can also keep the default data to make it adapt automatically.
4.Press the HISTORY WEATHER button to confirm and enter the weather symbol setting.

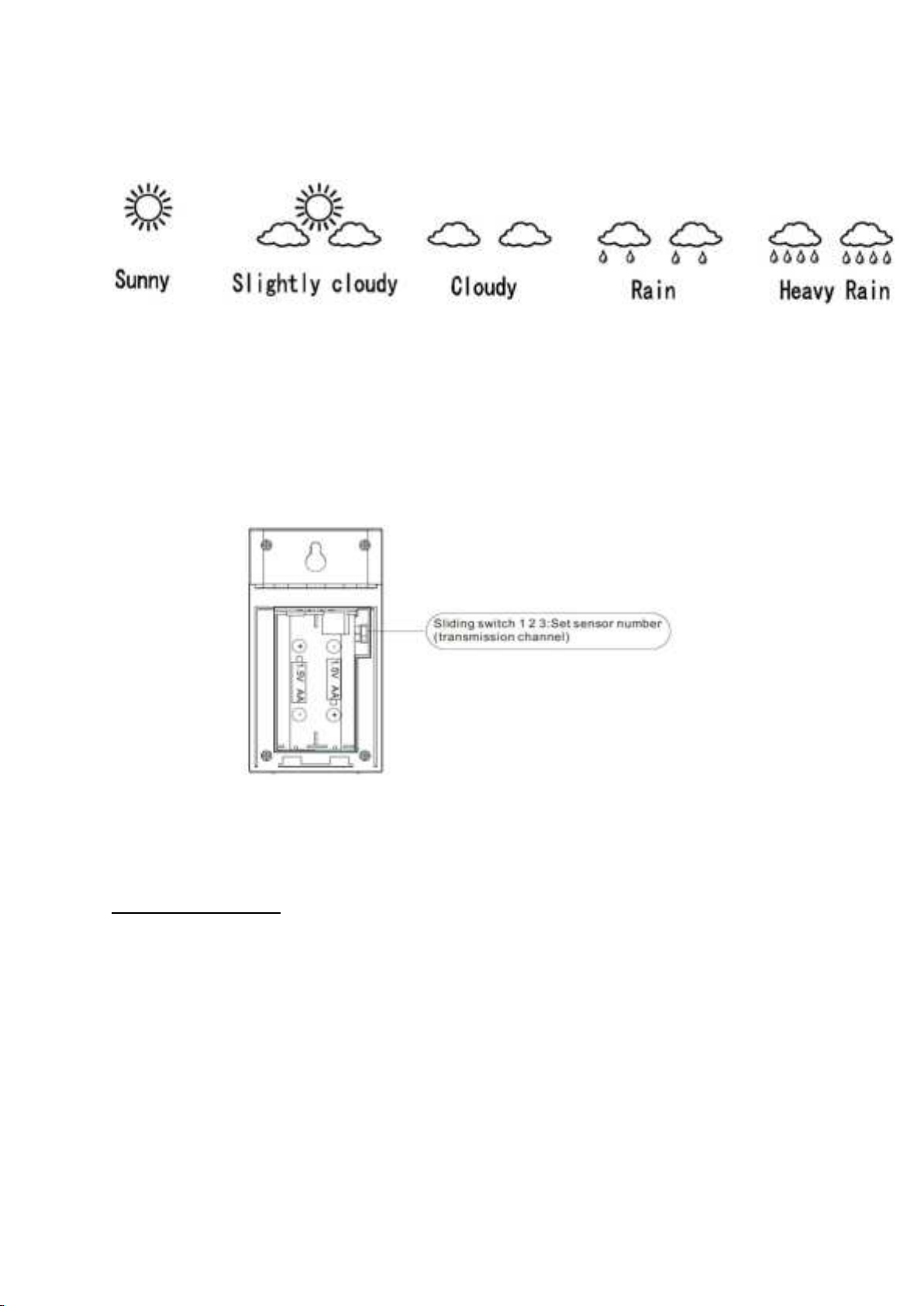

5.The weather symbol starts flashing, and the default is half sunny. It will automatically
adjust to the correct symbol. However, if you want to shorten the reception time of the
weather station, you can manually adjust it through +/12/24 and -/RC button.
6.Press the HISTORY WEATHER button to save the setting and exit the air pressure mode.
7.To re-adjust, long press the HISTORY WEATHER button till the air pressure unit start to
flash.
Note: When setting the air pressure, the +/12/24; -/RC; HISTORY WEATHER buttons have
function, other buttons have no function. After exiting after 20 seconds, the other buttons
have functions and enter the RF receiving mode at the same time.
Pairing the outdoor sensor with the weather station
Once the weather station is installed batteries, it will start receiving the pairing RF signals
from the outdoor sensor with the same channel for 3 minutes. You can press the CHANNEL
button on the base unit to match the correct outdoor sensor.
Generally, the outdoor sensor will connect with the base unit automatically. If it doesn’t
connect, please follow below steps to set:
• Ensure that the weather station is in the same channels with the outdoor sensor.
• Long press the CHANNEL button on the base unit to search signal from the outdoor sensor.
• The sensor receiving icon will flash when searching for the signal.
• After the sensor is connected, the icon will become stable.
Note: After replacing the sensor battery, you need to press and hold the CHANNEL button
of the station to receive again.
Reception RCC
After successful reception of the signal for the outdoor sensor, the reception of the DCF77
time signal will begin and the radio control indicator will blink on the display next to the
time. This process can take from 3~10 minutes. All buttons except the SNOOZE/LIGHT and
ALARM ON/OFF
buttons are disabled during the reception process. If reception fails after
10 minutes, the radio tower will disappear. The automatic reception time of the weather
station is: 01:00, 02:00, 03:00, and it will be received every time. If it is not received at 03:00,
it will be received at 04:00. Receipt will be made at 05:00, regardless of whether it is
received at 05:00, it will no longer be received on the same day.
If the reception attempt is successful, the radio control indicator will appear permanently on
the display and the correct time, date, day of week and the times of sunrise, sunset and

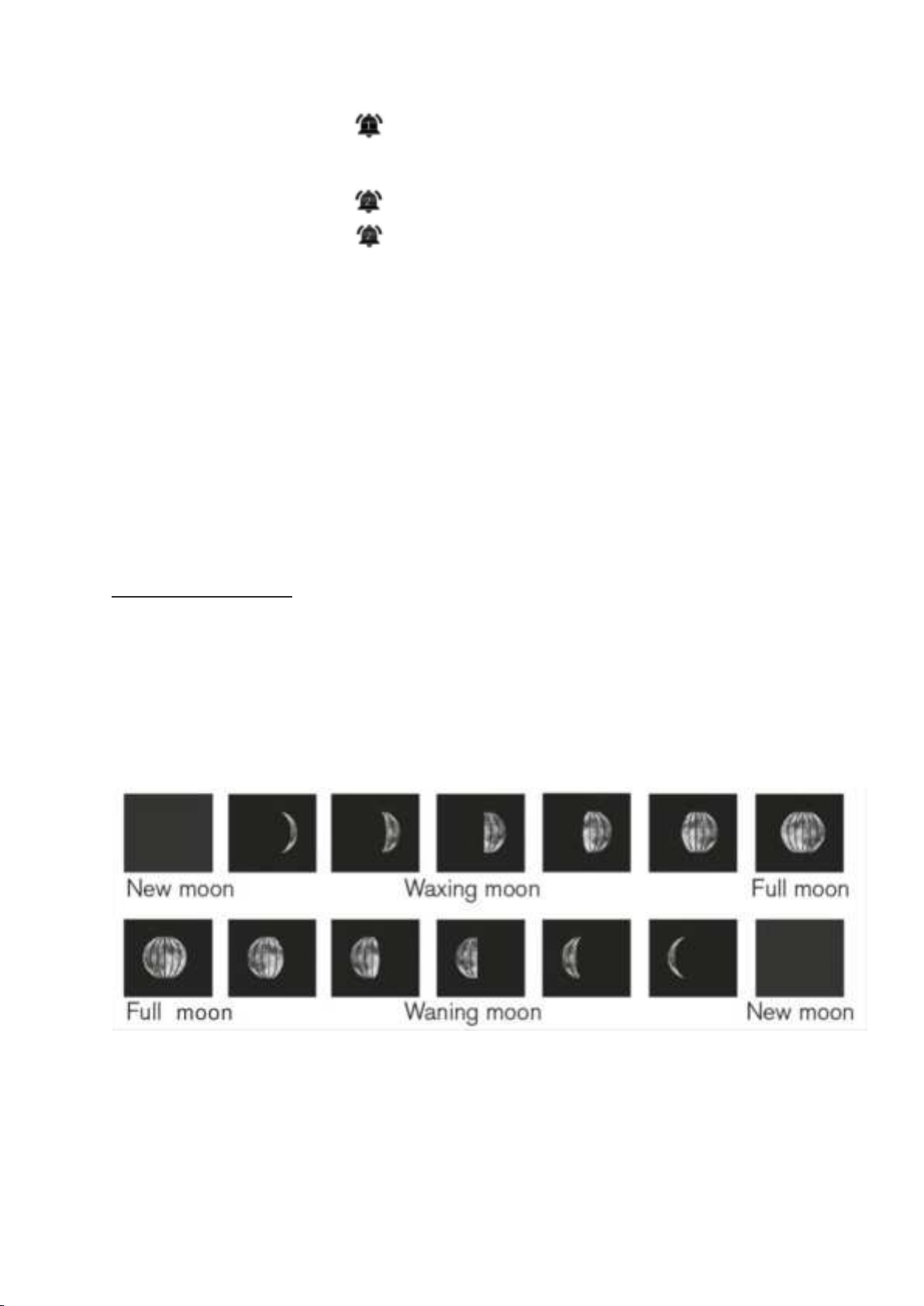

moon phase will be set automatically. DST will appear on the display next to the radio
control indicator during daylight saving time.
