AOM BRP Manuale utente
USE AND MAINTENANCE MANUAL
WRITTENBYREDIMECSnc
SETTIMOMILANESE(MI)
SPRAYGUN MOD. BRP
®
A.O.M.- AMERICA LLC
54 S. Commerce Way, Suite 180
Bethlehem, PA 18017 USA
AOM
BRP
Cert. -04985-99-AQ-MIL-SINCERT
(Rev. 1 - 14/03/01)
USA - BRP - 1.0
DECLARATION OF CONFORMITY
SIGNATURE:...........................................
ASTURO ORIGINALI MAVES Spa
Via Cascina Venina, 20
20090ASSAGO(MI)-ITALY
++39 02-8905416 - FAX ++39 02-89305497
P.IVA/ VAT (registrationnumber) 11164500156
MODEL BRP
SERIAL NUMBER
YEAR OF MANUFACTURE 200
ACCESSORIES SUPPLIED
A.O.M. spa DECLARES on its own responsibility that the machine to which this declaration refers,
conforms with the prescriptions in the following directives:
DIRETTIVA 89/392/CEE MODIFICATADALLA DIRETTIVA 91/368/CEE
DALLADIRETTIVA 93/44/CEE E DALLA DIRETTIVA 93/68/CEE (DIRETTIVAMACCHINE)
DIRECTIVE 89/392/EECAMENDED BY DIRECTIVE91/368/EEC
BY DIRECTIVE 93/44/EECAND BY DIRECTIVE 93/68/EEC(MACHINE DIRECTIVE)
The machine also conforms with following standards:
UNI EN 292/1 (november 1992) Sicurezza del macchinario, Concetti fondamentali, principi gene-
rali di progettazione.- Terminologia, metodologia di base
Machinesafety, Fundamental concepts. General designprinciples -Terminology, basicmethodology.
UNI EN 292/2 (november 1992) Sicurezza del macchinario - Concetti fondamentali, principi gene-
rali di progettazione - Specifiche e principi tecnici
Machine safety - Fundamental conceps. General design principles - Techinical specification and
principals.
PLACE:
ASSAGOS/N
SURNAME - NAME:
BRANCHINIRIZIERI
POSITION:
SOLE DIRECTOR
DATE:
/ / /
®
Dear Customer,
Thank you for choosing one of A.O.M.- AMERICA products.
A.O.M.- AMERICA is a division of a leading manufacturer in the field of
painting systems and machinery.
The name ASTURO ORIGINALI MAVES Spa has always meant reliability
and safety, a fact which has been supported by over 80 years of experience
and by our Customer satisfaction.
All our components have been designed and manufactured to guarantee
the best performance ever.
To maintain the high quality level and lengthy reliability of our products
throughout the years, always use original spare parts.
All ASTURO ORIGINALI MAVES Spa units are equipped with the
CERTIFICATION in accordance with EUROPEAN DIRECTIVE 89/392
(Machine Directive.)
We are certain we have met all safety requirements and we feel confident
we have further improved working standards.
Our units, in fact, have the identification in accordance with rulings.
Furthermore, they are delivered with the instruction manual and the certifica-
te with the Declaration of Conformity to European Directive 89/392 and to
its various amendments.
The Management
USE AND MAINTENANCE MANUAL
Page 4 of 13
®
HOWTOUSE THEMANUAL..................................................................................................................1
SYMBOLS USED....................................................................................................................................1
INFORMATION LETTER.........................................................................................................................2
1.1 PACKAGING...........................................................................................................................3
2.1 IDENTIFICATION DATA.................................................................................................................3
2.2 MACHINEDESCRIPTION............................................................................................................4
2.3 TECHNICAL FEATURES..............................................................................................................5
2.4 STANDARDAND OPTIONALCOMPONENTS...........................................................................5
2.5 PAINTS, FLUIDSAND OTHER PRODUCTS...............................................................................6
2.6 DIMENSIONS.........................................................................................................................6
3.1 INSPECTION OF PURCHASED PRODUCT...............................................................................7
3.2 INSTALLATION CONDITIONS......................................................................................................7
3.3 HOW TO USE THE GUN...............................................................................................................7
3.4 EQUIPMENT AND CONDITIONS NECESSARYFOR OPERATION .........................................8
3.5 SAFETY PROCEDURES DURING USE..............................................................................8
4.1 PRESSURE DISCHARGE OPERATIONS...................................................................................9
4.2 ROUTINE MAINTENANCE...........................................................................................................9
4.3 TROUBLESHOOTING.......................................................................................................10
WARRANTY
GUN ASSEMBLING DRAWING
GENERAL CONTENTS
HOW TO USE THE MANUAL
The following manual is a document that accompanies the machine thouroughout its lifetime.
It is, therefore, an integral part of the machine. Carefully read the following warnings and
proceduresbeforeengagingin any activity withthismachine,including handling and unloading
it from its transportation mean.
SYMBOLS USED
All operations which might be dangerous if not performed correctly are indicated with the
following symbol:
All operations which, in order to avoid risks, must be performed by trained and authorized
personnel are indicated by the following symbol:
All personnel in charge of using the machine must be thoroughly trained; all the above
information must be thouroughly understood and applied.
USE AND MAINTENANCE MANUAL
Page 5 of 13
®
INFORMATION LETTER
The following maintenance and instruction manual is an integral part of the machine and
must always be available to the personnel in charge of using and maintaining it. The operator
and the personnel in charge of handling the machine must have knowledge of the contents of
the manual. The descriptions and illustrations in the manual are not to be considered as
binding. Although the main features of the machine described in this manual are not subject
to change, ASTURO ORIGINALI MAVES Spa reserves the right to change those
components, details and accessories it deems necessary to improve the machine or to
meet manufacturing or commercial requirements, at any time and without updating this manual
immediately.
WARNING
ALL RIGHTS ARE RESERVED. The reproduction of any part of this manual, in any given
form, without prior written authorization from ASTURO ORIGINALI MAVES Spa, is strictly
forbidden. The content of this manual can be modified without prior notice. Great care has
been taken in collecting and checking the documentation contained in this manual in order to
make it as complete and comprehensible as possible. ASTURO ORIGINALI MAVES Spa
machinesarenot designedtofunction in areasatrisk of firesand/orexplosions. Forproblems
or information call A.O.M.- AMERICA customer care technical service or your local dealer.
WARNING
The machine original configuration must not be modified in any way.
On receiving the machine make sure that:
+ The packaging is intact and undamaged.
+ The supply corresponds to what has been ordered.
+ In case of damage please call A.O.M.- AMERICA
CUSTOMER CARE TECHNICAL SERVICE
A.O.M.- AMERICA LLC
54 S. Commerce Way, Suite 180
Bethlehem, PA 18017 USA
TEL. 800-533-6254 or 610-954-5530
FAX. 610-954-5532
INTERNET SITE: www.aomspray.com
E-MAIL: [email protected]
USE AND MAINTENANCE MANUAL
Page 6 of 13
®
AOM
BRP
1.1 PACKAGING
To transport the BRP gun, the unit is packaged in a cardboard box. All optional components
are placed with the gun inside the same box. When transporting and storing the machine
make sure the surrounding temperature remains between -15 and 40 °C (5°Fand 104°F). If
transportation or storage operations last 24 hours or less do not exceed 50°C (122°F)
otherwise the unit could be damaged.
If the need arises to store the machine, make sure the humidity values in the storage area
remain between 30 and 80%.

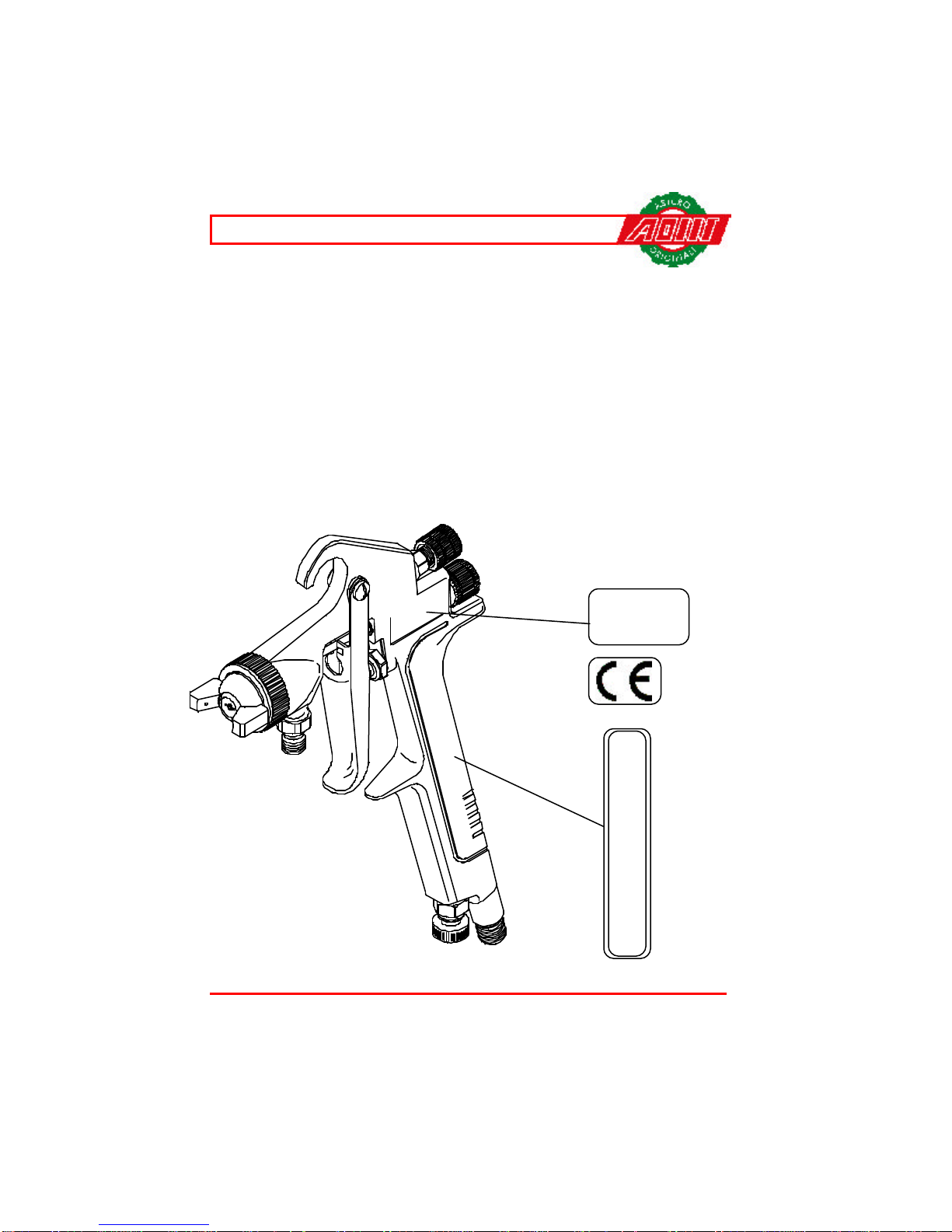

2.1 IDENTIFICATION DATA
The manufacturer identification and CE RULING n° 89/392 conformity is placed on a side of
thegun(as shownbelow).
The plate must not be removed at any time even if the machine should be sold again.
CE-MARK
MODEL
BRP
l
ASTURO ORIGINALI
l
MANUFACTURER
USE AND MAINTENANCE MANUAL
Page 7 of 13
®
AOM
BRP
2.2 MACHINE DESCRIPTION
The low pressure BRP gun is used to spray paints. It is possible to obtain smooth and even
large-size surfaces with this gun thanks to its micro-spraying system. The spray gun has a
threaded connection which is to be connected to the paint inlet hose. It is also possible to
adjust the inlet air flow and the paint output.
The spray gun used with a paint hose allows a long painting autonomy; it is also possible to
connect the spray gun to a common compressor with reduced working pressure. BRP
ASTURO spray guns are available both in standard and HVLP versions and with stainless
steel paint hose to be used with corrosive products (Code 183XXI). It is possible to adjust the

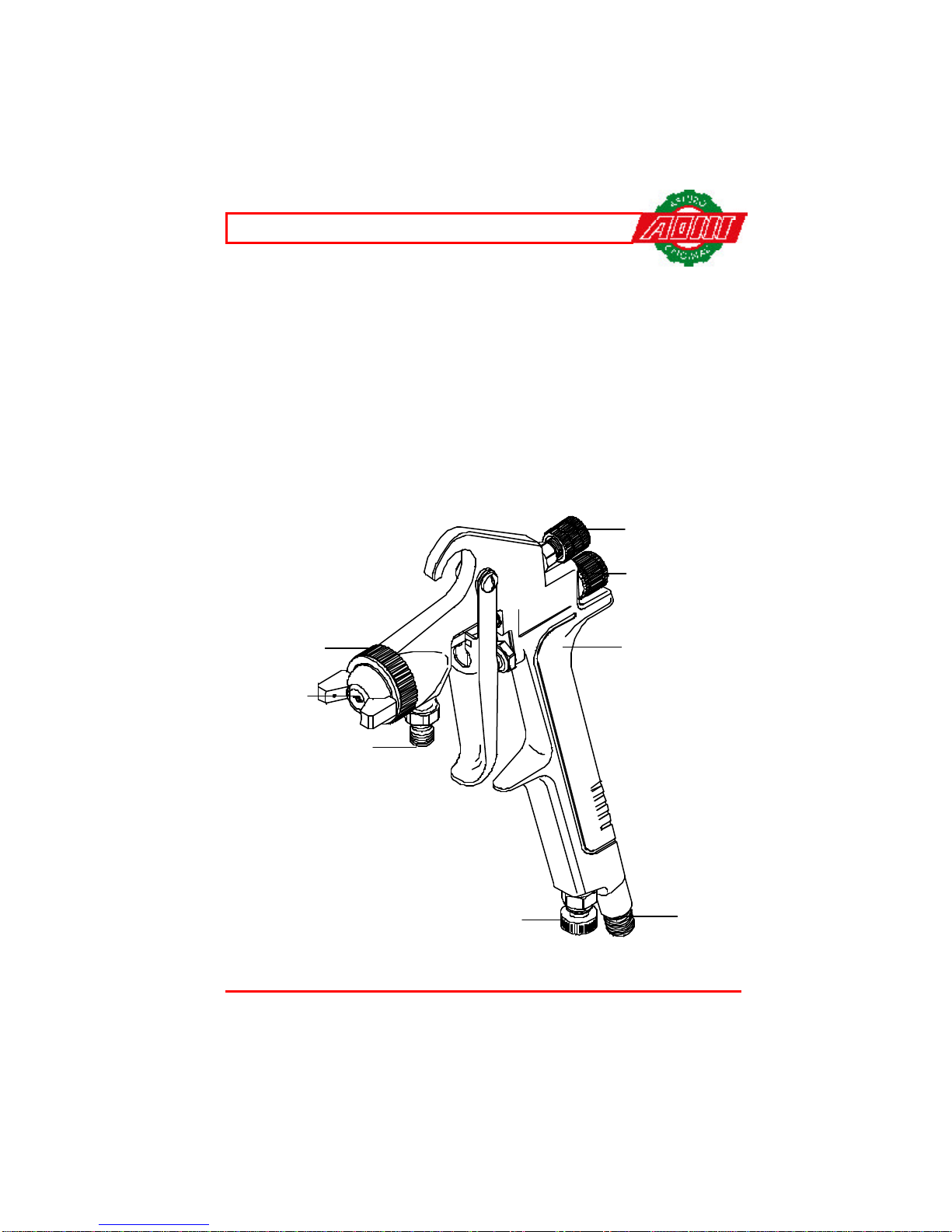

painting fan to obtain high quality finishing. The drawing below indicates the most important
features of the gun.
l
l
l
l
Spraying cap with fan
direction adjustment
l
l
Gun body made of aluminum
alloy (heavy anodizing).
Fan regulator
Fluid regulation
Stainless steel nozzle
Connection for paint
hose
llNickled brass air inlet
(thread1/4gas)
Air flow inlet regulator
USE AND MAINTENANCE MANUAL
Page 8 of 13
®
2.3 TECHNICAL FEATURES
The painting spray gun must be used with a compressor of 5 bar (71 psi) at least. Its design
improves the distribution of the air supplied from the internal holes also at very low working
pressures.
ASTURO ORIGINALI MAVES Spa carries out all the necessary tests on the painting spray
gun before delivering it to its customers.
NOZZLE TECHNICAL FEATURE TABLE
The above technical features are only exemplifying and can vary without prior notice.
2.4 STANDARD AND OPTIONAL COMPONENTS
The spray gun is delivered with the following standard components:
+1 - Dismantling wrench.
+1 - Cleaning brush.
+1 - Use and maintenance manual.
+1 - Declaration of conformity to CE RULINGS.
+1 - Warranty certificate.
Onrequest:
+Nozzles with different measures.
+Connection hoses.
+Stainless steel filter holder with FM 1/4” (or 3/8”) filter.
+M3/8” fluid in let fiting.
Nitre
Surface
primer Basecoat Clearcoat Matallic/water
base Nitre Enamel Wood
filler Lacquer Oil-based
paint Rust proof
coat Primer Sealer Enamel Hammered-
effect paint Orange-peel
effect paint
Ø1.0 - 1.2 ü ü ü ü
Ø1.4 - 1.5 ü ü ü ü
Ø1.7 - 1.9 ü ü ü ü
Ø2.2 - 2.5 ü ü ü ü ü
NOZZLE
PRODUCT
BODY SHOP WOODWORKING METAL PAINTING
FEATURE VALUE
Air consumption 200Lt/min (70 c.f.m.)
Nozzle size 0,8-1,0-1,2-1,4-1,5-1,7-1,9-2,2-2,5
Fan width 320mm (12.5 in.)
Max. pressure 5 Bar (71 PSI)
Working pressure 4 Bar (57 PSI)
Weight 375 gr (13.2 oz.)
Air inlet M 1/4"
Paint inlet M 1/4" (or M3/8")
USE AND MAINTENANCE MANUAL
Page 9 of 13
®
2.5 PAINTS, FLUIDS AND OTHER PRODUCTS
TheBRPsprayguns are designed for paintingoniron,woodand plastic material. The materials
which can be used in this spray gun are: monocomponent varnishes and enamels, liquid
inks, double coated metal stains, pastel colors, heavy lacquers and monocomponents, bi-
component inks and water-based paints in general. The manufacturer must authorize the use
ofthespray gun with otherproductsand the unit technical featuresmightbe changed in order
to function properly with the new materials.
ASTURO ORIGINALI MAVES Spa is relieved of all responsibility in case of accidents
resulting from the use of the spray gun by unauthorized and unqualified personnel or by
personnel using the equipment differently than intended.

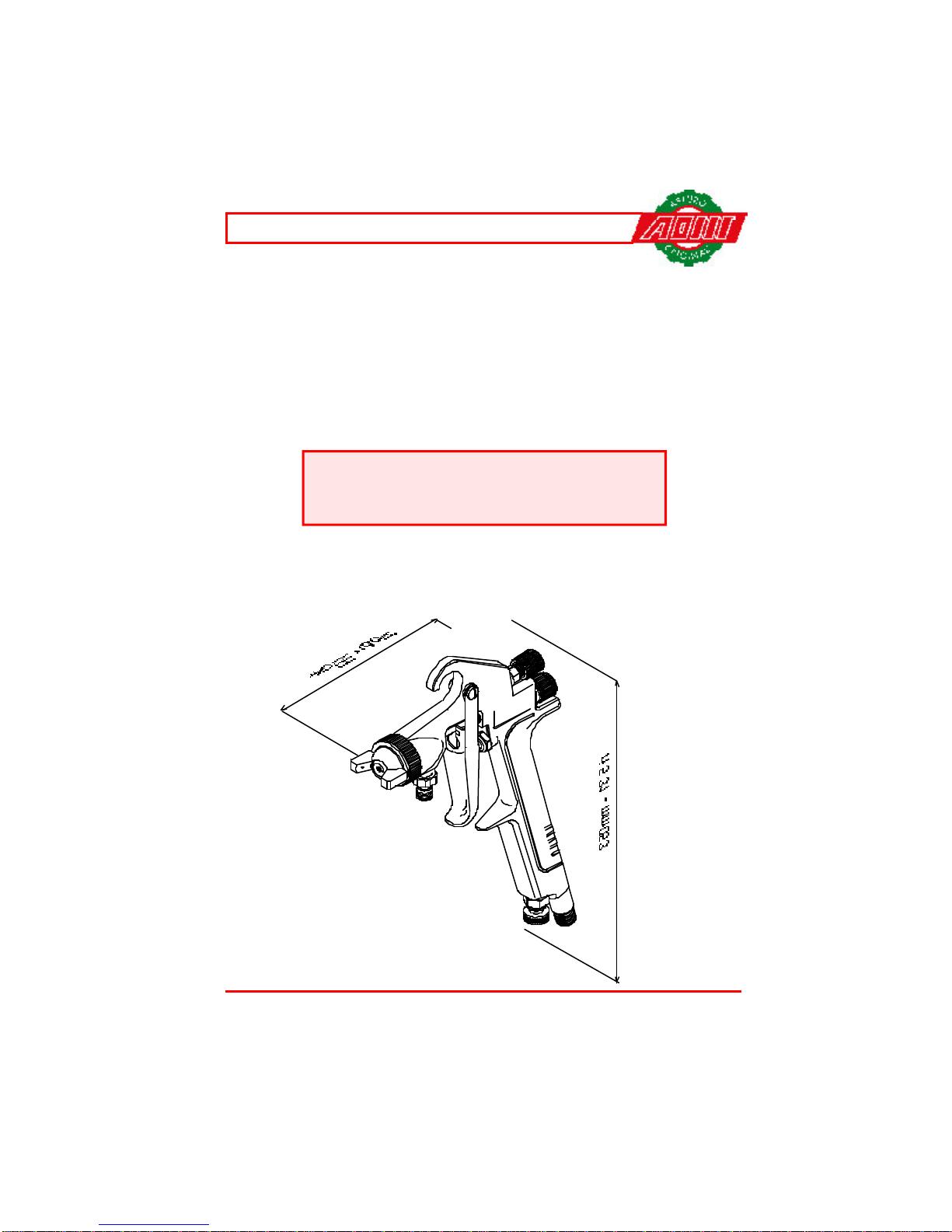

2.6 DIMENSIONS
The spray gun has the following dimensions:
DO NOT USE THE PAINTING SYSTEM WITH
FLAMMABLE OR HIGHLYTOXIC PRODUCTS
SUCH AS GASOLINE, HERBICIDE AND PESTICIDE
AOM
BRP
USE AND MAINTENANCE MANUAL
Page 10 of 13
®
(1)
(2)
(B)
(A)
(4)
3.1 INSPECTION OF PURCHASED PRODUCT
Inspect the spray gun before its use to check for damages caused by transportation or
improper storage. Make sure that all standard and optional components have been delivered.
3.2 INSTALLATION CONDITIONS
It is advisable to use dry compressed air to obtain the
best painting results.
Tomountthe hoses proceedasfollows (use the drawing
below):
+Connect the air inlet hose (RED hose) to the spray
gun 1/4” nipple (A). The compressed air must come
froma normalcompressorwith anoperatingpressure
of 4 bar (60 psi).
+Connect the paint inlet hose to the spray gun
connection (3).
+Select the most appropriate nozzle.
WARNING
Before you start using the equipment, make sure the
connectionsandhosesarein perfect working conditions,
that is without holes, bends or splits .
3.3 HOW TO USE THE SPRAYGUN
+Adjust the fan with the regulator knob (1) (if the knob
is opened the fan becomes wider, if the knob is
closedthefangetsnarrower).
+Adjust the fan position by rotating the air cap (B).
+Gradually open the fluid passage by turning the fluid
regulator knob (2) until the desired quantity is
obtained. Check the regulation on a smooth trial
surface until the desired fan width is obtained. FAN POSITION
CAP
(3)
AOM
BRP
Indice
Altri manuali AOM Spruzzatore di vernice
