Apacer Technology Steno AB320 Manuale utente

Apacer AB320 MP3 Player

USB 2.0 Flash Drive/MP3 Player

AB320 MP3 Player

USB 2.0 Flash Drive + MP3 player

User Manual

Apacer AB320 MP3 Player

2 USB 2.0 Flash Drive/MP3 Player

Important

If you use Windows 98 or 98SE, please install the appropriate drivers before

connecting this device to your computer.

The actual available memory on this device is less than what is listed on the

pack. This is due to small discrepancies in file formats and algorithms used by

various operating systems. In addition, a portion of memory space is reserved

for system files and data sectors.

Static electricity is a normal occurrence. If this device shuts off due to static

electricity, just switch it back on.

Safety Notice

To prevent electric shock or other injury, please do not disassemble or

repackage this product.

To prevent fire, electric shock, or device malfunction, please do not use this

product in a wet environment, such as a shower room.

This product is a precision electronic device; please avoid dropping it or

subjecting it to other shocks.

When transferring files, please do not power-off or restart this device. No

responsibility is provided for any damage to or loss or any program, data, or

other information store on any media or any part of any this device serviced

hereunder.

Apacer AB320 MP3 Player

USB 2.0 Flash Drive/MP3 Player 3

I. OVERVIEW....................................................................... 4

II. QUICK START............................................................... 5

1. USING THE CONTROLS ...................................................... 5

2. LCD DISPLAY ................................................................... 6

3. HOW TO USE...................................................................... 7

4. BATTERY ........................................................................... 8

5. MESSAGES ........................................................................ 8

6. INSTALLING DRIVERS........................................................ 8

7. TRANSFERRING MUSIC AND DATA FILES........................... 9

III. GETTING STARTED .................................................. 10

1. MUSIC MODE .................................................................... 10

2. FOLDER MODE.................................................................. 11

3. RECORD MODE ................................................................. 11

4. FM RADIO MODE.............................................................. 12

5. SETTING MODE ................................................................. 14

6. DELETE MODE .................................................................. 16

7. INFO MODE ....................................................................... 17

8. USB FLASH DRIVE MODE................................................. 18

IV. FIRMWARE UPGRADE............................................. 19

V. DEVICE FORMATTING............................................... 19

VI. TROUBLESHOOTING............................................... 20

VII. SPECIFICATIONS....................................................... 21

Apacer AB320 MP3 Player

4 USB 2.0 Flash Drive/MP3 Player

I. Overview

Thank you for purchasing the Apacer Digital Audio Player AB320, a portable

audio device offering high capacity storage for your music, photos, and data.

The handy all-in-one device combines the functions of an MP3 player, a USB

hard drive, FM radio, and voice/FM recorder into one easy-to-use device. The

special features of the device let you:

• Playback MP3 /WMA/WAV format files

• Loop phrases with A-B repeat—ideal for language study

• Store data files such as photos and text

• Record voice with the built-in microphone

• FM radio with 20 presets channels and record FM broadcasts

At a feather-light 37 grams, the device provides maximum portability with a

host of powerful play and record features. The easy-to-use controls and

animated interface makes operation simple and fun. Downloading or recording

your favorite songs onto this USB 2.0 compatible device is quick and easy, so

you can enjoy your music anytime, anywhere.

Package Contents

 USB2.0 MP3 Player

 Quick Guide

 USB cable

 Earphones

 AAAbattery

 Driver & User Manual CD

Apacer AB320 MP3 Player

USB 2.0 Flash Drive/MP3 Player 5

II. Quick Start

1. Using the Controls

Item Device

1 LCD

2 Power/ Play/ Pause

3 Control wheel

4 Volume buttons

5 A-B/FM button

6 Hold slide

7 Record button

8 Microphone

9 Earphone jack

10 USB Port

11 Battery Cover

Apacer AB320 MP3 Player

6 USB 2.0 Flash Drive/MP3 Player

2. LCD Display

Item Description

1 Battery Indicator

2 Lock Indicator

3 A-B Repeat

4 EQ Mode

5 Repeat Mode

6 Function Type

7 File Arrangement

8 Status

9 Time Duration

10 Folder Icon

11 Folder Name

12 File Icon

13 File Name

14 Animation or Lyrics Area

Apacer AB320 MP3 Player

USB 2.0 Flash Drive/MP3 Player 7

3. How to use

a. Power On / Off

• Before using the device, first install a fresh AAAbattery. Press for 2-3

seconds to power on the device. The welcome screen appears .

To power off, again press for 2-3 seconds. The goodbye screen signs

off .

• When powered on the device it is in music play mode.

• Connect the device to a PC via the USB cable and appears in the

LCD. You can now transfer music and data files. Note that the device is

receiving power from the computer via the USB cable.

b. Mode Screen Descriptions

Press in the mode switch to enter the mode selection screen.

Toggle to highlight the mode icons and press once more to enter. To

return to the mode selection screen, press again, or for Setting Mode

Continue to select and for Delete Mode continue to select .

Icon Description

Music Mode: playback music file.

Folder Mode: playback music file by folder.

FM Radio Mode: broadcast FM channels in the air.

Record Mode: playback recording files

Delete Mode: select files to delete.

Setting Mode: set favorite functions.

Info Mode: display version and capacity.

Apacer AB320 MP3 Player

8 USB 2.0 Flash Drive/MP3 Player

4. Battery

• To use the device as a standalone device you must first install a fresh AAA

battery.

• If there is no operation within a preset time this device automatically powers off to

save

electricity.

• The battery indicator shows the power status: when the battery is full,

. when the battery is low. If the LCD the screen or if there is no

response when pressing the controls, you need to replace the battery. If there

is insufficient battery power, the device automatically power off.

• The playing time of this device may vary depending on battery type, brand,

and voltage.

• If this device is not used for a long period of time, please remove the battery

to avoid leakage that could result in damage.

5. Messages

“No file”

• When the screen appears , it indicates that there are no files to play

or delete.

“Key hold”

• When the screen appears, it indicates that the device’s hold button

is on.

• When the button is set in the direction of the arrow, all controls are locked.

To turn off the Hold function, slide the button to the off position.

“No space”

• When the screen appears, it indicates that the device’s memory

is full.

6. Installing Drivers

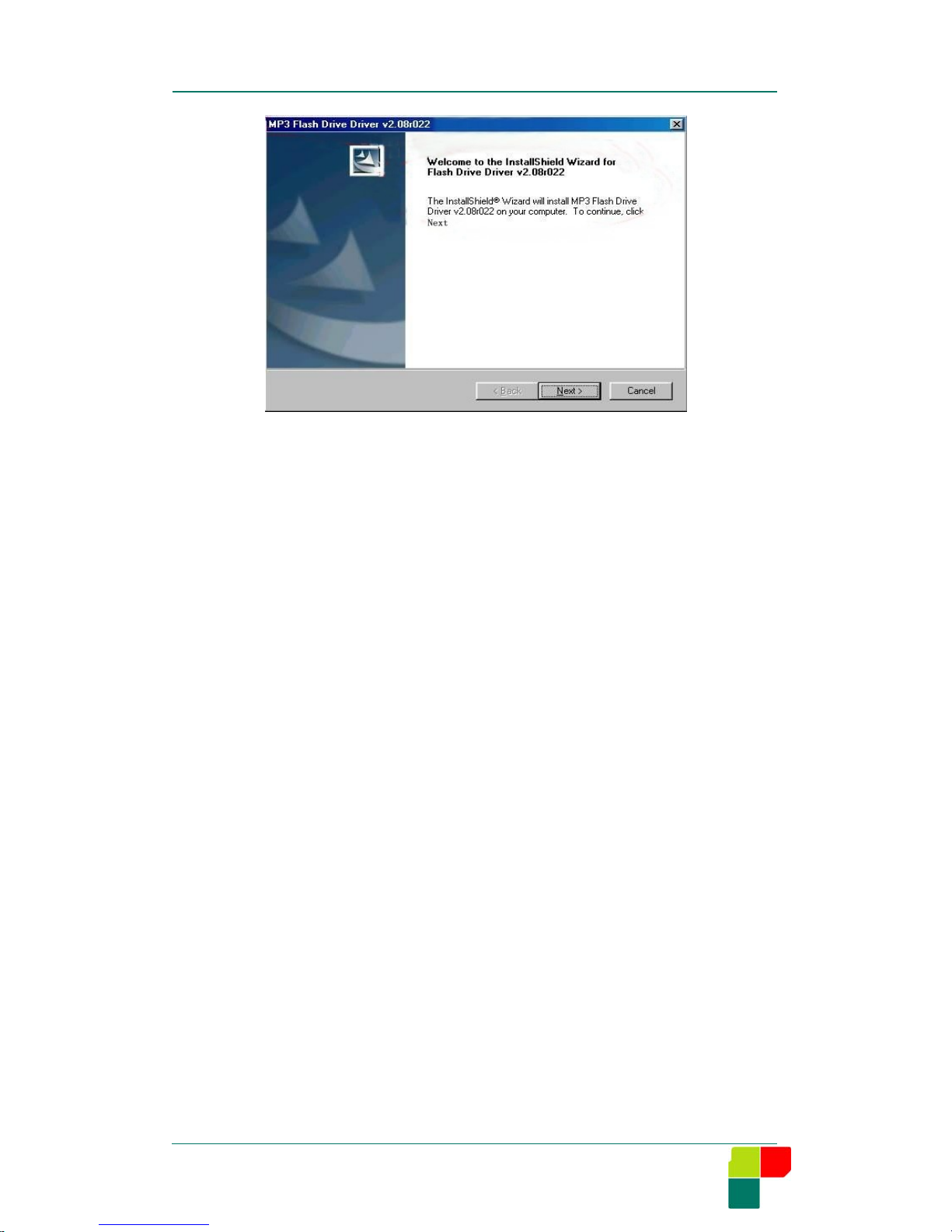

• If you use Windows 98/98SE, please install the appropriate driver. Insert the

included CD into your computer’s CD drive and follow the InstallShield Wizard

instructions.

• If you use Windows 98SE/ME/2000/XP, the operating system automatically

finds the device, so you do not need to install a driver.

Apacer AB320 MP3 Player

USB 2.0 Flash Drive/MP3 Player 9

7. Transferring Music and Data Files

You can quickly and easily transfer music and data files between this device’s

flash memory and your computer hard disk via the USB cable provided.
