Apex Digital EyeMax EM1000DN Manuale utente
Apex Automation, Corp.
www.apexIQ.com
© copyright 2011
2890 S. Santa Fe Ave, Suite 101
San Marcos, CA 92069
United States
(888) 939-APEX Toll Free
(760) 305-7900 International
(760) 295-2777 FAX
EyeMax™
User Guide
Version 1.0
© November 2010
All rights reserved.
EM1000DN
EM2000DN
EM3000DN
EM4000DN
Apex Automation, Corp.
www.apexIQ.com
© copyright 2011
2890 S. Santa Fe Ave, Suite 101
San Marcos, CA 92069
United States
(888) 939-APEX Toll Free
(760) 305-7900 International
(760) 295-2777 FAX
Table of Contents
1 Part number guide .......................................................................................................................... 3
1.1 Dome Specifications............................................................................................................... 4
1.2 Camera Module Specifications ............................................................................................... 4
2 Connecting the Camera .................................................................................................................. 5
3 Preparing the cameras .................................................................................................................... 6
4 Basic Operation.............................................................................................................................. 7
5 System Settings.............................................................................................................................. 8
5.1 EDIT DOME LABEL ............................................................................................................ 8
5.2 Initial Info .............................................................................................................................. 9
5.3 Display Setup (OSD)............................................................................................................ 10
5.4 Motion Dynamics Menu ....................................................................................................... 11
5.5 Park Time............................................................................................................................. 12
5.6 Power Up Behavior .............................................................................................................. 12
5.7 Internal Fan .......................................................................................................................... 13
5.7.1 CLEAR SETTINGS ..................................................................................................... 13
6 Camera Settings ........................................................................................................................... 14
6.1 Zoom Speed ......................................................................................................................... 14
6.2 Digital Zoom Control ........................................................................................................... 15
6.3 Back Light Compensation (BLC) ......................................................................................... 16
6.4 Slow Shutter Mode............................................................................................................... 17
6.5 IR Cut Off Filter................................................................................................................... 18
6.6 LINE SYNC and WDR ........................................................................................................ 19
6.7 Advanced Settings................................................................................................................ 20
7 Function Settings.......................................................................................................................... 21
7.1 Presets.................................................................................................................................. 21
7.2 Pattern.................................................................................................................................. 22
7.3 Pattern.................................................................................................................................. 23
7.4 Tours.................................................................................................................................... 24
7.5 Zones ................................................................................................................................... 25
7.6 Privacy Masks ...................................................................................................................... 26
7.7 Alarm Funcion ..................................................................................................................... 27
8 Menu Map.................................................................................................................................... 28
9 Mounting Guidelines.................................................................................................................... 29
9.1 General Precautions.............................................................................................................. 29
9.2 Select the Appropriate Bracket Type .................................................................................... 30
9.3 Wall Mount Installation........................................................................................................ 31
9.4 Pendant Mount Installation ................................................................................................... 32
9.5 Pole Mount Installation......................................................................................................... 33
Apex Automation, Corp.
www.apexIQ.com
© copyright 2011
2890 S. Santa Fe Ave, Suite 101
San Marcos, CA 92069
United States
(888) 939-APEX Toll Free
(760) 305-7900 International
(760) 295-2777 FAX

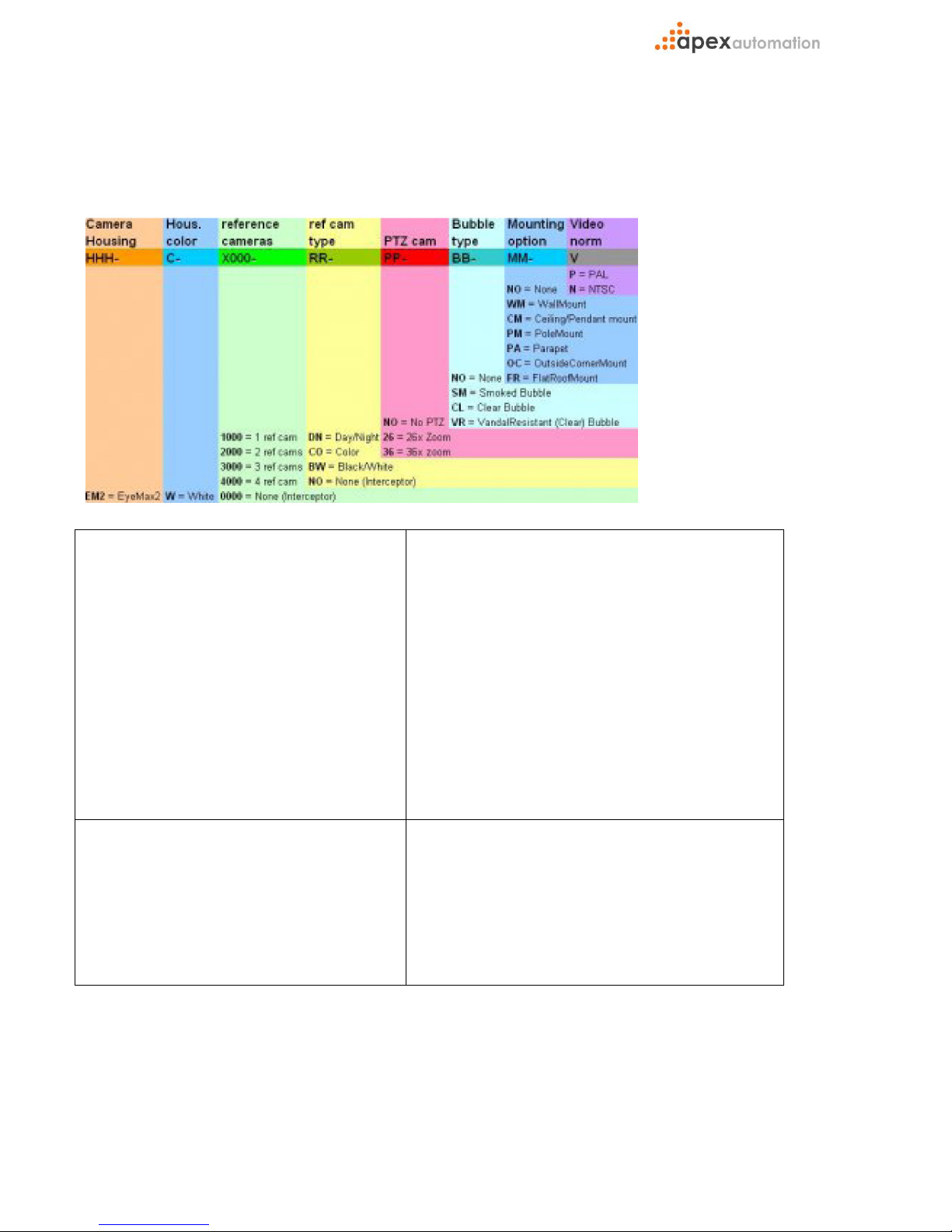

1 Part number guide
HHH-C-X000-RR-PP-BB-MM-V
HHH-C-X000-RR-PP-BB-MM-V
HHH-C-X000-RR-PP-BB-MMV
EyeMax Ordering Scheme HHH- Enclosure Type
X000- Number of reference cameras
0000- No camera (added separately)
1000- 1 reference camera
2000- 2 reference cameras
3000- 3 reference cameras
4000- 4 reference cameras
EM2- EyeMax2
C- Enclosure Color Type
W- White
RR- Reference camera Type
DN- Day/Night reference camera
CO- Color reference camera
BW- Black/White reference camera
PP- PTZ Type
26- PTZ module /w 26x Zoom
36- PTZ module /w 36x Zoom (not recommended)
V Video Format
N NTSC
P PAL
MM- Mounting option
WM- Wall Mount
CM- Ceiling Mount/Pendant Mount
PM- Pole Mount
PA- Parapet Mount
OC- Outside Corner Mount
FR- Flat Roof Mount
NO- No Mount
BB- PTZ Bubble Type
CL- Clear Bubble
SM- Smoked Bubble
VR- Vandal resistant (clear) Bubble
Apex Automation, Corp.
www.apexIQ.com
© copyright 2011
2890 S. Santa Fe Ave, Suite 101
San Marcos, CA 92069
United States
(888) 939-APEX Toll Free
(760) 305-7900 International
(760) 295-2777 FAX

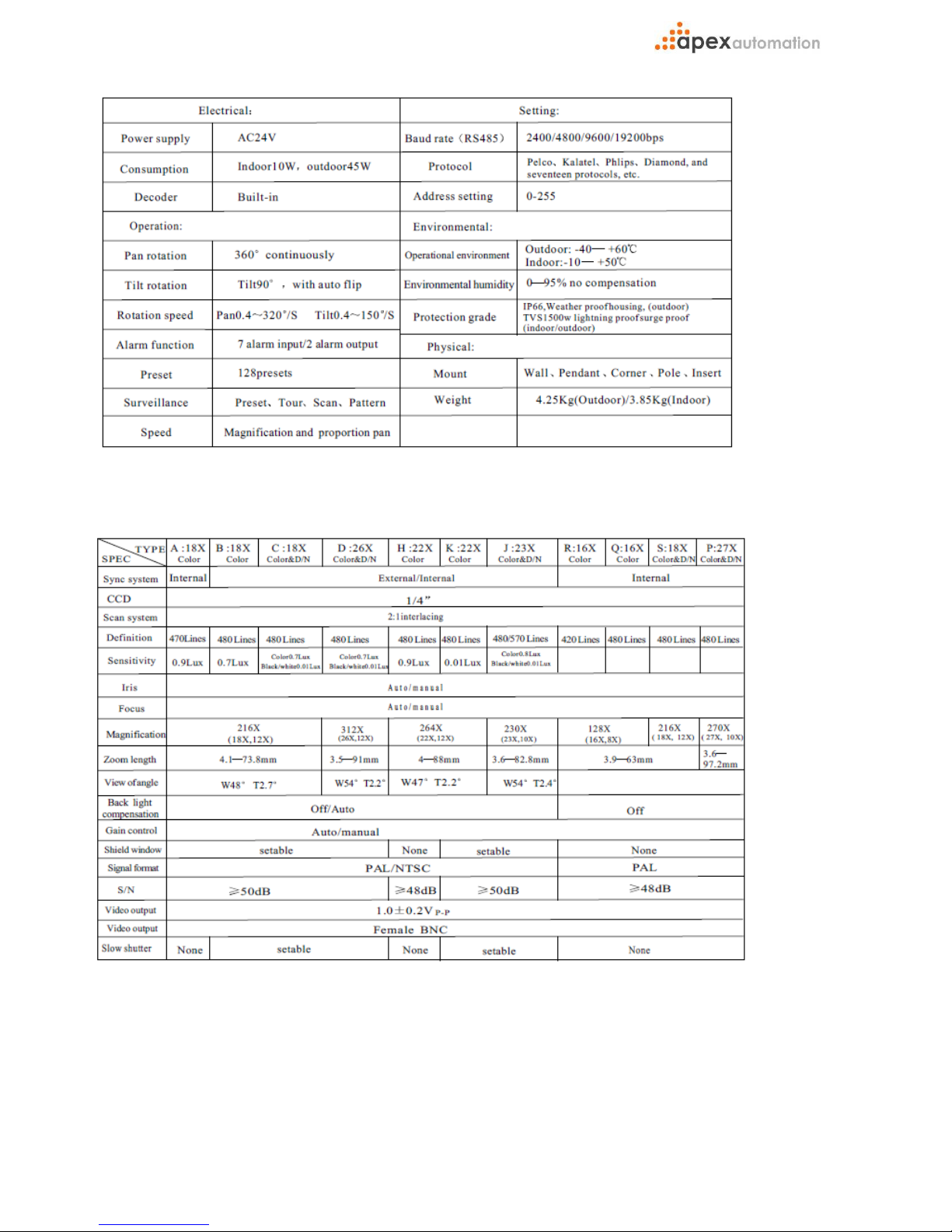

1.1 Dome Specifications
1.2 Camera Module Specifications
EyeMax is a Trademark of Dynapel Systems, Inc.
Apex Automation, Corp.
www.apexIQ.com
© copyright 2011
2890 S. Santa Fe Ave, Suite 101
San Marcos, CA 92069
United States
(888) 939-APEX Toll Free
(760) 305-7900 International
(760) 295-2777 FAX

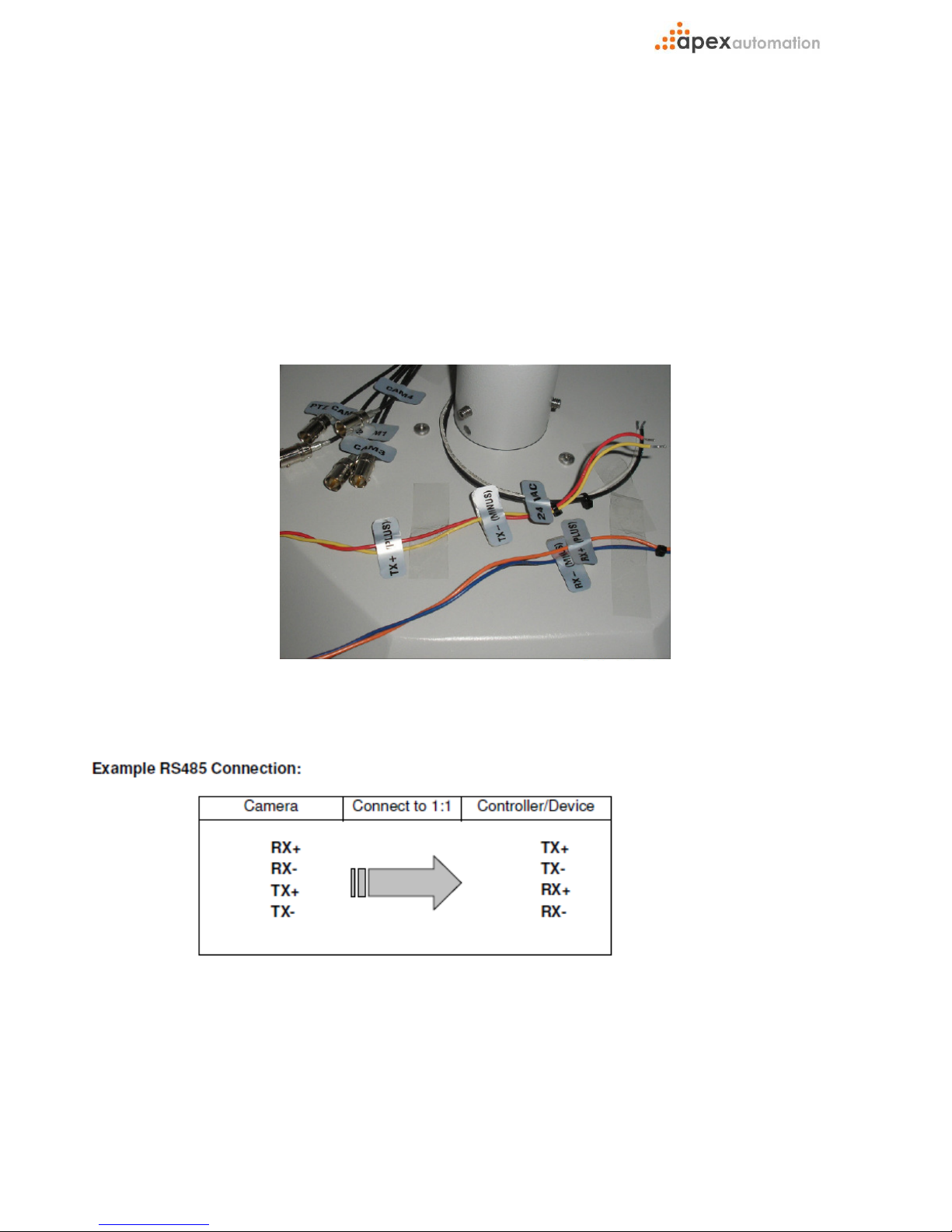

2 Connecting the Camera
Mount the dome using the guidelines provided in section 10.
The camera is prepared with all connection cables needed and the cable ends are hanging
out of the top of the camera housing. In detail this will be:
• Power connection cables, a single 24VAC power source
• RS485 Wires for controlling the dome
• BNC connections for each video out of the fixed cameras and one for the PTZ.
Take special note of the direction of the RS485 connections (i.e. direct or crossover) as this is device
dependent.
Apex Automation, Corp.
www.apexIQ.com
© copyright 2011
2890 S. Santa Fe Ave, Suite 101
San Marcos, CA 92069
United States
(888) 939-APEX Toll Free
(760) 305-7900 International
(760) 295-2777 FAX

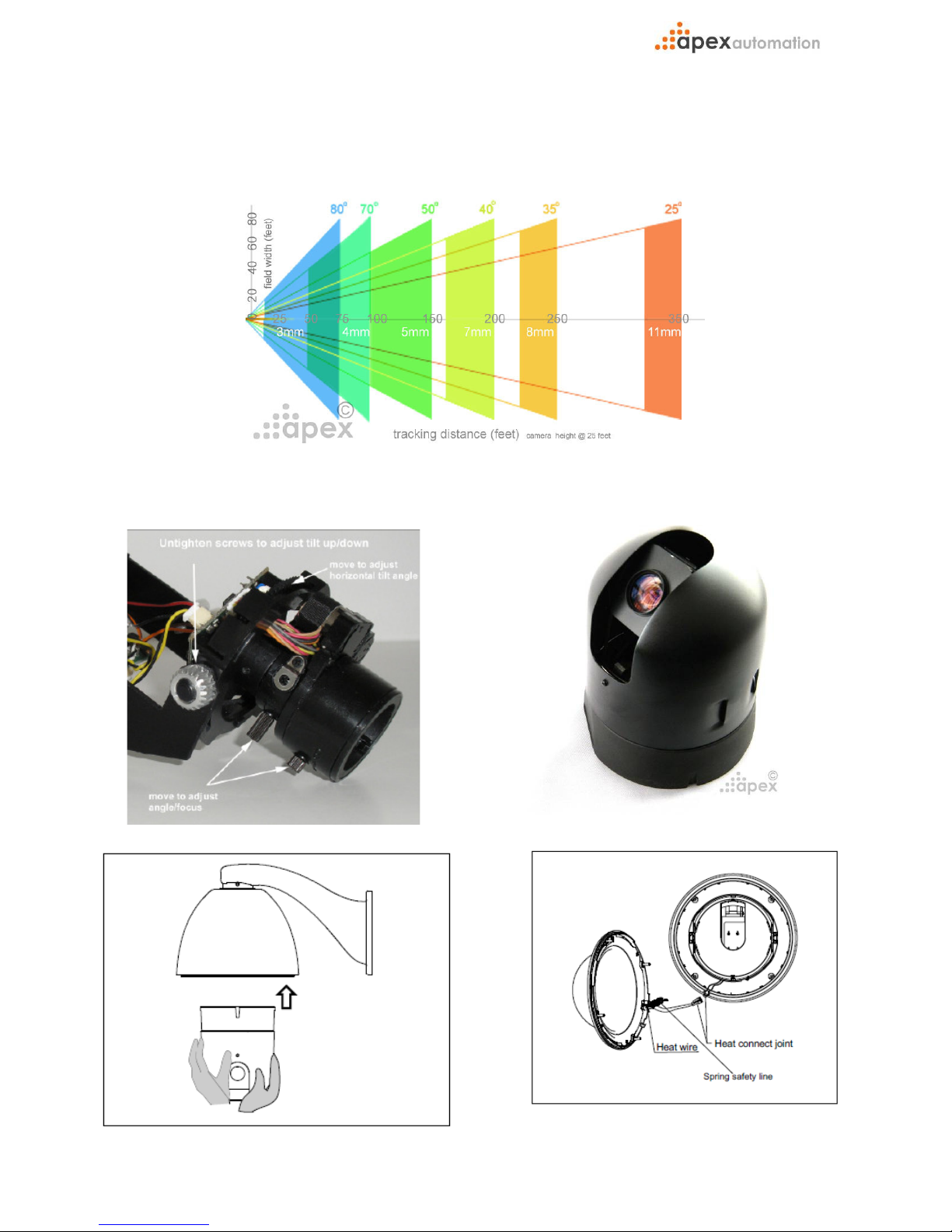

3 Preparing the cameras
Adjust the orientation and focal length of each of (up to 4) reference cameras for optimal tracking using
the chart below as a guideline.
Install the PTZ core and use
Set Tilt, Focus, Focal length of reference cameras
Insert PTZ dome and latch in place
Attach heater wire and safety
line
Apex Automation, Corp.
www.apexIQ.com
© copyright 2011
2890 S. Santa Fe Ave, Suite 101
San Marcos, CA 92069
United States
(888) 939-APEX Toll Free
(760) 305-7900 International
(760) 295-2777 FAX

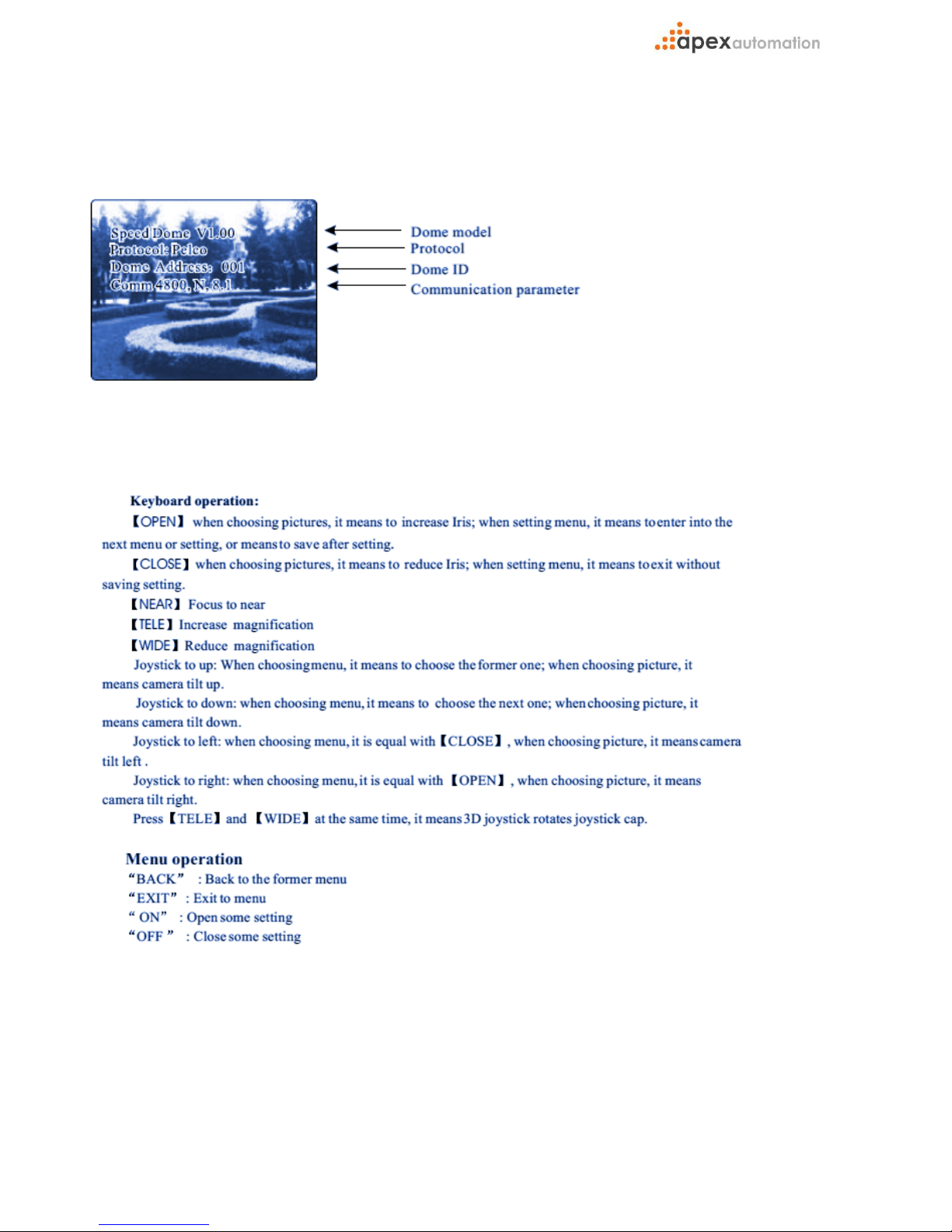

4 Basic Operation
On power-up the system enters a self test mode, tilting and rotating slowly to the home position and the
zoom function cycles between Wide and Tele mode. The diagnostic concludes with the following on
screen display message:
To configure the camera enter the main OSD menu by choosing the “95” or “9” preset twice in a row
within 3 seconds. Keyboard operations are as follows:
Apex Automation, Corp.
www.apexIQ.com
© copyright 2011
2890 S. Santa Fe Ave, Suite 101
San Marcos, CA 92069
United States
(888) 939-APEX Toll Free
(760) 305-7900 International
(760) 295-2777 FAX
5 System Settings
This menu is for the system wide settings.

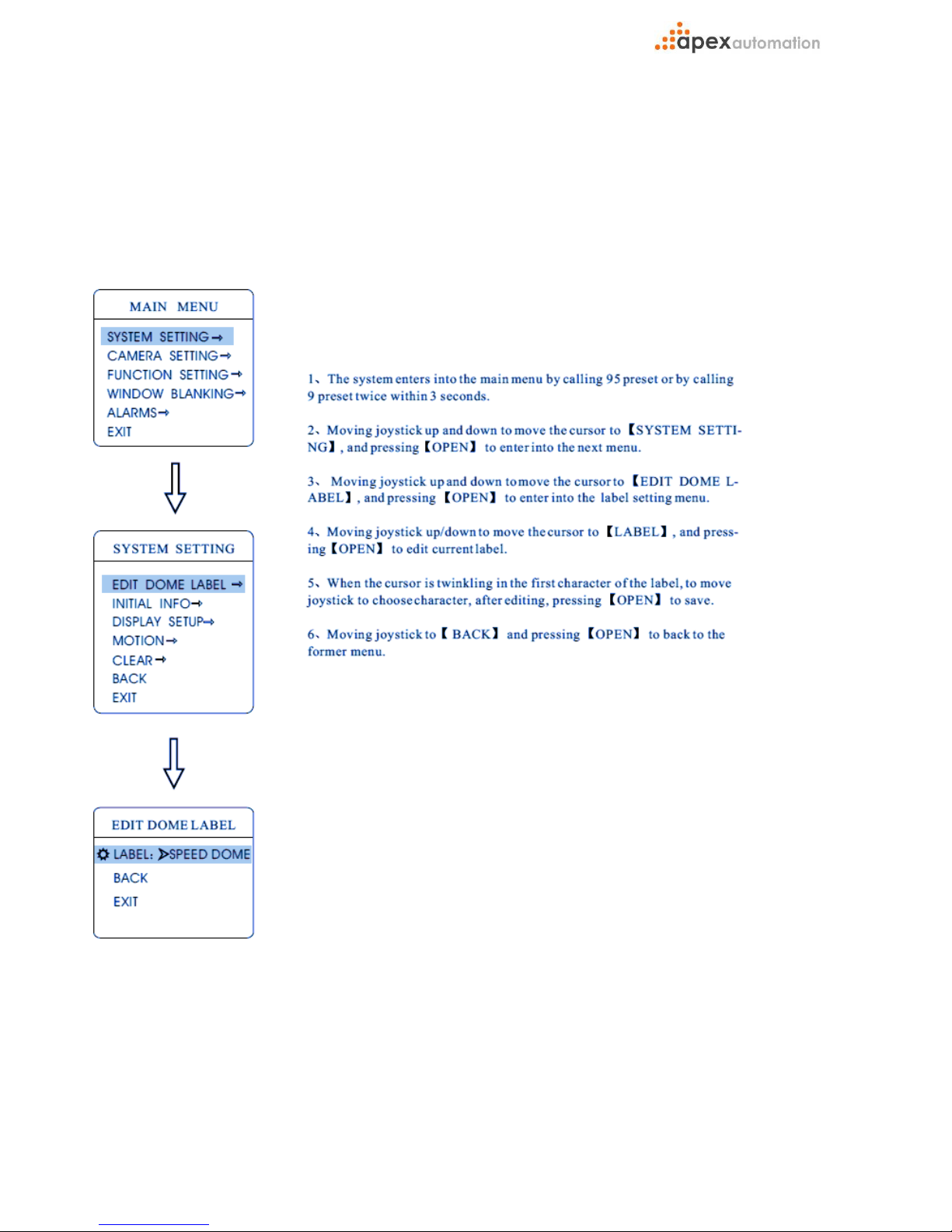

5.1 EDIT DOME LABEL
This option is used when there are many domes in the system and each need to identified. The label may
be up to 16 characters long. Use [OPEN] to scroll and spacebar to replace deleted characters. To exit
use [CLOSE].
Apex Automation, Corp.
www.apexIQ.com
© copyright 2011
2890 S. Santa Fe Ave, Suite 101
San Marcos, CA 92069
United States
(888) 939-APEX Toll Free
(760) 305-7900 International
(760) 295-2777 FAX

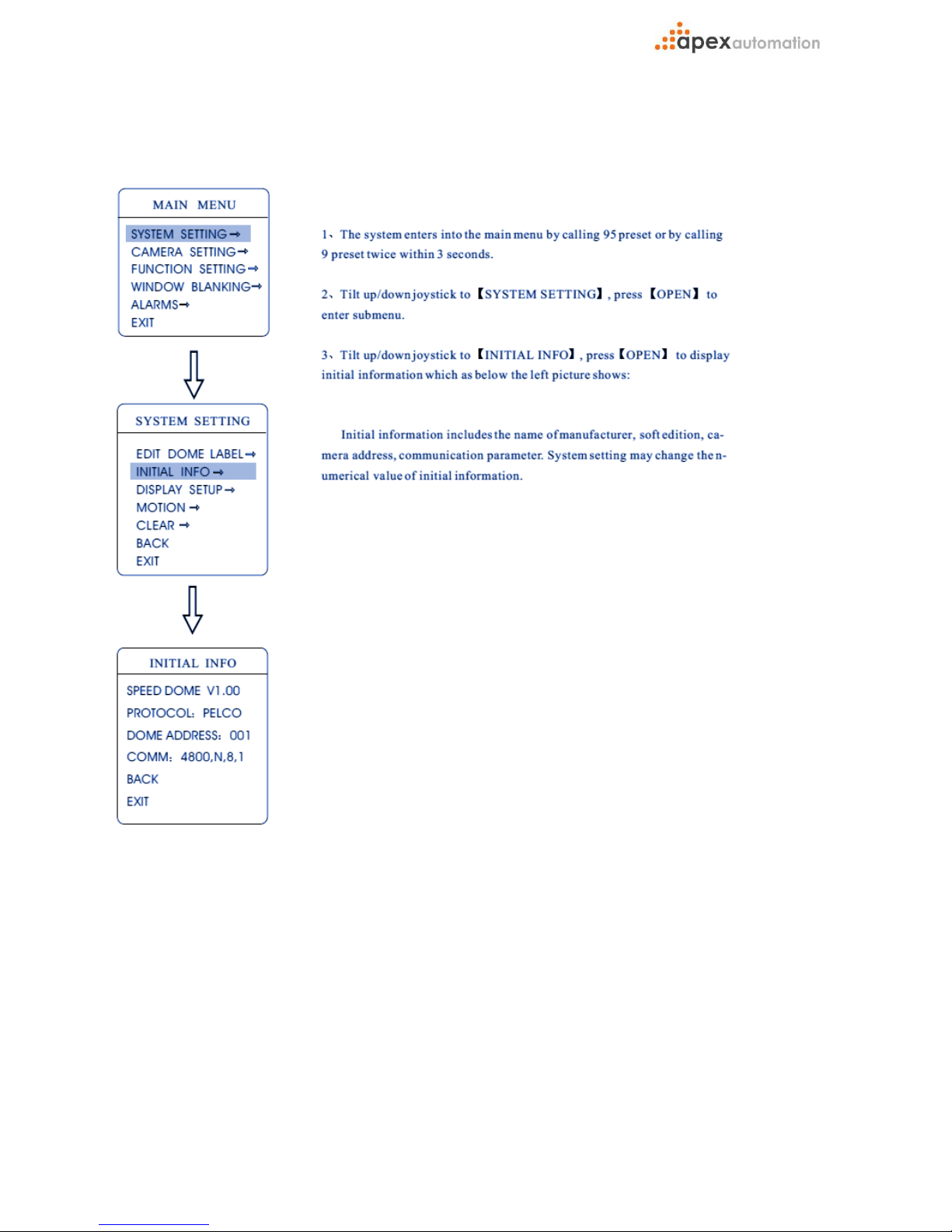

5.2 Initial Info
Displays default system parameters, including BIOS version, camera address, comm. Parameters.
Apex Automation, Corp.
www.apexIQ.com
© copyright 2011
2890 S. Santa Fe Ave, Suite 101
San Marcos, CA 92069
United States
(888) 939-APEX Toll Free
(760) 305-7900 International
(760) 295-2777 FAX

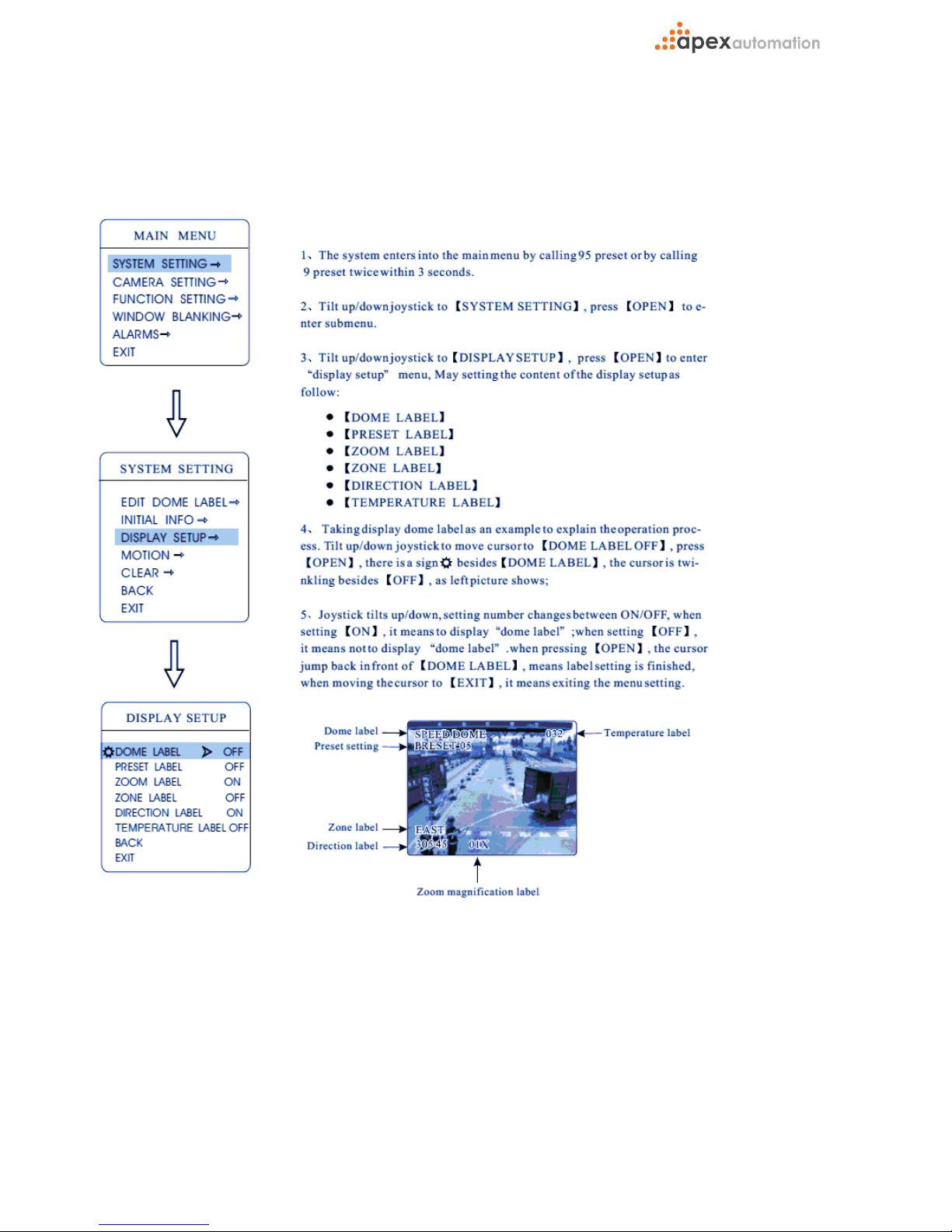

5.3 Display Setup (OSD)
Determines what information is layered onto the video display. The information wil update pan and tilt
angles in degrees when the dome rotates.
