ACS-2630 User Manual 1
ACS-2630 Box PC
User Manual
ReleaseDate Revision
June 2006 V0.1
®2005 Aplex Technology, Inc. All Rights Reserved. Published in Taiwan
Aplex Technology, Inc.
9F-5, No. 2, Jian Pa Road, Chung Ho City, Taipei County, Taiwan
ACS-2630 User Manual 2
Warning!___________________________________
This equipment generates, uses and can radiate radio frequency energy and if not installed and
used in accordance with the instructions manual, it may cause interference to radio communications.
It has been tested and found to comply with the limits for a ClassAcomputing device pursuant to
FCC Rules, which are designed to provide reasonable protection against such interference when
operated in a commercial environment. Operation of this equipment in a residential area is likely
to cause interference in which case the user at his own expense will be required to take whatever
measures may be required to correct the interference.
Disclaimer
This information in this document is subject to change without notice. In no event shall Aplex Technology
Inc. be liable for damages of any kind, whether incidental or consequential, arising from either the use or
misuse of information in this document or in any related materials.
Electric Shock Hazard – Do not operate the machine with its back cover removed. There are
dangerous high voltages inside.
ACS-2630 User Manual 3
Table of Contents______________________
Warning!…………………………………………………………………………….……..….2
Disclaimer………………………………………………………………….…………………2
Chapter1 GettingStarted
1.1 Features…....………………….……………………………………..…...…5
1.2 Specifications………………………………………….………………...…..5
1.3 Dimensions…………………………………...…………………………......7
1.4.Mainboard…..…………………………………………………………..…...8
1.5 Safety Precautions………………………….………………….……….…11
1.6 Brief Description of ACS-2630……………………………………………11
Chapter2 HardwareInstallation
2 Installation of HDD
2.1 Removal of HDD Bracket...……....……………………………………13
2.2 Connecting Cable to HDD……….…...……...………………………..13
2.3 Putting HDD into Bracket………….…………………………………..14
2.4 Tightening HDD….………………….…….…..……………………..…14
2.5 Installing HDD..…….….……………………….……………………….14
Chapter3 JumperSetting
Jumper Setting…………………………………………...……………………15
ACS-2630 User Manual 4
Figures
Figure 1.1: Dimensions ……………………………………………………...7
Figure 1.2: Front View ………………………………………………………11
Figure 1.3: Rear View…..………………………..….………………………12
ACS-2630 User Manual 5
Chapter 1_____________________________
1.1 Features
zIntel Celeron M CPU with speed of 600MHz/1.5GHz up to Pentium M 1.7GHz
zFanless design
zIntel 852GM + ICH4
z200-pin DDR SO-DIMM with up to 1GB
z1 x 10/100 Ethernet LAN, 1 x VGA connector
z2 x RS-232, 1 x RS-232/422/485 serial port
z1 x compact flash, 1 x 2.5” anti-vibration slim HDD
zDC11~28V wide-ranging power input with 60W
1.2 Specifications
System
CPU:
Intel Celeron M 600MHz/1.5GHz up to Pentium M 1.7GHz
Chipset:
Intel® 852GM+ICH4
System Memory:
DDR SO-DIMM with 256MB up to 1GB
DRAM Socket:
One 200-pin SO-DIMM
Drive Bay:
1 x compact flash, 1 x 2.5” anti-vibration slim HDD
BIOS:
Award Flash
Watchdog Timer:
Generates system reset, 256 levels
I/O Port:
2 COM ports, one SPP/ECP/EPP port, two USB2.0 ports, two PS/2 keyboard and mouse ports
RJ-45 LAN Port:
1 x 10/100Mbps
VGA:
Built-in Intel® 852GM+ICH4
Digital I/O:
4 in and 4 out (optional)
ACS-2630 User Manual 6
Certifications:
FCC & CE Class A certified
Mechanical
Construction:
Heavy-duty steel chassis
Color:
Blue
Dimensions:
229.5(W) x 73.7(D) x 221mm(H)
Power Supply:
DC11~28V wide-ranging power input with 60W
Environment
Operating temperature:
0~60∘C
Storage temperature:
-20∘C ~ 80∘C
Relative humidity:
10~90% @ 40∘C non-condensing
Vibration:
5~17Hz, 0.1” double amplitude displacement
17~640Hz, 1.5G acceleration peak to peak
Shock:
10G acceleration peak to peak (11 millimeters)
ACS-2630 User Manual 7
1.3 Dimensions
Figure 1.1: Dimensions of the ACS-2630
.
ACS-2630 User Manual 8

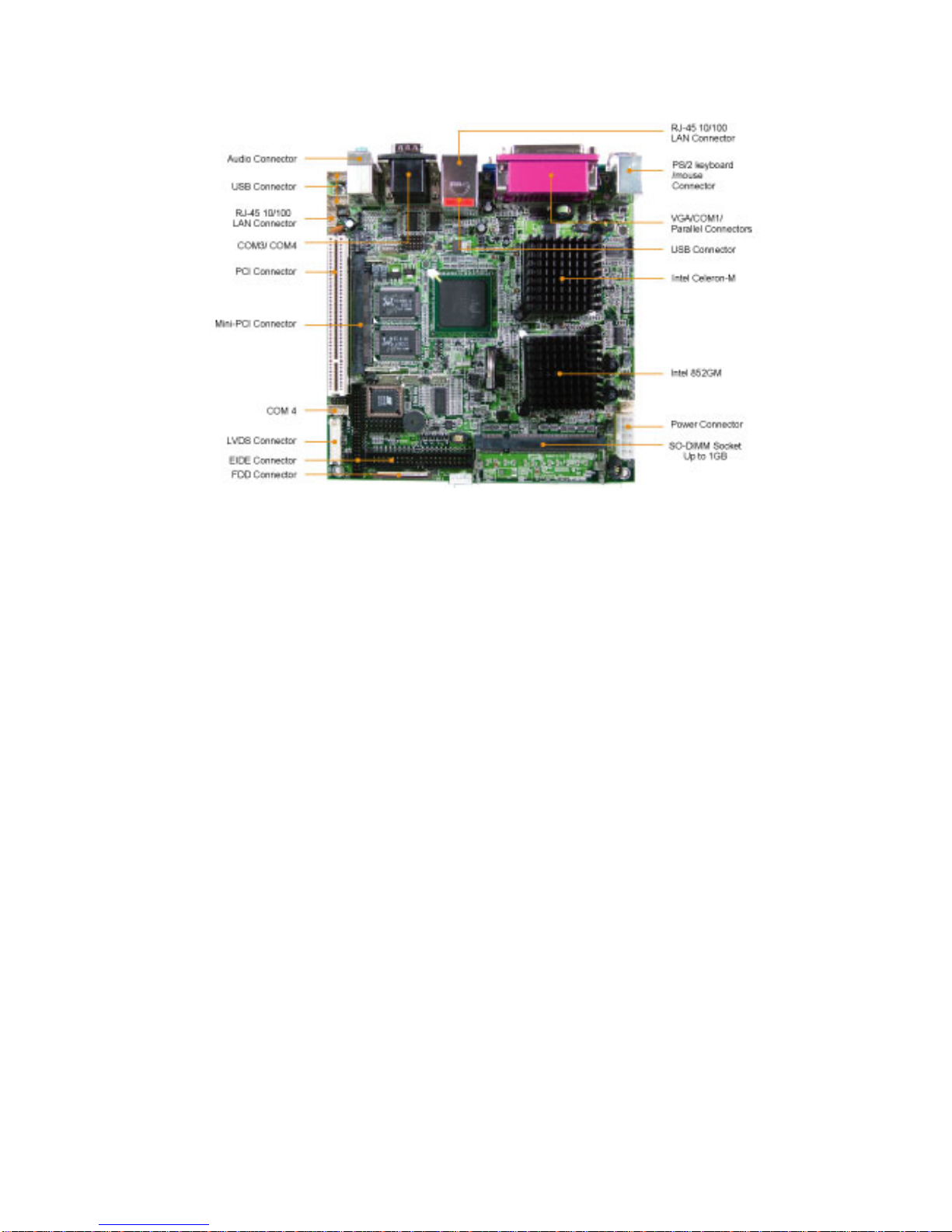

1.4 Mainboard
Specifications
System
CPU:
Intel® Celeron® M processor
CPU Frequency:
ULV 600MHz (non L2 cache)
Chipset:
Intel® 852GM + ICH4
DRAM:
One 200-pin DDR SO-DIMM supporting DDR266 SDRAM up to 1GB
BIOS:
Phoenix-Award PnP BIOS with VGA BIOS
Watchdog Timer:
1~255 secs watchdog timer selectable w/Reset/NMI
ACS-2630 User Manual 9
Power Supply:
Support ATX power
Power Requirements:
+5V, +12V, -12V, +5VSB
Dimensions:
170mm x 170mm (6.69 x 6.69 inches)
I/O Ports
IDE Interface:
One 40-pin IDE (UDMA 33/66/100)
CF:
One Compact flash slot (IDE)
FDD Interface:
One FDD
Bus Interface:
PCI slot, mini-PCI bus
Serial Port:
Four COM ports: COM1 and 4 for RS232 and COM2 and for RS232/422/485
(for 16550 compatible type of UART)
Parallel Port:
One parallel (SPP/EPP/ECP)
IrDA:
1 (SIR)
Keyboard:
Mini DIN connector
Mouse:
Mini DIN connector
LAN:
Realtek RTL8100C (10/100Mbps)
ACS-2630 User Manual 10
Support Wake-on with ATX power
USB:
2 USB 2.0 ports
Graphics:
Built-in Intel® 852GM sharing system memory and supporting CRT, LVDS
Environment
Operating Temperature:
0∘~ 60∘C
Storage Temperature:
-20∘~ 80∘C
Operating Humidity:
20~90%
Storage Humidity:
20~95%
