APM 802.11b+g Array Antenna for 2.4~2.5GHz... Manuale utente
1 of 4
APM CO., LTD
AAR-2412CP
Electrical Specification:
Frequency 2.4~2.5GHz
Part Number APG-2412CP
Polarization CP
V.S.W.R. 1 : 1.5 Max
Impedance 50 OHMS ±5Ω
Gain 12 dBi
Power handling 10W Max
HPBW / horizontal 360°
HPBW / vertical 30°
Mechanical Specification:
Connector Type N Type Female
SPLITTER 2-PORTS*3
Length Ø400*220mm
Weight 6kg
Radome color Gray-white
Radome material PC and ABS
Spectifications
802.11b+g Array Antenna for 2.4~2.5GH
z
22F-6, No.180, Jingping Rd.,Jhonghe City, Taipei County 23581, Taiwan, R.O.C.

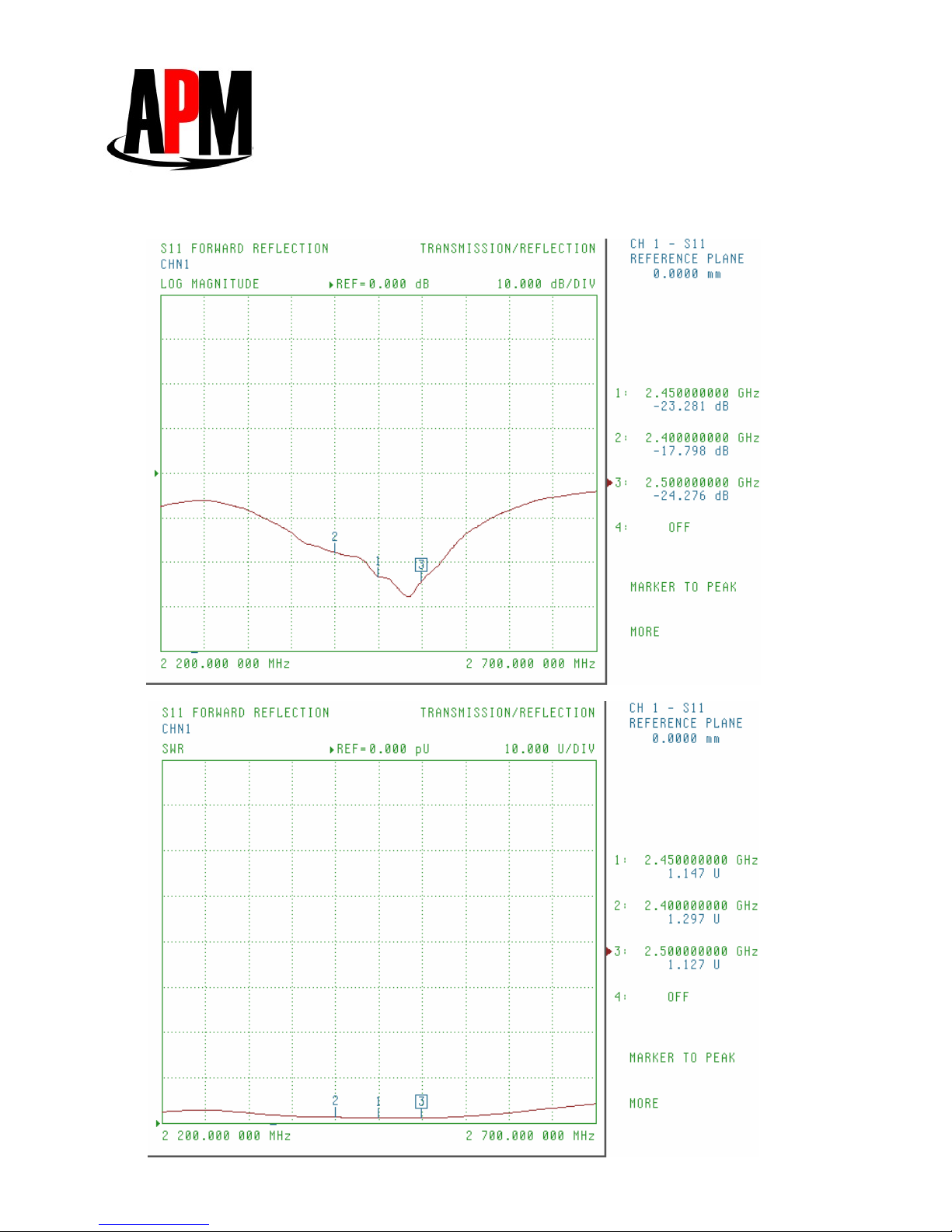

2 of 4
APM CO., LTD
AAR-2412CP
22F-6, No.180, Jingping Rd.,Jhonghe City, Taipei County 23581, Taiwan, R.O.C.
3 of 4
APM CO., LTD
AAR-2412CP

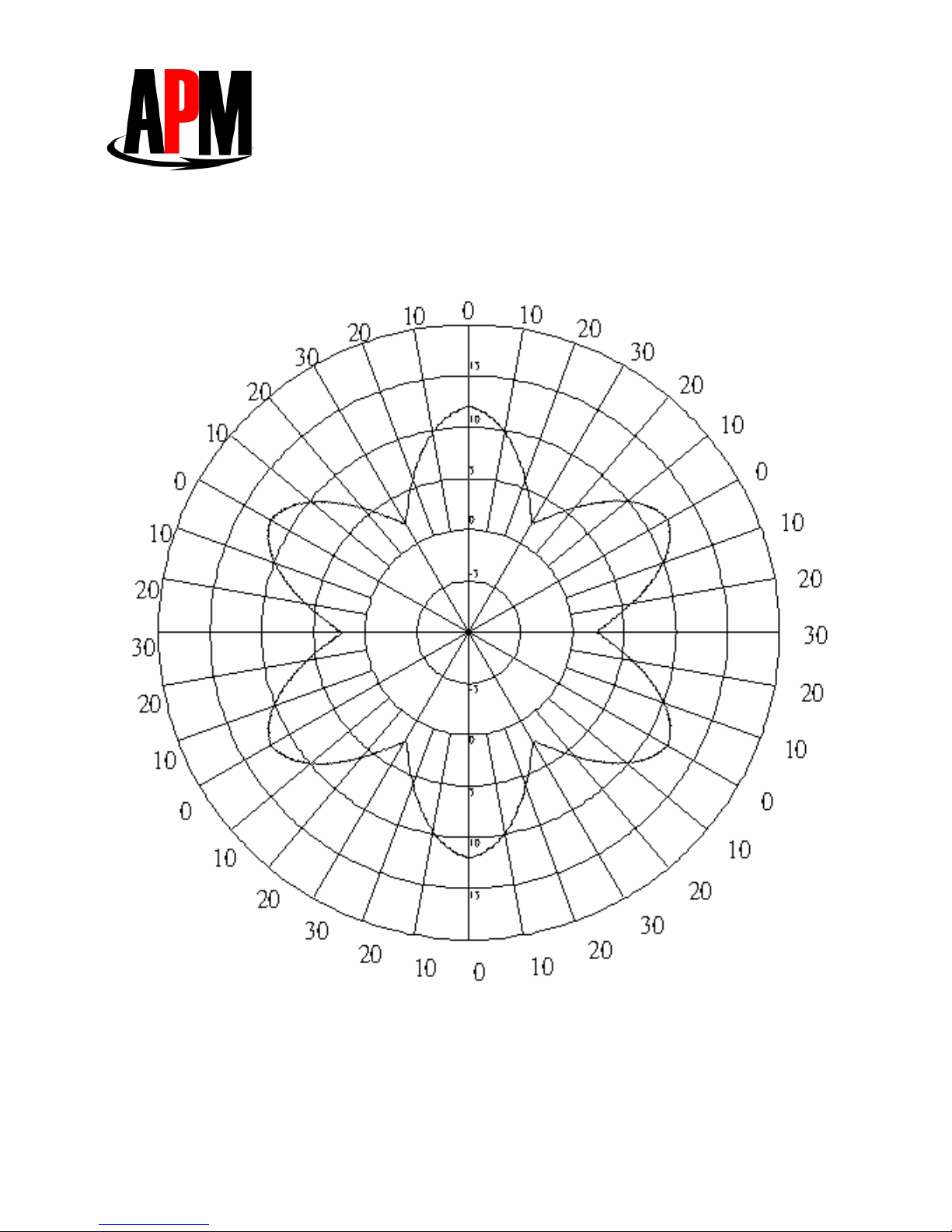

H-PLANE FIELD PATTERNS
22F-6, No.180, Jingping Rd.,Jhonghe City, Taipei County 23581, Taiwan, R.O.C.
4 of 4
APM CO., LTD
AAR-2412CP
E-PLANE FIELD PATTERNS
22F-6, No.180, Jingping Rd.,Jhonghe City, Taipei County 23581, Taiwan, R.O.C.
