Apollo Av Series Manuale utente

Nippon Sensuiki Co., Ltd.

905 Shake, Ebina-City,

Kanagawa-Pref, 243-0424, Japan

TEL 046-233-4111

FAX 046-233-5886

39545000022018.09.14

instruction manual

riding manual

apollo Underwater vehicle

avx

av-2 EVOLUTION

Hands-free riding with the scooter saddle (PATENTED)

Hands-free is an innovative riding style that allows an operator to steer the scooter with body movement; much

like a seal.

This inline body placement is more streamlined to effectively decrease fatigue, reduce air consumption, and

extend your dive time. Go further, get there faster, and have a lot more fun along the way.

The hands-free riding style increases your options while diving.

You are no longer limited to the hands-on riding style required by other vehicles.

The possibilities are endless.

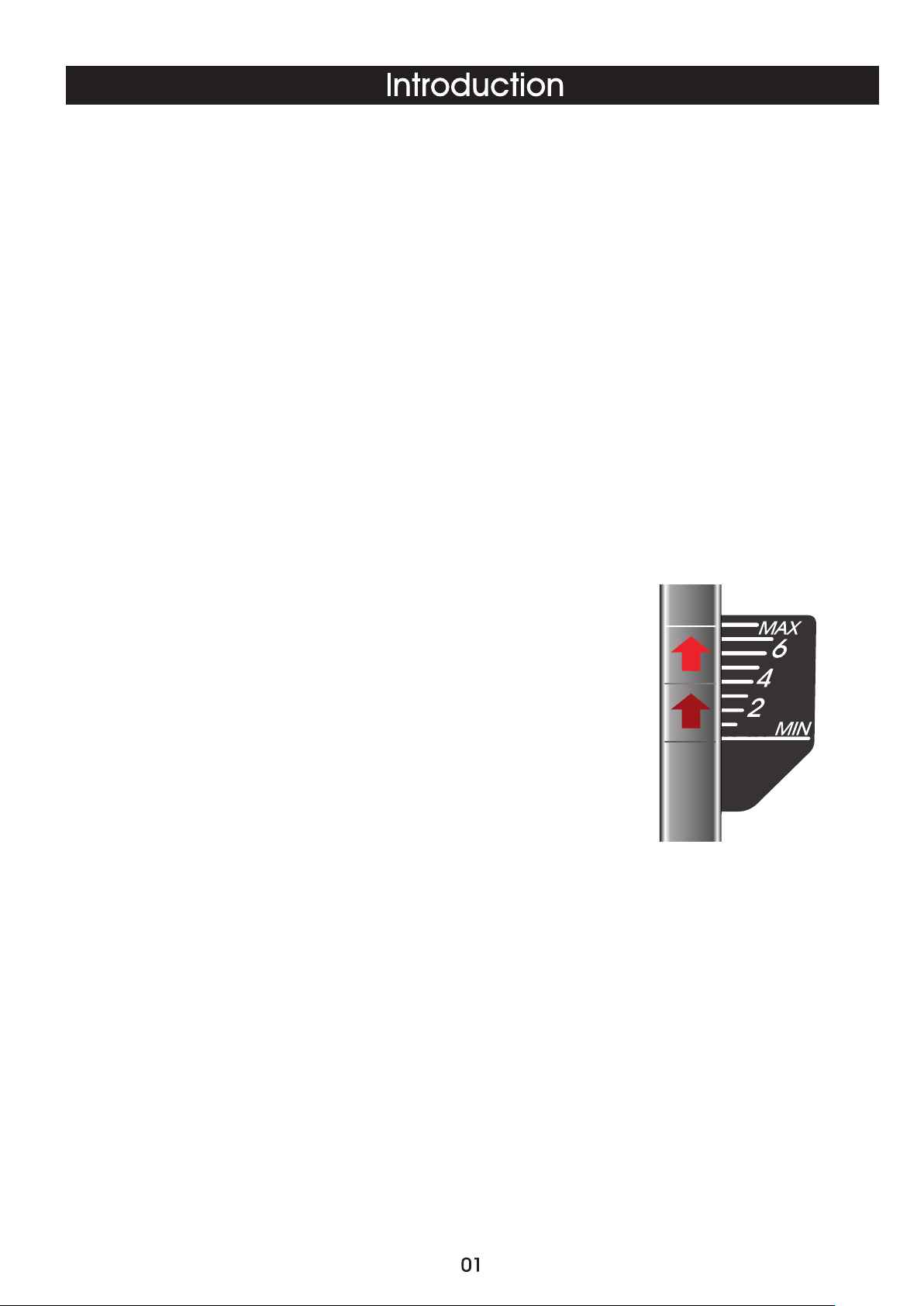

Variable speed control (except for av-2C)

Quick and smooth speed control is now at your fingertip.

Speed adjustments are made via an accelerator lever that changes

the rotational speed of motor while vehicle is in use.

Adjustments are very smooth, allowing user to fine tune speed.

These enhancements are a significant improvement on the apollo vehicle

series.

This new design provides a far more advanced control system than is

available on other underwater scooter.

The apollo underwater vehicle is not heavy burden

The hands-tree riding style decreases fatigue, reduces air consumption, and extends your dive time.

In the past some divers have become fatigued from the energy and effort required to hold and steer an

underwater vehicle.

In addition to being a potential source of fatigue, the traditional hands-on riding style requires the user to place

themselves above the vehicle rather than inline.

Improvement in transportation options

The apollo underwater vehicle improves your ability to transport items underwater.

Your hands are free to carry what you need.

Additionally, fold out wings on both sides of the saddle are available for towing

ther divers or attaching other items of equipment.

The innovative apollo underwater vehicle challenges divers to create and find

new techniques and methods of use.

Go out and enjoy diving with this great new generation diving product.

If you want more information about apollo DPV, please check website.

㸭

Thank you for purchasing an apollo underwater vehicle.

The apollo underwater vehicle is revolutionary new underwater vehicle equipped with

functions and features that set it apart from previous models and other brands.

Introduction

Contents

Before reading the manual

Main warnings and notes

Specification (avx)

Preparation (avx)

Specification (av-2 series)

Preparation (av-2 series)

Preparation (all DPV)

Operation and use (all DPV)

Maintenance (all DPV)

Trouble shooting (all DPV)

The avx name of each part

Exclusive battery/charger

Charging the battery

Each part name/spec

Exclusive battery/charger

Charging the battery

Battery warranty/ Battery care

Check before use (confirming operations)

Entry method㸭Exit

How to operate

Maintenance after use

Note on maintenance and storage

The propeller doesn't rotate even through the throttle

lever is activated

P10

P11

P13

P14

P18

P19

P20

P21

P22

For the safety diving

STEP 1

STEP 2

STEP 3

STEP 4

STEP 5

STEP 6

STEP 7

Stopping

Take off

Riding

Turning

Advanced operations

Advanced operations (Carrying)

P23 - 24

P25 - 26

P27 - 28

P29 - 30

P31

P32

P33

P34

Riding manual

Instruction manual

Failure to read understand and obey the instructions under this heading may lead to accidents that may result

in serious injury or death.

Failure to obey the instructions under this heading may lead indirectly to accidents that result in serious injury,

death and or serious damage to equipment.

Failure to obey the instructions under this heading may lead to minor accidents and/or damage to equipment.

Items with the following headings marked with this symbol " " describe scuba diving

techniques and how to handle diving equipment.

These sections must be completely understood, so be sure to read them with special care.

DANGER

CAUTION

WARNING

DANGER

ەIt is extremely important that scuba divers using this product have undergone theoretical and practical training

ࠉgiven by an internationally-recognized entity providing diving instruction.

ࠉDue to safety considerations, those who have not obtained a C-Card (attesting to the completion of training)

ࠉfrom an entity providing diving instruction must not under any circumstances use this product.

ࠉ(This does not apply to those using this product during training, under the supervision of an instructor attached to

ࠉan entity providing diving instruction.)

ࠉAmateurs lacking knowledge of basic scuba diving techniques risk serious injury or death.

ەNever scuba dive alone. Always dive under the buddy system.

ࠉDiving alone could lead to serious injury and death.

ەDue to the speed of the apollo underwater vehicle depth & pressure change may happen faster than usual.

ࠉThe diver must be aware at all times with regards the status of his depth and direction and carefully monitor his

ࠉascent rate as rapid surfacing and collisions could cause serious injury or death.

ࠉPlease practice driving at low speed until you become accustomed to the handling of the scooter.

CAUTION

ەMake sure you are in good physical condition before you scuba dive.

ࠉIf you begin to feel anxious, cold, tired or unwell, do not over exert yourself and stop your dive.

ەNever take alcohol or medicines (especially a nasal spray or medicine for a cold) before scuba diving.

ࠉThose who are in poor physical shape or suffer from a chronic ailment should consult a doctor before

ࠉconsidering diving.

WARNING

ەBefore deciding to use your scooter in an adverse environment or special situation please consult with a

ࠉqualified instructor at the place of purchase prior to undertaking your dive.

The above-mentioned table does not mention all prevention matters that could cause danger and injury.

Please carefully read and follow the instructions whenever you see the " " symbol in this book.

CAUTION

WARNING

ࠉ

Please only use our purpose-built battery and purpose-built

charger.

Please do not change, remodel or disassemble.

Please do not touch the electrodes etc.

Please do not jump into water with the scooter.

Please ensure that string, hose, hair or foreign objects do not

become entangled in the propeller. Remove the battery

before attempting to disentangle any items should the

propeller become obstructed.

Please do not throw the scooter from a high place.

Please execute a thorough check prior to use.

Please do not run the scooter for more than five seconds out

of water.

Please disconnect the battery terminal when the scooter is

not in use.

Please check the main body O-rings for impurity and dust

before usage.

Please do not use other than the specified silicone grease

lubricant supplied by Nippon Sensuiki.

Please take careful note of your surroundings and

circumstances prior to preparing your equipment on land

and in the water.

Please do not enter with the scooter when you are boat diving.

Have the scooter passed down to you.

If your scooter has stopped abnormally or been for repair

please do not run it for a long distance until after you have

confirmed it is safe.

Please do not drive the scooter to the surface as there are

dangers caused by rapid ascent.

Please only charge the battery in a well-ventilated area and

keep it away from an open flame.

Otherwise there is a danger of an explosion and fire.

There is danger of injury.

There is a possibility of injury.

The inertia and weight of the scooter is dangerous and could

cause injury.

Hydrogen gas is generated from the battery while charging.

There are possibilities of poisoning and fire.

The inertia and weight of the scooter is dangerous and could

cause injury.

The inertia and weight of the scooter is dangerous and could

cause injury.

An unknown fault or unfinished repair may cause an unexpected

accident.

An accident may be caused by a malfunction after it enters the

water.

The seal part on the propeller shaft is damaged by frictional

heat, and there is a possibility of water leakage.

Damage may be caused to the materials the scooter is made

from by using lubricants other than what Nippon Sensuiki Co.,

Ltd. supply. This in turn may cause an unexpected accident.

Equipment and materials may be damaged by unexpected

operation.

Unexpected operation due to the switch being accidentally

operated may cause an unexpected accident.

There is a possibility of water leakage by imperfect sealing,

which may cause damage and an unexpected accident.

There is danger of electric shock because of high currents and

voltage.

There are dangers of the explosions and of fire if the electric

circuit is tampered with. There are dangers of damage and

water leaks in the body and circuits.

The rapid pressure decrease associated with a rapid ascent

may cause decompression disease or embolism.

Please do not touch unnecessarily any moving parts

(especially the propeller).

●Propeller cover

The avx name of each part

Specification

●Propeller screen

●Propeller Assy

●Clamp ring

●Body Assy

●Head Assy

●Locking buckle

●Wing arms

●Starter switch

●Main switch

●Grips

●Battery plug

●Water leak sensor

●Guide pin

●Saddle

●Accelerator lever

Length and width

Weight

Submerged unit weight

Speed

Depth rating

Active range

Body material

Motor

REV reducer

Speed adjuster

Safety devices

Accessories

: 806 x 350 x 340mm

: 23.1kg with battery

: ±0kg (in the sea water)

: 0～5.7km/h

: approx 150m

: 41km (Running at pitch2 3.0km/h)

: Aluminum body

: Brushless DC motor

: Ring epicyclical gear speed reducer

: Rotational speed control

: Variable pitch-type propeller (3 steps)

: Sensation current shut-down device

: Thermal switch function

: Water leakage sensor function

: Water-cooling motor deployment

: Exclusive battery/charger

: O-ring seal for the main body

: Silicone grease

: CR-ROM with an instruction manual

●Pitch control dial

(avx)

●Please never use other batteries than those supplied by Nippon Sensuiki. (Supplied separately)

●Please never use other chargers than those supplied by Nippon Sensuiki. (Supplied separately)

●Please charge the battery in the room

●AC plug

●Charger body

●Charger plug

Battery (avx)

Chargers (avx)

CAUTION

●Outer dimension: 276 x 169 x 135ｍｍ

without connectors

●Capacity: DC50.4V 27AH

●Weight: 10kg

●Charger plug

Storage case for avx

●Grip

●Fuse holder

●Battery socket (output)

●Outer dimension: 175 x 91 x 51ｍｍ

●Output: DC58.4V 6A

●Input: AC100 - 240V 50 - 60Hz

●Please keep the storage case avx is delivered in. This box is more stronger than a styrofoam

box and will help prevent damage during transport.

●Please remove the single hand unit when you keep avx in the storage case.

CAUTION

WARNING

●Li-ion battery is deployed on the avx. Please charge by the exclusive charger.

Precautions concerning the handling of the battery housing (head Assy) after removal.

●Silicone grease has been applied to the seals on the battery housing. Sand and other debris easily stick to this.

Be careful to avoid this situation.

●Water leakage is caused almost entirely by sand or other debris adhering to the seal area.

●Please put the battery housing (head Assy) in a safe clean place lying

down on the ribs located on its base.

●Please do not place it on sand or on rocks etc.

●Please stand the scooter vertically on the propeller cover.

Make sure it's on a flat stable surface so that it cannot fall over and cause

damage to the propeller cover and blades.

●If the scooter is wet, wipe all moisture off completely.

●Unfasten two locking buckles on the body seal.

A locking mechanism is attached to the locking buckle to prevent it from

releasing as a result of unexpected shocks.

①First, while pushing the square button in the center of

the locking buckle, lift the end of the buckle.

②Next, after releasing the buckle hook, flip the buckle

downward. Release two parts.

●It may be difficult to remove the battery housing (head Assy) due to negative pressure inside the body caused

by contact with the O-ring, temperature variation and other factors.

In this case, place the buckle latch under the locking hook and apply pressure with your

thumb while pushing upwards. Do this on both sides of the scooter concurrently to break

the seal and easily release the battery housing (head Assy).

■STEP3　Removing the battery housing.

■STEP2　Unfasten the locking buckles.

■STEP1　Preparation for charging.

Charging the battery

(avx)

●Hook

●Arms

If it is hard to remove head Assy・・・

Push the hook with arms.

Remove the head Assy.

Unnecessary to disassemble

the single hand unit when

removing the head assy.

U S E : -20℃～60℃(-4 ～ 140

°F)

STORAGE : -20℃～45℃(-4 ～113

°F)

CHARGE : 0℃～55℃(32 ～131

°F)

Temperature range for battery

WARNING

CAUTION

●Altering the battery connector plug in any way is very dangerous and

should not be done. Any alterations will cause unexpected trouble.

●The battery is quite heavy, so be careful not get your fingers pinched

or to drop it onto your feet.

●Hold and squeeze the release levers on both sides of the battery connector

plug and pull upwards.

●Hold the battery grip firmly and lift it away from the body.

Place in on a clean and dry flat stable surface.

●After connecting the AC plug of the charger to a domestic outlet, connect to the battery.

●The connector is polarized, so when connecting, insert in a direction so it will smoothly enter

the connector receptor.

CAUTION

●Please do not set the battery into the scooter for at least 30 minutes after completing the charge as the battery

continues to emit hydrogen gas. Please keep clear of an open flame.

●LED 1 will indicate the red light when connect AC plug to a domestic outlet.

●LED 2 change from the red light to green when charging is completed.

●The green light of LED 2 shows when no connecting to the battery.

LED 2 will indicate charging status.

Charging : Red light Finished : Green light

The battery charger automatically changes into trickle

charge mode after charging is complete however please

avoid leaving the charger connected after the charge

lamp becomes green.

①At first, turn the power off and remove the

AC plug from the domestic outlet.

②Next, remove the battery connector.

■STEP4　Releasing the battery connector plug.

■STEP5　Removal of the battery.

■STEP6　Connecting the single-purpose charger to begin recharging.

■STEP7　Disconnect the charger when charging is completed.

■STEP8　Charge completion.

Charging time of the charger

①First, connect the AC (alternating current) plug of the charger to a domestic outlet.

②Next, connect the DC58.8V output connector from

the battery to the connector receptor plug on the

charger. The charging will automatically start upon

connection after the power is turned on at the

domestic outlet. AC100~240V

AC plug

110V

Inlet voltage selector

220V

110V

↑

↓

●Set the inlet voltage selector to AC voltage of your region.

90~132V: Set to110V position / 200~264V: Set to 220V position

●Propeller cover

The av-2 EVOLUTION name of each part

Specification

●Propeller screen

●Propeller Assy

●Propellers

●Clamp ring

●Clamp ring lock lever

●Body Assy

●Head Assy

●Locking buckle

●Wing arms

●Starter switch

●Main switch

●Grips

●Handle

●Battery plug

●Water leak sensor

terminal

●Water leak alert lump

●Saddle

●Accelerator lever

●Battery indicator

●Pitch control dial

Length and width

Weight

Submerged unit weight

Speed

Active depth

Active range

Body

Motor

REV reducer

Speed adjuster

Safety devices

Accessories

: 720mm × 340mm

: 20.4kg with battery

: 0.5kg

: 0～4.5km/h　

It depends on the divers posture, physique and

equipment.

: approx 70m

: 9400m 　

: Shock resistant ABS resin

: 24V Brushless motor

: Ring epicyclical gear speed reducer

: Rotational speed control

: Variable pitch-type propeller (3 steps)

: Sensation current shut-down device

Water leakage sensor function turns on warning

lamp when water enters the motor or battery

housing and automatically shuts down operations.

: Water-cooling motor deployment

: O-ring seal for the main body

: O-ring seal for the propeller end of the body

: Silicone grease

(av-2 series)

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Apollo Veicolo subacqueo

Apollo

Apollo AV-2 Manuale utente

Manuali Veicolo subacqueo popolari di altre marche

VideoRay

VideoRay Pro 4 Manuale utente

VideoRay

VideoRay PRO 5 Manuale utente

Nellis Engineering

Nellis Engineering Logic Genesis Manuale utente

SUEX

SUEX XJOY 37 Manuale utente

SUBMERGE Scooters

SUBMERGE Scooters Magnus DPV Aggiornamento firmware

BlueLink

BlueLink BlueROV2 Manuale utente

SUEX

SUEX XK 1 Manuale utente

Sublue

Sublue WHITESHARK MIX Manuale utente

Indigo

Indigo Nautilus GLH Manuale utente

VideoRay

VideoRay Defender MSS Manuale utente

Amazea

Amazea Aquajet Istruzioni per l'installazione

Geneinno

Geneinno S2 Manuale utente

VideoRay

VideoRay Pro 4 Manuale utente

Snapper

Snapper TURF CRUISER Manuale

SUEX

SUEX 7Seven Manuale utente

Bonex

Bonex aquaProp Manuale utente

Bonex

Bonex ECOS Manuale utente

Yamaha

Yamaha SEASCOOTER 275L Manuale utente

Apollo av Series Manuale utente

Manuali Veicolo subacqueo popolari di altre marche
