1.0 Introduction

The MR Hard Disk Player (Model No. RR-HDP) and Hard Disk Player

(HDP) Software are used to easily locate and download video from the

removable hard disk drive utilizing a personal computer (PC).

This manual describes the procedures for installation and operating the

Hard Disk Player and Hard Disk Player Software (hereinafter “HDPlayer

Program”) designed for the RoadRunner Digital Video Recorder (DVR)

system.

1.1 Product Components

•Hard Disk Player

•USB Cable

•Power Cord and Adapter

•HDPlayer Software Installation CD

•User’s Manual (this document)

1.2 Minimum System Requirements

•Operating System: Microsoft Windows XP, Windows Vista,

or Windows 7

•CPU: Intel Pentium III 500MHz or higher

•RAM: 128MB or higher (256MB recommended)

•VGA: AGP, Video RAM 8MB or higher (800x600, 24bpp or

higher)

•USB 2.0 high speed only

•Internet access (Required for playback of mapping and

speed data when DVR is equipped with GPS)

NOTE: Intel Premium Dual Core 2.2GHz or higher CPU is required for the

proper audio playback.

Apollo Video Technology

24000-35th Avenue Southeast – Bothell, WA 98021

Toll Free: 888-AVT-USA1; Tel: 425.483.7100; Fax: 425.483.7200

www.apollovideo.com

Page 6

2.0 Installation

2.1 Installing the Hard Disk Player

1. Connect the 12VDC power adapter cable to the back of the

Player and into the wall outlet

2. Connect the USB ports of the Player to the PC using the

provided USB cable.

3. Once you have recorded video on the DVR’s removable hard

drive, you can view it on your computer using the Hard Disk

Player:

a. Remove the hard disk drive from the DVR:

i. Turn the DVR key to the “OFF” position.

ii. Ensure the front panel LED lights are not illuminated.

iii. Remove the hard disk drive.

b. Connect the hard disk drive to the Player.

c. Turn the Player ON by selecting the switch on the Player.

The power LED will illuminate indicating the Player is

powered on.

d. The PC should recognize that a new USB device has

been installed and you can now use the HDPlayer

software to view video. (Refer to section 3.0).

NOTE: You should always turn the Hard Disk Player OFF using the switch

on the back prior to removing the hard disk module.

Apollo Video Technology

24000-35th Avenue Southeast – Bothell, WA 98021

Toll Free: 888-AVT-USA1; Tel: 425.483.7100; Fax: 425.483.7200

www.apollovideo.com

Hard Disk Player |User Guide

Page 7

2.2 Installation of the HDPlayer Program

NOTE: If an older version of HDPlayer program has already been installed

on the computer, you should uninstall the older version, and then re-install

the new version.

1. Insert the installation CD.

2. Run the Setup.exe file.

3. The .NET Framework and the Visual C++ Runtime Libraries are

installed automatically.

4. When the following dialog box appears, select NEXT.

Apollo Video Technology

24000-35th Avenue Southeast – Bothell, WA 98021

Toll Free: 888-AVT-USA1; Tel: 425.483.7100; Fax: 425.483.7200

www.apollovideo.com

Page 8

5. Designate the folder patch location to install HDPlayer and select

the user(s) you want to able to use HPDlayer. Then select NEXT.

6. Select NEXT to confirm installation.

Apollo Video Technology

24000-35th Avenue Southeast – Bothell, WA 98021

Toll Free: 888-AVT-USA1; Tel: 425.483.7100; Fax: 425.483.7200

www.apollovideo.com

Hard Disk Player |User Guide

Page 9

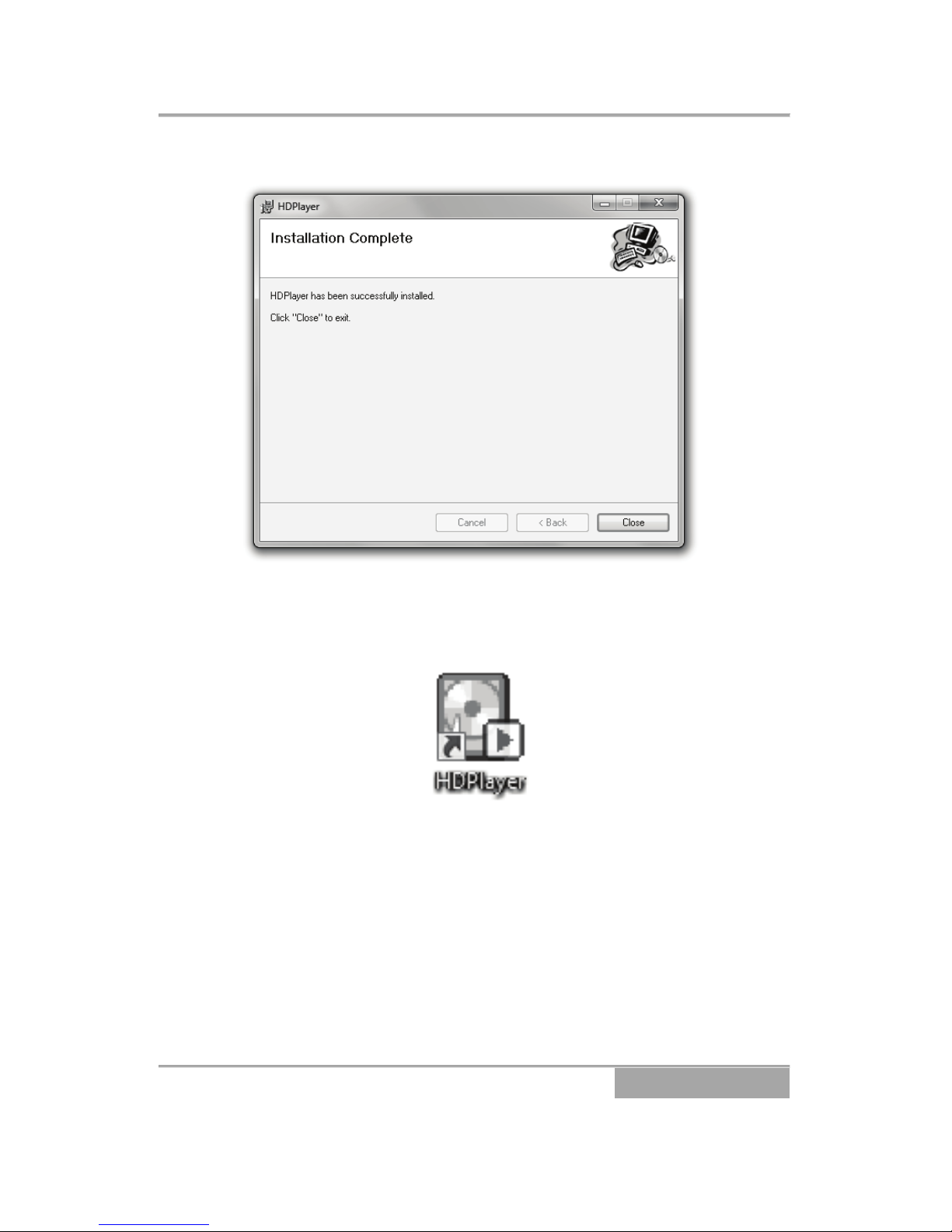

7. Select CLOSE to complete the installation.

8. After installing the HDPlayer program, the HDP icon can be found

on the desktop. Run the program by “double-clicking” the icon.

Apollo Video Technology

24000-35th Avenue Southeast – Bothell, WA 98021

Toll Free: 888-AVT-USA1; Tel: 425.483.7100; Fax: 425.483.7200

www.apollovideo.com

Page 10

3.0 HDPlayer Program

3.1 Description

The HDPlayer program is the playback software, which allows you

to play recorded video and audio (if applicable) from the hard disk

drive on a personal computer. Features of the HDPlayer program

are as follows:

•Time-lapse and event search

•Recording status table and Search event view panel

•Searching using Google map and Speed Graph (if DVR was

equipped with optional GPS)

•Zoom

•Various image enhancements

•Video clip copying

•Current image saving and printing

To search for and playback recorded video, first make sure that the

hard disk is connected to the computer through the Player. Then,

select the START menu in Windows and select HDPlayer to view

the launcher.

Apollo Video Technology

24000-35th Avenue Southeast – Bothell, WA 98021

Toll Free: 888-AVT-USA1; Tel: 425.483.7100; Fax: 425.483.7200

www.apollovideo.com
