Before trying to connect or operate this product, please read this manual completely

INSTALLATION &

OPERATING MANUAL

Wireless Network Video Recorder

NVR-2028

SAFETY PRECAUTIONS

All the following safety and operated instructions which will prevent harm or damage to the operator

and other persons should be read before the unit is operated.

WARNING

To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

Do not block ventilation openings.

Do not place anything on top of the unit that might spill or fall into it.

Do not attempt to service this unit yourself as opening or removing covers may expose you

to dangerous voltage or other hazards. Please refer all servicing to qualified service

personnel.

Do not use liquid cleaners or aerosols for cleaning.

This installation should be by a qualified service person and should conform to all local

codes.

To prevent fire or electric shock, do not overload wall outlets or extension cord.

This unit must be grounded to reduce the risk of electric shock hazard.

CAUTION

Danger of explosion if the Lithium battery (RTC Battery) is incorrectly replaced.

Danger of explosion if battery is incorrectly replaced. Replace only with the same or

equivalent type recommended by the manufacturer. Dispose of used batteries

according to the manufacturer’s instructions.

Risk of explosion if replaced by an incorrect type. Dispose of used batteries according to the

instructions.

INFORMATION

This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio frequency energy and, if

not installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference in which

case the user will be required to correct the interference at his own expense.

Table Of Contents

1. PRODUCT FEATURES .................................................................................................. 4

1.1 Product Introduction ..................................................................................................................4

1.2 Product Features........................................................................................................................4

2. DESCRIPTION OF THE FRONT/REAR VIEW............................................................... 6

2.1 Front View ..................................................................................................................................6

2.2 Rear View ...................................................................................................................................9

2.3 ALARM In/Out .........................................................................................................................10

3. INSTALLATION ............................................................................................................ 11

3.1 Basic Connection ..................................................................................................................... 11

3.2 Hard-Disk Drive Installation ...................................................................................................13

3.3 System Information ..................................................................................................................14

3.4 Updating System Software .......................................................................................................15

4. BASIC OPERATIONS .................................................................................................. 16

4.1 Configuring Recording Settings...............................................................................................16

4.2 Recording Operations ..............................................................................................................17

4.3 Playback Operations................................................................................................................24

4.4 Search Operations....................................................................................................................26

4.5 Backup Operations...................................................................................................................29

4.6 Key Lock Operation .................................................................................................................32

5. MENU SETUP .............................................................................................................. 33

5.1 LAN CAMERA SETTING.........................................................................................................34

5.2 REC SETTING .........................................................................................................................40

5.3 CLOCK / TIMER / SEQ SETTING ..........................................................................................41

5.4 ALARM SETTING ....................................................................................................................42

5.5 COMMUNICATION ................................................................................................................43

5.6 DISK SETTING........................................................................................................................49

5.7 SYSTEM SETTING...................................................................................................................50

6. IDE HARD DISK INSTALLATION ................................................................................ 53

6.1 Built-in hard disk......................................................................................................................53

6.2 Mobile Rack .............................................................................................................................54

7. O.S.D MESSAGE ......................................................................................................... 57

8. INDEX TABLE .............................................................................................................. 58

9. WIRELESS NETWORK CONFIGURATION................................................................. 59

9.1 Configure Your NVR-2028 Network Settings ...........................................................................59

9.2 TCP/IP Communication Software............................................................................................61

9.3 TCP/IP installation ..................................................................................................................62

9.4 TCP/IP Configuration setting ..................................................................................................62

9.5 Connection Testing...................................................................................................................63

10. NETWORK VIEWER AND IMAGE VIEWER.............................................................. 65

10.1 The Network Viewer ...............................................................................................................65

10.2 The Image Viewer...................................................................................................................75

11. MICROSOFT INTERNET EXPLORER ....................................................................... 76

11.1 Connecting the NVR ...............................................................................................................76

11.2 Change LANCAM SETUP Setting..........................................................................................79

11.3 Change Record / Alarm Setting..............................................................................................80

11.4 Change Schedule Setting........................................................................................................81

11.5 Change Wireless Setting .........................................................................................................82

12. SPECIFICATIONS ...................................................................................................... 83

APPENDIX 1. –SCANIP ................................................................................................... 84

APPENDIX 2. –RS-232 PROTOCOL ............................................................................... 87

1. Setup...........................................................................................................................................87

2. Communication Protocol ...........................................................................................................87

3. Command Types .........................................................................................................................88

1. PRODUCT FEATURES

1.1 Product Introduction

The WIRELESS NVR-2028 is a storage media of digital video image, which uses hard disk drives

instead of NAS devices to store video. This wireless storage media provides the user with the power

of remote control of the Internet. It’s an extremely stable and reliable device because it is a

stand-alone system. Its local operations are very similar to the DVR’s interface; hence if the user is

familiar with the DVR s/he will find this media to be most convenient. You don’t need to design any

analog lines yourself, just use the current existing wireless network function since the device is a

digital one. Again, where the NVR-2028 is an active device, which automatically, instantly and

directly detects all events without having to detour via the LAN Camera.

Additionally, with the NVR-2028 you don’t have to rely on a PC to save any images, because this

device has done so already, being the best possible storage media for the LAN Camera.

The device additionally hosts a wireless access point (AP), so you can transmit data without a

connecting cable. If, for example, you don’t want to use a connecting cable in an old building that is

within your surveillance system, you can use the wireless NVR-2028 instead. The same applies

equally to other sites you’re covering.

The wireless NVR-2028 also has the NAT function to enable direct access to the Internet. Inside the

device is a Router, so you don’t need to buy one as well.

1.2 Product Features

＊ Wireless access, complies with IEEE 802.11g/b.

＊ Digital recorder for LAN the Camera.

＊ Maximum link-up of 8 LAN Cameras.

＊ Zoom in/out available for every LAN Camera.

＊ Compression method: MJPEG.

＊ Maximum 2 hard-disk drive capability. (One removable)

＊ Hard-disk drive hot-swapping capability.

＊ Pre-alarm image recording.

＊ Capable of backup with various known FTP server.

＊ Time-lapse and real-time recording.

＊ Refresh rate up to 30 IPS (25 IPS for PAL).

＊ Alarm I/O.

＊ Image quality selectable at 5 different levels for recording.

＊ Event/Timer/Alarm recording mode.

＊ Quick search by time, alarm, event, and recording list.

＊ Fast and slow playback of recorded video at various speeds.

＊ Single-picture playback.

＊ On-screen setup menu, title and system timer.

＊ Password protection.

＊ Motion detection: user can select the range and 5 levels of sensitivity of detection.

＊ Automatic search of all available LAN camera within the Ethernet.

＊ Disk-full warning and operation status LEDs.

＊ RS-232 communication port.

＊ Remote control via RS-232 and Ethernet ports

＊ Power interruption recovery.

＊ High stability and reliability.

＊ Operation-status record log.

＊ Distribution of live and recorded images throughout the TCP/IP network environment.

＊ Powerful PC software.

＊ Web browser: IE.

＊ Audio function included.

＊ Built-in SD card slot for copying image to SD card.

＊ Supports the DHCP protocol.

＊ Optional 10DB corner antenna.

2. DESCRIPTION OF THE FRONT/REAR VIEW

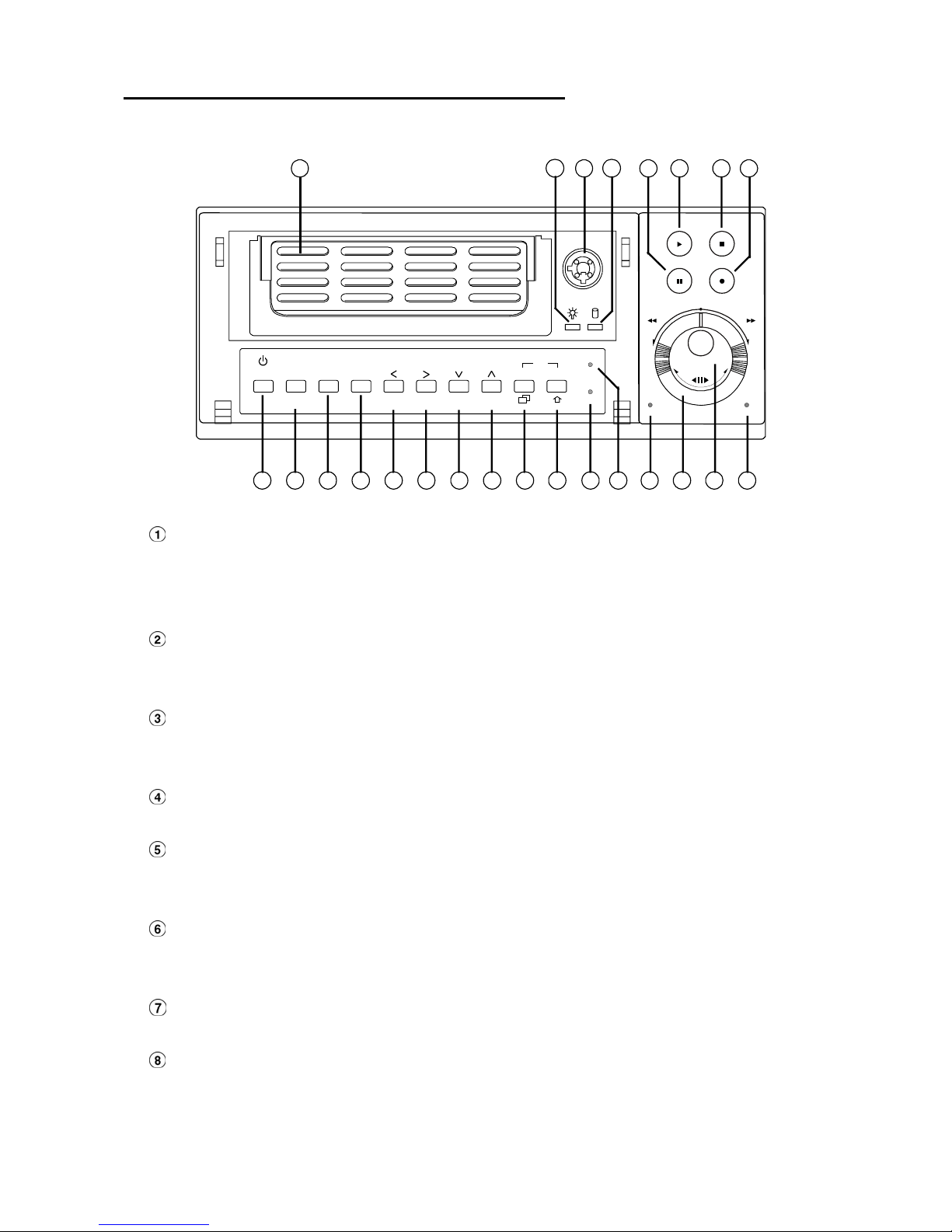

2.1 Front View

Power Display

Save

Enter

Setup

PLAY STOP

REC

FWDREV

PAUSE

A-recSearch

T-rec

POWERDISK

1 3 4 5 6

7 8 9 10 11 14 13 12 15 16 17 18 19 20 21 22

223 24

Shift

Seq.

CH1 CH2 CH3 CH4 48

CH5 CH6 CH7 CH8

Hard-disk drive compartment:

The compartment allows you to install a hard disk drive mostly for backup purposes. Make sure the

drive is well secured with the mounting screws in the mobile rack before you put the rack into the

compartment. And remember to turn on the power of the compartment by locking it.

Hard disk compartment lock:

The key lock secures a hard disk in place. Unlock the compartment before you remove the hard

disk from the slot without turning off the device.

PAUSE button:

In a playback display, press this to freeze the display. During the freeze, press to display one

frame/field of a picture at a time in the forward direction. (Illuminate green in PAUSE mode.)

PLAY button:

Press to play back a recorded video from the hard disk. (Illuminate green in PLAY mode.)

STOP button:

Press to stop playing back a recorded video or recording video into a hard disk. (Illuminate green

in STOP mode.)

REC button:

Push to start recording video into a hard disk while in the live display mode. (Illuminate red in REC

mode.)

POWER button:

Press this button for at least 3 seconds to power off. Press again to activate the device.

DISPLAY button:

Press to show the system operation status on the screen.

In the LANCAM SETTING mode, use these buttons to display the desired LAN Camera image on the

screen.

Setup/Save button:

Press this to enter the setup menu. Press again to exit the setup mode.

In SD card backup mode, press to save the desired still image to SD card.

Search button:

Press to enter the search mode to access recorded video.

In the LANCAM SETTING mode, use these buttons to search for the desired LAN Camera in the

LAN.

Left / Right (CH1-CH5 / CH2-CH6 ) buttons:

In setup menu/ search mode, press these two buttons to highlight desired items in the menu setup

mode.

In the live mode, press or buttons to select channel 1 or 2 respectively to get a full-screen

display. In order to display channel 5 or 6, please press Shift button while pushing or

buttons respectively to see the selected channel.

In the play mode, press or buttons to see channel 1 or 2 respectively, first as a zoom -in,

small-screen display, next as a full-screen display. Similarly, in order to display channel 5 or 6 in

the play mode, press Shift button while pushing or buttons respectively to see the

selected channel, first as a zoom-in, small-screen display, and next in a full-screen view.

Up / Down ( CH4-CH8 / CH3-CH7 )buttons:

In setup menu/ search mode, press these two buttons to select the desired contents for

programming in the setup menu mode.

In the live mode, press or buttons to select channel 4 or 3 respectively to get a full-screen

display. In order to display channel 8 or 7, please press Shift button while pushing or

buttons respectively to see the selected channel.

In the play mode, press or buttons to see channel 4 or 3 respectively, first as a zoom -in,

small-screen display, next as a full-screen display. Similarly, in order to display channel 8 or 7 in

the play mode, press Shift button while pushing or buttons respectively to see the

selected channel, first as a zoom-in, small-screen display, and next in a full-screen view.

Enter Button:

Press to enter a selected item and save the setting in the menu setup mode.

In the live or play mode, this button enables the user to access the multiple-channel screen display.

Pressing this button repeatedly will enable a sequential display in the following order: first, a

quad-mode display of channels 1-4, and then, 5-8, and a multiple-channel display of channels 1-8,

in succession.

Shift button:

Press Shift button while pushing either the Left / Right buttons, or the Up / Down buttons, to see

any corresponding channel between channels 5-8.

Press Shift and Enter buttons simultaneously for a sequential display in the exact same order

given above. (please refer to the “NOTE” given below)

T-rec Indicator:

This indicator of the timer recording mode lights up to signal the scheduled record setting is on.

A-rec Indicator:

This indicator of the alarm recording mode lights up to indicate the alarm record setting is on.

DISK Indicator:

The indicator shows the operation status of the unit’s hard-disk drives. The green light indicates the

hard-disk drive is storing or retrieving data. The red light signals the hard-disk drive is filling up. The

orange light indicates the hard-disk is retrieving at disk-full status.

Shuttle Ring:

The shuttle can be moved forward and backward for playback in either direction. Turn this left to

play a recorded video in the reverse direction at faster or slower speeds than the recorded speed.

Turn this right to play a recorded video in the forward direction at faster or slower speeds than the

recorded speed.

Jog Dial:

This dial can act in both a forward and a backward direction, as well as step by step. Turn this left

to play a recorded video in the reverse direction. Turn this right to play a recorded video in the

forward direction.

POWER Indicator:

Indicates the power status of the unit. The green light indicates the hard disk drive is activating. The

orange light signals the hard disk drive is power stand by.

Mobile Rack Power LED:

Indicates the power status of the Mobile Rack. The green light indicates the Mobile Rack is

activating.

Mobile Rack HDD LED:

Indicates the HDD status of the Mobile Rack. The orange light indicates the HDD is storing or

retrieving data.

NOTE: Press “ Enter ” and “ Shift ” simultaneously in order to view all the channels, one by

one, in sequential single-channel succession, followed by an 8-channel display, a

quad-mode display of channels 1-4, and channels 5-8, and then a multiple-channel

viewing, after which you have this exact same sequential order of display indefinitely.

Indice

Altri manuali Appro Hardware di rete

Appro

Appro NVR-6030 Manuale utente

Manuali Hardware di rete popolari di altre marche

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manuale utente

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manuale utente

Yudor

Yudor YDS-16 Manuale utente

D-Link

D-Link ShareCenter DNS-320L Manuale utente

Samsung

Samsung ES1642dc Istruzioni per l’uso

Honeywell Home

Honeywell Home LTEM-PV Istruzioni per il montaggio

evertz

evertz 7700 Series Manuale utente

D-Link

D-Link ShareCenter DNS-343 Manuale utente

Asante

Asante AsanteBridge 1012 Manuale utente

FireBrick

FireBrick FB2700 Manuale utente

Audiovox Electronics

Audiovox Electronics ARWH2T Manuale utente

ADC

ADC DSX-1 Manuale

NetComm

NetComm NF2 Manuale utente

Alcatel-Lucent

Alcatel-Lucent 5620 Manuale utente

Dell EMC

Dell EMC XC6420 Series Manuale utente

Lanner

Lanner NCA-1020A Manuale utente

Allied Telesis

Allied Telesis AT-TN121-A Manuale utente

Arista

Arista CCA-ETM-Q12 Manuale utente
