Adjustment of parameters
Main control unit FBSN – 4FD is equipped with service display and two
push-buttons. It enables to display and adjust some parameters of device.
WARNING! Unprofessional manipulation with parameters can seriously
limit utility of device!
Display shows:
F
ACTORY
S
ETTINGS
,
or
C
USTOM
S
ETTINGS
– if one or more parameters are adjusted in a
different way from factory

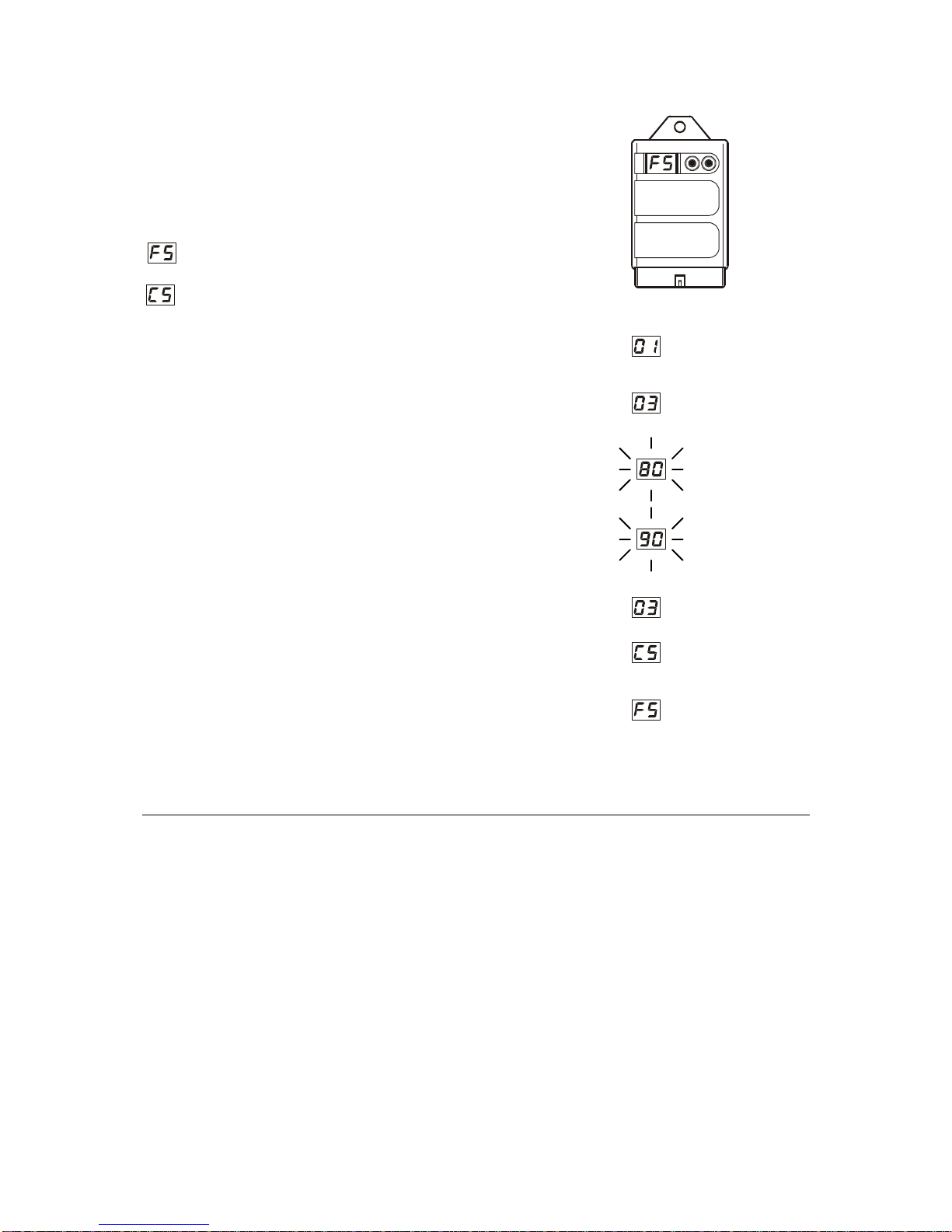

By long push (longer than 2 seconds) of whichever button, activation of
service state occurs. Display shows number of chosen parameter.
Choose desired parameter by means of buttons – down by left button, up by
right button.
By long push (longer than 2 seconds) of whichever button value of chosen
parameter is displayed. Value is blinking.
Change the value of parameter by means of buttons down by left button, up
by right button.
By long push (longer than 2 seconds) of whichever button new value is
stored and number of chosen parameter is again displayed.
Termination of service state is done automatically, if no button is pushed for
certain time.
FACTORY SETTINGS RESTORING: by simultaneous long push
(longer than 2 seconds) of both buttons.
Parameters review
NUMBER DESCRIPTION RANGE FACT. SET. NOTE
01 Volume of the speaker 0, 1, 2 2 0=off, 1=low, 2=high
02 Range of front central sensors 50 – 95 [cm] 80
03 range of front corner sensors 50 – 95 [cm] 55
06 STOP zone of front central sensors 25 – 50 [cm] 35
07 STOP zone of front corner sensors 25 – 50 [cm] 25
11 Number of speed signal pulses 1 – 99 [pulses/m] 3
12 Delay of front sensors deactivation 0, 10 – 60 [s] 0 0 = function not activated
15 Service display 0, 1, 3 0 0 = function not activated
1 = distance of the nearest front obstacle [cm]
3 = calculated vehicle speed [km/h] (test of the speed signal and parameter No.11 setting)
16 Front obstacle indication 0, 1 0 0 = nearing obstacle only
1 = all obstacles
Note: STOP zone = distance from sensor, from which the obstacle is indicated by continuous tone.
