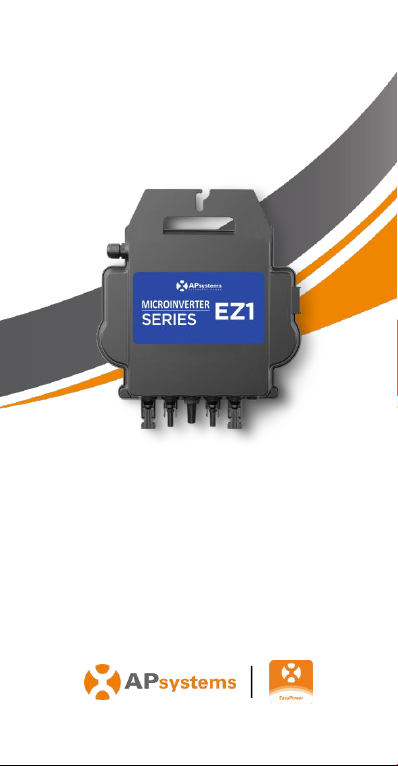

APsystems EZ1 Series Manuale utente
1
EN
EZ1 System Installation
The EZ1 series APsystems Microinverter is used in balcony and DIY
systems which comprised of the below key elements:
· PV modules
· Power Cord
· EZ1 series microinverter
· Router
· Cell phone
EZ1 series micorinverters have 2 input channels with independent MPPT
and high input current and output power to adapt to today’s larger power
module. Users could directly connect to the Wi-Fi version of EZ1 with their
cell phones through Bluetooth and get the real-time data of the solar
systems. Besides direct connection, Wi-Fi version of EZ1 could also
connect to a router through Wi-Fi and send data to cloud servers for
remote monitoring.
Through an AC extension cable provided by APsystems, EZ1 could be
plugged into a socket and start output energy, truly easy and convenient
grid connection.
2
EN
Step 1: Verify that grid voltage matches microinverter rating
Step 2: Install the microinverters in proper position
The Microinverter EZ1 can be installed on the balcony wall or fixed to the
railing using cable ties. Select an appropriate installation method based on
your actual scenario to ensure that the EZ1 is securely installed.
NOTE: Install the microinverters in proper position to avoid direct
exposure to rain, UV or other harmful weather events.
Do NOT carry the microinverter by
the AC cable. This may cause the
AC cable to partially or fully
disconnect from the unit, resulting
in no or poor operation.
3
EN
Step 3: Connect APsystems Microinverters to the PV Modules
When plugging in the DC cables, the microinverter should immediately
blink green ten times. This will happen as soon as the DC cables are
plugged in and will show that the microinverter is functioning correctly.
This entire check function will start and end within 10 seconds of plugging
in the unit, so pay careful attention to these lights when connecting the
DC cables.
NOTE: Each PV panel must be carefully connected to the same channel.
Make sure to not split positive and negative DC cables into two different
input channels: microinverter will become damaged and warranty will not
apply.
4
EN
Step 4: Connect the APsystems microinverter to power cord
Insert the microinverter AC connector into the power cord connector.
NOTE: When inserting, make sure to align the connector with its limit
position, otherwise it may pose a personal safety risk.After aligning the
limit position, insert the connector all the way in, and then tighten the
connector’s connection thread on the inverter side clockwise until there
are no gaps.
Step 5: Cable Connection
Insert the power cord into the socket.
Install APP
Please scan this QR code to have access to our APPs.
·Go to App Store
·Search “AP EasyPower”
·Download and install
NOTE: iOS: 10.0 and up
·Go to Google Play Store
·Search “AP EasyPower”
·Download and install
NOTE: Android: 7.0 and
①
②
5
EN
Connect the EZ1
AP EasyPower offers two modes “Direct Connect Mode”and “Remote
Mode” to monitor the device.
Direct Connect Mode: APP connects to Bluetooth of the device, so that
users can realize local monitoring and control of the device.
Remote Mode: Login account, users can realize remote monitoring and
control of the device.
NOTE: In the absence of Wi-Fi, users can monitor and control the device
in direct connection mode.

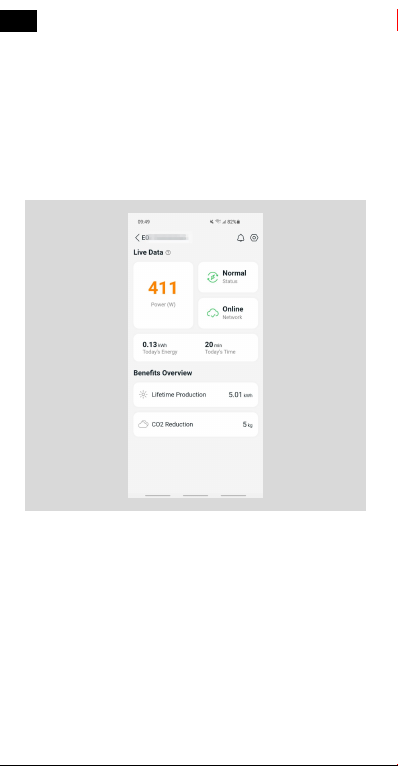

Monitor & Control
On this page, user can visualize
- Live Data: The real-time data of the device in current round, including
the power, energy, running time, working status and the cloud status.
·Working status
Normal: The device is working normally.
Alarm: The device has alarms and you need to check it.
·Cloud status
Online: The device is connecting the cloud service through the internet.
Offline: The device is not connecting the cloud service through the
6
EN
internet, maybe the device is not connected the Wi-Fi or the router is
down.
- Benefits Overview: The lifetime energy produced by the device and
the equivalent CO2 reduction.
By pressing “alarm icon” to check the alarm information if the device
status is alarm.
By pressing “setting icon” to set the device. The setting page is shown
below.
NOTE: For Connection and monitoring operation mode, please refer to
the AP EasyPower User Manual.
7
DE

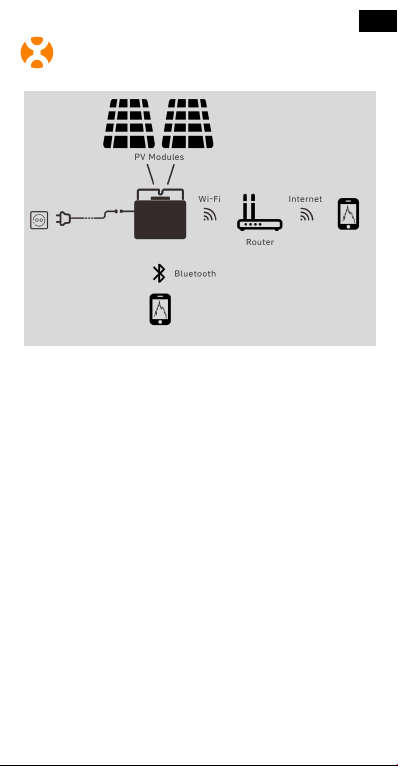

Einführung in das EZ1 system
Der Mikrowechselrichter der EZ1-Serie von der APsystems wird in Balkon-
und Heimwerkeranlagen eingesetzt, die aus den folgenden
Schlüsselelementen bestehen:
· PV modules
· Netzkabel
· Mikrowechselrichter der EZ1-Serie
· Router
· Mobiltelefon
Die Mikrowechselrichter der EZ1-Serie verfügen über 2 Eingangskanäle
mit unabhängigem MPPT und hohem Eingangsstrom sowie hoher
Ausgangsleistung, um sich an die heutigen Hochleistungsmodule
anzupassen. Die Benutzer können sich mit ihren Handys über Bluetooth
direkt über WiFi mit dem EZ1 verbinden und die Echtzeitdaten der
Solaranlagen abrufen. Neben der direkten Verbindung kann sich der EZ1
auch über Wi-Fi mit einem Router verbinden und Daten zur
Fernüberwachung an Cloud-Server senden.
Anhand eines von APsystems bereitgestellten AC-Verlängerungskabels
kann der EZ1 an einer Steckdose angeschlossen werden und mit der
Stromausgabe beginnen - ein wirklich einfacher und bequemer
Netzanschluss.
Mikrowechselrichter der EZ1-Serie
Mobiltelefon
Mobiltelefon
Netzkabel
8
DE
Schritt 1: Überprüfen Sie, ob die Netzspannung mit der
Nennausgangsspannung des Mikrowechselrichters übereinstimmt
Schritt 2: Installation des Mikrowechselrichter in die ordnungsgemäße
Position
A. Kennzeichnen Sie die korrekte Position des Mikrowechselrichters auf
dem Montagerahmen oder dem Balkongeländer.
B. Ziehen Sie den Mikrowechselrichter zum Beispiel mit einer M8-
Schraube fest.
HINWEIS: Installieren Sie die Mikrowechselrichter an einer geeigneten
Position, um zu verhindern, dass sie direktem Regen, UV-Strahlung oder
anderen schädlichen Witterungseinflüssen ausgesetzt sind.
Tragen Sie den Mikrowechselrichter
NICHT am AC-Kabel. Dies kann
dazu führen, dass sich das
Netzkabel ganz oder teilweise vom
Gerät löst, was eine fehlerhafte
Funktion oder oder einen
Betriebsausfall zur Folge hat.
