APW Wyott GGT-18H Manuale utente
APW Wyott Design Features
• 3/4” (2 cm) flat polished “hot rolled” steel griddle
plate.
• 3” (7.6 cm) stainless steel backsplash; sloped side
splashers.
• Front access panels for easy adjustment.
• Extended bull-nose front.
• Heavy-duty 4” (10 cm) heat-resistant, adjustable
legs.
• Field convertible gas regulator.
• Smooth action, adjustable gas valves.
• Viewable standing pilot. Safety pilot available.
• Pilot can be lit without removing front panel.
• Built-in rear flue.
• Gas connections use 3/4” NPT pipe.
• 4” x 1” (10.2 cm x 2.5 cm) grease chute drains into
grease drawer.
• Stainless steel grease collector drawer.
PRODUCT: QUANTITY: ITEM #:
Models: GGT-18H GGT-24H GGT-36H GGT-48H
Designed Smart
Built Solid
Champion Griddle
Gas Thermostatic
APW Wyott Foodservice Equipment Company · 729 Third Ave., Dallas, TX 75226
Rev. 1/23/2006
Built to Last
• Thick, stainless steel construction on front panel and top
skirt protects against kitchen ‘wear and tear’ and rust.
• Welded construction.
• 3/4” polished steel griddle surfa e stands up to years of
high output cooking.
• Griddle plate is fully welded to base.
Reliability backed by APW Wyott’s Warranty
• All APW Wyott Champion Cooking Equipment is backed
by a 3-year limited warranty and a 1-year on-site labor
warranty.*
• Certified by the following agencies:
See reverse side for product specifications.
Increased Performance in Cooking
• Champion high output gas burners generate 25% more
BTU’s than competitive grills.
• Fast start-up to prime cooking termperatures
• Provides fast recovery and the ability to handle a variety
of foods.
• Openings in the front allow the pilot light to be easily lit
and adjusted without removing the front panel.
Safety Features
• Bull-nose front extension protects employees from burns.
Saves Time and Clean-up Labor Cost
• Maintenance is easier with bottom-mounted grease
collection pan.
• Field convertible and adjustable gas regulator.
Model GGT-24H Gas Manual Griddle
Options & Accessories
• High altitude versions are available (contact factory).
• Safety Pilot
Champion Griddle
Gas Thermostatic
PRODUCT: QUANTITY: ITEM #:
Models: GGT-18H GGT-24H GGT-36H GGT-48H
APW Wyott Foodservice Equipment Company · 729 Third Ave., Dallas, TX 75226
Rev. 1/23/2006
#1903
*APW Wyott reserves the right to modify specifications or discontinue models without incurring obligation.
PRODUCT SPECIFICATIONS
Construction:
Stainless steel top skirt, grease through, grease collector
drawer, and front panel. Aluminized steel sides and back
panel. 4” adjustable legs. Welded construction. Field
convertible and adjustable gas regulator.
Gas Specifications:
GGT-18H: 1 “S” burner, 37,500 BTU/hr. One manual
high-low controls. (Propane is 33,750 BTU/hr.)
GGT-24H: 2 “U” burners, 25,000 BTU/hr. each, total
50,000 BTU/hr. input. Two manual high-low
controls. (Propane is 45,000 BTU/hr.)
GGT-36H: 3 “U” burners, 25,000 BTU/hr. each, total
75,000 BTU/hr. input. Two manual high-low
controls. (Propane is 67,500 BTU/hr.)
GGT-48H: 4 “U” burners, 25,000 BTU/hr. each, total
100,000 BTU/hr. input. Two manual high-low
controls. (Propane is 90,000 BTU/hr.)
Cooking Surface:
GGT-18H: 19 1/2" H x 23 3/4" D (49.5 cm x 60.3 cm)
GGT-24H: 19 1/2" H x 23 3/4" D (49.5 cm x 60.3 cm)
GGT-36H: 19 1/2" H x 35 3/4" D (49.5 cm x 90.8 cm)
GGT-48H: 19 1/2" H x 47 3/4" D (49.5 cm x 121.3 cm)
*Grease through width: 4”

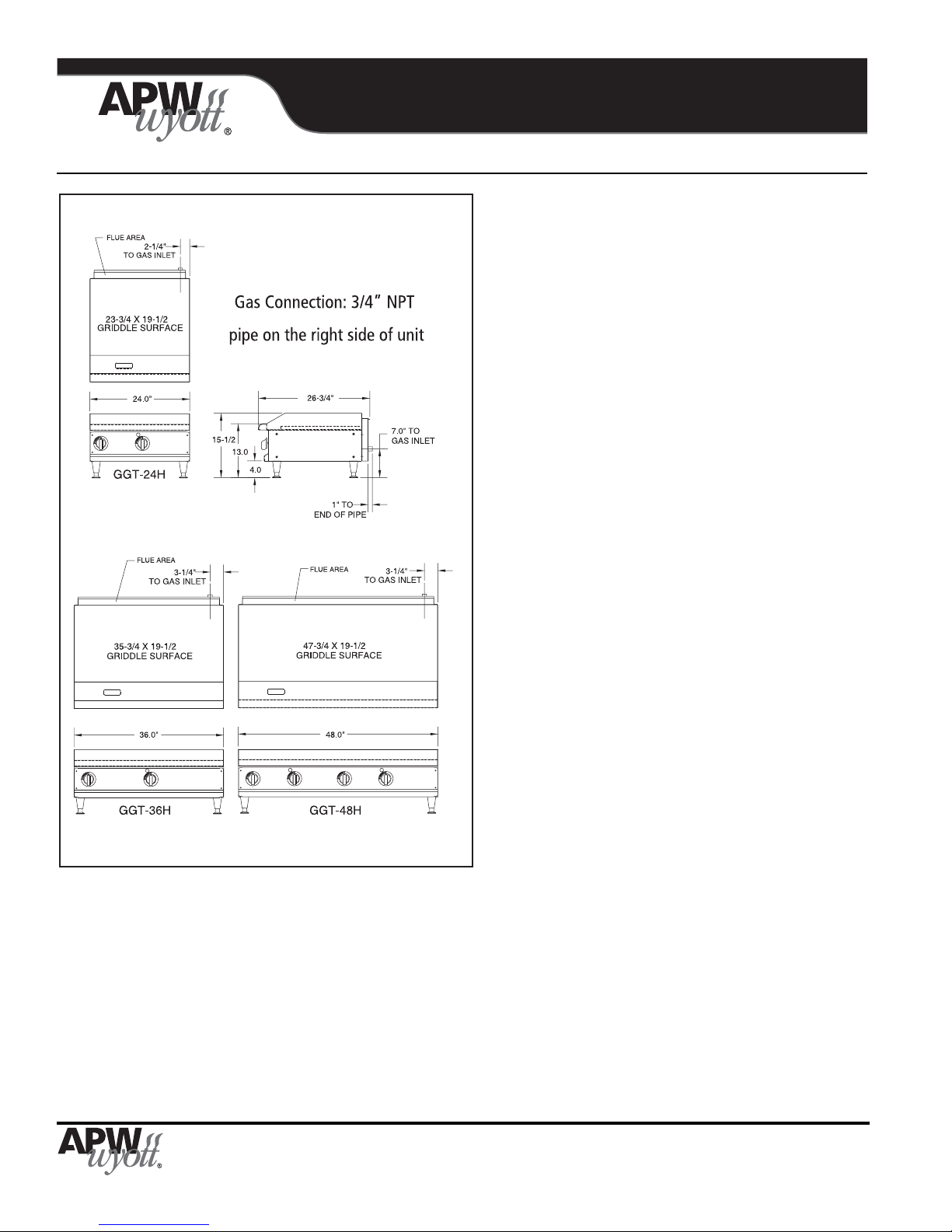

Overall Dimensions:
GGT-18H: 15 1/2" H x 18" W x 26 3/4" D
(39.4 cm x 45.7 cm x 68 cm)
GGT-24H: 15 1/2" H x 24" W x 26 3/4" D
(39.4 cm x 61 cm x 68 cm)
GGT-36H: 15 1/2" H x 36" W x 26 3/4" D
(39.4 cm x 91.4 cm x 68 cm)
GGT-48H: 15 1/2" H x 48" W x 26 3/4" D
(39.4 cm x 121.9 cm x 68 cm)
*Note: Regulator and pipe add 4 1/4” to the rear of the unit.
Shipping Information:
GGT-18H: 200 lbs. (90.9 kg) GGT-36H: 280 lbs. (127.3 kg)
GGT-24H: 200 lbs. (90.9 kg) GGT-48H: 355 lbs. (161.4 kg)
F.O.B. Cheyenne, WY 82007
