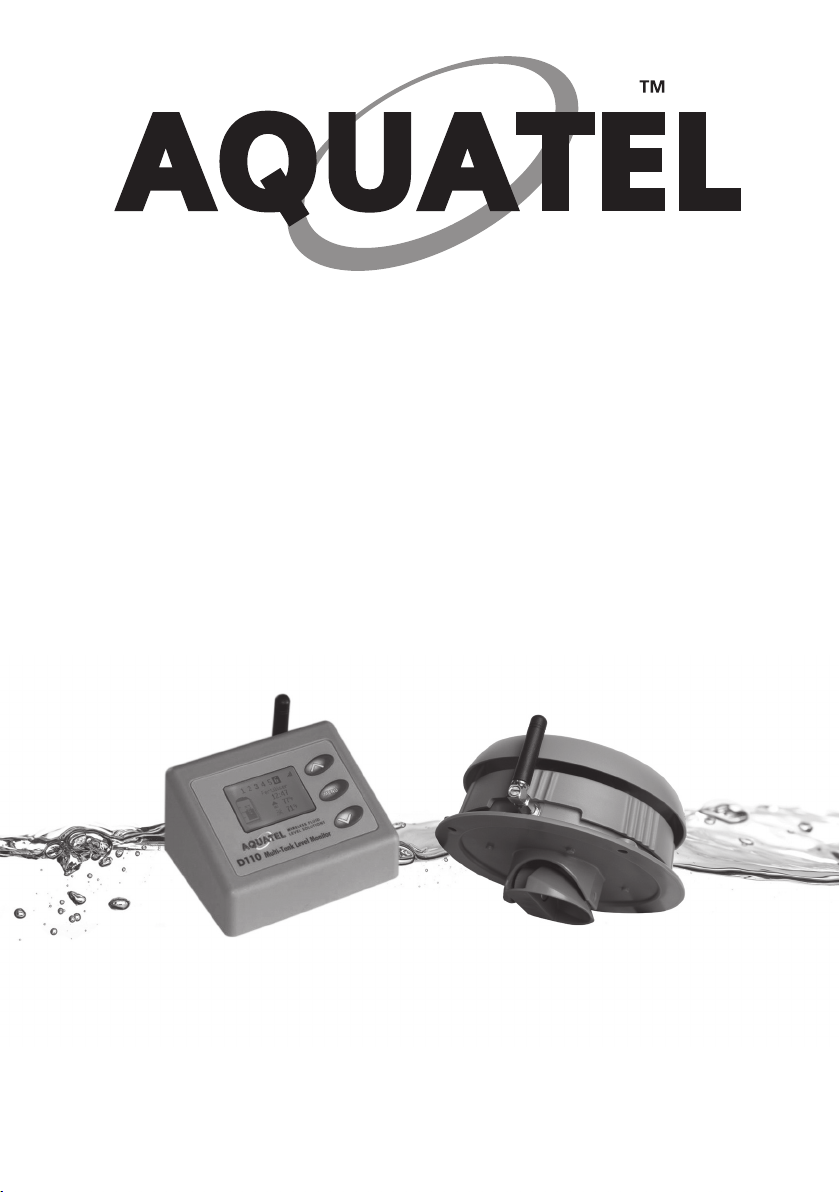

MULTI TANK CAPABLE MODEL D110-S
INSTRUCTION MANUAL
Wireless Level Monitor
Aquatel NZ Ltd
P.O. Box 225 Orewa 0946, New Zealand
www.aquatel.co.nz
– 1 – – 2 –
• Temperaturerange:-10to+60°C(14to140°F)
• IndividuallySecuritycodedsets
• Approval:AS/NZS4268:20031:2005
• Housing:ABSPlastic
• CircuitBoards:ROHScompliant
• 433MHz(Aus/NZ/Europe),920MHz(USA/Asia)
*Rangeshownislineofsight.Objectsbetweenunitswillreducerange
DISPLAY UNIT
• ExternalPowerJack(UseAquatelcertified
powerpack.PartNo.AQPP6)
6VDC
• ¼WaveWhipAntenna
• 92mmWx73mmDx50mmH
(35/8”Wx27/8”Dx2”H)
TANK UNIT
• Useonanynon-flammablefluid
(water,diesel,septic)
• ¼WaveWhipAntenna
• 135mmdiameterx80mmH
(53/8”Dx31/8”H)
• DetectionRange0.1mto4m(4”–13’)
300m*
(1,000’)
Multi-Ta nk Level Monitor
D110
– 1 – – 2 –
TheD110isaversatileproductthatnotonly
allowsremotemonitoringofmultipletanks/
cisternfluidlevels,italsoallowsyoutoset
highandlowlevelalarmstoaheightyou
wishtobenotifiedat.
TheD110isaWirelesstank/cisternfluidlevelmonitorthatiscapableofremotely
monitoringupto6tanksfromtheoneDisplayunit.EachD110systemcomeswithone
DisplayandasingleTankUnit.Tomonitormorethanonetank/cistern,additionalT110
TankUnitscanbepurchasedandpairedwithyourDisplayUnit.Itisrecommended
thatyoufullyreadthisinstallationmanualpriortoinstallingyourD110system.
Ifyouhaveanyquestions,pleasedocontactuspriortouse.
Mainfeaturesandbenefits:
. Fullywirelessremotetank/cisternmonitoring
. EasytoreadBluebacklitLCDdisplay
. Monitorupto6tanksfromtheoneDisplay
. AdjustableAirgapallowsformountingintank/cisternriser
. AdjustableHighandLowlevelalarms
. Easytosetup
Howitworks:
TheTankUnitismountedonthetopsurfaceofthetankorontheinsidetopsurface
ofanundergroundcisternandusesultrasonicsignalstodetectthefluidlevelsinside.
ThisisthenwirelesslytransmittedbacktotheDisplayUnittogiveyouuptodatefluid
levelinformation.ThesystemwillwarnyouofanytriggeredHighorLowfluidlevel
alarmviatheDisplayUnit.
– 3 – – 4 –
Installing Tank Unit
1ChooselocationforTankUnitonthetopofthetankorcistern,closetoan
inspectionhatchisbestincaseyouneedtoadjustthesensorcone.
4Ideal.Mountwithin
reachofaccesshole
ForplastictanksusethesuppliedscrewstoattachtheTankUnittothetank.
Formetaltanksfirstdrill3mmor¼"holes,andthenfastenusingthescrews.
Forconcretetanksdrill6mmor¼"holes,insertthesuppliedplasticplugsandthen
fastenusingthescrews.
8
8
8
8
Antennashouldbe
mountedonthe
oppositeside
8
Transducerisnot
pointingatthe
surfaceofthewater
500m line of sight
M107
4
44Waterwillnotenter
antennahole
4Transducerisparallel
towater
2Drilla50mm(2”)holeintank.
Forthickconcretetanksmake
a75mm(3”)hole.
3Measurethedepthof
tanktothebase(ortothe
wateroutlet).Writethis
measurementdown.
4
InsertTankUnitinholeand
rotatesotankantennaison
thelowerside(toprevent
waterenteringunit).Ensure
thatthetransducercone
underneathispointing
directlyatthesurfaceofthe
water.
Fortankslessthan1500mm(5’)it’sbesttodeepmountunitincenteroftank
Installation
8Incorrect.Mountunit
awayfromribbedwalls
topreventsignal
reflectionoffwalls
4Correct.Forburied
tanksmountunitin
centeroflid,oron
bracketmountedinriser
– 3 – – 4 –
Setting up Tank Unit
5RemovecapfromTankUnitbyturningcounter-clockwiseandinsertbatteries.
CheckthattheTankUnitispairedwiththeDisplayUnitonceyouhaveitpowered
up.YoucanchecksignalstrengthbetweenunitsontheDisplayUnit,therewillbe
asignalstrengthbargraphmeteratthetoprightoftheLCDscreen,rangingfrom
1to4bars.
Test Mode
WhensettingupyourTankUnit,youcansettheTankUnitintoTestModeviathe
displaysothatitsendsanewreadingevery8seconds.WheninTestMode,theTank
Unit’sTestModeLEDwillbeON(seepicturebelow).WhenoutofTestModetheLED
willbeOFF.TestModecanbeturnedonoroffviathe“Systemsetup”then“TankUnit
Setup”thenselect“ConfigureTankUnit”,scrolltothe“UpdateInterval”andselect
TestMode.Onceyouhaveestablishthatthesystemsrangeisokyoucanthensetan
updateintervalthatsuits.ThelongertheUpdateIntervalthelongertheTankUnit’s
batterieswilllast,forexample,whensettoupdateeveryminutethebatterieswilllast
about2months,updatingevery10minutes20monthsandupdatingevery20minutes
40months.
Reset Button
TheD110TankUnitcomesfactorypairedtotheDisplayUnit.IftheTankUnit’sreset
buttonispushedyouwillneedtore-pairittotheDisplayUnit.See“PairingTankUnit”
below.
Pairing Tank Unit
TopairanewT110orexistingTankUnitenterthe“SystemSetup”byholdingthemenu
buttondownfor3seconds,thenselect“TankUnitSetup”andselect“Addnewtank”
youmustwithin10secondspushtheresetbuttonontheTankUnitoryouwillneed
torepeattheprocess.OnceithasfoundthenewTankUnit,scrollthroughthesetup
options.AtanyonetimetheremustalwaysbeonetankunitpairedwiththeD110
Display,IfyouareonlyusingtheoneTankUnit,thenyouwillneedtore-pairitbefore
youcandeletetheoldTankUnitlocation.Forfurtherinformationsee 11 .
Lid
Twistcounter-
clockwisetoremove
TankUnit
Antenna
Socket
HeatShield
Pullofftoremove
ResetButton
Antenna
SensorCore
TestModeLED
–5– –6–
Ensuring Maximum Range
8TheD110usesshortrangeradiocommunicationsandworksbetterwithless
obstructionsbetweenAquatelunits.Themoreobstructionsthereare,thelower
thetransmissionrangeyouwillbeabletoachieve.Forexample,locatingthe
DisplayUnitbyawindowwillgivestrongercommunicationsignalsthanifitis
behindaconcreteormetalwall.Ifyouneedtoincreaseyoursignalstrength
further,simplypurchaseAquatel’sAQC24AntennaExtensionKitandremotely
mounttheantennasonexternalwallsashighaspossible.BoosterYagiAntennas
arealsoavailableAQ920,thesewillincreasetheworkingrangetoadistanceof1
mile.
6
SetDepth.FortheD110todeterminethecorrectfluidlevels,thedepthofthe
tank/cisternfrom 3mustbeinputontheDisplayUnitviathe“TankunitSetup
Menu”,toaccessthismenusee 10 .
7SettingtheAirGap.Gotothe
“TankUnitSetupMenu”(referto 10 ),
onceyouenterthismenuscroll
throughtothe“AirGap”and
thenusingthearrowupandarrow
downbuttons,selecttherequired
airgap.
*Airgap:Distancebetweenwhere
tankunitisinstalledandthemaximum
fluidlevel)
100mm (min) – 1000mm (max)
3.93”(min)–39.37”(max)
AirGap*
–5– –6–
Multi-Ta nk Level Monitor
D110
Display
Insert4xAAbatteries
inbaseofunit
PowerPack6VoltsDC
300mAorhigher
Centerpinpositive
UpButton
MenuButton
Selectoption.
DownButton
Silencealarm
Setting up Display Unit
9Insertbatteriesintothe
DisplayUnit.Thedisplay
willturnonshowingthe
startupmessageandthen
thestandardinformation
screenshownoverleaf.
Note: Display Unit can
alternatively be powered by the
6V DC Power Pack, Part No.
AQPP6 supplied with your D110
system.
Water
Current time
Tank number selected
(Up to 6 tanks max)
Tank Unit icon, temperature
Signal strength between units
If the Display Unit is not connected to a Tank Unit or is out of range, you will get the
message “Disconnected” on the screen when you have selected that tank. If you need to re-
pair a Tank Unit, see
11
.
You can pair up to 6 Tank Units to the one D110 Display Unit. Paired Tank Units are shown
along the top and given a number from 1,2,3,4,5 or 6. You can also select a fluid name for
each to help identify which tank/cistern you are monitoring. See
11
.
– 7 – – 8 –
Add new tank
Remove tank
Configure tank unit
Exit
System Setup
10 ProgrammingoftheD110systemisdoneviatheDisplayUnit“SystemSetup”
menu.Toenterthe“SystemSetup”,holdthemenubuttondownfor3seconds
untilyouseethe“SystemSetup”screen.
Note:
Changes made in Display Unit are not instantly transmitted to the Tank Unit. The Tank Unit
will only update at the next scheduled reading interval. To force an update remove the Tank Unit
lid and press the reset button.
Setclockandchangehowlongthedisplaystayson
Add,delete&renameTankUnits,Adjustalarmlevelsetc
AdjustTankUnitupdateinterval,turnreadingbeepson/
offetc
Display
Tank Unit Setup
System
Exit
DISPLAY
HereyoucanchangethelanguagetoeitherEnglishtoFrench,adjusttheclocktobe
either12or24hr,adjusthowlongyouwantthedisplaytostayonafteranybuttonis
pushedandselectthetemperatureeitherFahrenheitorCelsius.
Tank Unit Setup
11 ToaddanewTankUnitsimplyselectthe
“Addanewtank”bypressingthemenu
buttonwhenhighlighted.Youwillbeasked
topushtheresetbuttonoftheTankUnit,
thisallowstheDisplaytoseetheTankUnits
systemIDandyouwillthenbeprompted
toselectanamefortheTankUnityouare
pairingwiththeDisplayUnit.
AsyoucontinuetosetuptheTankUnityouwillbeaskedtosettheHighandLow
levelalarmpoints,tankdepthasmeasuredin 3,thetopairgapdistance(for
furtherinformationonhowtosetupthetopairgap,see 7andwhetheryouwish
theTankUnittobeinTestModeornot.TestModeishelpfulwhensettingupthe
systemtocheckthecommunicationrangebetweentheDisplayandTankUnits.
PleaseensurethatyoutakeoutofTestModeonceyouhavecheckedtherange.If
leftinTestMode,thebatteriesintheTankUnitwillrunflatafter4-5days.
– 7 – – 8 –
Tank Unit Setup - continued
ToremoveaTankUnit,selectRemovetankandselectwhichtankunityouwish
toremove.PleasenotethatatleastoneTankUnitmustalwaysbepairedwith
theDisplay,youwillneedtoaddanewTankUnitbeforeyoucanremovethelast
one.YoucanconfigureanyTankUnitpairedwiththeDisplayUnitbyselecting
“Configuretankunit”,hereyouwillbeabletochangethename,movetoanother
position,changethealarmlevels,topairgapetc.
System
Measurement Interval
Youcanadjusttheupdateintervalfrom1-30
minutesoneachTankUnitpaired,thisis
helpfulifyouneedmorefrequentupdateson
smallertanks/cisternsorlessfrequentupdates
onalargertank/cisternyouaremonitoring.
Thelongertheupdateintervalthelongerthe
batterieswilllastintheTankUnit.
Note:
- When the Tank Unit is in Test mode the level
information updates every 20 seconds
- When out of Test mode the Tank Unit will update at the next scheduled reading interval.
To force an update immediately, remove the Tank Unit lid and press the reset button.
Measurement Interval
Reading Beeps
Lock Unit
Factory Reset
Exit
System Settings
READING BEEPS: WhensettoONtheDisplayUnitbeepswhenanewreadingisreceived,
readingbeepscanbeturnedoffundertheSystemSettingsmenu.
LOCK UNIT
(For Aquatel authorised installers only):
Systeminstallerscanlocktheunit
topreventtamperingandchangestoalarmlevelsettings.(Changescanstillbemadetothe
clockandmeasurementinterval)
Note: Only Aquatel authorised installers are able to obtain unlock codes from the login section of
the Aquatel website.
FACTORY RESET: Resetallsettingstofactorydefaults.
Note: The unit can not be reset if the unit is locked.
– 9 – – 10 –
DisplayUnitBeeps
TheDisplayUnitwillbeeptoadviseyouofanevent,oralertyoutosomethingthat
needsyourattention.
H–representsahightoneM–representsamediumtoneL–representsalowtone
LH– AvalidreadinghasbeenreceivedfromtheTankUnit.
(ThisbeepcanbeturnedoffinSettings.)
HHL–DisplayUnitreads ,therearenosignalstrengthbarsandthe
TankUniticondisplays .DisplayUnitcannotcommunicatewithTankUnit.
CheckbatteriesinTankUnit.MoveDisplayUnitclosertoTankUnit.
Alarms
AlarmsdisplayontheDisplayUnitscreenandsoundeverysixsecondsforoneminute.
Tosilencethealarmpressthemenu button–theDisplayUnitwillbeep(HL)to
acknowledge.Theninvestigatethecauseoftheproblemsuchasweakcommunication
signal,lowbatterylevel?
H L Tankiconshows andTankUnittemperature
shows .(asshowninimage).Thereisnocommunication
withTankUnit.
H L Tankiconshows ,bothTankUnittemperature
andsignalstrengtharedisplayed.TankUnitcan
communicatewithControlUnitbutcannotdetect
avalidlevel.
BatteryiconbesideDisplayUnitorTankUnitsignal
strengthicon.Batterylevelslow–replacebatteries.
?
High Level Alarm
L M H
Fluidlevelisabove'High
Level'setting.(Thisalarmis
automaticallyclearedwhen
theliquidleveldrops3%
lowerthanthe'HighLevel'
setting.)
Low Level Alarm
H M L
Fluidlevelisbelow
‘LowLevel’setting.
(Thisalarmisautomatically
clearedwhentheliquidlevel
rises3%higherthanthe
‘LowLevel’setting.)
HI
LO
Questo manuale è adatto per i seguenti modelli
1
Indice
Altri manuali Aquatel Monitor
