ARA M Series Manuale utente
USER MANUAL
ARA DEEP FREEZERS
ARA M series
M80
M300/MD300
M400/MD400
M500/MD500
M700/MD700
M870/MD870
CONTENTS
1. General information ----------------------- 4
1-1. Introduction ---------------------------- 4
1-2. Package ---------------------------------- 5
1-3. Pictogram ------------------------------- 5
2. Installation ----------------------------------- 6
2-1. Installation ------------------------------ 6
2-2. Technical Specifications -------------- 7
3. Operating ------------------------------------- 8
3-1. Precautions ----------------------------- 8
3-2. Product description ------------------ 11
3-3. Operation ------------------------------ 13
4. Product Management -------------------- 23
4-1. Accessories ---------------------------- 23
4-2. Maintenance ------------------------- 24
4-3. Automatic emergency door ------- 25
UM-ARA M Series(E)(Rev.1), 20210118
USER MANUAL DEEP FREEZERS
1. General information
This manual describes the performance, usage and handling precautions of the purchased product.
Please read carefully before using the product.
1-1. Introduction
This product supports fast cooling speed and minimal power consumption by applying
the innovative cooling system Simplified Hi-Efficiency Freezing System.
It was developed and manufactured in consideration of convenience and safety in use,
and has the following features.
1. Simplified Hi-Effciency Freezing System for high efficiency and safety simplifies the structure and
electrical circuit to minimize the time to reach the target temperature and the amount of power consumption.
2. Two independent cooling structures maintain cooling temperature even if one system has a problem
and have a perfect Back Up function (Only Dual Comp. Type).
3. The operation of various menus has been simplified through the 7-inch full-touch screen.
4. Urethane insulation, internal door insulation, and 3-layer insulation are installed to prevent cold air leakage
and intrusion of external temperature and maximize the insulation effect.
5. By adopting an automatic vacuum canceling device, the pressure difference between
the inside and outside is automatically resolved, making it easy for the user to open the door
6. It is easy to operate by adopting a solid and ergonomic door handle,
and a locking function is installed for security.
7. Data can be checked with a high-resolution graphic display,
and data backup and program update are possible through the USB port.
8. The LCO2 spray function is supported to prevent damage to the sample
in case of sudden device shutdown (OPTION).
9. Through Eco Mode, the user selects the cross operation cycle of the compressor arbitrarily
to support power saving operation (Only Dual Comp. Type).
10. Filter-Free Mechanism that structure does not require a filter, and management such as replacement
or cleaning of the filter is omitted, providing the user with management convenience.
4 im-ara.com A/S Inquiry : 02-3452-8966 /
USER MANUAL DEEP FREEZERS

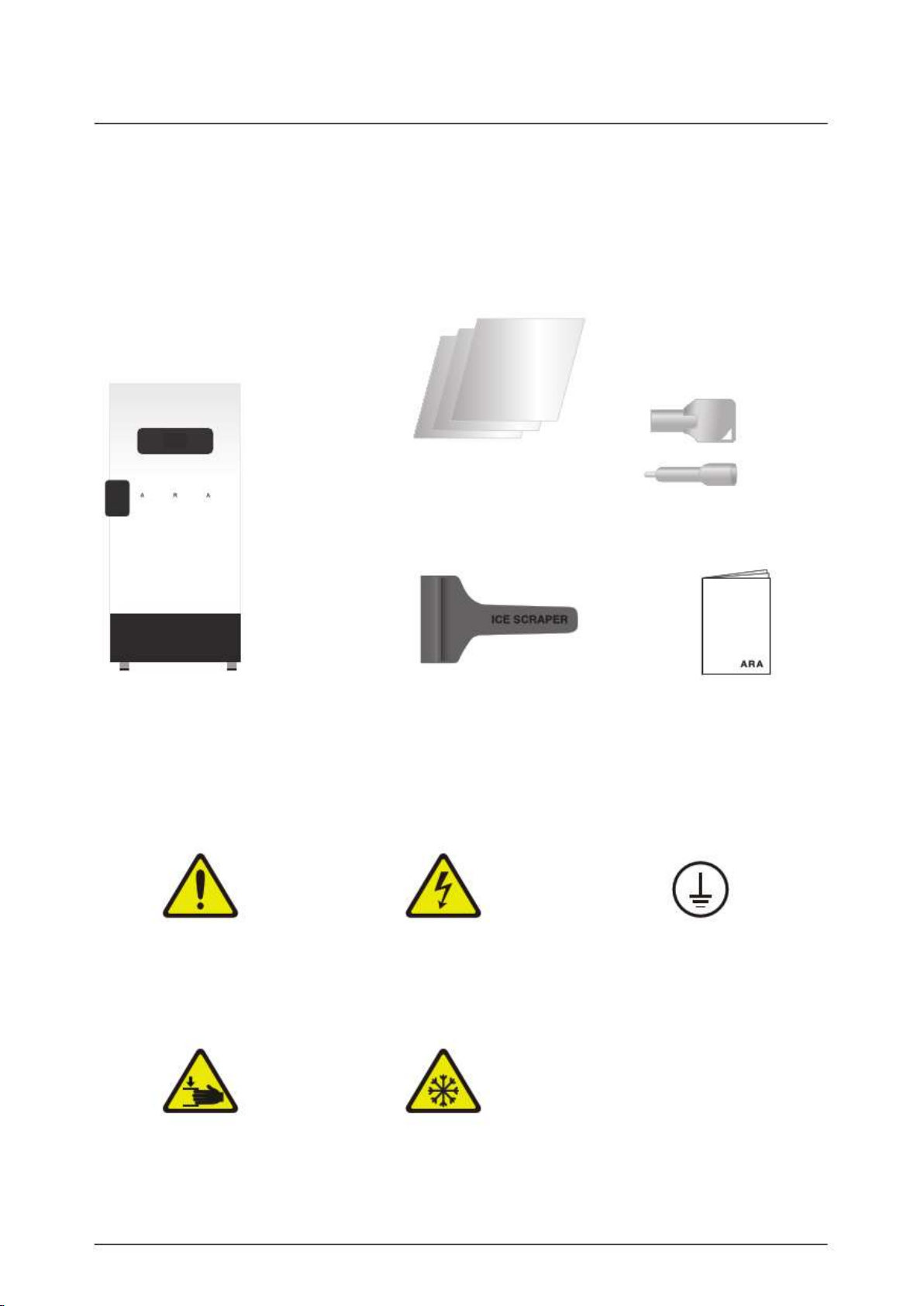

1-2. Package
Accessories are in the chamber.
For Manual model
1 ea (ARA M80)
3 ea (Except ARA M80) For Auto model
Stainless Steel Shelves Door Lock Key
ARA M80
ARA M(D)300
ARA M(D)400
ARA M(D)500
ARA M(D)700
ARA M(D)870
1 Unit Hand Remover of Ice, 1 ea User manual, 1 ea
1-3. Pictogram
Cautions and warnings Electric shock warning Ground guidance
Hand pinch warning Low temperature warning
A/S Inquiry : 02-3452-8966 / im-ara.com 5
USER MANUAL DEEP FREEZERS
2. Installation
2-1. Installation
1. Be careful when transporting the product as it is heavy.
2. Do not put the product on its side or subject it to impact. Internal damage may occur.
3. This product is designed to operate normally at the rated voltage,
so check the voltage status before installing the product.
4. Install in a place with low heat and humidity. Heat such as direct sunlight weakens the cooling power,
and when it comes into contact with moisture or water, the insulation will deteriorate.
5. If there is no regular distance from the wall of the installation space, cooling power will weaken
and power will be wasted. Install it at least 15cm from the rear wall and at least 10cm from the side wall,
and use it at least 100cm from the ceiling.
6. The power plug of this product is a plug with grounding. Be sure to connect to an outlet with ground.
Incomplete grounding may cause electric shock.
7. If there is no grounding, grounding work by an electric construction company is required.
Do not connect the ground wire to the water pipe and gas pipe (the risk of explosion or ignition),
and the grounding or lightning rod (danger of lightning) of the telephone line.
8. To prevent damage to the door during product transportation, a bracket is installed on the top of the product,
so be sure to remove it before opening the product door.
6 im-ara.com A/S Inquiry : 02-3452-8966 /
USER MANUAL DEEP FREEZERS
3. Operating
3-1. Precautions
Before Use
Carefully read this operating manual before using the device..
The device should be installed on hard and flat place.
If the device is installed in an inclined place, it causes noise and vibration.
If
Be sure to operate the device only with the rated power supply, as specified on the label.
Do not connect wrong power source. It may be caused to over-heat, electric shock or fire.
If you move and reinstall the unit in a different place, let the unit stand stable for at least 3 hours.
Install the shelves before connecting the device to the power source.
After installation, wipe them with a soft cloth.
Put the samples to be stored into the chamber after reaching the set temperature.
Cautions for Safe
Be sure to operate it indoors and keep the room temperature between 5 and 30 .
Long-term use in an environment that exceeds the allowable range may cause malfunction.
Do not modify, pull, forcibly bend, or perform any other act that may damage the power cord.
Do not spray or wash the product directly. Do not touch electrical parts such as power plugs or
operate switches with wet hands. It may cause electric shock.
Do not disconnect the power plug while the product is operating.
It may cause electric shock or short circuit.
Do not hang on the door. The door may fall or the main body may fall, resulting in injury,
or a short circuit or electric shock.
Do not put bottles or cans. There is a risk that the contents will swell and burst.
8 im-ara.com A/S Inquiry : 02-3452-8966 /
USER MANUAL DEEP FREEZERS
Do not add commercially available bag coolant. The contents may leak out, causing rust and failure.
Do not touch samples or containers (especially metal) in storage and
the walls of the refrigerator with wet or bare hands. It can cause frostbite.
Be sure to wear low temperature gloves for work.
Do not place objects or containers with water on the product. It may fall,
causing injury or overflowing water, resulting in poor insulation and a short circuit.
Do not put your hand into the machine room, air outlet or intake.
Since the fan is running at high speed, it may cause burns or injury.
Do not install in humid or dusty places. It may cause overheating or short circuit.
Do not install at altitudes above 2,000 meters. (6,562 feet)
Do not operate the product outdoors. Do not use it in a place where there is continuous sunlight
or where it may be exposed to rain. This may cause overheating or electrical defects in the product.
Do not operate the product near heaters or air conditioners.
Do not use flammable chemicals and similar products near the product.
It may cause fire due to sparks from the switch.
Do not put volatile or flammable chemicals such as ether, benzene, alcohol, propane gas
and similar products into this device. It may cause an explosion or fire.
Do not disassemble or modify the product by unauthorized persons.
It may cause serious electrical problems and will not be covered under warranty.
Be sure to use a grounded outlet, and do not ground it on gas pipes, plastic water pipes,
and telephone lines. It may cause electric shock, fire, malfunction or explosion of the device.
Regularly check the power plug for dirt. If there is dust, it may cause electric shock or fire.
Check that the power plug is connected correctly. When not in use for a long time,
disconnect the power plug from the outlet for safety. Dust may cause heat generation or ignition.
When moving the product, disconnect the power plug from the outlet and move the power cord
and product without damage. Damage to the power cord may cause electric shock or fire.
A/S Inquiry : 02-3452-8966 / im-ara.com 9
USER MANUAL DEEP FREEZERS
Removing and reconnecting the power plug, allow a time interval of 10 minutes or more.
If connected immediately, a load will be placed on the freezer and it may cause a malfunction.
If gas leakage occurs near the product, first close the gas valve and ventilate it.
To avoid flammable explosion, do not touch the product and outlet.
When removing the power plug, be sure to hold the plug and remove it.
If not, a part of the inner cord of the cord will be cut. It may cause heat generation or fire.
If you notice unusual noise or abnormal operation during use, immediately turn off the product,
disconnect the power cord, and contact Gyrozen Technical Support.
Check for foreign substances before/after using the product,
and keep them clean by removing them with a neutral detergent and a dry cloth.
The fluctuation of the mains voltage must be within +/-10% of the nominal voltage.
The maximum relative humidity is 80% at 31 C / 50% at 40 C.
If the product packaging is wet or if there are signs of moisture,
do not use it and contact Gyrozen Technical Support.
Re-installing after moving the product
If you want to move the product, please contact technical Support team.
Moving the product by a non-specialist can cause a short circuit, electric shock, fire,
or damage to the product.
When moving the product, be careful not to tip or damage the product.
When moving the product, remove the power plug from the outlet and move the power cord
without damage. Damage to the power cord may cause electric shock or fire.
Remove all samples from the device before moving.
When installing or moving the product, moving the product while lying down may cause a malfunction.
If the unit is tilted or lying down while moving, start operation after 24 hours.
For product inquiries, repairs, or moving, please contact Hanil Scientific Technical Support..
T. 02-3452-8966 / techsupp[email protected]m
10 im-ara.com A/S Inquiry : 02-3452-8966 /
USER MANUAL DEEP FREEZERS
3-2. Product description

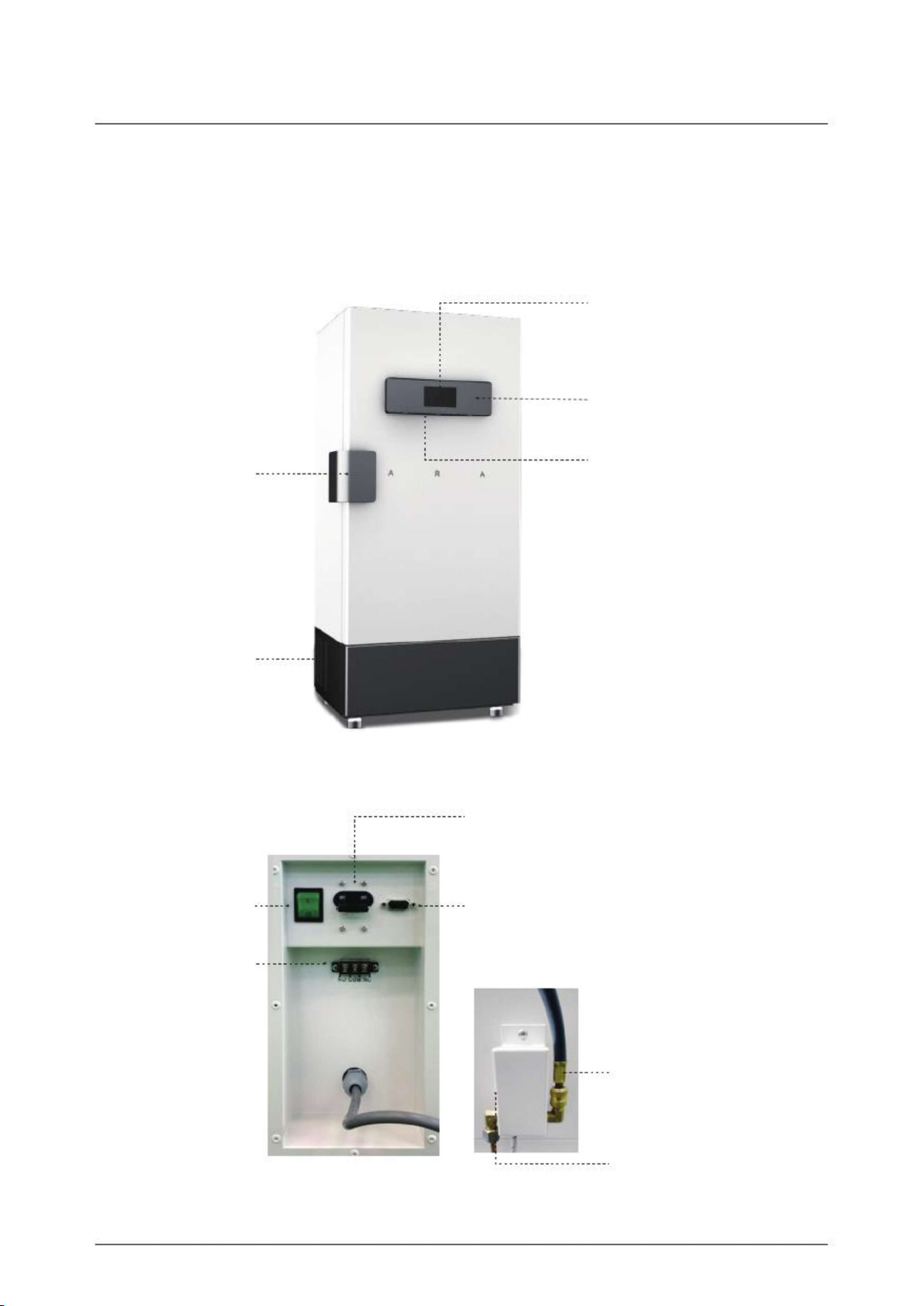

Appearance
Display
Full touchscreen TFT LCD
Automatic Vacuum Releasing System
Door open system
Door Handle
Door rock system
Block Condenser
Condenser without pin, filter
Appearance (back)
USB Port
USB Port for data back up
Circuit Breaker
Power breaker
Power Switch
DC ON/OFF
Alarm Signal terminal
(for contact/DC12V )
For external temperature alarm system
RS232C Interface
Serial Interface (Controll via PC)
Inlet of LCO2 Gas
LCO 2 Gas inlet
Auto. Valve of LCO2 Gas
Automatic valve for LCO 2 Gas inlet
