Arada Hoxton Istruzioni per il montaggio
Hoxton
Log Store & Pedestal
Oponal Accessory Fing Guide
EN13240:2011 +A2:2004
BK 761 Rev 01
ISSUE DATE : 13/09/2022
PLEASE RETAIN THIS GUIDE FOR FUTURE REFERENCE
22
OPTIONAL LOG STORE & PEDESTAL
FITTING INSTRUCTIONS
BK 761 Specific
Applicable Part Numbers — LOG-HOX-LOW / LOG-HOX-TALL
PED-HOX-LOW / PED-HOX-TALL
Appliance Preparation :
Your stove is factory fitted with the integral standard foot assembly, however if it is so
desired, this can be removed and an optional log store or pedestal stand can be fitted, so
that the appliance height can be raised.
STEP 1:
To remove the factory fitted feet assembly, it is suggested that the canopy assembly &
associated hot plate surrounds, be removed to avoid damage. Carefully lower the stove
onto its rear, taking care not to damage the rear air box and heat shield cover.
We recommend lowering the stove onto the base packing pallet, that it was delivered upon
(see upper image).
NOTE : This step is only necessary, when the direct air cover has been fitted.
If fitted, remove direct air cover (highlighted in blue) by following steps 2&3.
Page 2
WARNING : Health and Safety
Please consult health and safety guidelines for advice on handling heavy and / or
large items.
When lifting the appliance we recommend you always obtain assistance when handling.
Extreme Caution is advised, due to the top heavy nature of this appliance.

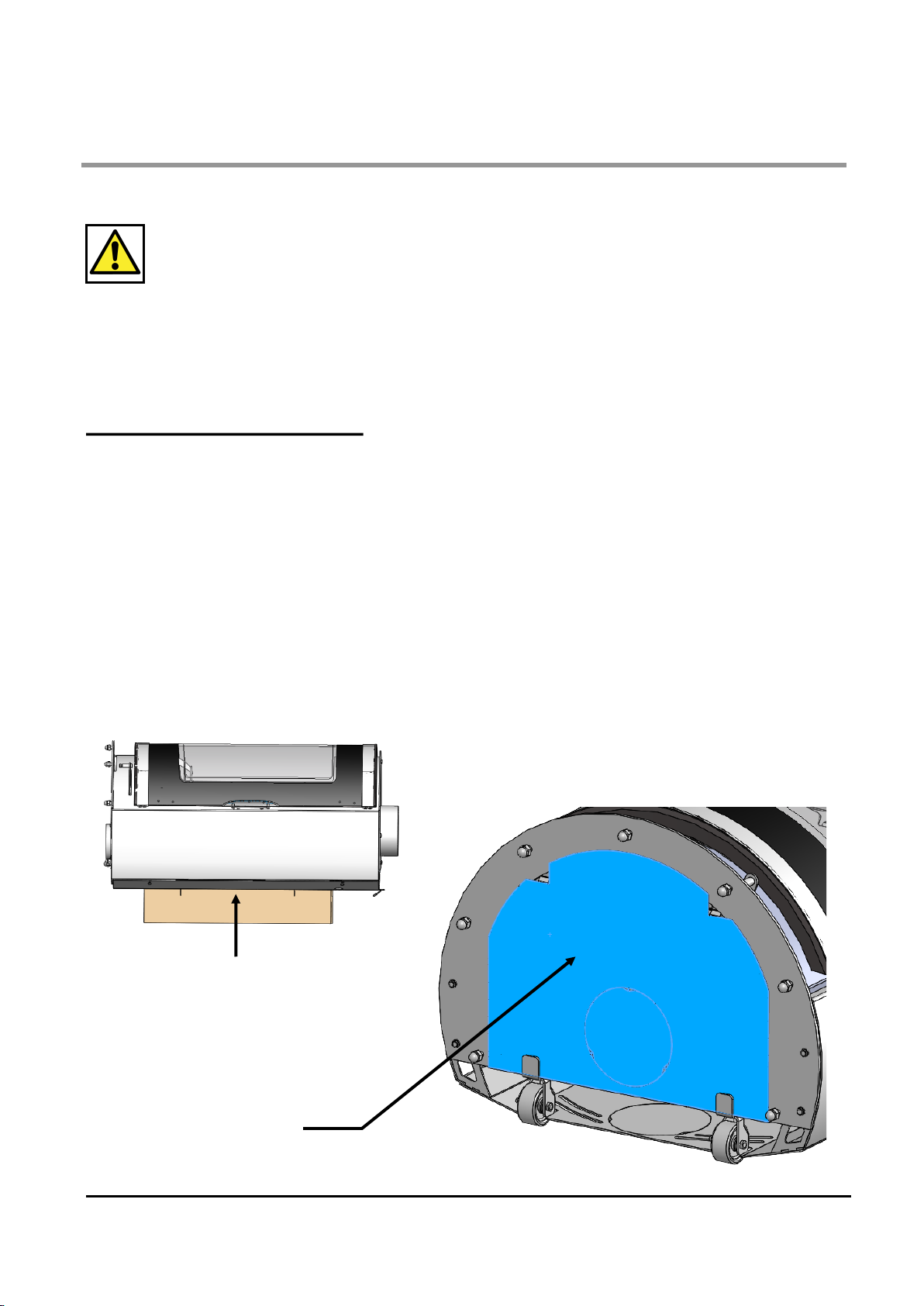

Side View Of
Stove on Packing
Pallet
Direct Air Cover
Page 3
BK 761 Specific
STEP 2
To remove the direct air cover, you will need to remove the wheeled castors and 4x fixings
as indicated below. The direct air cover can then simply be with drawn.
Retain the castors and fixings in case of later use.
STEP 3:
With the stove safely resting on its back, also remove the 7x dome nuts as indicated below.
OPTIONAL LOG STORE & PEDESTAL
FITTING INSTRUCTIONS
Page 4 BK 761 Specific
OPTIONAL LOG STORE & PEDESTAL
FITTING INSTRUCTIONS
STEP B:
Taking care, return the appliance to the upright position.
Extra caution will be needed, as the centre of gravity will have moved by fitting the new log
store accessory.
CAUTION :
TAKE CARE
WHEN
LIFTING
UPRIGHT
LOG STORE Specific Fitting Instruction :
STEP A: With the appliance resting upon its rear surface (Step 1, page 2), position
the log store assembly, against the appliance base, together with aligning the studs to the
holes within the top of the log store. Affix the 6 off M8 dome nuts, removed in step 3
(page 3).
NOTE, DO NOT add nut to the stud CLOSEST to the hinge, as this will foul the hinge
mechanism.
Do not use excessive force when hand tighten these fixings, otherwise damage to the
threads and studs, may occur.
CAUTION : Only
Hand Tighten
Fixings
OPTIONAL LOG STORE & PEDESTAL
FITTING INSTRUCTIONS
Page 5 BK 761 Specific
PEDESTAL STAND Specific Fitting Instructions :
To fit the pedestal stand, please follow steps 1 to 3.
STEP C:
With the appliance resting upon its rear surface (Step 1, page 2), position the pedestal
stand assembly, against the appliance base, together with aligning the studs to the holes
within the top of stand. Supplied with the stand are 7 off black M8 dome nuts. Affix these to
the stand, only hand tighten these fixings, otherwise damage to the threads may occur.
STEP D:
Taking care, return the appliance to the upright position.
Extra caution will be needed, as the centre of gravity will have moved by fitting the new
pedestal stand accessory.
CAUTION :
TAKE CARE
WHEN
LIFTING
UPRIGHT
NOTE: Use Black
M8 Dome Nuts
Supplied
Page 6
BK 761 Specific
Arada Ltd,
The Fireworks, Weycroft Avenue,
Axminster, Devon,
United Kingdom,
EX13 5HU
Technical Help : +44 (0)1297 632052
OPTIONAL LOG STORE & PEDESTAL
FITTING INSTRUCTIONS
IMPORTANT INSTALLATION INFORMATION—Stove Fixing
Applicable To Both Log Store & Pedestal
WARNING!
It is strongly recommended that the appliance is securely fixed to the floor or hearth, to
prevent movement during the opening and closing operation of the fire door and for
stability of the assembly.
If excessive force is used when pulling or slamming the fire door, this can result in the
appliance moving and damaging the flue connection and surrounding hearth surface.
When installing, secure fixing can be done by using the supplied fixing brackets and
fixings.
See below for guidance -
ISSUE DATE : 13/09/2022
M8x12 Tritap Bolt
(Supplied)
M8x75 Anchor bolt
(Supplied)
** NOTE **
Drill Size 6mm
Fixing Bracket
NOTE:
Remove rear panel,
to gain access to
base bracket mount
holes.
