MODEL 1200B SETUP GUIDE

Unpacking

Carefully check the packing material for these accessories: GNSS antenna, standard antenna cable

assembly, and mounting screws for rack ear removal. Handle the GNSS antenna carefully, as it may

be damaged if dropped.

Conﬁguring Output Jumpers

Listed below are the various internal jumpers which control the input and output signal types. Some output

signals require two jumpers to be set.

R24

R24 IS USER SUPPLIED

ANTENNA

INPUT

FIBER

OPTION COM 1 COM 2

RELAY

I/O

PORT 1

I/O

PORT 2

I/O

PORT 3

A B C

A B

A B CA B CA B CD E

A B C

A B CA B C

JMP14 JMP2 JMP8 JMP13 JMP6 JMP4

JMP9 JMP12 JMP7 JMP11

JMP10

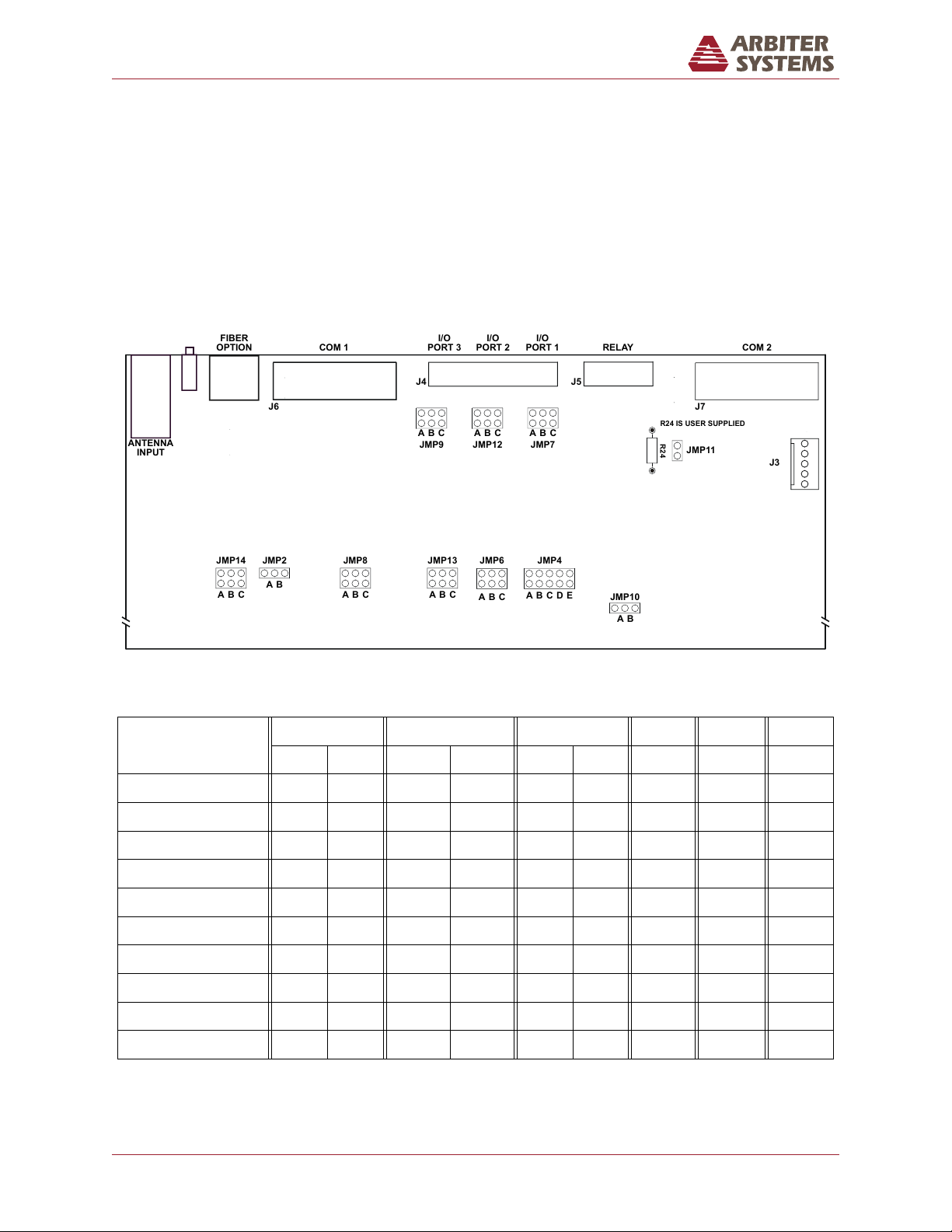

Figure 1: Jumper Locations

I/O PORT 1 I/O PORT 2 I/O PORT 3 FIBER RS-485 RELAY

Drive Type JMP7 JMP12 JMP9

CMOS A* A* A*

OPEN DRAIN B B

EVENT IN C C C

Signal Select JMP6 JMP12 JMP13 JMP8 JMP14 JMP2 JMP10

IRIG-B Modulated B*

IRIG-B Unmodulated C* C C C* B

1 PPS A A A* A

Programmable Pulse B B B B B

Data Out A*

Status A*

* Default Setting

Table 1: Main Board Output Signal Selection

Arbiter Systems, Inc. ·1324 Vendels Circle, Suite 121 ·Paso Robles, CA 93446 ·USA ·Tel: +1.805.237.3831

Fax: +1.805.238.5717 ·E-mail: techsupport@arbiter.com ·Internet: http://www.arbiter.com PD0057100C 1

MODEL 1200B SETUP GUIDE

Installing GNSS Antenna

The GNSS antenna included with the clock is designed to be threaded onto a piece of 3/4 inch pipe nipple.

Make sure that the antenna has a clear view of the sky in all directions of the compass for best GNSS

satellite tracking.

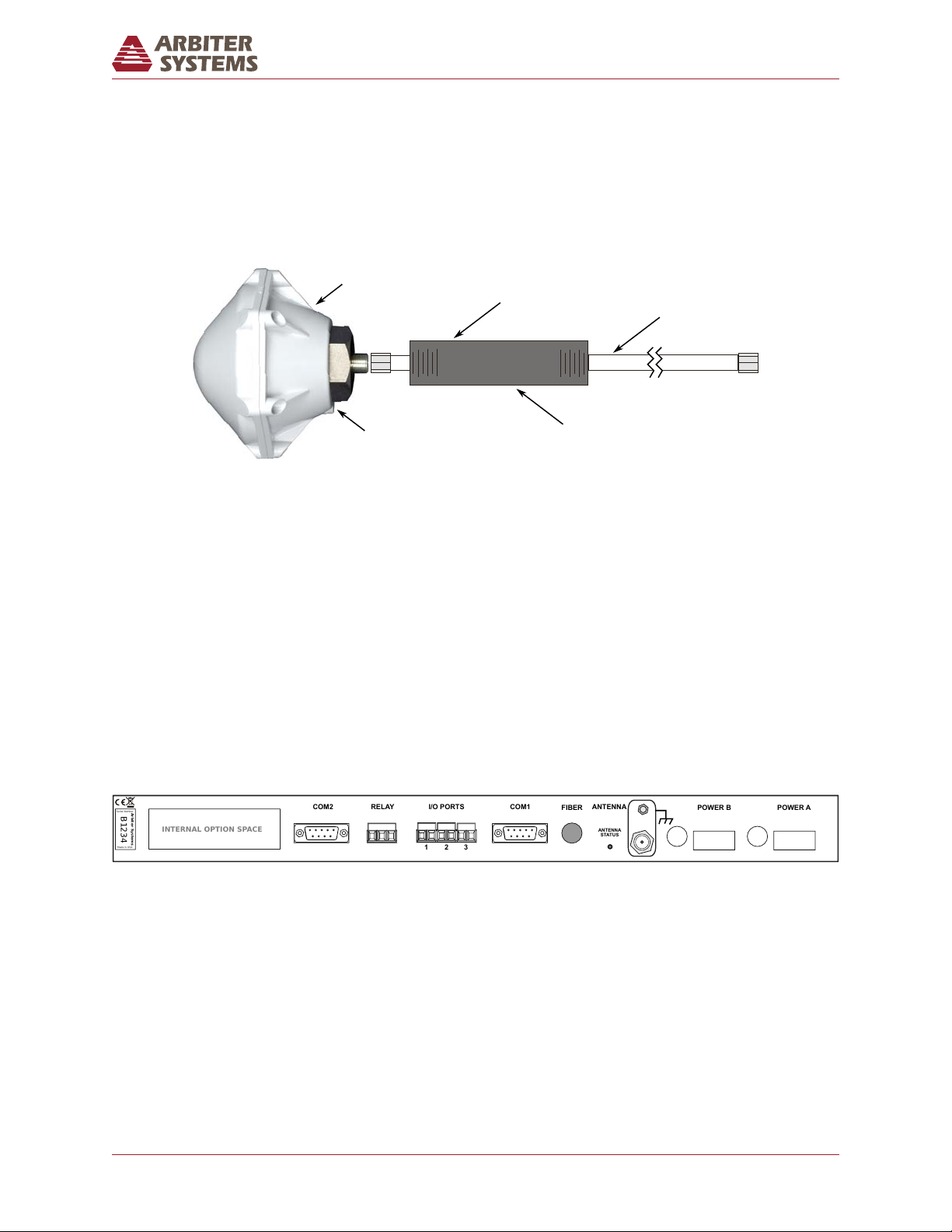

GNSS Antenna

3/4 inch Pipe Nipple

Operate LED Mounting Point

Antenna Cable

Figure 2: Antenna Mounting Assembly

1. Pass the antenna cable through the pipe nipple and attach the cable to the antenna. Tighten by

hand, spinning the cable connector. DO NOT spin the antenna onto the cable or DAMAGE may

occur.

2. Thread the pipe nipple into the base of the antenna and snug by hand.

3. Mount the pipe nipple to a ﬁxture, such as our Antenna Mounting Kit.

4. Install GNSS Surge Protector or In-Line Preampliﬁer if needed. Reference their respective instruc-

tions.

5. Connect the antenna cable to the clock.

B1234

Arbiter Systems

Serial Number

Made in USA

ANTENNA

FIBER

COM1

RELAY

COM2

INTERNAL OPTION SPACE

POWER B POWER A

I/O PORTS

2 3

ANTENNA

STATUS

Figure 3: Rear Panel

Connecting Signal Cables

1. Pluggable terminal block: Strip the insulation 1/4 inch and DO NOT tin.

2. RS-232 COM1 and COM2: Null-modem cable with female DB-9 connectors required.

3. RS-485 COM1 pin 8 and pin 9 (Tx-A and Tx-B respectively): Custom cable as needed.

4. Options: Refer to manual

Arbiter Systems, Inc. ·1324 Vendels Circle, Suite 121 ·Paso Robles, CA 93446 ·USA ·Tel: +1.805.237.3831

2 Fax: +1.805.238.5717 ·E-mail: techsupport@arbiter.com ·Internet: http://www.arbiter.com

MODEL 1200B SETUP GUIDE

COM1 DB-9 Pin Function COM2 DB-9 Pin Function

2 Receive (Rx) 2 Receive (Rx)

3 Transmit (Tx) 3 Transmit (Tx)

4 Programmable Pulse

5 Ground (GND) 5 Ground (GND)

6 EVENT IN

8 RS-422/485, Tx-A

9 RS-422/485, Tx-B

Table 2: RS-232 Pin-out

Connecting Power Cables

• VERIFY that the voltage level is in the correct range.

• VERIFY that the polarity is as speciﬁed on the label.

• Strip the insulation 1/4 inch and DO NOT tin.

• A fuse is located to the left of each installed power inlet connector.

Conﬁguring with Front Panel

• Press SETUP to cycle through the menu structure.

• Press ENTER to select the menu.

• Press UP or DOWN to change the selection.

• Press ENTER to conﬁrm selection.

• Press any of the top row keys to leave the conﬁguration menu.

Conﬁguring with Utility Software

Utility Software is available from www.arbiter.com

Additional Help

The operation manual is available as a free download from www.arbiter.com or to purchase.

Arbiter Systems, Inc. ·1324 Vendels Circle, Suite 121 ·Paso Robles, CA 93446 ·USA ·Tel: +1.805.237.3831

Fax: +1.805.238.5717 ·E-mail: techsupport@arbiter.com ·Internet: http://www.arbiter.com 3
