Arbor Technology EmCORE-a10R2 Manuale utente
- 1 -
Draft
Quick Installation Guide
Version 1.0
EmCORE-a10R2
3.5"Compact Board
I/O
SATA/ USB/ COM/ Mini-
card/ DIO/ Micro SIM
Video
Dual Channels 24-bit
DisplayPort
LAN
2 x Realtek RTL8111
PCIe Gigabit Ethernet
Audio
Realtek ALC269 2.1
Channel HD Audio Codec,
Mic-in/ Line-in/ Line-out
Form Factor
3.5"Compact Board
CPU
Soldered onboard AMD
R1102G APU Processor
4042100200100P
Copyright®All Rights Reserved.
If you have any technical diculties, please consult the user’s manual rst at:
http://arbor-technology.com/
Please do not hesitate to call or e-mail our customer service when you still can not
nd out the answer.
http://arbor-technology.com/
E-mail: info@arbor.com.tw
♦ Technical Support
FCC Class A
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions : (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
- 2 -
Ordering Information
EmCORE-a10R2-1102G AMD Ryzen R1000 R1102G compact board
CBK-08-10R2-00
Cable kit
2 x USB 2.0 cables (1 port/ cable)
3 x COM ports cables
1 x AUDIO cable
2 x SATA cable & power cables
Packing List
Before you begin installing your Compact Board, please make sure that the following
materials have been shipped:
1 x EmCORE-a10R2
AMD Ryzen R1000 R1102G Compact Board
1 x Quick Installation Guide
If any of the above items is damaged or missing, contact your vendor immediately.
Driver (7.7A) Installation
To install the drivers, please visit our website at www.arbor-technology.com and
download the driver pack from the product page.
Device Driver Path
CHIPSET & VGA \CHIPSET\19.50.23.01.200220a-352391C-AES
\CHIPSET\AMD_Software_2.02.24.623
AUDIO \AUDIO\7982_PG453_Win10_TH_RS_Win8.1_
Win8_Win7_WHQL
LAN \LAN\Install_Win10_10025_03202018
- 3 -
Draft
Board Dimensions
ø 3.2X4PCS
8.8
142.8
146
3.4
98.6
102
3.4
98.6
8.8
142.8
- 4 -
Form Factor 3.5" Compact Board
CPU Soldered onboard AMD Ryzen R1102G 1.2GHz (Base)/
2.6GHz (Turbo) Processor
Memory 1 x DDR4 SO-DIMM socket,
supporting 2400MHz SDRAM up to 16GB
BIOS AMI UEFI BIOS
Watchdog Timer 1~255 levels reset
Super I/O Fintek F81866
USB Port 2 x USB 3.0/2.0 ports
6 x USB 2.0 ports
Serial Port 6 x COM ports
Expansion
2 x Mini-Card Sockets (1 x Full size, 1 x Half size)
1 x Micro SIM socket (for Full size Mini-card)
Storage 2 x Serial ATA ports with 600MB/s HDD transfer rate
Ethernet Chipset 2 x Realtek RTL8111 PCIe GbE controllers
Digital I/O 8-bit Programmable
Audio Realtek® ALC269 2.1 Channel HD Audio CODEC,
MIC-in/ Line-in/ Line-out
Graphic Chipset Integrated Vega Core Graphics controller
Graphic Interface
2 x Dual Channel 24-bit LVDS
1 x DisplayPort
Total display: choose two from three
Power Requirement +8V - 13.2V DC-In
Power Consumption 1.53A@12V (Typical)
Operating Temp. -20 ~ 70°C (-4 ~ 158ºF)
Operating Humidity 10 ~ 95% @ 70°C (non-condensing)
Dimensions (L x W) 146 x 102 mm (5.7" x 4.0")
Specications
- 5 -
Draft
Jumpers and Connectors Location on Top side
(9)USB2
(8)SPK1
(10)USB3 (12)JPWRSW1
(14)LVDS2
(13)AUDIO1
(11)JFRT1 (15)LVDS1 JPWR1
(16)SATA1
(26)MC2
(28)BAT1
JVLCD1
(29)JLPC1
JVLCD2
JBAT1
JINV2 JINV1
(25)MC1 (17)SATAPWR1
(19)SATAPWR2
(18)SATA2
(20)COM5
(21)COM6
(30)DIMM1
(22)FAN1
(23)PWRIN1
(1)CN1
(24)DIO1
(3)COM4
(2)COM1
(4)COM2
(5)LAN2
(6)LAN1
(7)DP1
USB1 (27)SIM1
- 6 -
Jumpers & Connectors Quick Reference
Jumpers
Jumper Description
➊JPWR1 AT/ATX Power Mode Selection
➋➌JVLCD1, 2 LVDS1, 2 LCD Voltage Selection
➍JBAT1 CMOS Setting
➎➏JINV1, 2 LVDS1, 2 LCD Inverter Voltage Selection
Connectors
Connector Description
(1)CN1 DREWR Connector
(2)COM1 RS-232 Serial Port Connector
(3)COM4 Serial Port Connector
(4)COM2 RS-232 Serial Port Connectors
(5)(6)LAN2, 1 RJ-45 LAN and USB 2.0 Stack Connectors
(7)DP1 & USB1 USB 3.0 Stack Connectors and DisplayPort
(8)SPK1 2Watt (rms)/4Ω per Channel Speaker Output Connector
(9)(10)USB2, 3 USB Hub
(11)JFRT1 Switches and Indicators
(12)JPWRSW1 Power Switches and LED
(13)AUDIO1 MIC,LINE Audio Connector
(14)(15) LVDS2, 1 LVDS Connector
(16)(18)SATA1, 2 SATA Connector Channel 0, 1
(17)(19)SATAPWR1, 2 SATA Power Connector
(20)(21)COM5,6 RS-232 Serial Port Connector
(22)FAN1 Smart Fan Connector
(23)PWRIN1 DC +12V Power Input Connector
(24)DIO1 Digital I/O Connector
(25)MC1 Full size Mini-Card Socket
(26)MC2 Half size Mini-Card
(27)SIM1 MC1 NANO SIM Socket
(28)BAT1 Battery Connector
(29)JLPC1 LPC to 80 Port Debug Card Connector
(30)DIMM1 DDR4 SO-DIMM Socket
- 7 -
Draft
JumpersJumpers ConnectorsConnectors
(1)
CN1: DREWR Connecter
Connector type: RJ-11 Connector
Pin Description
16
1 FRAME GND
2 DRWER1
3 SW_IN
4 24V
5 DRWER2
6 GND
(2)COM1:
RS-232 Serial Port Connector
Connector type: 1.25mm pitch 1x9-pin wafer connector
Pin Description
1
1 DCD
2 RX
3 TX
4 DTR
5 GND
6 no connection
7RTS
8 CTS
9+5V/RI (JRS1 Switchable)
(3)COM4: Serial Port Connector
Connector type: 8-Pin mini DIN connector
Pin Description
1
2
3
5
67
8
4
1 CTS
2 RTS
3 RXD
4 GND
5 TXD
6 DSR
7 DTR
8 +V5S
➊
JPWR1: AT/ATX Power Mode Selection
Connector type: 2.00mm pitch 1x3 pin header
Pin Power Mode Selection
1-2 ATX Mode (Default)
23 1
2-3 AT Mode
23 1
➋➌
JVLCD1, 2: LVDS1, 2 LCD Voltage
Selection
The voltage of LVDS1, 2 LCD panel could be selected
by JVLCD1 in +5V or +3.3V.
Connector type: 2.00mm pitch 1x3 pin header
Pin Voltage
1-2 +5V
23 1
2-3 +3.3V (Default)
23 1
➍
JBAT1: CMOS Setting
Connector type: 2.00mm pitch 1x3-pin header
Pin Mode
1-2 Keep CMOS (Default)
2 31
2-3 Clear CMOS
2 31
➎➏
JINV1, 2: LVDS1, 2 LCD Inverter
Voltage Selection
The voltage of LVDS1, 2 LCD panel inverter could be
selected by JINV1, 2 in 12V or +5V.
Connector type: 2.00mm pitch 1×3 pin header
Pin Voltage
1-2 +12V (default)
23 1
2-3 +5V
23 1
- 8 -

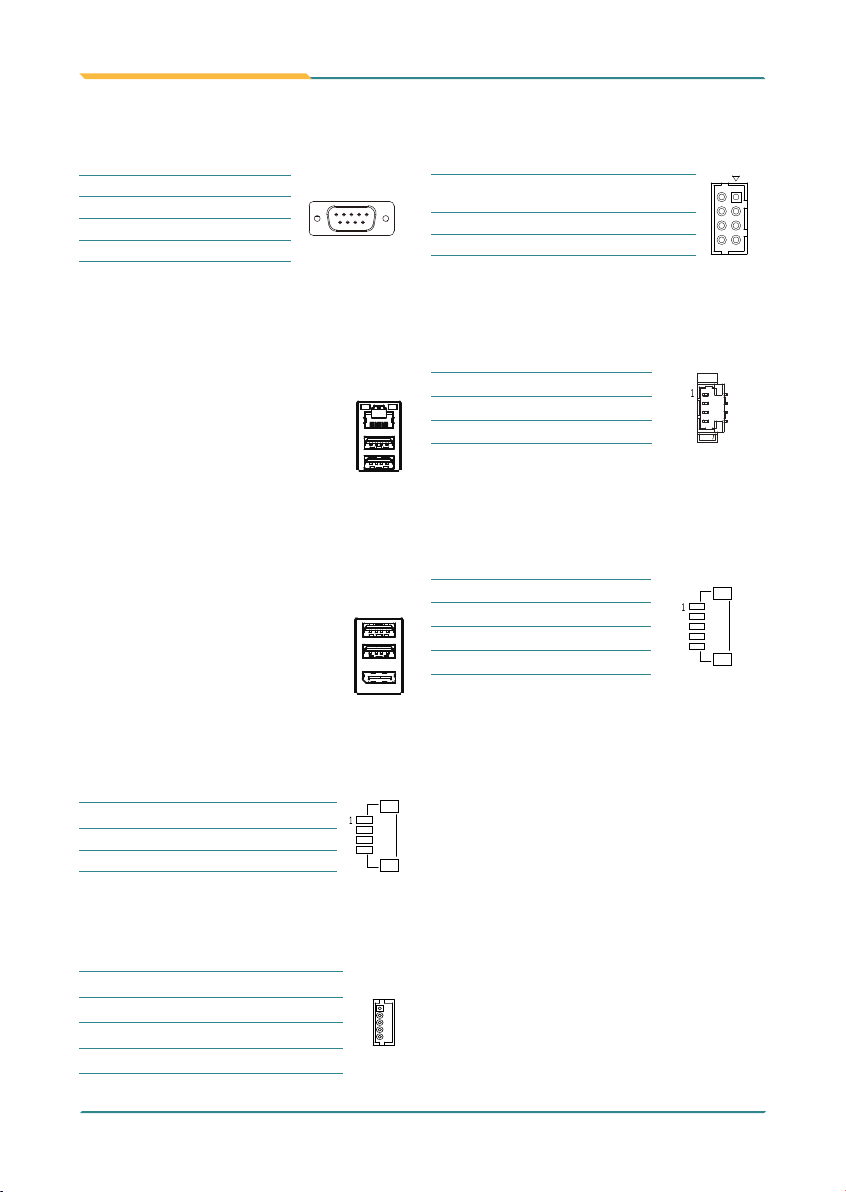

(4)
COM2: RS-232 Serial Port Connector
Connector type: External 9-pin D-sub male connector.
Pin Desc. Pin Desc.
1 5
96
1 DCD 6 DSR
2 RX 7 RTS
3 TX 8 CTS
4 DTR 9 +5V
5 GND
(5)(6)LAN2, 1: RJ-45 LAN and USB 2.0
Stack Connectors
Connector type: RJ-45 LAN and double-stacked USB
connectors
The pin assignments conform to the
industry standard.
(7)DP1 & USB1: USB 3.0 Stack Con-
nectors and DisplayPort
Connector type: Double-stacked USB connectors and
DisplayPort
The pin assignments conform to the
industry standard.
(8)SPK1: 2Watt (rms)/4Ω per Channel
Speaker Output Connector
Connector type: 1.25mm pitch 1x4 pin header
Pin Description
1 SP_R-
2 SP_R+
3 SP_L-
4 SP_L+
(9)(10)USB2, 3: USB Hub Connector
Connector type: 1.25mm pitch 1x5 pin header
Pin Description
1
1 USB_+5V
2 USB-
3 USB+
4 GND
5 GND
(11)JFRT1: Switches and Indicators
Connector type:
2.00mm pitch 2x4 pin wafer connector
Pin Desc. Pin Desc.
8
1
2POWER_
LED- 1POWER_
LED+
4HDD_LED- 3 HDD_LED+
6 12V_- 5 12V_+
8 RESET- 7 RESET+
(12)JPWRSW1:
Power Switches and LED
Connector type: 1.25mm pitch 1x4 pin wafer connector
Pin Description
1 PSON+
2 PSON-
3 POWER_LED2+
4 POWER_LED2-
(13)
AUDIO1: MIC,LINE Audio connector
Connector type: 1.25mm pitch 1x5 pin connector
Pin Description
1 MIC
2 GND
3 LINE IN L
4 LINE IN R
5 GND
- 9 -
Draft
(14)(15) LVDS2, 1: LVDS Connector
Connector type: 1.25mm pitch 2x20 pin connector,
supporting 24-bit dual channels
Pin Description Pin Description
1
39 40
1LCD_
VDD(+3.3V/+5V) 2LCD_
VDD(+3.3V/+5V)
3 GND 4 LCD_
VDD(+3.3V/+5V)
5 LVDS_DA0- 6 LVDS_DB0-
7 LVDS_DA0+ 8 LVDS_DB0+
9 GND 10 GND
11 LVDS_DA1- 12 LVDS_DB1-
13 LVDS_DA1+ 14 LVDS_DB1+
15 GND 16 GND
17 LVDS_DA2- 18 LVDS_DB2-
19 LVDS_DA2+ 20 LVDS_DB2+
21 GND 22 GND
23 LVDS_A_CLK- 24 LVDS_B_CLK-
25 LVDS_A_CLK+ 26 LVDS_B_CLK+
27 GND 28 GND
29 LVDS_DA3- 30 LVDS_DB3-
31 LVDS_DA3+ 32 LVDS_DB3+
33 GND 34 BKL_CONTROL
35 USB+ (USB2.0
PORT4) 36 BKL_ENABLE
37 USB-(USB2.0
PORT4) 38 GND
39 USB_+5V 40 BKL_
PWR(+5V/+12V)
(16)(18)SATA1, 2: SATA Connector
Channel 0, 1
Connector type: SATA Connector
The pin assignments conform to the
industry standard. 1
7
(17)(19)SATAPWR1, 2: SATA Power
Connector
Connector type: 2.00mm pitch 1x2-pin wafer connector
Pin Description
1
1 +5VS
2 GND
(20)(21)COM5,6:
RS-232 Serial Port
Connector
Connector type: 1.25mm pitch 1x9-pin wafer connector
Pin Description
1
1 DCD
2 RX
3 TX
4 DTR
5 GND
6 DSR
7RTS
8 CTS
9COM5: RI / COM6: +V5S
(22)FAN1: Smart Fan Connector
Connector type: 1.25mm pitch 1x3-pin wafer
connector
Pin Description
1
3
1 GND
2 VCC
3 RPM
- 10 -
(23)PWRIN1: DC +12V Power Input
Connector
Connector type: 2.5mm pitch 1x8 pin header
Pin Description
1
8
1VIN: 8V~13.2V
2VIN: 8V~13.2V
3 GND
4 GND
5 +5V LED
6 COM1 DSR
7 GND
8VIN:+24V
(24)DIO1: Digital I/O Connector
Connector type: 2.00mm pitch 2x5 pin wafer
connector
Pin Desc. Pin Desc.
12
9
10
2DIO1 1DIO0
4 DIO3 3 DIO2
6 DIO5 5 DIO4
8 DIO7 7 DIO6
10 GND 9 V5S+
(25)MC1: Full size Mini-Card Socket
(26)MC2: Half size Mini-Card Socket
Connector type: Onboard 0.8mm-pitch 52-pin edge
card connector
The pin assignments conform to the industry standard.
1
2
17
15
18
16
51
52
1
2
17
15
18
16
51
52
MC1MC2
(27)SIM1: MC1 NANO SIM Socket
Connector type: SMD,6P,1.27mm, H1.5 socket
Pin Desc. Pin Desc.
C3
C7
C2
C6
C1
C5
SW
C1 VCC C2 RST
C3 CLK C5 GND
C6 VPP C7 I/O
(28)BAT1: Battery Connector
Connector type: 1.25mm pitch 1x2-pin connector.
Pin Description
1
2
1 RTCBAT
2 GND
(29)JLPC1: LPC to 80 Port Debug Card
Connector
Connector type: 1.25mm pitch 2x5 pin header
Pin Desc. Pin Desc.
1 2
9 10
1 LPC_CLK0 2 GND
3 LPC_
LFRAME#
4 3.3V_LPC_
LAD0
5 PLTRST# 6 N/C
7 LPC_LAD3 8 LPC_LAD2
9 +3.3VS 10 LPC_LAD1
(30)DIMM1: DDR4 SO-DIMM Socket
Connector type: DDR4 SO-DIMM socket supporting
2400MHz SDRAM up to 16GB
203
204
1
2
DIMM1
Indice
Altri manuali Arbor Technology Hardware per computer
Arbor Technology
Arbor Technology EmModule-621E Manuale utente
Arbor Technology
Arbor Technology EmETXe-i90M3 Manuale utente
Arbor Technology
Arbor Technology EasyBoard-882E Manuale utente
Arbor Technology
Arbor Technology Qseven EmQ-i2205 Manuale utente
Arbor Technology
Arbor Technology ETX-PC/104+ Manuale utente
Arbor Technology
Arbor Technology EmCORE-i55M0 Manuale utente
Arbor Technology
Arbor Technology Em104-a5362 Manuale utente
Arbor Technology
Arbor Technology FPC-7200 Series Manuale utente
Arbor Technology
Arbor Technology EmETXe-i89U0 Manuale utente
Arbor Technology
Arbor Technology EmCORE-v621 Manuale utente
Arbor Technology
Arbor Technology Em104-i230F Manuale utente
Arbor Technology
Arbor Technology EmCORE-i89M2 Manuale utente
Arbor Technology
Arbor Technology EmETXe-i89U0 Manuale utente
Arbor Technology
Arbor Technology Em104P-i2904 Manuale utente
Arbor Technology
Arbor Technology EmCORE-i89M2 Manuale utente
Arbor Technology
Arbor Technology EmETXe-a10M3 Manuale utente
Arbor Technology
Arbor Technology EmETXe-i250C Manuale utente
Arbor Technology
Arbor Technology Rigid-772 Manuale utente
Arbor Technology
Arbor Technology EmCore-a5360 Manuale utente
Arbor Technology
Arbor Technology EmCORE-i89M2 Manuale utente
Manuali Hardware per computer popolari di altre marche
EMC2
EMC2 VNX Series Manuale del proprietario
Panasonic
Panasonic DV0PM20105 Manuale utente
Mitsubishi Electric
Mitsubishi Electric Q81BD-J61BT11 Manuale utente
Gigabyte
Gigabyte B660M DS3H AX DDR4 Manuale utente
Raidon
Raidon iT2300 Manuale utente
National Instruments
National Instruments PXI-8186 Manuale utente
