Operating Instructions
1. Operate the coolers only at the voltage and frequency stamped on the serial nameplate.
2. Remove lter cap and ll reservoir with clean tap water. Periodically empty and ush water
reservoir.
3. Connect water hoses to ttings marked “water from welding equipment” and “water to welding
equipment.” Observe the welding gun manu facturer’s preferred water ow directions.
4. Periodically remove dust from radiator with compressed air, in order to insure optimum cooler
performance.
5. Periodically check the lter screen for sediment by removing the acorn nut on the pump. Clean
the lter or replace as necessary.
6. Pump pressure can be adjusted by removing the acorn nut and turning the adjustment screw a
half turn clockwise to increase pressure 1 o p.s.i. or a half turn counter-clockwise to decrease
pressure by 10 p.s.i. Pressure is set at the factory at 60 p.s.i.
Caution
1. Water should be allowed to ow through the welding system continuously. If the pump is
allowed to operate against a closed or plugged discharge, the pump will run hot, shortening it’s
life. When used with welding equipment having a water solenoid valve, bypass the solenoid or,
wire the cooler into the equipment so that it operates only during welding.
2. Disconnect from power source before any attempt to repair or transport.
3. Operation of the pump without uid will cause serious damage.
4. Pump warranty is void if the pump is opened or disassembled.
5. Use a 50% ethylene glycol solution when operating the pump in freezing temperatures. Do
no use anti freeze with stop leak additive. Lubricant additives added to the water are not
recommended. These additives will clog the lter screen and reduce pump life.
6. Pump life will be reduced if water temperature in the tank exceeds 150 degrees (65 degrees
centigrade).
Thank you for purchasing this Bernard stainless steel water cooler. Bernard
coolers are the most widely used and the most reliable in the industry today.
Their quality, simplicity and ease of maintenance are the reasons why.
Before using the product, please read the following operating instructions
and cautions completely. They were designed to help you provide the best
possible con ditions for your Bernard water cooler.
Arc-Zone.com, Inc. • 1331 Specialty Dr • Vista, CA 92081 • Tel. 1.760.931.1500
Email: [email protected]
ITEM QTY PART NO DESCRIPTION
1 1 3583 Cover, Cooler
1A 2 1890022 Decal (included with item I)
213594 Tank Kit
2A 13574 Gasket (included with item 2)
2B 8 3596 Screw. (included with item 2)
2C 8 1374 Nut. (included with item 2)
3 1 3582 Top Weldment
4 3 1102 Screw
513880 Radiator
6 3 272 Clamp (Bag of 10. 3 required)
7 1 3098A Hose. (10” long)
813888 Grommet
9 4 1451 Bolt
10 4 1456 Nut
11 4 1452 Flat Washer
12 4 3613 Lock Washer
13 1 3525 Fan Blade with Set Screw
14 1 5514 Motor. 115/230 V. 60 HZ. 1 Ph
3429 Motor. 115/230 V. 50/60 HZ. 1 Ph
15 1 3098B Hose (9” long)
16 1 3558 Grommet
17 1 5523 Elbow. Hose. 90*
18 1 3077 Elbow. 3/8 N.P.T.
19 1 3063 Reducer. 3/8 N.P.T.-1/4 N.P.T.
20 1 5515 *Pump
20A 1 2220004 Coupling. (included with item 20)
21 1 1066 Clamp. Motor to Pump
22 1 1096 Power Cord
23 1 3683 Level Indicator Assembly
24 1 2250006 Retaining Ring
25 1 1720028 Adaptor, Hose to Pipe
26 1 1429 Strain Relief Bushing
27 1 3889 Grommet
28 4 3329 Mounting Pod
NS 1 5557 Replacement Filter Screen
NS 2 3066 Reducer Adaptor
NS 1 5550 Temperature Gauge (optional)
NS indicates ‘Not Shown’
* Trade-in rebuilt pump available, call for details

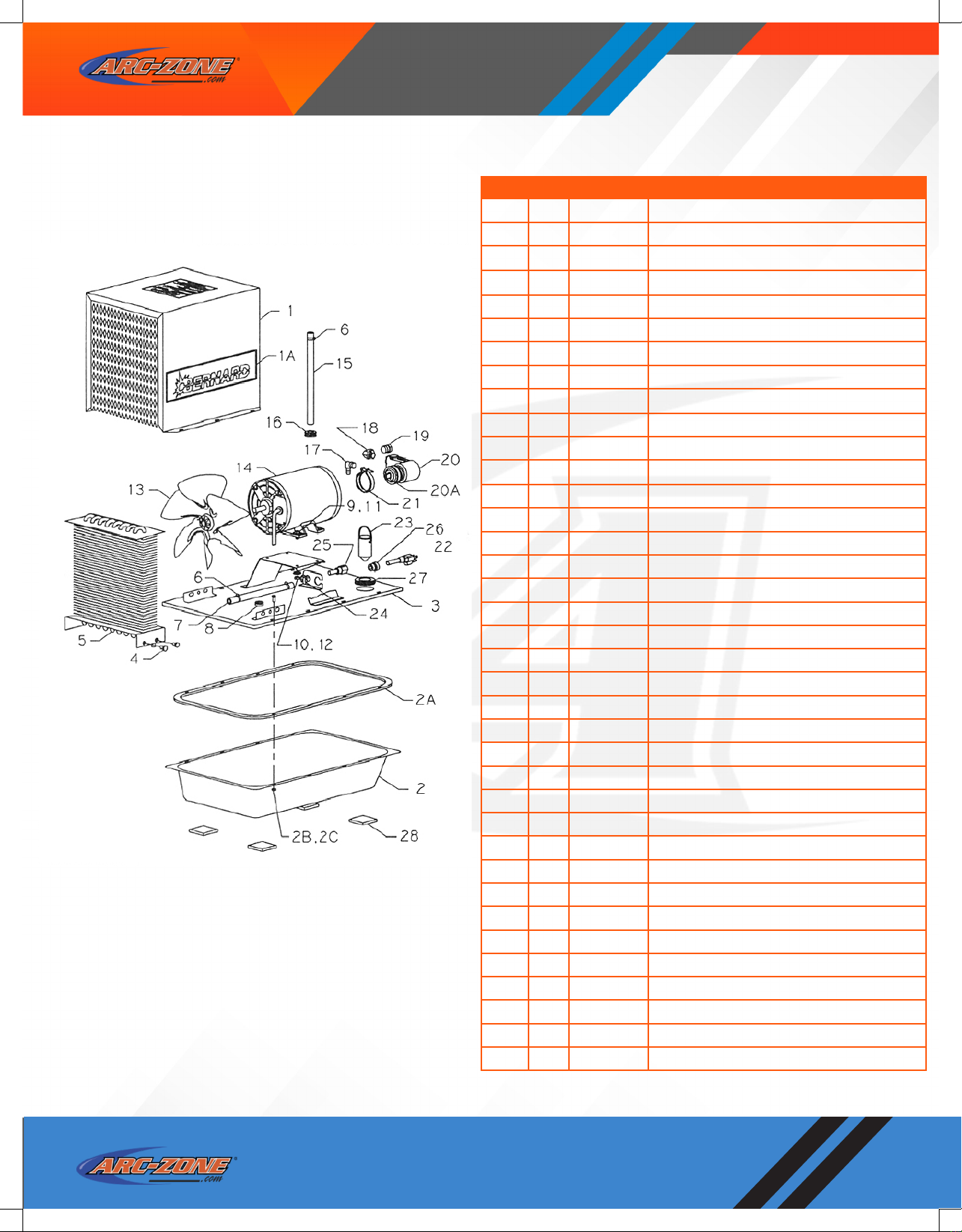

Model 3500SS Parts List
Arc-Zone.com, Inc. • 1331 Specialty Dr • Vista, CA 92081 • Tel. 1.760.931.1500
Email: [email protected]
Specification
Dimensions: 21-1/4 in long x 13-1/8 in wide x 16-3/4 in high (54.0 cm x 33.3 cm 42.5 cm)
Reservoir: 3 gallon capacity, stainless steel
Pump Capaclty: 100 psi max, 1.5 gpm (5.68 lpm) at 50 psi. 1.8 gpm (6.81 lpm) at 60 psi
Heat Exchanger: high efciency, copper core, rustproof
Motor Voltage: See MODEL SELECTION CHART
Amperage: See MODEL SELECTION CHART
Water Connections: 1/4 N.P.T. supplied with 5/8-18 UNC lefthand thread tting
Net Weight: 43 lbs (19.5 kg)
Shipping Weight: 46 lbs (21.0 kg)
Model Selection Chart
Model BTU/Hour Gallons Volts Amps Hz Phase
3500SS 12.000 3 ( 11.36 L) 115 6.8 60 Single
3501SS 12.000 3 ( 11.36 L) 230 3.4 60 Single
3502SS 12.000 3 ( 11.36 L) 230 2.5 50/60 Single
3500SSA 12.000 3 ( 11.36 L) 115 5.0 50/60 Single
