General Product Description
a. fold-up shower seat
Item Code and Description
a. ES2210-BU . . . Standard economy shower seat with blue pad
i. for a replacement pad, order item code 02011
Physical Characteristics
a. aluminum frame and legs
b. powder-coated frame and upper leg sections
c. molded polyethylene seat and mounting bracket
d. closed cell polyurethane seat pad; includes pad retainers and plugs
e. adjustable leg height
f. rubber feet
g. one foot has ne height adjustment feature
h. seat swings to fold against wall
i. color: white frame, upper legs, and feet; blue pad; polished aluminum lower legs
j. weight: approximately 8 lbs.
k. fasteners not included due to the vast variety of wall and blocking types and thicknesses
Performance Characteristics
a. supports up to 348 lbs. when properly installed (rating based on seated user; do not stand on seat)
b. lower leg sections are adjustable in 3/4" increments ; 5" range of height adjustment
c. adjust height to suit user before mounting to wall
d. hinged seat swings past 90° to remain in folded, upright position
e. seat must be mounted so that it is level in all directions and remains in a 90° orientation to the legs
f. seat must be mounted to substantial, well-secured blocking, usually of 2× solid wood (toenailing is not suf-
cient; use cleats or notch blocking into studs, and fasten with screws), though brick, concrete, or concrete
block are also be suitable mounting materials (use suitable anchors)
g. #10 round head fasteners recommended (do not use at head type fasteners); use stainless steel fasteners in
wet area installations; each fastener must be capable of withstanding 77 lbs. of pull-out force; the length of
fasteners will depend on the distance to drive them deeply into an appropriately reinforced material capable
of supporting the load; drive a properly sized fastener into every mounting bracket pilot hole
h. ne height adjustment allows compensation for slope of oor (+⁄- 1/2" range of adjustability)
i. the ne height adjustment hex nut must be checked regularly to ensure that it is tight; a loose nut on the
ne height adjustment will allow the leg height to change, which will alter the orientation of the seat to the
legs, potentially affecting the performance, integrity, and durability of the shower seat
j. closed cell foam pad will not absorb water
k. pad is removable; seat may be used with or without pad plugs ll holes in seat for pad if user foregoes
installation of the pad
l. hole in seat allows water drainage
m. for interior installations only
n. clean and disinfect regularly; while the pad will not absorb water, water, soap, and other materials trapped
underneath the pad may result in the onset of mold or mildew; use a mild detergent; do not use abrasive
pads, or strong acidic, alkaline or other harsh cleaning materials as this may cause discoloration; after clean-
ing, always ush with water
Other Information
a. manufacturer’s warranty: 10-year for residential installations, 5-year for commercial installations
b. see AKW warranty for details
Economy Shower Seat
ARC, Inc.
1-715-743-2771
info@arcrst.net

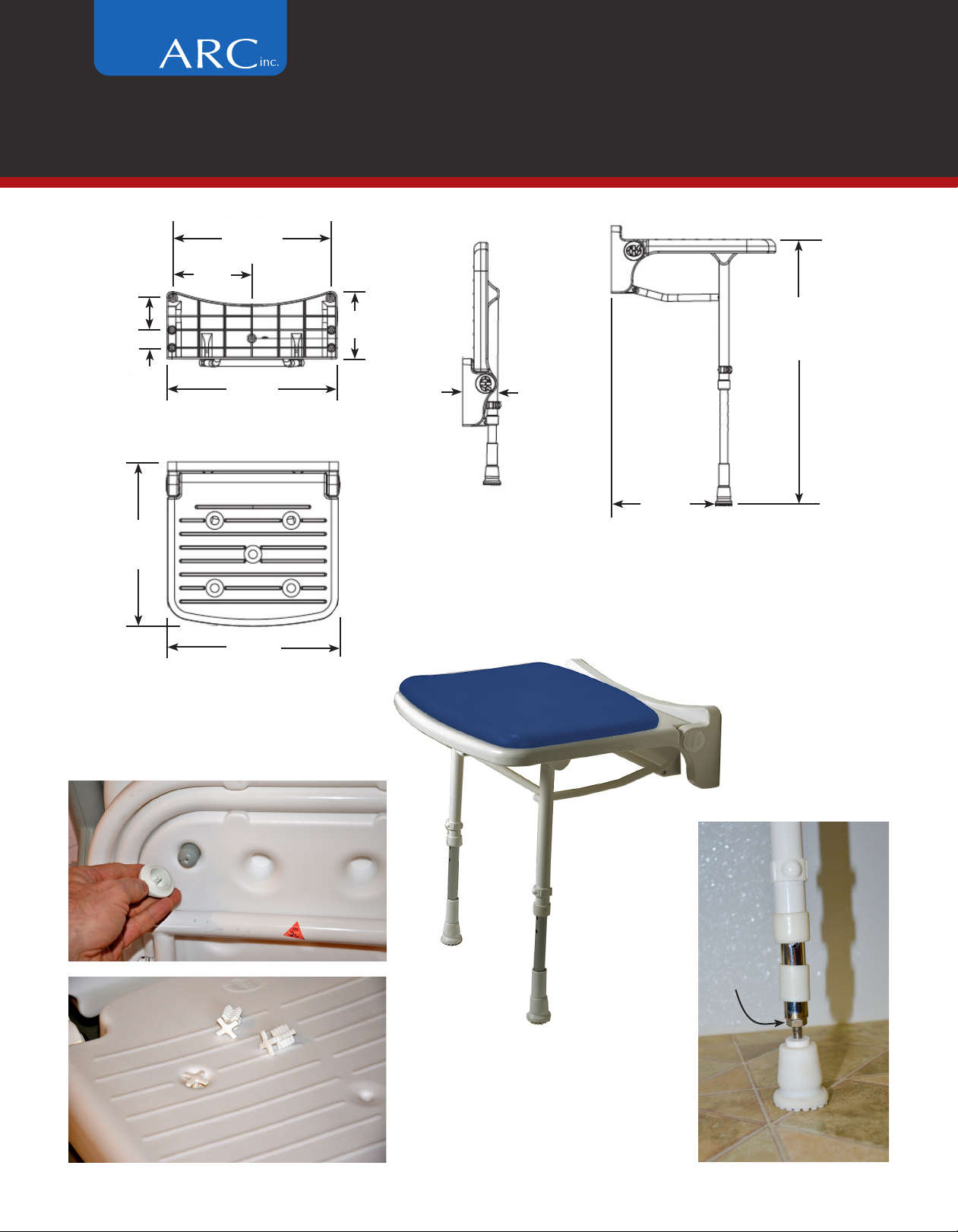

Hex nut
Fine height adjustment—
note hex nut tightened
to lock against
end of leg.
Thread retainers onto pad
(note reverse threading).
Press plugs into
seat holes if pad
isn’t used.
Seat width overall: 181⁄4"
Seat depth overall: 151⁄4"
Wall to front edge of seat: 161⁄2"
Seat pad dimensions: 161⁄4" × 121⁄4"
Seat pad item code: 02011
Economy Shower Seat
ARC, Inc.
1-715-743-2771
info@arcrst.net
31⁄8"
167⁄8"
23⁄4"
15⁄8"
181⁄4"
85⁄8"
181⁄4"
161⁄2"
101⁄4"
19" to 237⁄8"
6"
