Archos 80b Helium Manuale utente

ENEN

Table of contents

For more information, please consult the FAQs on www.archos.com. Make sure to read them before considering any

product return. Your deal may be no big deal. As we are often updating and improving our products, your device’s

software may have a slightly dierent appearance or modied functionality than presented in this Quick Start Guide.

Package contents...................................................................................................................................

Getting started........................................................................................................................................

Description of the device.....................................................................................................................

Inserting SIM & Micro-SD cards.........................................................................................................

4G & WiFi connection...........................................................................................................................

The AndroidTM interface.......................................................................................................................

Getting familiar with AndroidTM......................................................................................................

Troubleshooting...................................................................................................................................

Consult the declaration of conformity on http://www.archos.com/products/declaration_conformity.html

ARCHOS_80b_Helium_QSG_book.indd 1 17/02/2015 17:38:03

Warranty

USB cable Charger

QSG booklet Warranty,

legal & safety booklet

Package Contents

ARCHOS 80b Helium

ARCHOS_80b_Helium_QSG_book.indd 2 17/02/2015 17:38:04

Getting Started

TIP:

To receive more complete service, please register your product.

From a computer, go to www.archos.com/register.

Charging 1. Charge your device by plugging your power cable into

the micro-USB port. The ARCHOS device will start charging.

2. Press the Power button to turn on the device.

-You can use your ARCHOS whilst it charges.

-Let your device charge completely the rst time you use it.

-Use only the supplied charger.

When your device is completely discharged, you need

to charge it for at least 10 minutes before the charging

battery icon can be displayed.

ARCHOS_80b_Helium_QSG_book.indd 3 17/02/2015 17:38:04

210

Description of the device

ON/OFF button

Webcam

Loudspeaker

Brightness sensor

Volume buttons

Microphone

Micro-USB port

Camera

Flash light

Headphone jack

Loudspeaker

ARCHOS_80b_Helium_QSG_book.indd 4 17/02/2015 17:38:04

SIM2 SIM1TIF

Inserting SIM & Micro-SD cards

Make sure to turn o your device before inserting the SIM & memory cards.

Both SIM slots are compatible with the 4G network. You can use any slot to insert your SIM

card. When you insert a 4G SIM card in one slot, the second slot turns into a 2G slot.

Opening

Use the notch to remove the back cover.

Do not bend or twist the back cover excessively. Doing so may damage the cover.

Inserting a SIM card

For your SIM card, slide it facing downwards in the 4G/3G slots.

Inserting a Memory card

Slide it facing downwards in the slot TIF

Closing

Replace the back cover clicking it back into position.

ARCHOS_80b_Helium_QSG_book.indd 5 17/02/2015 17:38:05

4G & WiFi connection

4G connection

To be able to access Internet, the mobile data icon must be

activated.

Activating the mobile data

1. Touch and hold the time & battery icons to reveal the

status bar.

2. Pull the white line down to display the status dashboard.

3. Touch the mobile data icon to activate it.

When the mobile data is activated, it turns blue.

If your device does not connect to your 4G provider’s

network: Contact your 4G provider to obtain the

connection parameters. On your device, tap Settings.

Select Wireless & networks > More... > Mobile networks. In

Network operators, select your operator. In Access Point

Names, select the correct access point name and enter the

exact connection parameters.

TIP:

When you encounter connection problem’s, see the FAQs on www.

archos.com or contact your 4G network connection provider.

ARCHOS_80b_Helium_QSG_book.indd 6 17/02/2015 17:38:05

WiFi connection

WARNING: Make sure that you are in a WiFi zone.

1. Touch and hold the time & battery icons to reveal the

status bar.

2. Pull the white line down to display the status dashboard.

3. Touch the “Settings” icon to open the settings menu.

4. In the“Wireless&networks”section, if the WiFi is o, slide

the WiFi switch to the“ON”position. Once the WiFi is on, the

ARCHOS will scan for WiFi networks in range.

5. Touch “WiFi” to display available networks.

6. Touch the name of network you want to connect to.

Private networks are shown with a lock icon and will require

you to enter your password.

TIPS:

-When entering a WiFi password, we recommend that you select

“Show password”so you can see the characters you are typing. To

get the correct WiFi password (or settings) for the network, contact

the WiFi network provider.

-To keep your WiFi connection ON when the device is on sleep, select the Menu icon in the

“WiFi” page. Then, select Advanced > Keep WiFi on during sleep > Always.

ARCHOS_80b_Helium_QSG_book.indd 7 17/02/2015 17:38:06

4 6

The AndroidTM Interface

ARCHOS_80b_Helium_QSG_book.indd 8 17/02/2015 17:38:06

GoogleTM Search

>Touch "Google" for text search or touch the microphone icon for voice search.

AndroidTM apps shortcuts

> Touch to start an application.

Back button

Home button

Recent apps buttons

Permanent AndroidTM apps shortcuts

> Touch to start an application

All Apps button

> Touch this icon to show all the applications and widgets installed on your

ARCHOS. All your downloaded applications are here.

The status bar

> Displays notications and quick settings

ARCHOS_80b_Helium_QSG_book.indd 9 17/02/2015 17:38:06

4 6

7 9

10 1211

The AndroidTM Interface

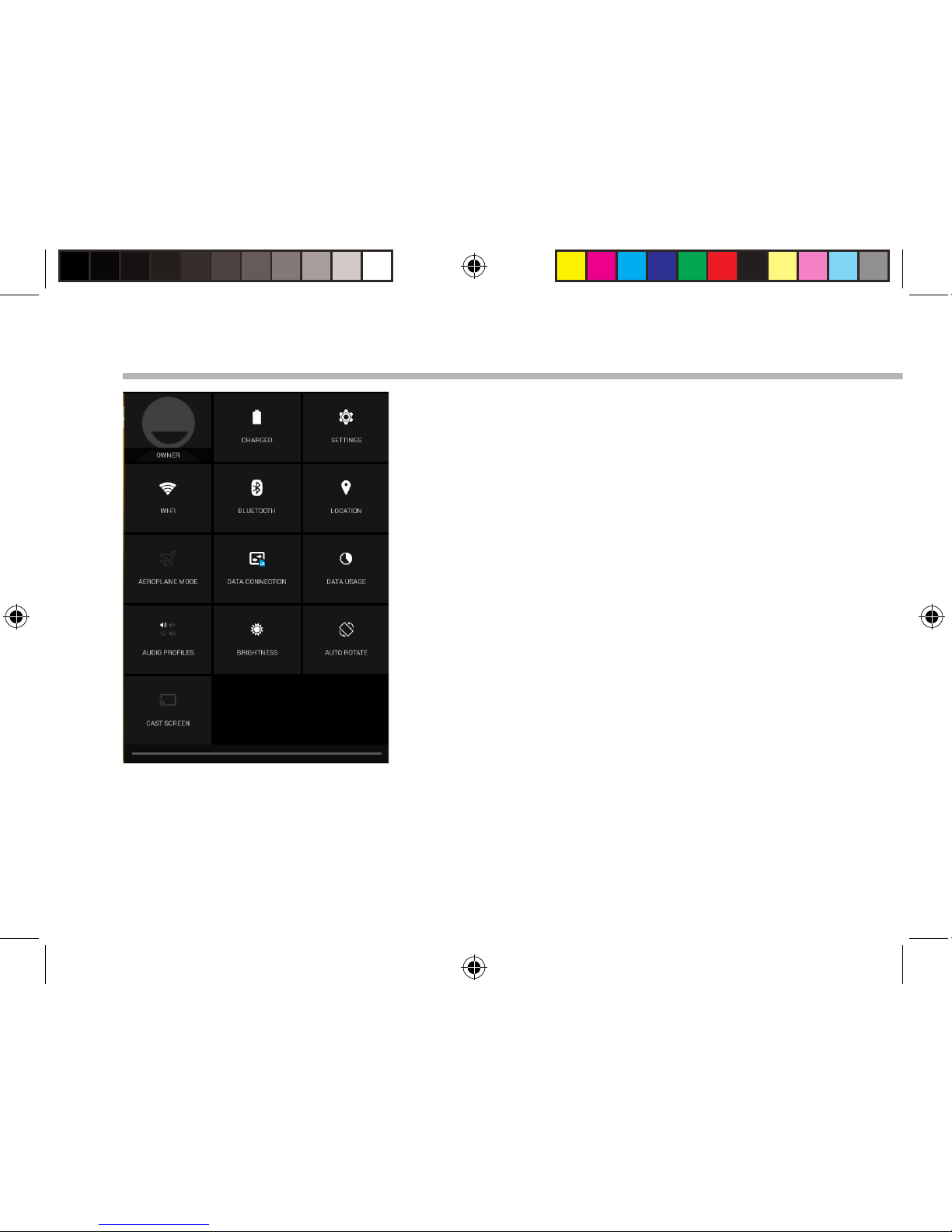

The Quick settings

1Current user(1)

2Percentage of battery remaining

3To access all your settings.

4To turn on/o your WiFi connection.

5To turn on/o your Bluetooth connection.

6To activate/deactivate your GPS location system.

7To activate/deactivate all wireless connections,

especially when ying.

8To activate/deactivate the data connection.

9To see how much data have been used.

10 To set an audio prole.

11 To adjust the screen brightness.

12 To activate/deactivate automatic screen orientation

as you turn your ARCHOS.

13 To enable wireless display(2)

(1)New multi-user support for tablets lets

different users have their own separate,

customizable spaces on a single device.

Add users in Settings > Device.

(2)You can share movies, YouTube videos,

and anything that’s on your screen on

an HDTV. You need to connect a wireless

display adapter to any HDMI-enabled TV to mirror what’s on your screen quickly and easily.

ARCHOS_80b_Helium_QSG_book.indd 10 17/02/2015 17:38:06
