Archos 101 helium series Manuale utente
1
ENEN
Table of contents
For more information, please consult the FAQs on www.archos.com. Make sure to read them before considering any
product return. Your deal may be no big deal. As we are often updating and improving our products, your device’s
software may have a slightly dierent appearance or modied functionality than presented in this Quick Start Guide.
Package contents...................................................................................................................................
Getting started........................................................................................................................................
Description of the device.....................................................................................................................
Connecting to a WiFi network...........................................................................................................
The AndroidTM interface.......................................................................................................................
Getting familiar with AndroidTM......................................................................................................
Troubleshooting....................................................................................................................................
2
3
4
6
8
12
14
2
02-04-2013
CONFIDENTIAL
CMF
Rev
0
scale 1:1 mm
AN101G4
Warranty
Warranty
USB cable Charger
QSG booklet Warranty,
legal & safety booklet
Package Contents
ARCHOS 101 COBALT
3
EN
Getting Started
TIPS:
To receive more complete service, please register your product.
From a computer, go to www.archos.com/register.
Charging
1. Connect the supplied power cable to the ARCHOS and to a wall outlet.
The ARCHOS device will start charging.
The charging indicator light is red while the battery is charging.
It will turn green when the battery is fully charged.
2. Press the ON/OFF button to turn on the device.
-You can use your ARCHOS whilst it charges.
-Let your device charge completely the rst time you use it.
-Use only the supplied charger.
4
02-04-2013
CONFIDENTIAL
CMF
Rev
0
scale 1:1 mm
AN101G4
02-04-2013
CONFIDENTIAL
CMF
Rev
0
scale 1:1 mm
AN101G4
02-04-2013
CONFIDENTIAL
CMF
Rev
0
scale 1:1 mm
AN101G4
5
6
8
7
9
10
11
3
2
1
412
13
Description of the device
5
EN
Volume buttons
ON/OFF button
Webcam
Microphone
Charging indicator
Reset button
Headphone jack
Power connector
Micro-SD card slot
Mini-HDMI video output(1)
Micro-USB host port(2)
Micro-USB port
Loudspeakers
19
210
3
4
5
6
7
8
12
11
TIPS
(1)With optional Mini-HDMI to HDMI cable
(2)Connect a keyboard, a mouse or a mass storage USB device using the optional USB host adapter
13
6
1
2
3
4
5
Connecting to a WiFi Network
CAUTION: Make sure that you are in a WiFi zone.
Touch and hold the time & battery icons to
reveal the status bar. A blue line is displayed.
Pull the blue line down to display the status
dashboard.
Slide the WiFi switch to "ON" positon.
The ARCHOS will scan for Wi networks in
range. Touch the name of network you want
to connect to.
Touch "WiFi o" in the status dashboard. The
WiFi page will be displayed.
7
EN
TIPS:
-When entering a WiFi password, we recommend that you select “Show password”so you can see
the characters you are typing. To get the correct WiFi password (or settings) for the network, contact
the WiFi network provider. If your WiFi is on and you are in range of a network that you previously
connected to, your ARCHOS will automatically attempt to connect to it.
-To keep your WiFi connection ON when the device is on sleep, select the Menu icon in the“WiFi”
page. Then, select Advanced > Keep WiFi on during sleep > Always.
Private networks are shown with a lock
icon and will require you to enter your
password.
8
6
2
5
3
2
1
4
7
8
The AndroidTM Interface
9
EN
AndroidTM apps shortcuts
> Touch to start an application.
Permanent AndroidTM apps shortcuts
> Touch to start an application
Back button
Home button
Recent apps buttons
All Apps button
> Touch this icon to show all the applications and widgets installed on your ARCHOS. All
your downloaded applications are here.
GoogleTM Search
>Touch“Google”for text search or touch the microphone icon for voice search.
The status bar
> Displays notications and quick settings
1
2
3
4
5
6
7
8
10
12
4 6
7 9
3
5
8
The AndroidTM Interface

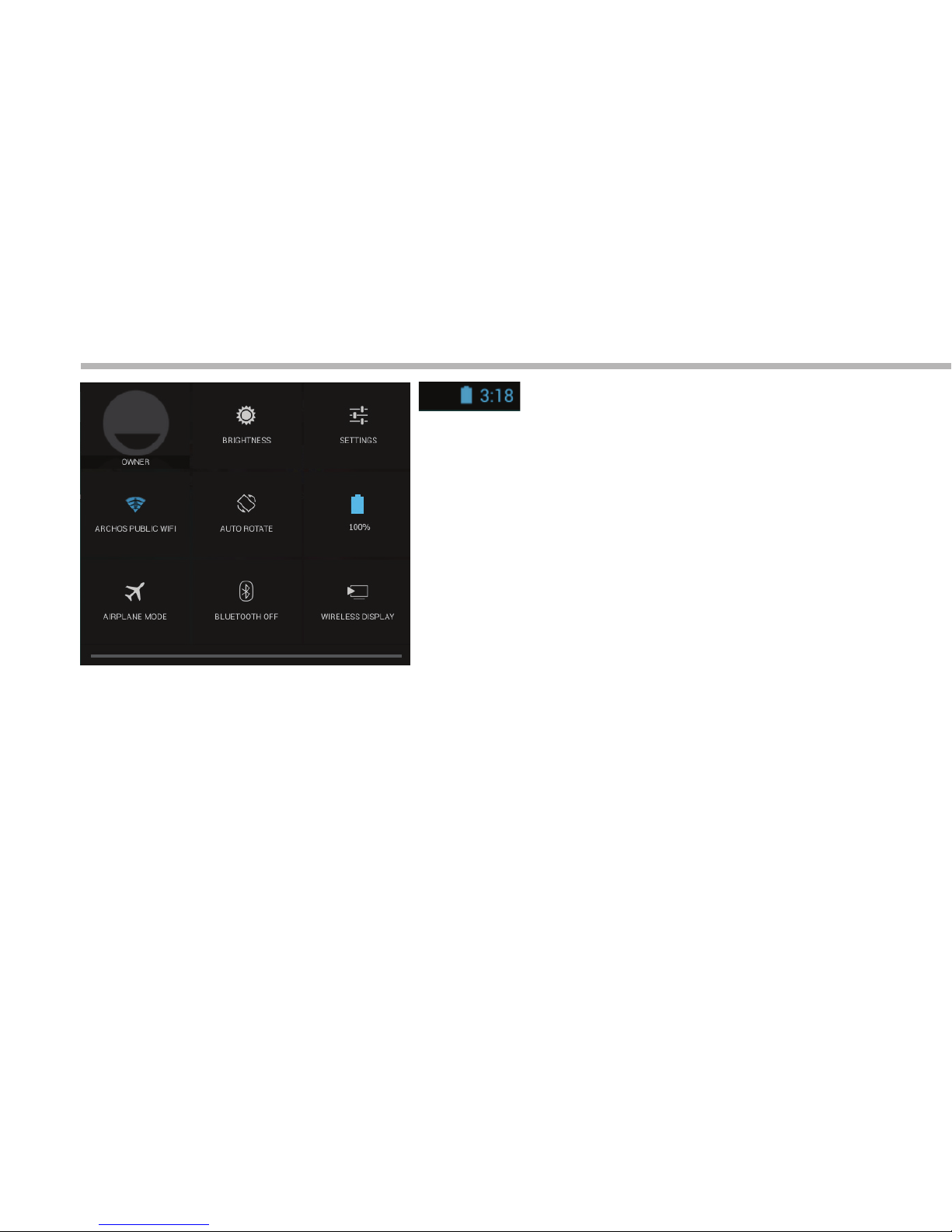

The Quick settings
1Current user(1)
2To adjust the screen brightness.
3To access all your settings.
4To turn on/o your WiFi connection.
5To activate/deactivate automatic screen
orientation as you turn your ARCHOS.
6Percentage of battery remaining
7To activate/deactivate all wireless connections,
especially when ying.
8To turn on/o your Bluetooth connection.
9To enable wireless display(2)
(1)New multi-user support for tablets lets different users have their own separate, customizable spaces on a
single device. Add users in Settings > Device.
(2)You can share movies, YouTube videos, and anything that’s on your screen on an HDTV. You need to connect
a wireless display adapter to any HDMI-enabled TV to mirror what’s on your screen quickly and easily.
