Matrix - Glass Small Entertainment unit
Assembly Instructions - Please keep for future reference 609/0722
Dimensions
Width - 60cm
Depth - 45cm
Height - 59.5cm
Important - Please read these instruction fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Issue 1 - 11/01/98
610/8566
1

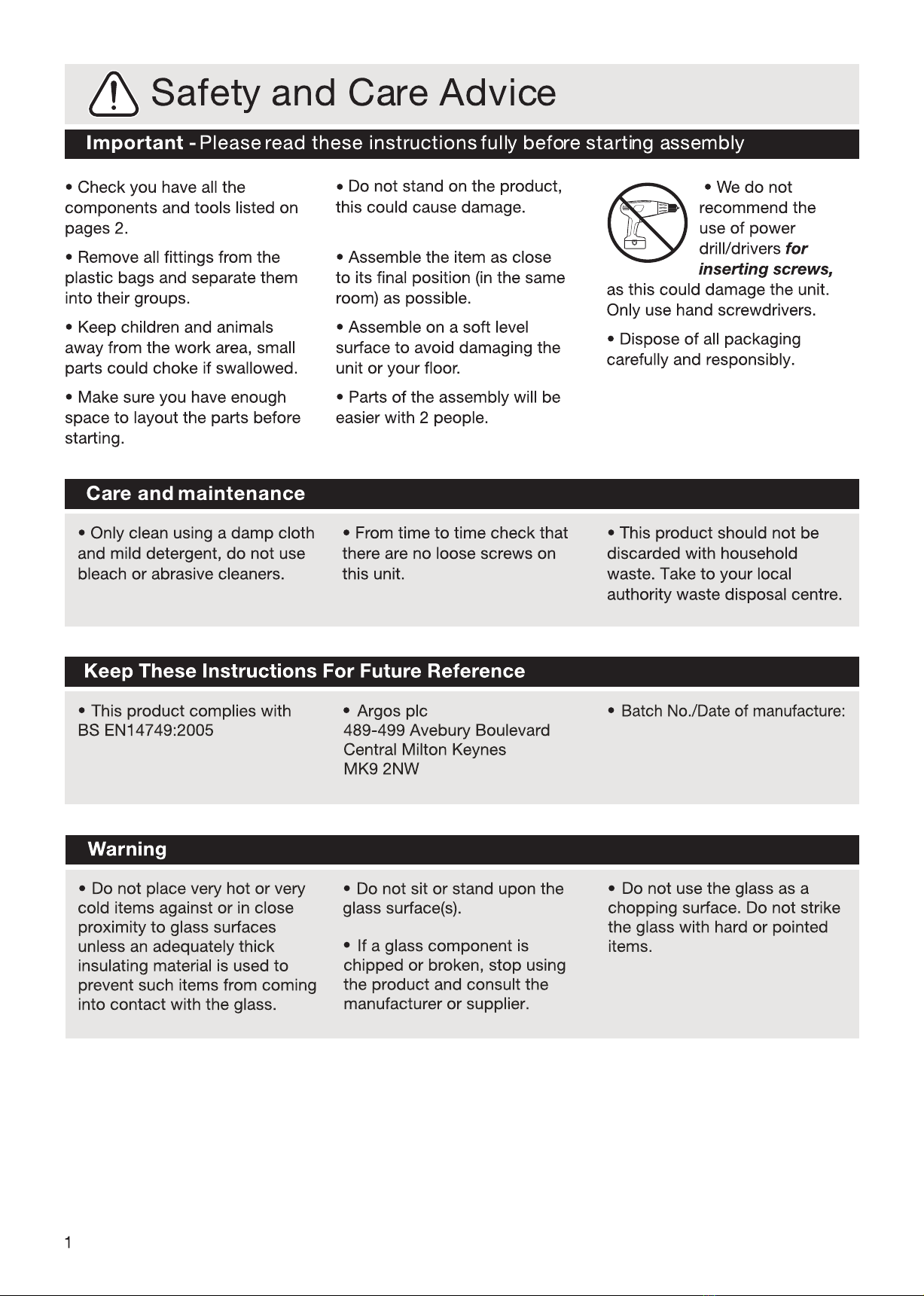

Safety and Care Advice
Important - Please read these instructions fully before starting assembly
components and tools listed on
plastic bags and separate them
into their groups.
away from the work area, small
parts could choke if swallowed.
space to layout the parts before
starting.
room) as possible.
surface to avoid damaging the
easier with 2 people.
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
carefully and responsibly.
and mild detergent, do not use
bleach or abrasive cleaners.
there are no loose screws on
this unit.
discarded with household
waste. Take to your local
authority waste disposal centre.
Care and maintenance
Keep These Instructions For Future Reference
This product complies with
BS EN 14749:2005
Argos plc
489-499 Avebury Boulevard
Central Milton Keynes
MK9 2NW
Batch No./Date of manufacture:
Warning
Do not place very hot or very
cold items against or in close
proximity to glass surfaces
unless an adequately thick
insulating material is used to
prevent such items from coming
into contact with the glass.
Do not sit or stand upon the
glass surface(s).
Do not use the glass as a
chopping surface. Do not strike
the glass with hard or pointed
items.
If a glass component is chipped
or broken, stop using the product
and consult the manufacturer or
supplier.
this could cause damage.
Do not stand on the product,
.

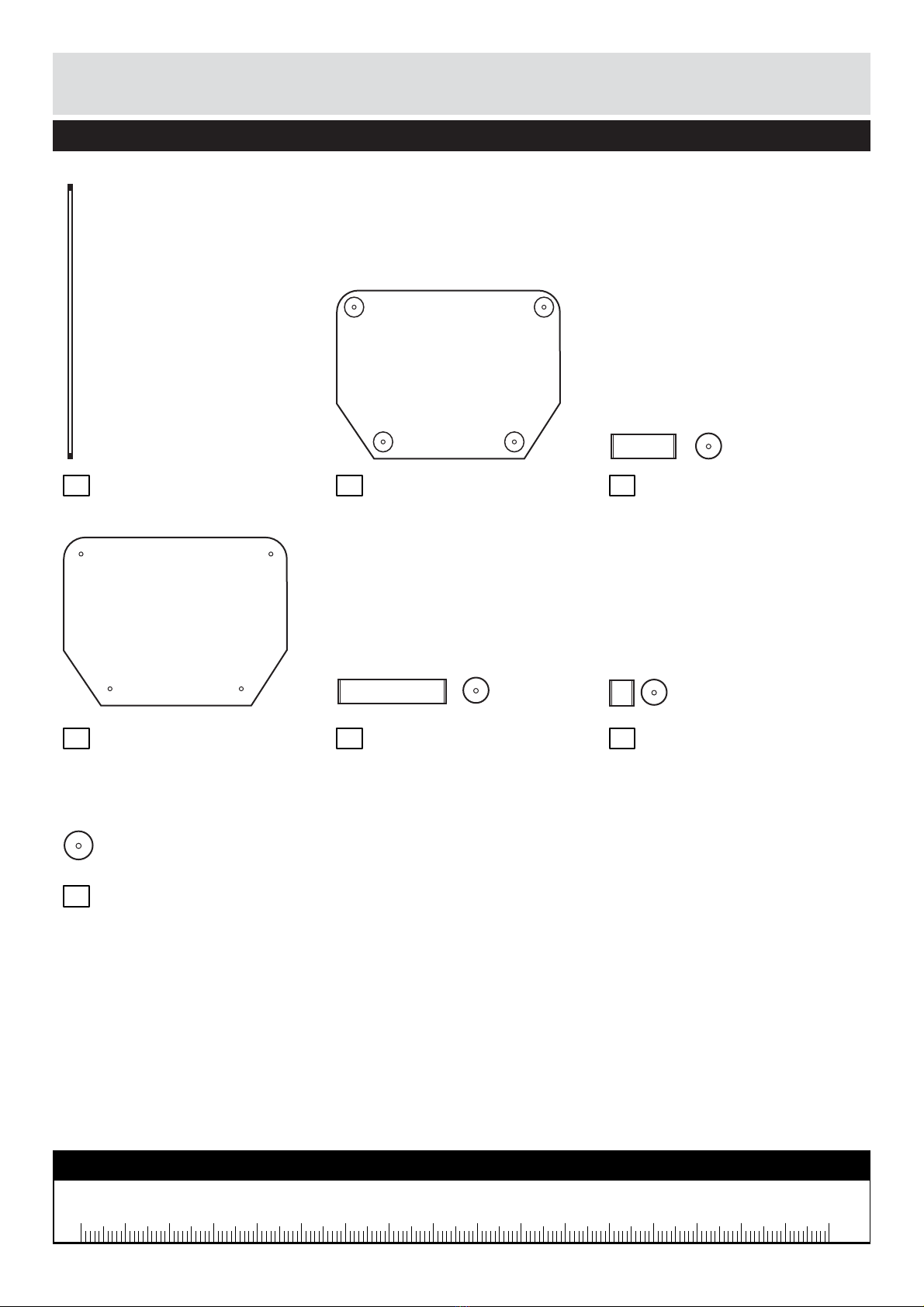

Components - Panels
Please check you have all the panels listed below
2
Glass shelf x 3 (60 x 45cm)
2
Metal rod x 4 (58 x 0.8cm) 3
Glass top (60x45cm)
1Metal tube x 8 (13 x 5.08cm)
5Metal Tube x4 (5x 5.08cm)
6
Metal tube x 4 (22 x 5.08cm)
4
Feet x 4 (1.2 x 5.2cm)
7
Ruler - Use this ruler to help correctly identify the screws
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 110 120105 115 125 130 135 140 145 150 155 160 165 170
Assembly Instructions
Step 1

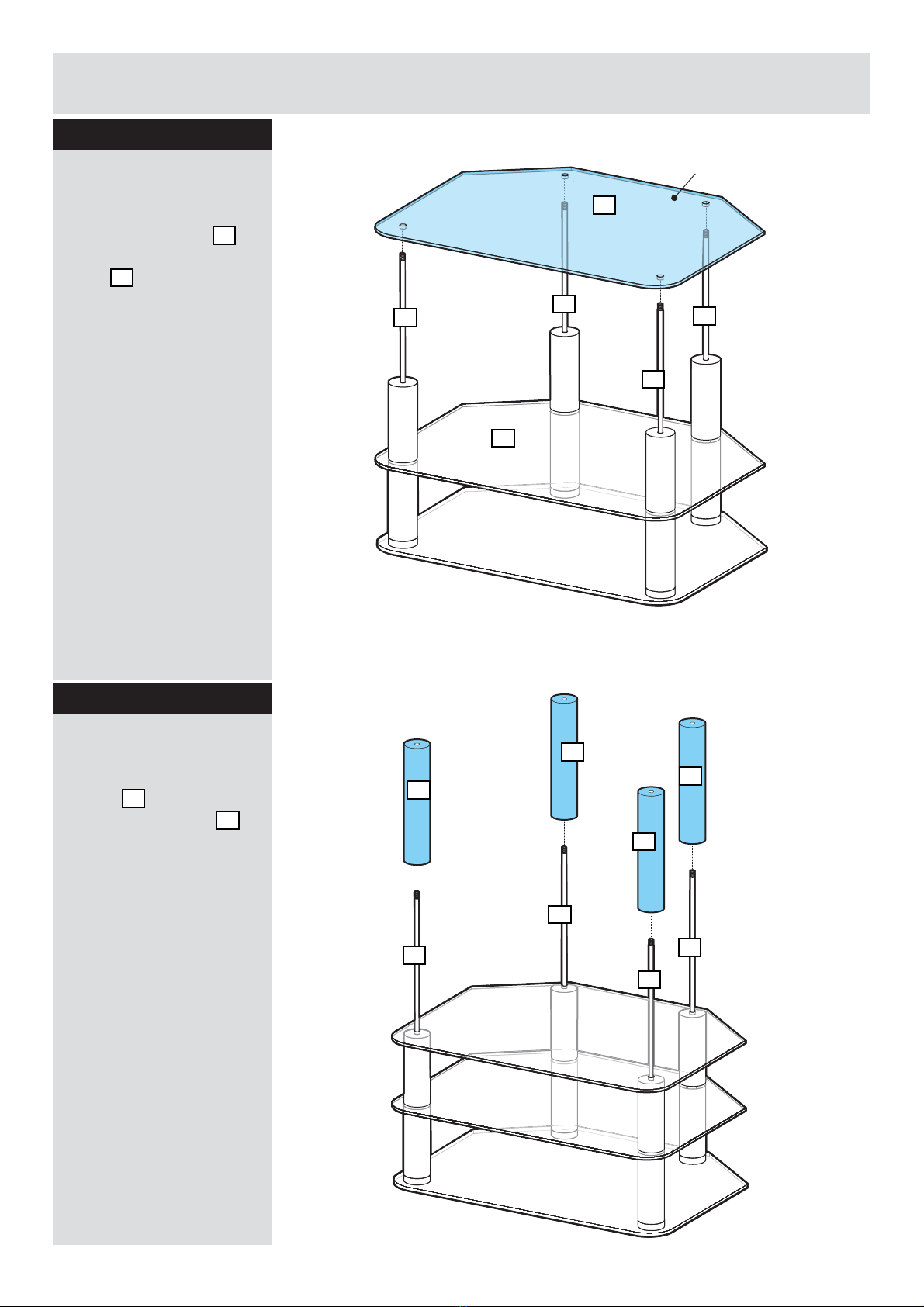

Step 2

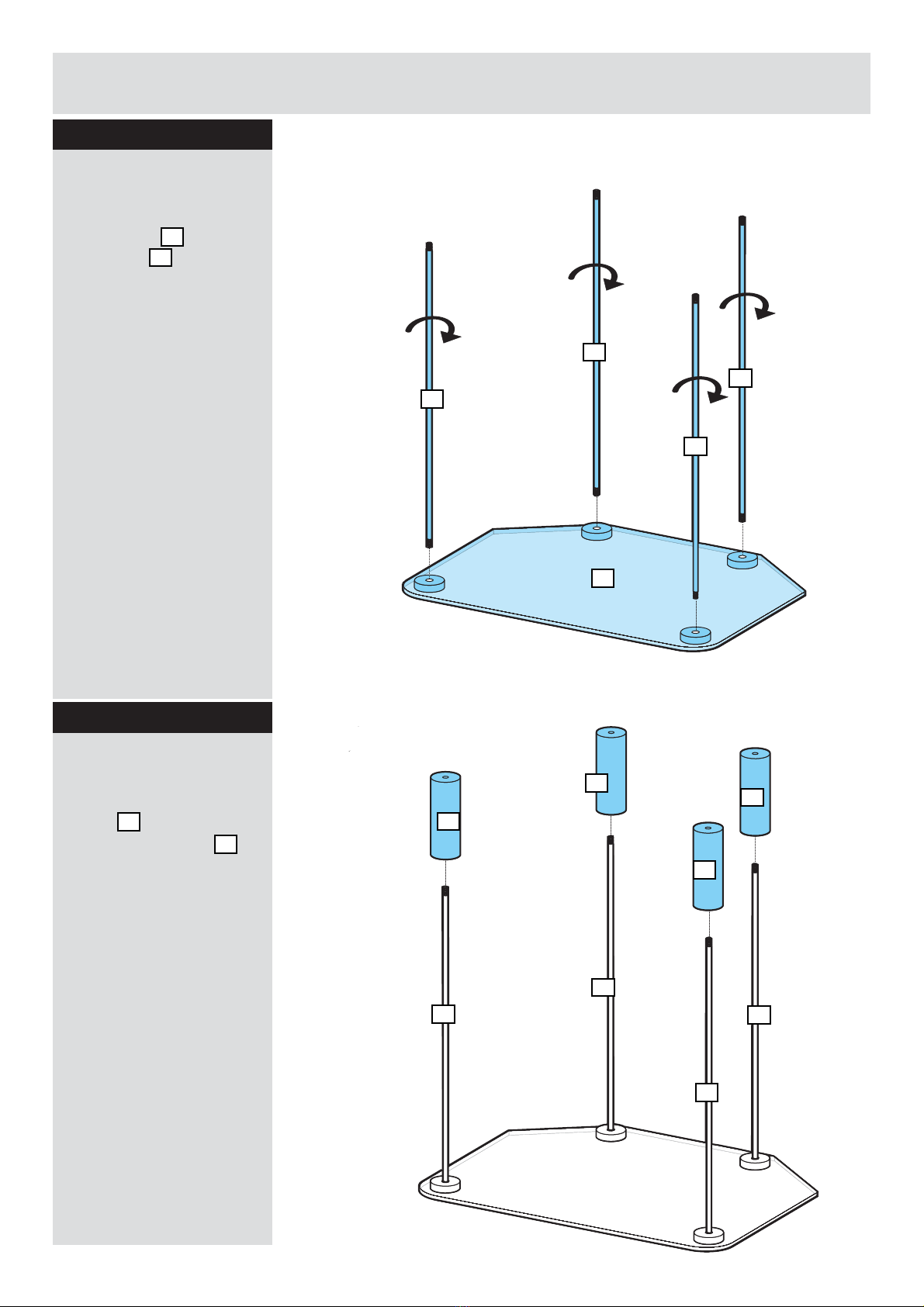

Attaching rods
Finger tighten 4 pcs of
metal rods onto
glass top as
shown.
1
2
Attaching tubes
Attach 4 pcs of metal
tubes through 4
pcs of metal rods
as shown.
3
1
1
1
1
2
1
3
3
3
3
1
1
1
1
3

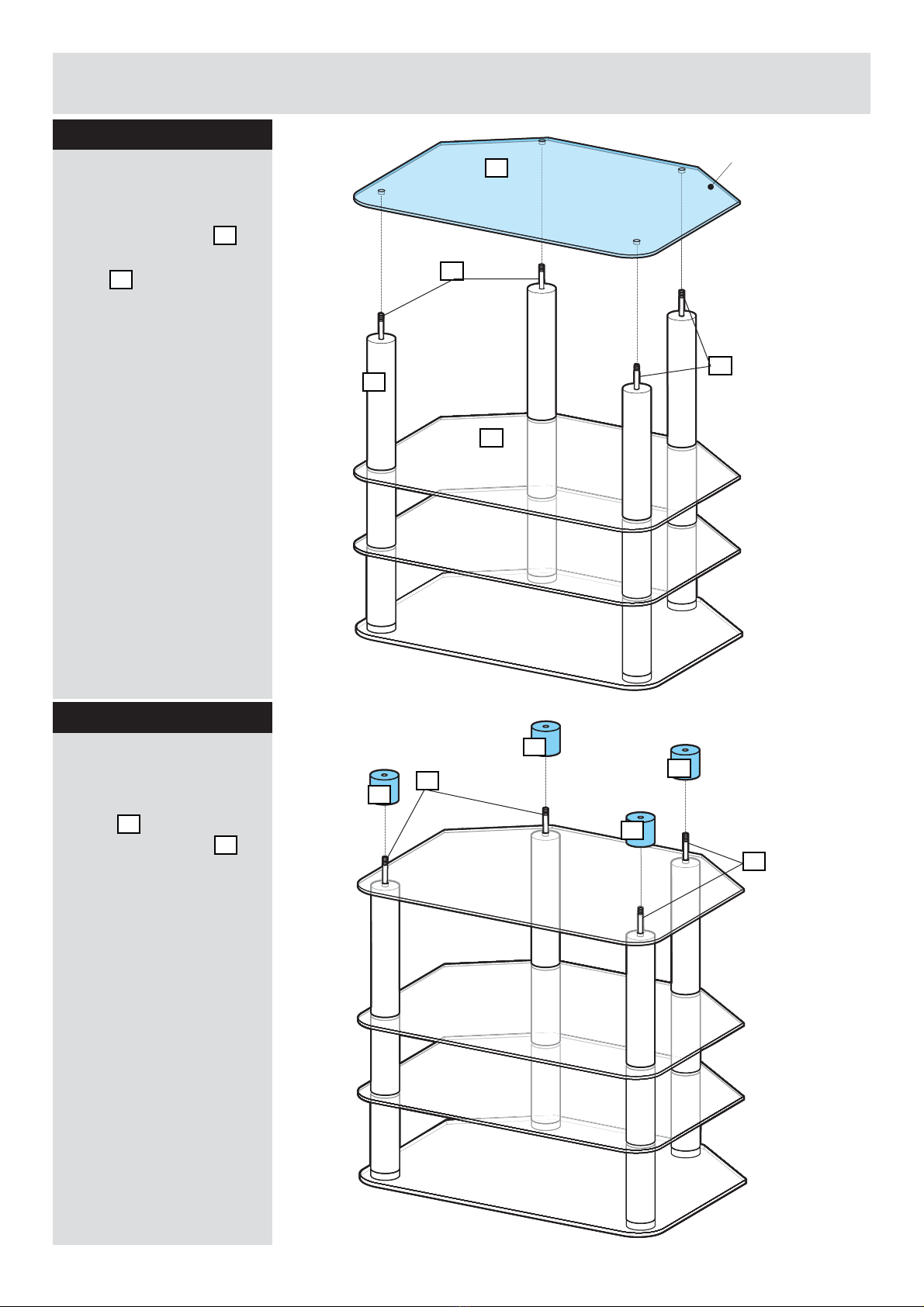

Assembly Instructions
Step 3

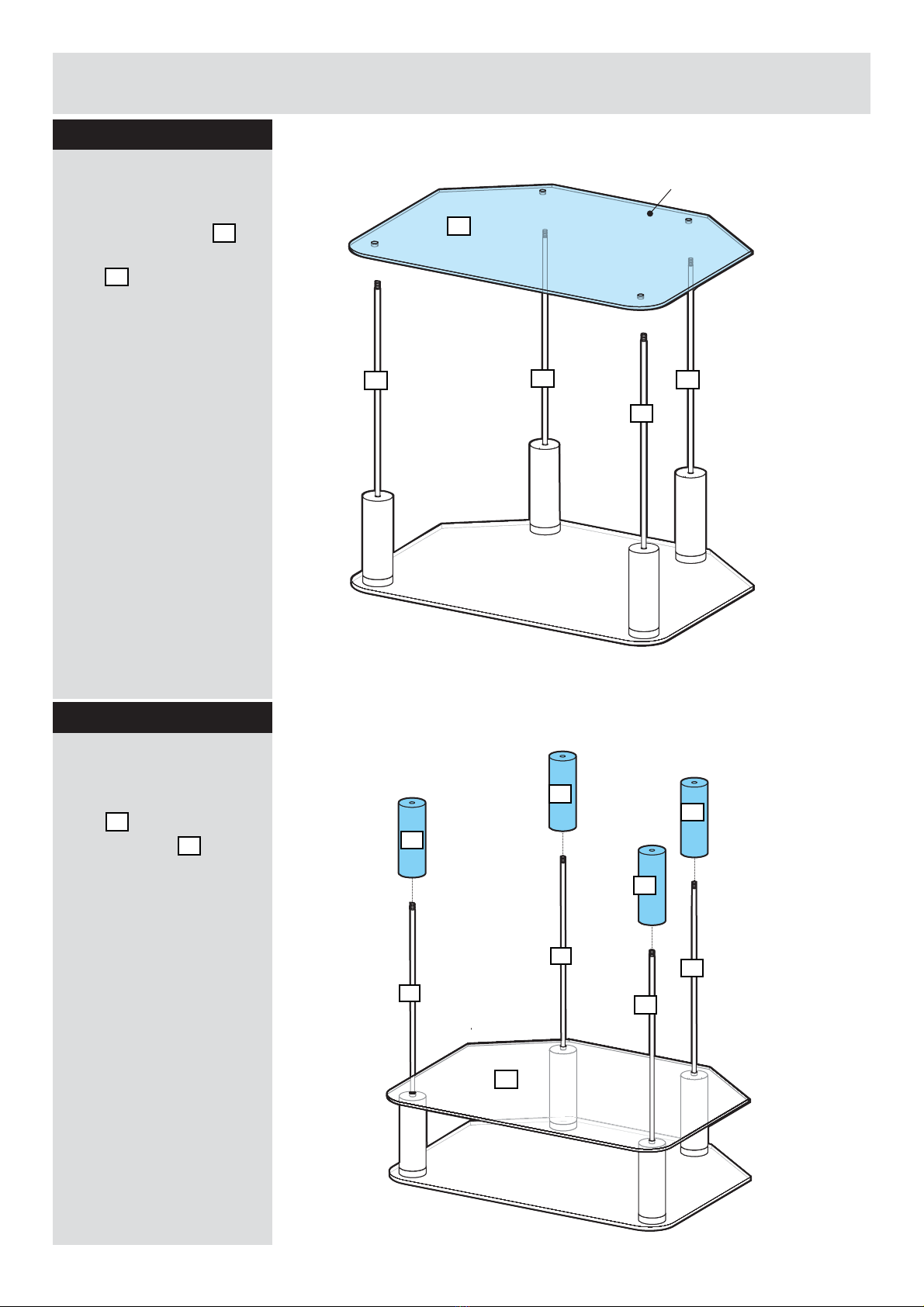

Attaching shelf
Please be careful to
place glass shelf
through 4 pcs of metal
rods as shown.
Attaching tubes
Attach 4 pcs of metal
tube through 4 pcs
of metal rods as
shown.
Assembly Instructions
Step 4
4
1
1
3
3
3
3
4
1
1
1
1
4
3
4
1
1
1
1
Matt surface
Assembly Instructions
Step 5
Attaching shelf
Please be careful to
place glass shelf
through 4 pcs of metal
rods .
Step 6
Attaching tubes
Attach 4 pcs of metal
tubes through 4
pcs of metal rods
as shown.
5
4
1
4
4
1
11
1
5
5
1
1
5
5
5
1
1
1
Matt surface
Assembly Instructions
Step 7
Attaching shelf
Please be careful to
place glass shelf
through 4 pcs of metal
rods as shown.
Attaching tubes
Attach 4 pcs of metal
tubes through 4
pcs of metal rods
as shown.
Assembly Instructions
Step 8
4
1
6
1
4
4
5
1
1
1
1
6
6
6
6
6
Matt surface
Assembly Instructions
Step 9

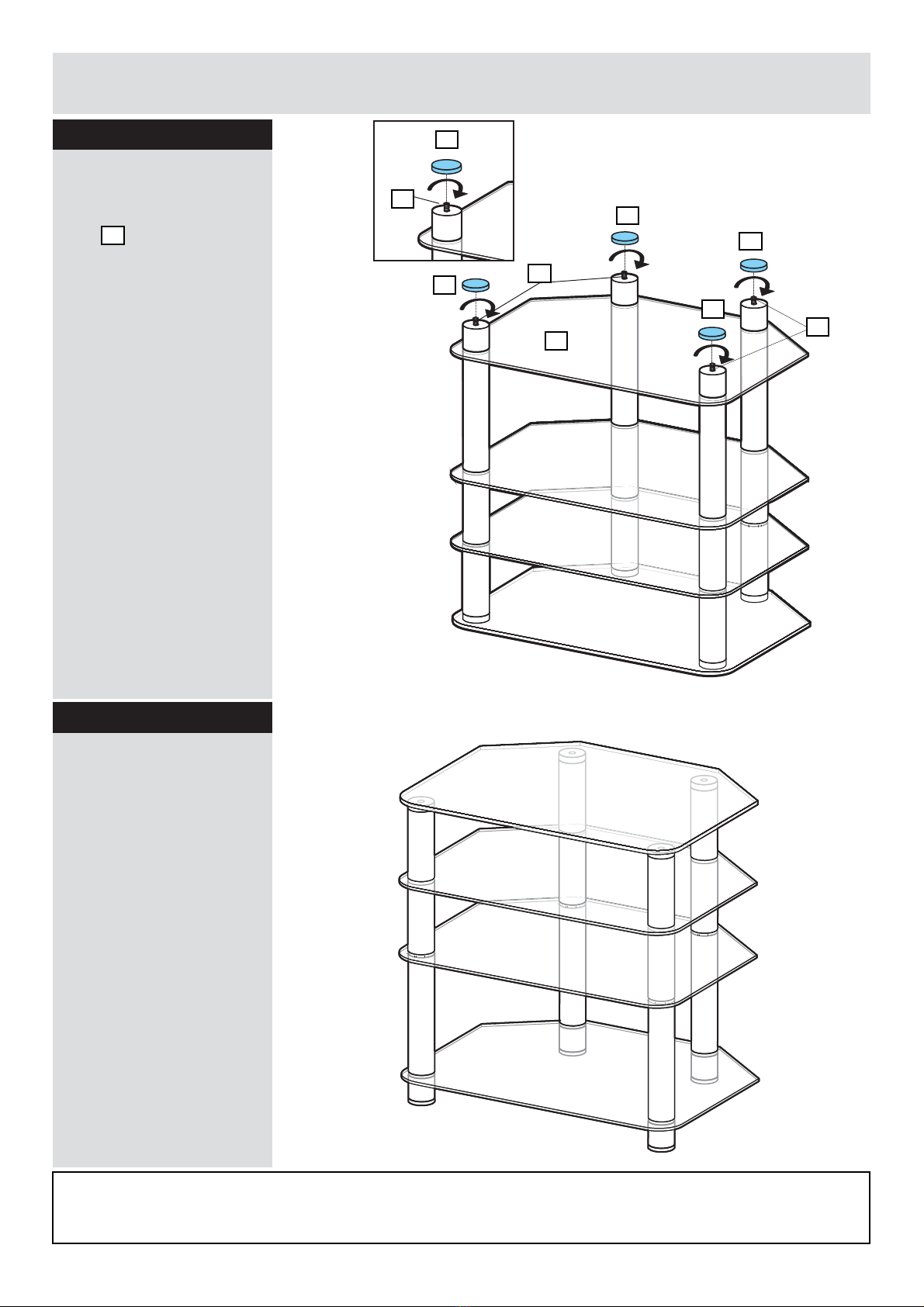

Attaching feet
Finger tighten 4 pcs of
feet onto the unit
as shown.
Assembly Instructions
Step 10
7
If you need help or have damaged or missing parts, call the Customer Helpline:
08456 400800
7
7
7
7
7
D
1
1
7
1
Assembly is
completed.
