Aria P-3036 Manuale utente

Channel Vision Technology will repair or replace any defect in material or workmanship

which occurs during normal use of this product with new or rebuilt parts, free of charge in

the USA, for one year from the date of original purchase. This is a no hassle warranty with no

mail in warranty card needed. This warranty does not cover damages in shipment, failures

caused by other products not supplied by Channel Vision Technology, or failures due to

accident, misuse, abuse, or alteration of the equipment. This warranty is extended only to the

original purchaser, and a purchase receipt, invoice, or other proof of original purchase date

will be required before warranty repairs are provided.

Mail in service can be obtained during the warranty period by calling (800) 840-0288 toll

free.AReturnAuthorization number must be obtained in advance and can be marked on the

outside of the shipping carton.

This warranty gives you specific legal rights and you may have other rights (which vary

from state to state). If a problem with this product develops during or after the warranty

period, please contact Channel Vision Technology, your dealer or any factory-authorized

service center.

Channel Vision products are not intended for use in medical, lifesaving, life sustaining or

critical environment applications. Channel Vision customers using or selling Channel

Vision products for use in such applications do so at their own risk and agree to fully

indemnify Channel Vision for any damages resulting from such improper use or sale.

500-302 Rev A

This device complies with part 15 of the FCC rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference, and (2) This device

must accept any interference received, including interference that may cause undesired

operation.

Tested To Comply

With FCC Standards Model: P-3036 iPod Wall Dock for Distributed Audio

w w w . c h a n n e l v i s i o n . c o m

234 Fischer Avenue, Costa Mesa, California 92626 USA

(714)424-6500 (800)840-0288 (714)424-6510 fax

email: [email protected]

“Made for iPod” means that an electronic accessory has been designed to connect

speci cally to iPod and has been certi ed by the developer to meet Apple performance

standards.

Apple is not responsible for the operation of this device or its compliance with safety and

regulatory standards.

iPod is a trademark of Apple Inc., registered in the U.S. and other countries.

fi fi

P-3036

iBus Wall-Dock for Distributed Audio

with RS-232 Control

Features:

Supports IR control: compatible with A0505 or Apple Remote

RS-232 interface for use with advanced control systems

Built-in IR receiver

Charges the iPod

Allows viewing of iPod videos on a TV

Mounts in a standard 2-gang box

The P-3036 is an on-wall iPod docking station that supports RS-232 and

IR control. The dock connector slides in and out to adjust for any iPod and

the non-skid pad helps to hold the music player in place. It’s elegant and

contemporary design make the P-3036 perfect for anyone who wants to

enjoy their music without defacing their wall.

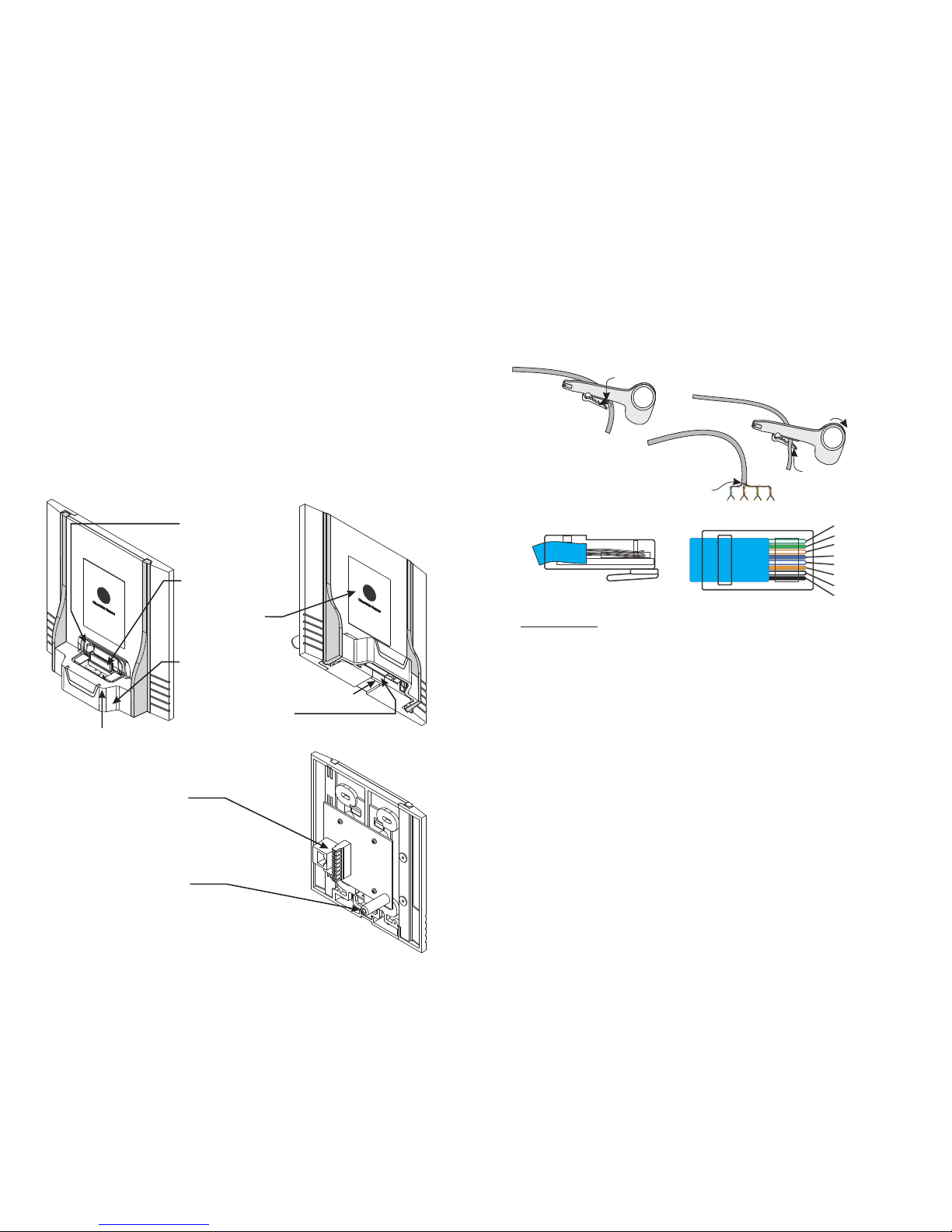

Front/Top Front/Bottom

Wall Dock

Sliding Dock Platform

Slides up to conceal

the dock connector

Non-Skid Pad

Secures the iPod

Sliding Dock Lever

Slides the dock connector forward, providing

iPodeasy access to dock your

RJ-45 & 110 Connectors

Connect to output wall plate via

CAT5 cable (only use one)

Composite Video Output

Outputs video signals from the iPod

Use RG59U coax or CAT5 and a video balun

(Suggested balun model B-201 CAT5 video balun)

Slide Up

Hinged Dock Lid

Rotates down to

cover the dock

connector

Dock Connector

Connects to iPod

Stripping and Connecting CAT-5 Wire

Blade

Cat5

1. Place the CAT-5 between the blade and the first notch of the J-110 tool.

CAT-5 cable should be stripped with a proper stripping tool, such as Channel

Vision’s J-110 tool.

Slight

pressure

Rotate

1 turn only

2. Rotate the tool only once. Multiple turns

will cause you to cut into the inner wires.

3. Inspect the inner wires for damage.

If any wires are cut start over at step 1.

Check for damage

Green/White

Green

Orange/White

Blue

Blue/White

Orange

Brown/White

Brown

TIA-568A RJ-45 Modular Plug

Side view: Top view:

Specifications:

Operating Temperature:

(typical @25º C)

-10ºC to +50ºC

Audio Output

Output Level:

THD + Noise:

Signal/Noise:

Frequency Response:

Output Impedance:

Power Requirements:

Power Supply:

Wire type:

Recommended Max. Cable Length:

Video Output:

Video Type:

RS-232 Protocol Standard:

Baud Rate

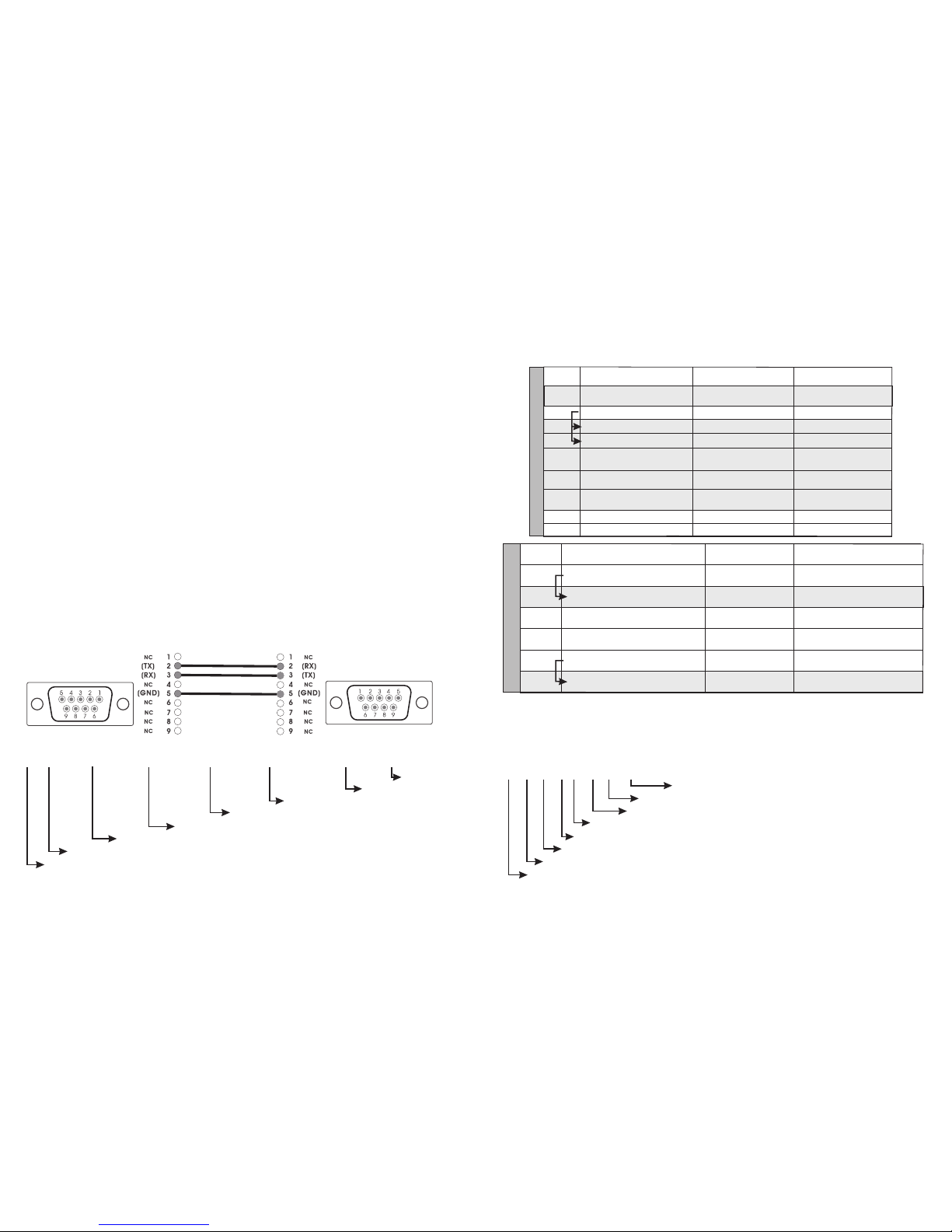

Serial Cable Specification:

Dimensions:

Wall Dock (2-gang):

Wall Dock & Keypad (3-gang):

Output Plate (1-gang):

Color:

0.9 Vrms

<0.2%, 20Hz-20kHz

>-96dB

20Hz-20kHz +/- 0.3dB

600 Ohms

15VDC @ 0.500A (500mA)

15VDC @ 800mA

4-pair, UTP Category 5, 5e or 6

350ft.

1 Vp-p

Composite

8-bit data, No Parity, 1 stop bit

57600

Straight through, pins 2, 3, & 5

4.88”W x 5.14”H x 1.24”D(front)

Rear Depth: 1.56”

6.73”W x 5.14”H x 1.24”D(front)

Rear Depth: 1.56”

3.15”W x 5.14”H x 1.24”D(front)

Rear Depth: 1.95”

White

(may vary with iPod model)

Specifications subject to change without notice.

1) Be sure you have connected the CAT-5 cable correctly. Follow the

TIA-568A standard at both ends. Incorrect wiring can cause distorted

sound or prevent the system from working at all!

2) Be sure you have connected the speakers in phase. Follow the label

on the product. Out of phase speakers can rob the system of its

bass. Especially when driving dual-voice-coil speakers.

3) Trouble with IR control?

a. Make sure you are using the correct remote control. The P-3036 will

only respond to IR signals from the Apple Remote produced by Apple

Computer or the A0505 produced by Channel Vision. Other 3rd party

remote controls are not supported.

b. Disconnect anything that is connected to the “IR IN”on the output

wall plate. Point the A0505 remote at the Wall Dock and see if you

can control the iPod. If this works, you need to troubleshoot your IR

repeating system.

c. Troubleshooting an external IR system: Some IR receivers have a

feedback LED that flashes whenever IR signals are received. If the

IR receiver you are using has this feature, check to make sure the

LED flashes whenever you press buttons on your remote control.

i. If you don’t see the feedback LED, try replacing the batteries

in your remote control.

4) The is designed to charge the iPod

. When the iPod is not playing music, the screen should

indicate that the iPod is being charged. If this does not occur, make

sure the power supply is connected to the output wall plate of the

5) Observe wiring distance specifications. The maximum

recommended wire length between the wall dock and output wall

plate is 350 feet. Although the has been proven to work at

distances of 500 feet, such extreme distances are not recommended

because erratic performance may result due to the power loss

caused by the CAT5 wire.

6) If you are experiencing problems with your iPod that occur even

when it is not docked in the , then please contact Apple

customer service for support.

7) If you need additional help troubleshooting the please

contact Channel Vision technical support or check our website for

more details: www.channelvision.com.

(see compatibility notes

on page3)

P-3036

P-

3036

P-3036

Connection Tips and Troubleshooting

Output Wall Plate

Audio Outputs

Connect to your

amplifier.

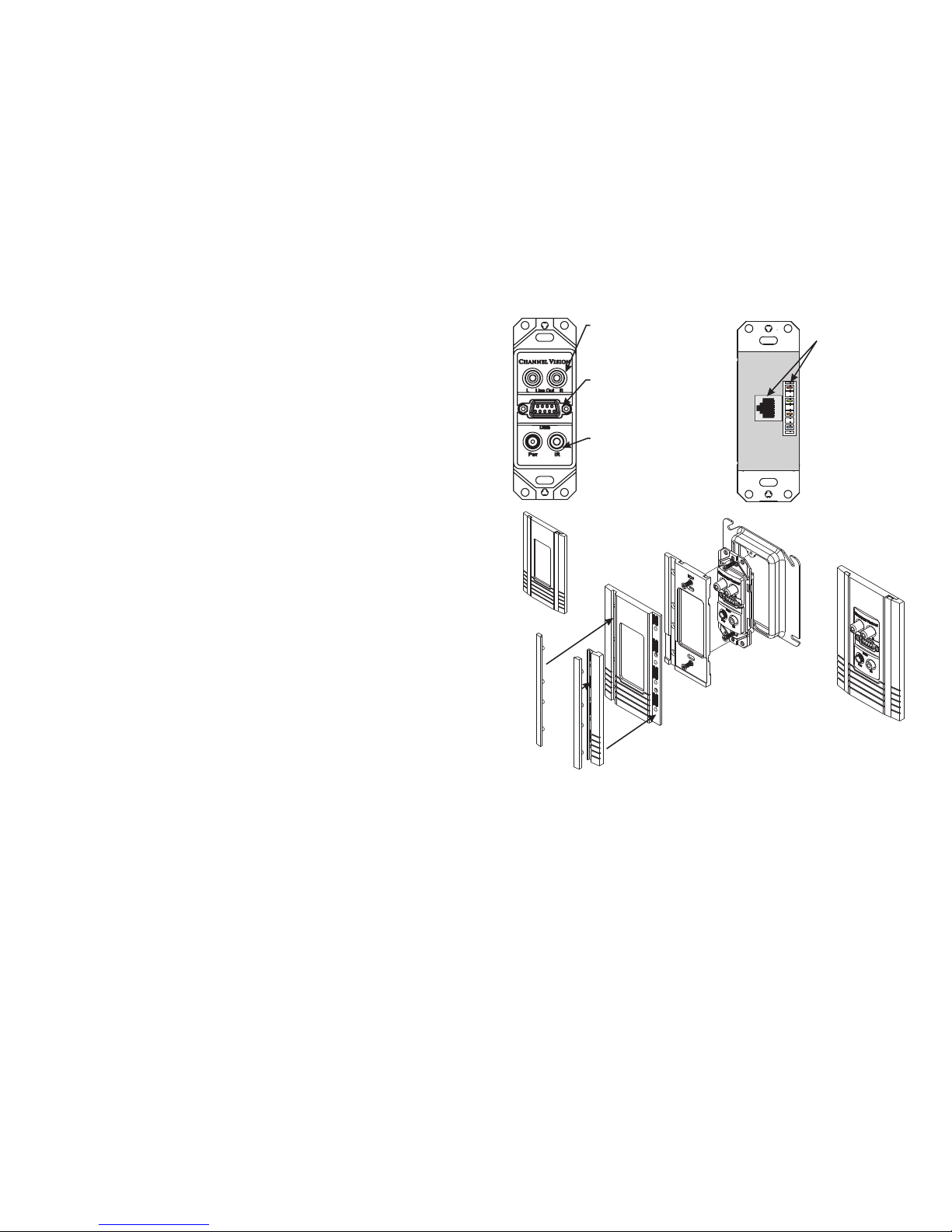

Installing the Trim Plate Accessory

Serial Connector

RS-232 interface

provides advanced

control and feedback.

Install Output

wall plate in j-box

Install Trim plate chassis

over output wall plate

Snap front cover

over chassis

Snap side flange on

to front cover

Snap trim

into place

IR Input

Connect an IR

receiver and use

the A0505 remote

to control your iPod.

RJ-45 & 110

Connectors

Receive signals

from the wall dock

via Category 5 or

Category 6 cable.

Back

Front

Made For:

iPod touch (2nd generation)

IPod touch (1st generation)

iPod lassicc

iPod video

iPod nano (5th generation)

iPod nano (4th generation)

iPod nano (3rd generation)

iPod nano (2nd generation)

iPod nano (1st generation)

iPod mini

iPod with dock connector

Compatibility

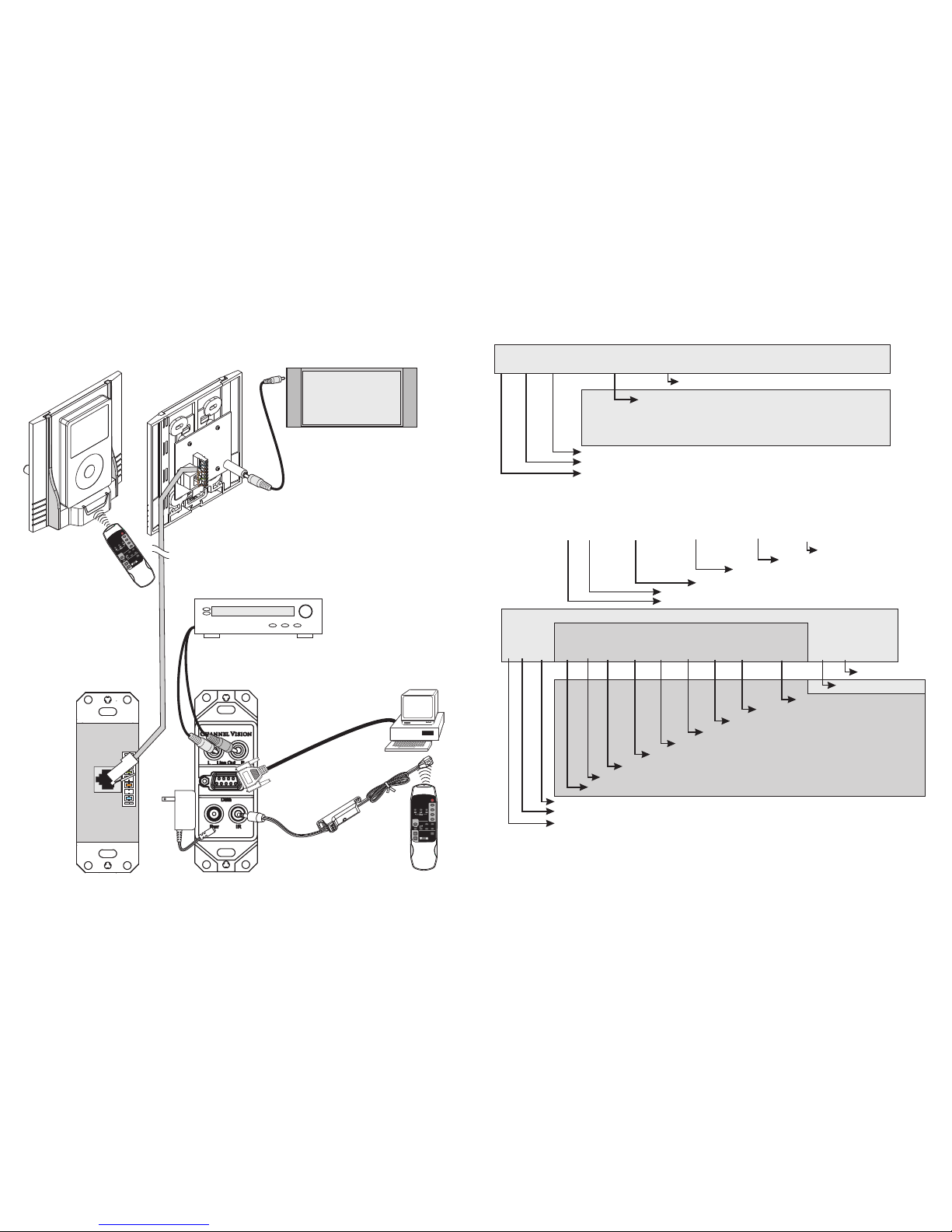

Basic Application

HDTV Plasma with speakers

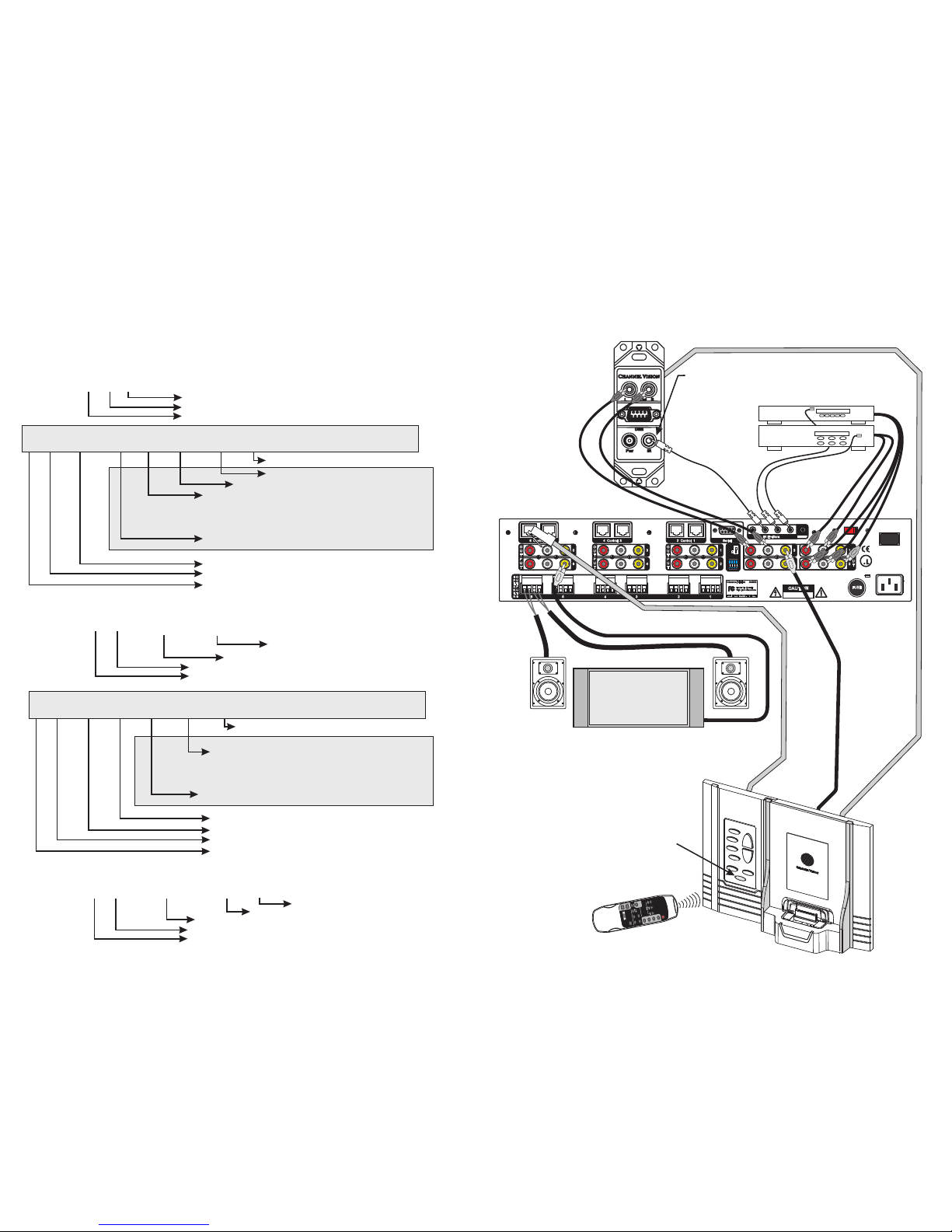

Whole-House Audio System

IR receiver

(optional)

Serial Control Automation:

Control4 driver available from

Extravegetables.com

Pwr.

Note: An IR emitter output

from a whole-house IR system

can also be connected here.

As shown on the

following page.

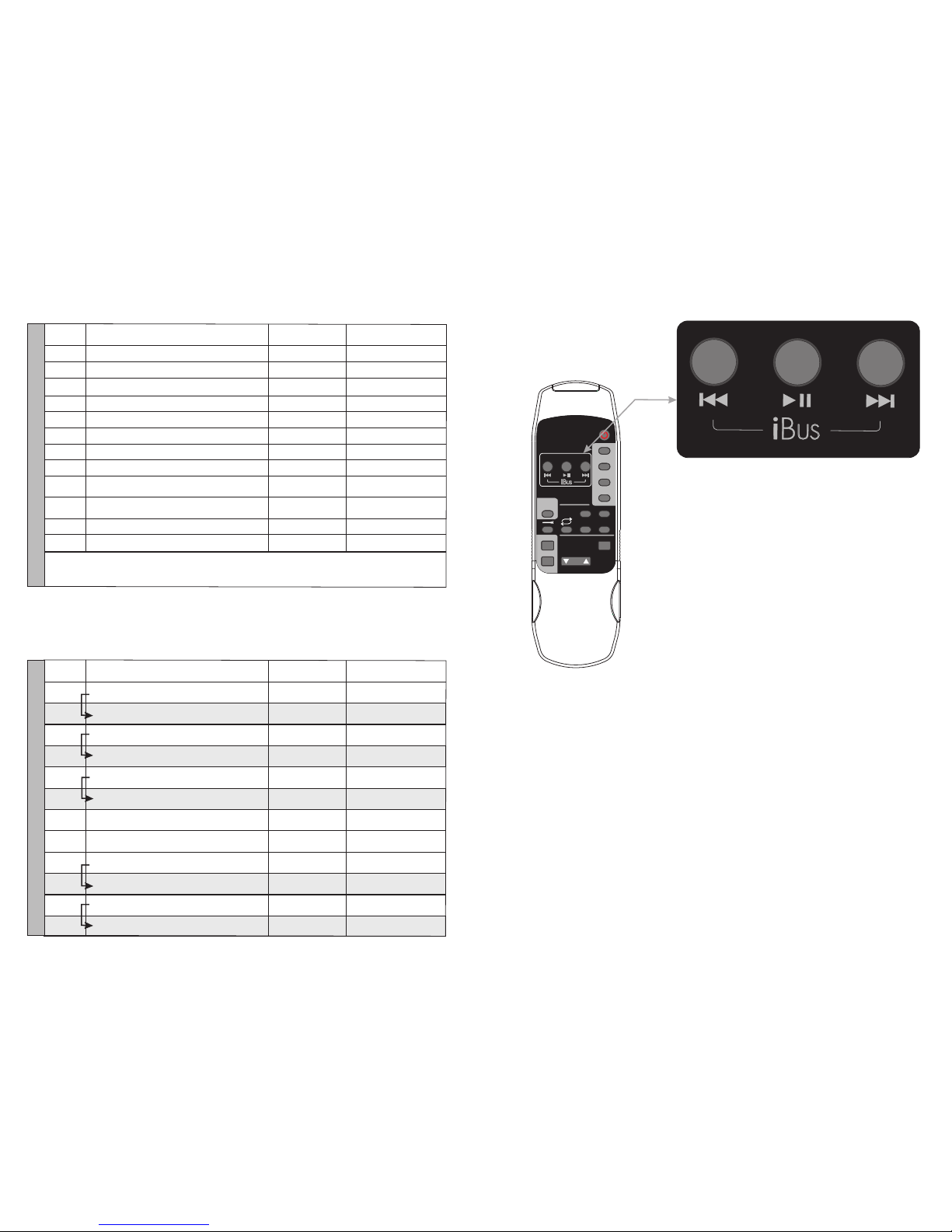

A0505

Remote

A0505

Remote Control

CAT5 cable up to 350ft.

P-3036 Wall Dock

P-3036 Output Wall Plate

Front

Rear

Front

TV or Video Display

Video Output

The built-in IR receiver

allows the P-3036 to

be controlled directly

by the A0505.

C V

HAN NEL IS ION

ZONE

POWER

MUTE

CAMERA

CATV

MOD

VOL

MODEL

A0505

POWER

C V

HANN EL ISIO N

ZONE

POWER

MUTE

CAMERA

CATV

MOD

VOL

MODEL

A0505

POWER

Next, use :

41 33 36 3B, 5 , nn, nn, nn, nn, nn, nn, nn, nn, nn, nn, [cs]

Get Track Artwork Data

, , , C

Length

Command

The index of the playing track

Format ID

Time

The iPod will

, , , , , , , 0D, 0A

Ret Track Artwork Times. For example:

nn, 04, 00 2B nn nn nn nn [cs]

Length in bytes - this depends on the artwork formats in the iPod

Lingo is the Extended Interface Lingo (0x04)

Command ID

Time offset (msec) from start of track where

the artwork is located.

Note: There maybe multiple times returned if there are

multiple pieces of artwork for a specific format ID.

Checksum

{

P-3036 Serial Protocol

Obtaining Artwork (continued)

Length in bytes - this depends on the artwork formats in the iPod

Lingo is the Extended Interface Lingo (0x04)

Command ID

Note: These bytes are only included in the first telegraph

packet. Subsequent packets only include artwork data.

Checksum

Artwork Data

{

The iPod will urnRet Track Artwork Data. For example:

nn,04,00 11 nn nn nn nn nn,nn,nn,nn,nn,nn,nn,nn,nn,nn,nn,nn,nn,nn,nn,[data],[cs], , , , , , , 0D, 0A

Telegraph Index. The data will be sent in multiple telegraph packets.

Row Size

Image Width in pixels

Image Height in pixels

Inset Rectangle Top-Left X value

Inset Rectangle Top-Left Y value

Inset Rectangle Bottom-Rigth X value

Format Pixel Code. See Description in RetArtworkFormat example

Inset Rectangle Bottom-Right Y value

+ Large Data Transfer Notice

Note: Large transfers of information from the iPod to the Dock and

Control System such as artwork images or large counts of data

records can result in older model iPods to pause playback briefly until

the data transfer completes.

All numbers are HEX values.

Note: commands begin with ASCII A36, which converts to HEX: 41, 33, 36

nn is used as a place holder for unknown bytes shown in the example below.

Use :Get Artwork Formats

Next, use :

41 33 36 35 5A nn, nn, nn, nn, [cs]

Get Indexed Playing Track Info

, , , ,

Length

Command

Checksum

The index of the playing track

The iPod will Artwork FormatsRet . For example:

The iPod will urnRet Indexed Playing Track Info. For example:

Length in bytes - this depends on the artwork

formats in the iPod

Length in bytes - this depends on the artwork

formats in the iPod

Lingo is the Extended Interface Lingo (0x04)

Command ID

Format ID. An iPod assigned value.

Artwork info for the track is being returned

Checksum

These 7 bites are

repeated for each

Artwork Format ID

These 4 bites

are repeated

for each Artwork

Format ID

Image Width in pixels

Count of artwork images in this

format ID for this track

Image Height in pixels

{

{{

{

{{

{

P-3036 Serial Protocol

Obtaining Artwork

Format Pixel Code. Values are:

0x01 = monochrome, 2 bpp (bits per pixel),

0x02 = RGB 565 color, little-endian, 16 bpp,

0x03 = RGB 565 color, big-endian, 16 bpp

Artwork Format ID

Use :

41, 33, 36, 37, 5B, nn, nn, nn, nn, nn, nn, [cs]

Get Track Artwork Times

Length

Command

Track index

Format ID

Checksum

{

115

6Control 54Control 32Control 1

VIDEOR-AUDIO-L

4®

UUS

Serial

Link

IR Emitters

Warning:

To prevent fire or shock hazard do not expose this unit to

rain or moisture.

654321

FOR HOME OR OFFICE USE

Channel Vision A4623

TestedTo Comply

With FCC Standards

1 2 3 4

Hi-Z

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

+ R - - L + + R - - L + + R - - L + + R - - L + + R - - L + + R - - L +

POWER

Input Voltage

50/60 Hz MAX 115W

230/115V~

FUSE

T3.15AL/250V 115VAC

IR signals detected by the A0127

keypad will be repeated back to

the A4623. This allows control

of the input sources.

The single-gang trim plate can be

used to hold a single-gang keypad

next to the iPod dock in a 3-gang

junction box. See installation section

for details.

Sample Wiring Diagram:

When used with the A4623

DVD player

A4623 Rear Panel

CD player

Connect an IR emitter output into the

“IR in”of the P-3036 output wall plate.

Power supply

not shown

RG59U

or RG6

IR-4180

RG59U

or RG6

CAT5

TV or Video Display

C V

HAN NEL IS ION

ZONE

POWER

MUTE

CAMERA

CATV

MOD

VOL

MODEL

A0505

POWER

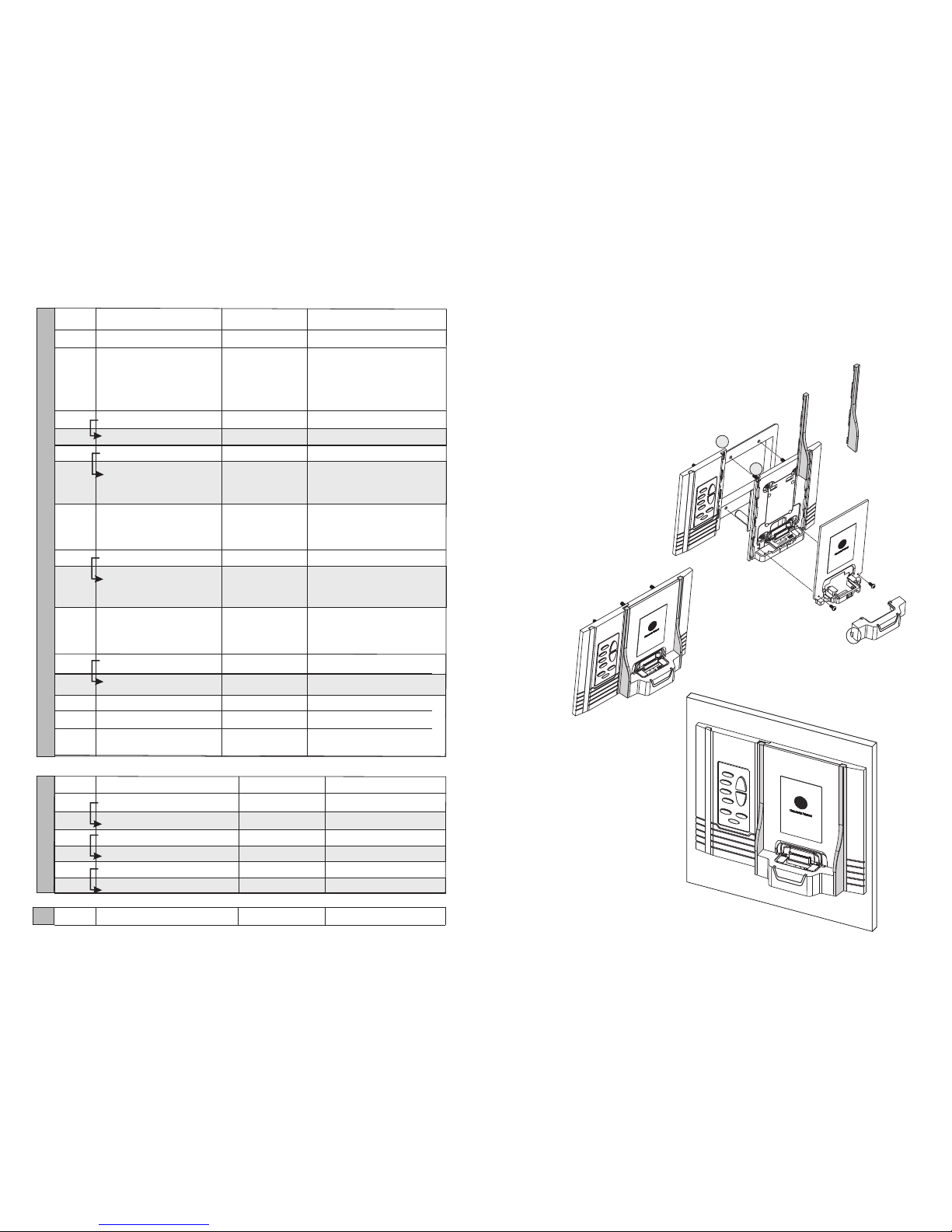

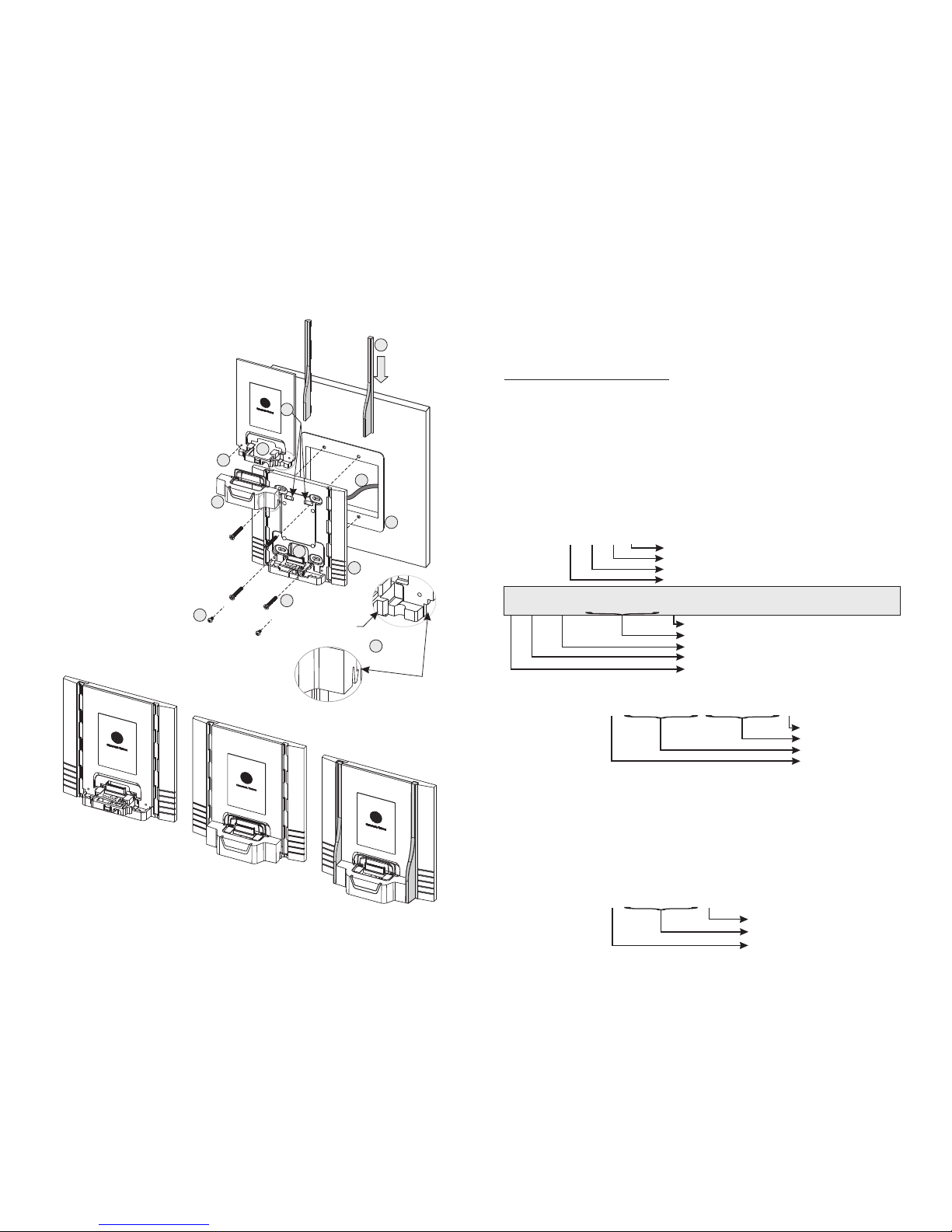

Installing the Wall Dock

Installation Steps

1. Connect all wiring.

2. Attach main chassis to j-box

using the provided four

6-32 screws.

3. Keep the dock connector

circuit board in position in the

opening in the front cover.

4. Hang the front cover on the

main chassis from the two

top tabs.

5. Secure the front cover with the

two small screws at the bottom.

6. Place the dock platform over

the slide rail and push

downward until the retention

snaps are engaged.

7. Slide the side protectors

into the slots on the main

chassis.

Completed Installation

Steps 3 & 4 complete

Steps 5 & 6 complete

Retention

Snap

Slide Rail

Your P-3036 Wall Dock comes mostly

assembled for safer travel.

Disassemble to the point of removing

the front cover and then install

following the steps below.

Artists Category

Select the 9th record

Wildcard checksum

To select the 9th record in the Artists database, use:

, 36, 42, 02, 00, 00, 00, 09, 7A

Select DB Record

41, 33, 36

Example:

The following example describes how to query the iPod database.

There are several database categories that can be queried.

Playlist (01)

Artists (02)

Albums (03)

Genres (04)

Tracks (05)

Category (HEX Number)

All numbers are HEX values.

Note: commands begin with ASCII A36, which converts to HEX:

Ask how many artists records there are by using the

command.

41 33 36

The database must be reset prior to a query. Use : 41 33

36 31 41 E4

41, 33, 36, 32, 43, 02, 7A

Reset DB Selection

Get Number Categorized DB Records

Length

Command

Artists Category

ASCII letter z is used as a wildcard checksum

Artists Category

*Start at record index 0

*Send 5 artists at a time

Wildcard checksum

Get 5 atabase records for artists starting at record index 0, by using the

command.

, 3A, 44, 02, 00, 00, 00, 00, 00, 00, 00, 05, 7A

41, 33, 36

Retrieve Categorized Database Records

The iPod will

, 19, 00, 00, 00, 70, 6C, 0D, 0A

urn Number BRet Categorized D Records. For example:

07, 04, 00

Length is 7 bytes (excluding checksum and end markers)

Lingo is the Extended Interface Lingo (0x04)

Command ID

There are 0x70 (112 Artists)records

Checksum

{

*The commas separate bytes so the largest valid decimal number will be 255

(or HEX FF). 4 bytes are reserved for the record index and 4 bytes are

reserved for the number of Artists requested in each transmission. For

numbers exceeding 255 (HEX FF), use the preceding (more significant) byte.

Examples:

00, 00, 00, 05 = There are 5 records

00, 00, 00, FF = There are 255 records

00, 00, 01, 01 = There are 257 records

P-3036 Serial Protocol

Non-Essential Commands

ASCII Command Hex Command

Function/Question

Com ID

Lingo (0x00)

0x0A

0x0D

0x0E

0x00

0x02

0x09

0x0F

0x10

[iPod data]

A3610[cs] 41 33 36 31 30 F5

Return iPod Model Num

Context Button Status, All Up

A361*[cs] 41 33 36 31 2A FB

Request iPod Model Num

A361,[cs]

[iPod data]

41 33 36 31 2C F9

[iPod data]

Request iPod Software Version

Return iPod Software Version

A362+ [cs]1

[iPod data]

41 33 36 32 2B [cs]1

[iPod data]

Request Lingo Protocol Version

Return Lingo Protocol Version

[iPod data]

ASCII Command Hex Command

Function/Question

Com ID

0x002E

0x002F

0x002D

0x002B

0x002A

0x0030

0x002C

0x0031

0x0028

0x0029

A365K [cs]1 2 3 4 41 33 36 35 4B [cs]1 2 3 4

Play Current Selection

41 33 36 37 5B [cs]1 2 3 4 5 6

[iPod data]

A362L [cs]1

A367[ [cs]1 2 3 4 5 6

[iPod data]

Play Control

Get Track Artwork Times

Return Track Artwork Times

A362P [cs]141 33 36 32 50 [cs]1

Set Repeat

(00 = No repeat,

01 = One,

02 = All)

A361O[cs] 41 33 36 31 4F D6

[non-ASCII values]

Get Repeat

Return Repeat

A362N [cs]1

41 33 36 32 4E [cs]1

None: 04 04 00 2D 00 CB 0D 0A

None: 04 04 00 30 00 C8 0D 0A

Song: 04 04 00 2D 01 CA 0D 0A

One: 04 04 00 30 01 C7 0D 0A

Album: 04 04 00 2D 02 C9 0D 0A

All: 04 04 00 30 02 C6 0D 0A

Set Shuffle

(00 = No shuffle,

01 = Song,

02 = Album)

A361M[cs] 41 33 36 31 4D D8

[non-ASCII values]

Get Shuffle

Return Shuffle

P-3036 Serial Protocol

0x0038

0x0037

0x0035

0x003B

0x0036

A367S [cs]1 2 3 4 5 6 41 33 36 37 53 [cs]1 2 3 4 5 6

Select Sort DB Record

A365R [cs]1 2 3 4 41 33 36 35 52 [cs]1 2 3 4

Set Current Playing Track

A361Q[cs]

A362T [cs]1

[iPod data]

41 33 36 31 51 D4

41 33 36 32 54 01 CF - Audio

41 33 36 32 54 02 CE - Video

[iPod data]

Get Num Playing Tracks

Reset DB Select Hierarch

Return Num Playing Tracks

Extended Interface Lingo (0x04) Commands

41 33 36 32 4C [cs]1

01 - Toggle Play/Pause, 02 - Stop,

03 - Next Track, 04 - Prev Track,

05 - Start FFW, 06 - Start REW,

07 - End FFW/REW, 08 - Next, 09 - Prev,

0A - Play, 0B - Pause, 0C - Next Chap

0D - Prev Chap

Installing the Wall Dock

Installation Steps

1. Connect all wiring. Use the correct

installation tools: J-110 tool, or

1014 crimp tool.

2. Install keypad and single-gang

trim plate in the far left position

of the 3-gang junction box.

(See details on page 3)

3. Leave off the right side

flange and trim piece.

4. Install the iPod dock in the

left side of the 3-gang j-box.

It will overlap and snap into

the single gang trim plate.

(See page 5 for details)

In some installations it may be desirable to mount a single gang control

keypad next to the P-3036. To accomplish this, the single gang trim plate

can be installed next to the P-3036 in a 3-gang junction box.

Follow the steps below:

Completed Installation

See attachment

detail on previous page

Docking the iPod

The dock platform can slide up to hide

the dock connector when the system is

not in use. Make sure the dock platform

is in the down position so the dock

connector is exposed (as shown here).

The sliding dock lever beneath the dock adjusts the position of the

dock connector to create a perfect fit for all compatible iPods (see

page 3 for a list of compatible iPods).

The Macro commands listed below simplify a multi-step process into a single

command. They work as shortcuts to make programming easier.

P-3036 Serial Protocol

ASCII Command Hex Command

Function/Question

Com ID

Extended Interface Lingo (0x04) Commands

0x001C

0x0023

0x001D

0x0024

0x0021

0x001F

0x0026

0x001E

0x0025

0x0022

0x0020

0x0027

A365I [cs]1 2 3 4

[iPod data]

41 33 36 35 49

[cs]

1 2 3

[iPod data]

Get Indexed Playing Track Album Name

Return Indexed Playing Track Album Name

Get Indexed Playing Track Artist Name

A362J [cs]1

[iPod data]

41 33 36 32 4A [cs]1

00 - Playback Stopped

01 - New Track Index, Index

02 - Playback FFW seek stop

03 - Playback REW seek stop

04 - Time offset, 4 bytes mSec

05 - New Chapter Index, Index

06 - Extended Playback Status

07 - Time Offset, 4 bytes Sec

Set Play Status Change Notification

Play Status Change Notification

A365H

[cs]

1 2 3

41 33 36 35 48

[cs]

1 2 3

Get Indexed Playing Track Artist Name

A365G

[cs]

1 2 3

[iPod data]

41 33 36 35 47

[cs]

1 2 3

[iPod data]

Get Indexed Playing Track Title

Macro

A361a[cs]

A361b[cs]

A361c[cs]

41 33 36 31 61 C4

41 33 36 31 62 C3

41 33 36 31 71 B4

41 33 36 31 72 B3

41 33 36 31 73 B2

41 33 36 31 63 C2

Get Current Playing Track Title

Get Current Playing Track Artist Name

Get Current Playing Track Album Name

Return Indexed Playing Track Title

A365F[cs]

[iPod data]

41 33 36 35 46 [cs]

[iPod data]

4-bytes, track length mS

4-bytes, track position mS

play state: 00 = stopped

01 = playing

02 = paused

Get Current Playing Track Index

Return Current Playing Track Index

Return Play Status

A361E[cs] 41 33 36 31 45 E0

Get Play Status

Notification Off

Full Notification - updates every 500ms

Notification Off

Full Notification - updates every 500ms

Limited Notification

Play 1st Playlist (Alphabetic order)

Play 2nd Playlist (Alphabetic order)

Play 3rd Playlist (Alphabetic order)

A361q[cs]

A361r[cs]

A361s[cs]

41 33 36 32 4A 00 DA

41 33 36 32 4A 01 D9

41 33 36 32 5D 00 C7

41 33 36 32 5D 01 C6

41 33 36 32 5D 02 C5

41 33 36 32 5D [cs]1

A362 ] [cs]1

0x0026 Set Play Status Change Notification

(Command only works on newer iPods)

There are 3 Macro commands listed below. These special commands

automatically start playing one of the first 3 Playlists by alphabetical order.

A3612[cs] 41 33 36 31 32 F3

Context Button Status, Next Track

A3611[cs]

41 33 36 31 31 F4

Context Button Status, Play/Pause

41 33 36 31 33 F2

A3613[cs]

Context Button Status, Prev Track

A361<[cs] 41 33 36 31 3C E9

A361;[cs] 41 33 36 31 3B EA

Context Button Status, Begin FFW

A361:[cs] 41 33 36 31 3A EB

Context Button Status, Repeat Advance

(No repeat, Repeat one, Repeat all)

A3619[cs] 41 33 36 31 39 EC

Context Button Status, Shuffle Advance

(No shuffle, shuffle song, shuffle album)

A3618[cs] 41 33 36 31 38 ED

Context Button Status, Prev Playlist

A3616[cs] 41 33 36 31 36 EF

Context Button Status, Pause

A3615[cs]

41 33 36 31 35 F0

Context Button Status, Play/Resume

A3614[cs] 41 33 36 31 34 F1

Context Button Status, Stop

ASCII Command Hex Command

Function/Question

A3617[cs] 41 33 36 31 37 EE

Context Button Status, Next Playlist

Context Button Status, Begin RRW

Com ID

Simple Remote Lingo (0x02) Commands

0x00

ASCII Command Hex Command

Function/Question

Com ID

Extended Interface Lingo (0x04) Commands

0x000C

0x0017

0x000D

0x0018

0x0011

0x000F

0x001A

0x000E

0x0019

0x0016

0x0010

0x001B

A361Y[cs]

[iPod data]

41 33 36 31 59 CC

[iPod data]

Get Artwork Formats

Ret Artwork Formats

A365Z

[cs]

1 2 3

[iPod data]

41 33 36 35 5A

[cs]

1 2 3

[iPod data]

Get Indexed Playing Track Info

Return Indexed Playing Track Info

41 33 36 3B 5C

[cs]

1 2 3

4 5 6 7 8 9 10

[iPod data]

A36;\

[cs]

1 2 3 4 5

6 7 8 9 10

[iPod data]

Get Track Artwork Data +

Ret Track Artwork Data +

A362C [cs]1

[iPod data]

41 33 36 32 43 [cs]1

[iPod data]

Get Number Categorized DB Records

Return Number Categorized DB Records

Return Categorized Database Records+

A366B

[cs]

1 2 3 4

41 33 36 36 42

[cs]

1 2 3

4 5

Select DB Record

A361A[cs] 41 33 36 31 41 E4

Reset DB Selection

A36:D

[cs]

1 2 3 4 5

6 7 8 9

41 33 36 3A 44

[cs]

1 2 3

4 5 6 7 8 9

Retrieve Categorized Database Records+

You must Enter the Remote UI Mode before issuing any of the “Extended

Interface Lingo”commands. If an Extended Interface command is issued when

the system is not in Remote UI Mode, it will respond with the “Not in Extended

Mode”response (See “Special Lingo”section).

P-3036 Serial Protocol

All Simple Remote Lingo commands will receive a double # (0x23) ACK from the dock

with no further ACK command or reply.

C VHAN N E L ISI O N

ZONE

POWER

MUTE

CAMERA

CATV

MOD

VOL

MODEL

A0505

POWER

We realize that custom integrators way wish to design advanced control systems. To

provide assistance we have published the hex codes for the IR commands (see below).

(IR codes can be downloaded at: )

Hex codes for IR commands:

iBus Play/Pause:

0000 006D 0000 000B 001F 001F 001F 001F 003F 003F 001F 001F 001F 001F 001F 001F

003F 001F 001F 001F 001F 003F 003F 003F 001F 0CA2

iBus Skip <<:

0000 006D 0000 000B 001F 001F 003F 001F 001F 003F 001F 001F 001F 001F 001F 001F

003F 001F 001F 003F 001F 001F 003F 003F 001F 0CA2

iBus Skip >>:

0000 006D 0000 000A 001F 001F 001F 001F 003F 003F 001F 001F 001F 001F 001F 001F

003F 003F 003F 001F 001F 003F 003F 0CC3

www.channelvision.com

Using the A0505 Remote Control

The buttons above the iBus

label on the A0505 remote

control will mimic the

functions on the iPod wheel.

The volume, mute, power, and source buttons

on the A0505 are designed to control Channel

Vision’s whole-house audio systems such as

the A4603 and P-1044.

Please note that this remote will only function

when your iPod is docked in the wall

dock. It can be pointed directly at the wall

dock or at an IR receiver that is part of an

external whole-house IR system. An IR-4180

cable can be used to connect the emitter

output of the whole-house IR system into the

IR IN of the output wall plate. See page

5 of this manual for an example.

P-3036

P-3036 Serial Protocol

RS-232 Control Code:

checksum

NOTE:

For more complex installations, the supports RS-232 making it well

suited for use with automation systems. 8 Bit Data,

When calculating the checksum of iPod responses, the sum of all the bytes

from the packet payload length to and including the packet payload checksum

is 0x00.

When calculating the checksum of commands issued to the iPod, the sum of

ALL bytes, including the “A36”prefix, as well as the checksum is 0x00.

Responses in the Special Lingo are also calculated in this way.

P-3036

Baud Rate: 57600, 8N1 ( -

No Parity, 1 Stop Bit)

The is calculated by adding the bytes together as signed 8-bit

values, discarding any signed 8-bit overflow, and then negating the sum to

create the signed 8-bit checksum byte.

to issue commands without calculating a checksum, you can use the

ASCII lowercase ‘z’(0x7A) as a wildcard checksum value.

There are two possible responses generated when a command is received:

#(0x23) - This acknowledges that the command was received and it had a

valid check sum.

Y(0x59) - This means there was a length error with the command.

ZZZ(0x5A) - This means that the command was not understood. It could also

mean that the check sum was not valid.

Serial Cable Pin Out

P-3036 RS-232 Pins

DB-9P, Female

PC RS-232 Pins

DB-9P, Male

Message Payloads are shown in italics: are represent a HEX byte

followed by

1 2 3 4 5 ... ,

[cs] = Check Sum. All understood commands will elicit a

, which is not shown in the tables below. Other commands will

also elicit an additional response in the form of a “Return”command.

‘#’ (0x23)

acknowlegement

The format of responses is as follows:

# {Length} {Lingo} {CommandID} {Message} {Checksum} {Carriage Return} {Line Feed}

Acknowledge the command was received

Length of the response, measureswhich the Lingo, Com ID, and the Message.

The iPod Lingo

Com ID

Message from the iPod

Checksum value

HEX 0D

HEX 0A

Note: The gray sections in the following tables denote responses from the iPod

or iPod dock. The Special Lingo contains special messages and errors

indications to provide useful status information.

Parsing Example: Suppose we have Requested the Remote UI Mode and we

want to understand the response. Assume the response (in Hex) was:

23 03 00 04 01 F8 0D 0A

Acknowledge the command was received

The Length is 3 bytes, which are the Lingo, Com ID, and the Message.

The iPod Lingo is 00, which is the basic lingo.

Com ID is 04, so, this is the “Return Remote UI Mode”message.

Message from the iPod is 01, so, the Remote UI Mode is “On”.

Checksum value

Carriage Return We know the message has ended

Line Feed

}

*All name data from the iPod (iPod name, song name, etc.) is transmitted as a

null-terminated UTF-8 character array, so the presence of 0x00 marks the end

of the name.

The commands below are for simple transport control of the iPod.

There is no reply from the iPod dock beyond the basic ‘#’acknowledgment.

0x03

0x07

0x05

0x04

0x08

0x06

A361)[cs] 41 33 36 31 29 FC

Request iPod Name

A361([cs] 41 33 36 31 28 FD

Exit Remote UI Mode

A361’[cs]

[non-ASCII values]

[iPod data*]

41 33 36 31 27 FE

ON: 03 00 04 01 F8 0D 0A

OFF: 03 00 04 00 F9 0D 0A

[iPod data*]

Enter Remote UI Mode

Return Remote UI Mode

Return iPod Name

A361&[cs]

41 33 36 31 26 FF

Request Remote UI Mode

ASCII Com Hex Com

Function/Question/Response

Com ID

General Lingo (0x00)

P-3036 Serial Protocol

[non-ASCII values]

A362[nak][nul][cs]

A362[nak][sch][cs]

03 21 25 00 B7

03 21 00 00 DC

41 33 36 32 15 00 0F

41 33 36 32 15 01 0E

[non-ASCII values] 03 21 24 00 B8

[non-ASCII values] 03 21 23 00 B9

[non-ASCII values]

03 21 22 00 BA

[non-ASCII values] 03 21 21 00 BB

0x21

0x20

0x22

0x23

0x24

0x25

0x00

0x15

ASCII Message Hex Message

NACK (repeat command)

(Automatic Response)

ACK of command received &

executed by iPod

Dock Soft Reset

Dock Hard Reset {reboot}

Not in Extended Mode

(Automatic Response)

Incompatible iPod (No Auth)

(Automatic Response)

iPod Inserted/Connected

iPod Removed/Not Connected

Notification Messages

A361[sp][cs] 41 33 36 31 20 05

Is iPod Connected?

Com ID

Special Lingo (0x21)

Indice

Manuali Stazione di attracco popolari di altre marche

Sony

Sony Dream Machine XDR-DS12iP Manuale utente

Acer

Acer USB Type-C Dock II Manuale utente

ATEN

ATEN UC-2000 Manuale utente

Xcellon

Xcellon HDD-202 Manuale utente

Dok

Dok CR09 Manuale utente

Philips

Philips BTM630/12 Manuale utente

IOGear

IOGear Travel Pro GUD3C09 Manuale utente

RKI

RKI SDM-E2 Manuale utente

iHome

iHome iP15 Manuale utente

VITURE ONE

VITURE ONE MOBILE DOCK Manuale utente

Lindy

Lindy 42984 Manuale utente

CipherLab

CipherLab 8001 Manuale utente

Pyle

Pyle PIPDSP2 Manuale utente

Avol

Avol AS2350 Manuale utente

Datalogic

Datalogic JoyaTouch Manuale utente

Philips

Philips DC190/79 Manuale utente

Targus

Targus DOCK315EUZ Manuale utente

Akasa

Akasa DuoDockX3 AK-DK08U3-BK Manuale utente
