ARIESAUTOMOTIVE.COM •NEED ASSISTANCE? •877.287. 8 63 4 •1110313-INS-RB •PAGE 1

Product Registration and Warranty

ARIES stands behind our products with industry-leading warranties. To get copies of the product

warranties, register your purchase or provide feedback, visit: warranty.curtgroup.com/surveys

INSTALLATION MANUAL 1110313

Parts List

1Driver / left bracket

1Passenger / right bracket

2Spacer, 5/8"

4Spacer, 1/2"

4Button head screw, M6

4Flat washer, M6

4Lock washer, M6

2Button head screw, M8

2Flat washer, M8

2Lock washer, M8

4Carriage bolt, 1/4"

4Flat washer, 1/4"

4Nylock nut, 1/4"

Tools Required

Torque wrench -- Maintenance

To protect the product, wax after installing. Regular waxing is recommended

to add a protective layer over the finish. Do not use any type of polish or wax

that may contain abrasives that could damage the finish.

For polished, gloss and other smooth finishes,

polish may be used to clear small scratches and scuffs on the finish.

Mild automotive detergent may be used to clean the product. Do not use dish detergent, abrasive

cleaners, abrasive pads, wire brushes or other similar products that may damage the ﬁnish.

Product PhotoLevel of Difﬁculty

Easy

NOTICE

Before you begin installation, read all instructions thoroughly.

Proper tools will improve the quality of installation and reduce the time required.

To help prevent damage to the product or vehicle, refer to the specified

torque specifications when securing hardware during the installation process.

Torque Speciﬁcations

Metric

M6 bolt 3 ft-lbs.

M8 bolt 7 ft-lbs.

M10 bolt 16 ft-lbs.

M12 bolt 28 ft-lbs.

SAE

1/4" bolt 3 ft-lbs.

5/16" bolt 7 ft-lbs.

3/8" bolt 16 ft-lbs.

7/16" bolt 20 ft-lbs.

1/2" bolt 28 ft-lbs.

Use above torque setting unless otherwise noted

ARIESAUTOMOTIVE.COM •NEED ASSISTANCE? •877.287. 8 63 4 •1110313-INS-RB •PAGE 2

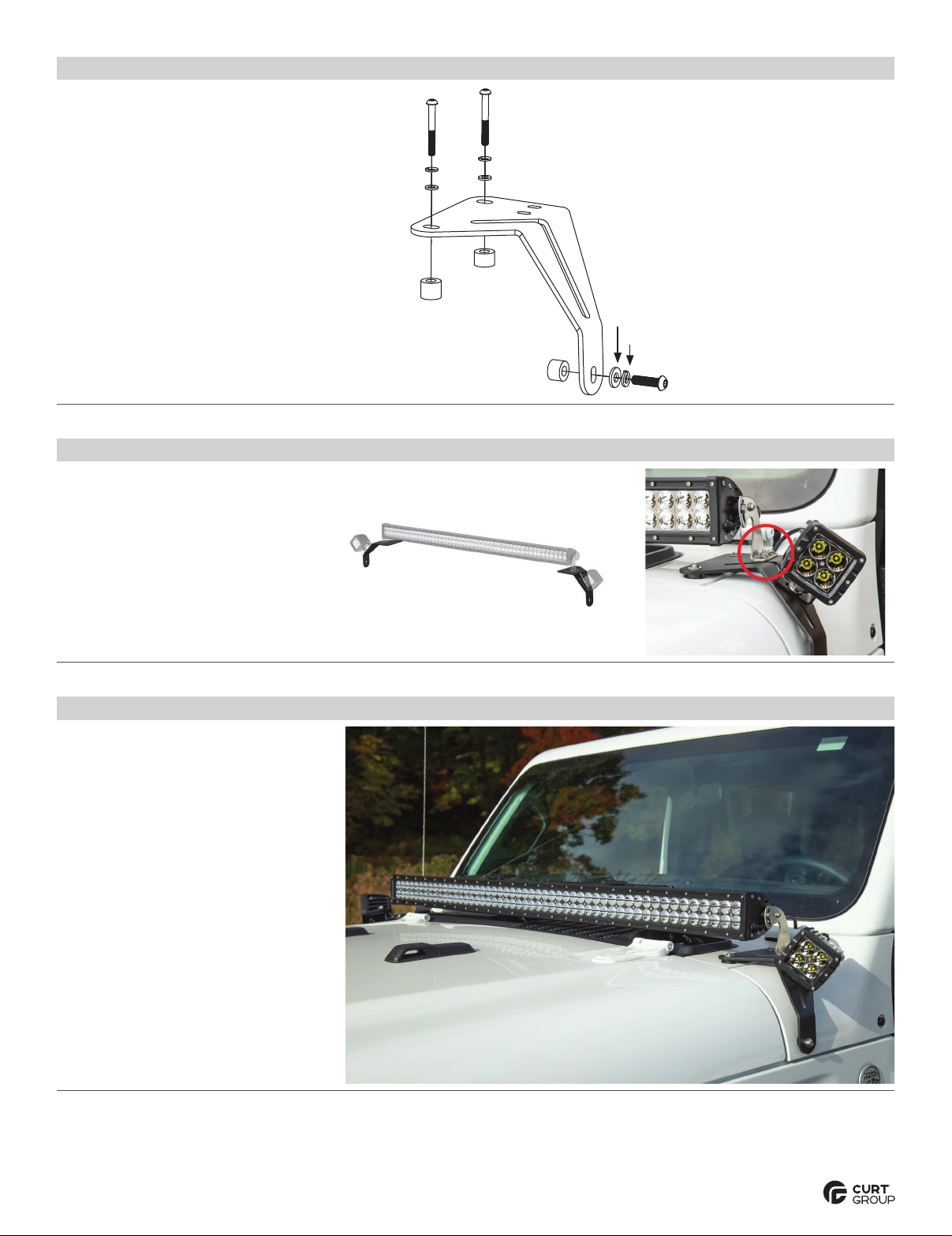

Step 1

Starting on the driver side, locate

the mounting points on the vehicle.

Remove any existing hardware.

On the side attachment, use a 1/2" spacer,

an M8 bolt, lock washer and flat washer to

secure the bracket to the vehicle.

On the top attachment, use a 5/8"

spacer, a 1/2" spacer, two M6 bolts,

lock washers and flat washers to

secure the bracket to the vehicle.

Repeat on the passenger side.

M6 bolt

M6 bolt

M6 lock washer

M6 lock washer M6 ﬂat washer

M6 ﬂat washer

1/2"

spacer

1/2"

spacer

5/8"

spacer M8 lock washer

M8 bolt

M8 ﬂat washer

Step 3

Congratulations on the installation

of your new ARIES LED light bar brackets.

With the brackets installed, periodic

inspections should be performed to ensure

all mounting hardware remains tight.

To protect your investment, see the

'Notes and Maintenance' section on page one.

Step 2

To install a 50" LED light bar (part# 1501278

- sold separately), use two 1/4" carriage bolts,

flat washers and nylock nuts per side at each

mounting location.
