Ariston ARU52X Manuale utente

USER MANUAL

520 & 750 // UNDERMOUNT HOOD

ARU52X |ARU75X

www.aristonbrand.com

IMPORTANT // Please ensure that you read through this user manual prior to installation and use. This

manual contains important information to ensure optimal performance and keep you safe. Please retain

your proof of purchase, as this will be required in the event that you require warranty service. Remember

to retain this manual for future reference.

pg 2

HELLO

CONGRATULATIONS ON THE SELECTION OF THIS ARISTON APPLIANCE.

ARISTON APPLIANCES HAVE BEEN SPECIFICALLY DESIGNED FOR

AUSTRALIAN AND NEW ZEALAND KITCHENS.

Please read through this user manual carefully as it contains information

that will ensure that your appliance is installed correctly, important operating

& care instructions and also some advice of what you need to do if this

appliance is not performing as intended.

www.aristonbrand.com |

pg 3

HELLO 2

CONTENTS 3

WARNING & SAFETY INFORMATION 4

INSTALLATION & DUCTING 5

OPERATING INSTRUCTIONS 7

MAINTAINING YOUR RANGEHOOD 8

PRODUCT SPECIFICATION 9

PROOF OF PURCHASE 10

NOTES 11

CONTACT DETAILS 12

CONTENTS

|www.aristonbrand.com

www.aristonbrand.com |

pg 4

WARNING &

SAFETY

INFORMATION

This appliance is not intended for use

by persons (including children) with

reduced physical, sensory or mental

capabilities, or lack of experience and

knowledge, unless they have been

given supervision or instruction

concerning use of the appliance by a

person responsible for their safety.

Young children should be supervised

to ensure that they do not play with the

appliance.

There shall be adequate ventilation of

the room when the rangehood is used

at the same time as appliances burning

gas or other fuels.

You must read the details concerning

the method and frequency of cleaning.

There is a fire risk if cleaning is not

carried out in accordance with the

instructions.

Do not flambé under the rangehood.

Exhaust air must not be discharged

into an existing flue which is used for

exhausting fumes from appliances

burning gas or other fuels.

The minimum distance between the

hob surface and the lowest part of the

rangehood is 600mm. This distance

shall be at least 650mm, if the

rangehood is installed over a gas hob.

If the instructions for the gas hob

specify a greater distance, this has to

be taken into account.

Attention should be given to ensure that

any applicable regulations concerning

the discharge of exhaust air is fulfilled.

If the supply cord of this equipment is

damaged, it must only be replaced by

the manufacturer or its service agent or

a similarly qualified person in order to

avoid a hazard.

This appliance has been designed for

indoor domestic use only.

Do not remove or inspect the filters

whilst the hood is in operation.

INSTALLATION &

DUCTING

IMPORTANT // Before handling the rangehood during installation, it is recommended

that you remove the filter to prevent damage.

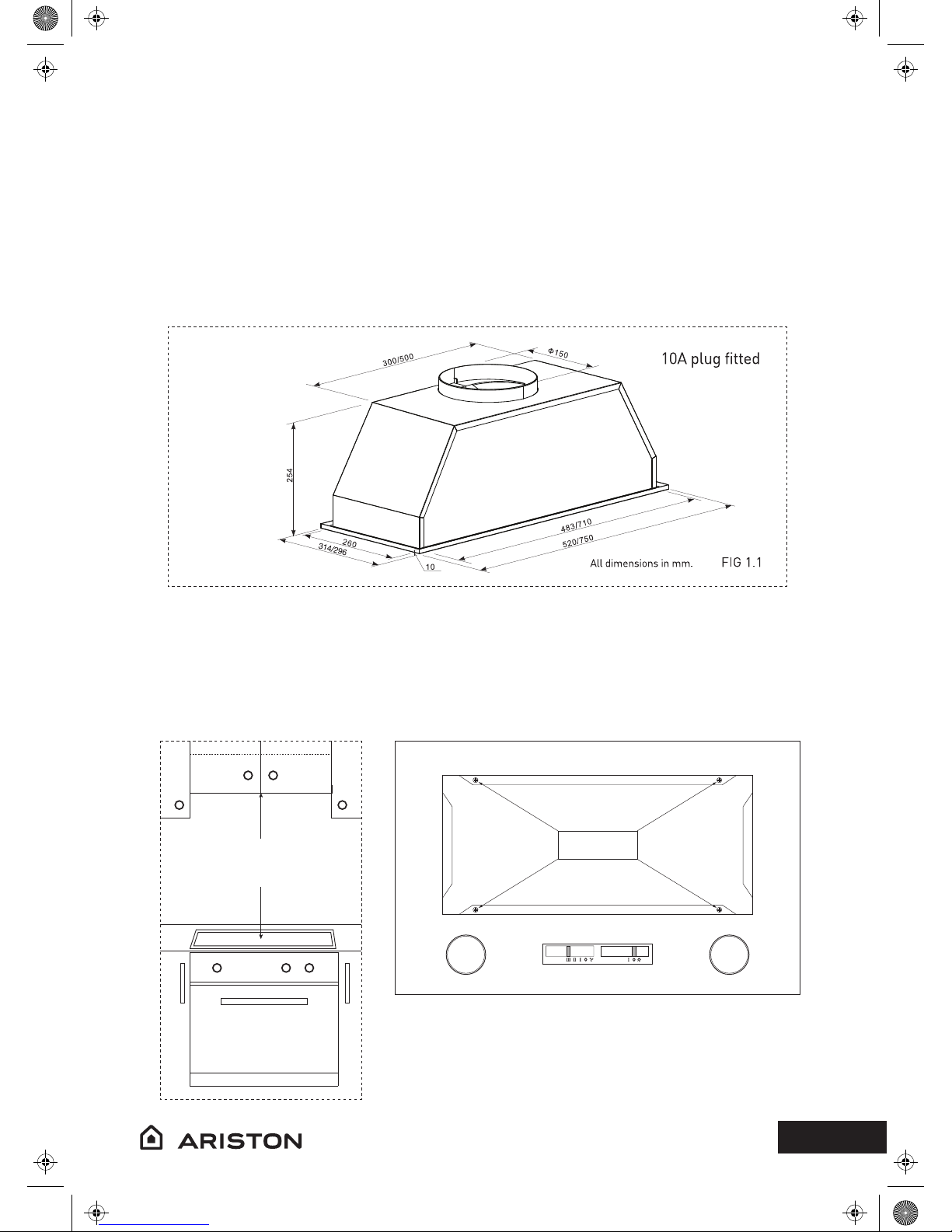

Fig 1.2 illustrates the minimum height from the hob surface to the underside of the

rangehood. Electric hob – 600mm, Gas hob - 650mm.

NOTICE // If the instructions for the gas hob

specify a greater distance, this has to be

observed. Any installation above 750mm will

compromise performance.

4 Fascia Screws

|www.aristonbrand.com pg 5

FIG 1.2

Minimum Height

Electric Hob 600mm

Gas Hob 650mm

www.aristonbrand.com |

pg 6

INSTALLATION &

DUCTING

NOTICE // ALL DUCTING MATERIAL MUST BE COMPLIANT WITH THE LOCAL

LAWS IN FORCE.

INSTALLATION

1. Remove the filter and light globes. (If installed)

2. Remove the stainless steel fascia (4 screws) – take care not to damage the fascia.

3. Determine the most efficient path for the ductwork, minimise bends and keep the

length of the ductwork to a minimum.

4. It is important to run and finish (install roof / wall caps) prior to installation of

the hood.

5. Cut out the cabinetry as per the installation diagram. Ensure that access has been

allowed for the power cable.

6. Hold the hood up to the underside of the cabinet (2 people required); Screw the

hood to the cabinetry.

7. Attach the ducting adaptor to the ducting.

8. Re-install the stainless steel fascia.

9. Re-install filter.

10. Plug in the power to the unit, turn on and test.

WARNING // Do not penetrate any screws into the rangehood as this may result in

electrical hazards. Failure to install the screws or fixing device in accordance with these

instructions may result in electrical hazards.

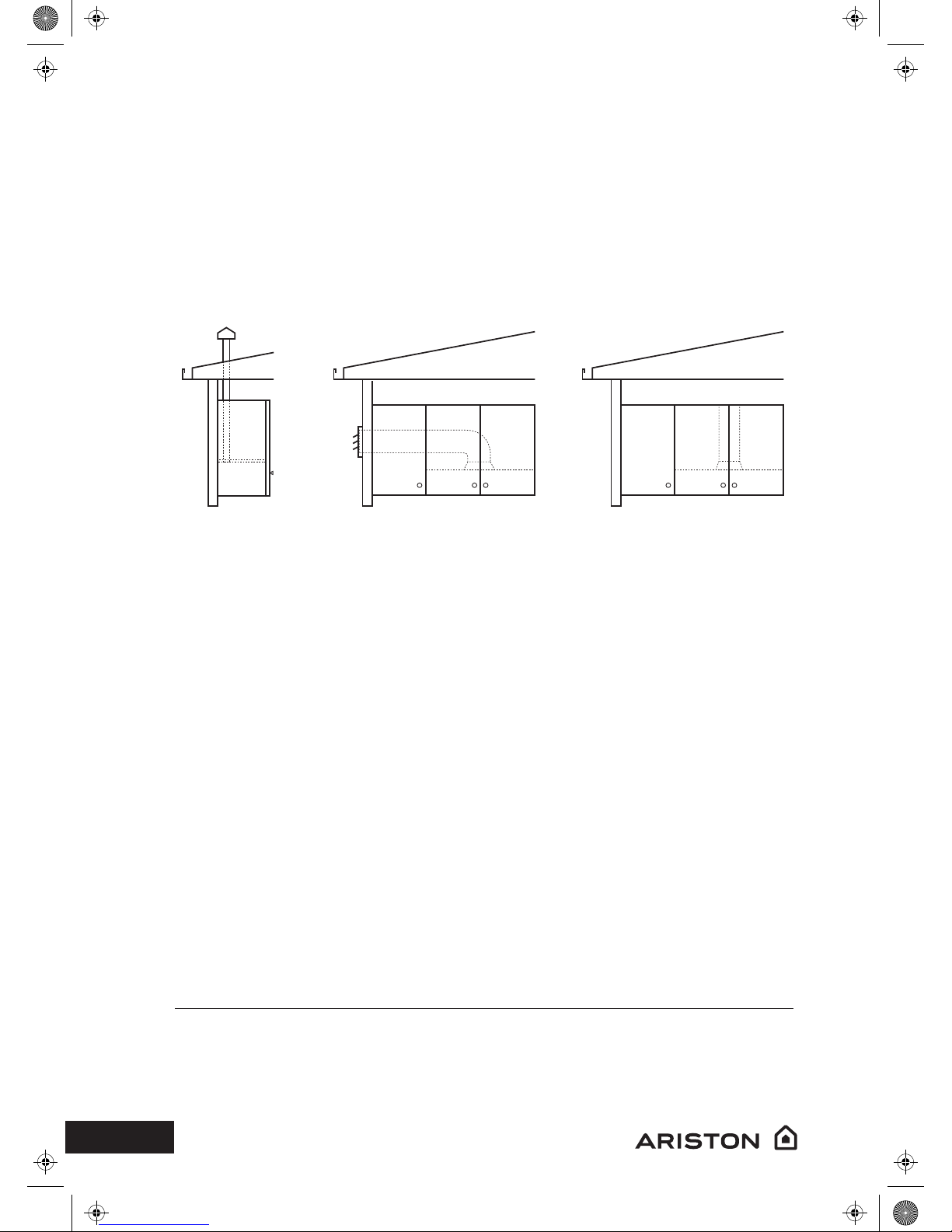

RE-CIRCULATING

(Carbon filter required)

TOP DUCTING SIDE DUCTING

DUCTED OPTION

|www.aristonbrand.com pg 7

OPERATING

INSTRUCTIONS

FAN SPEED

OFF/LOW/MEDIUM/HIGH switch - located on the left hand side of the control panel.

This unit features 3 speed settings; single line indicate low speed, double lines indicate

the medium speed & triple lines indicate high speed.

To turn the unit off, set the speed switch to the 0 position (off).

LIGHT

On/Off switch - located on the right hand side of the control panel as indicated in the

diagram above.

www.aristonbrand.com |

pg 8

GENERAL MAINTENANCE

Ensure that the power to the unit is switched off prior to cleaning the unit. Surface should

only be cleaned with warm soapy water and a soft non-abrasive cloth. In coastal

environments and humid areas more frequent cleaning is required to maintain the finish.

FILTERS

These filters should be cleaned frequently, dependant on use (minimum monthly).

Aluminium filers are dishwasher safe or can be cleaned with hot soapy water. Ensure that

filters are thoroughly dry before re-installing. Slight discolouration may occur when

cleaned in the dishwasher.

LAMPS

Your range hood is fitted with GU10 halogen lamps. Before replacing, ensure that lamps

are completely cool and the power to the unit has been switched off. Replacement lamps

can be purchased from your nearest service centre.

To remove the lamp, twist the lamp in an anti-clockwise direction. Be careful when

installing the new lamp not to make contact with the skin as this may damage the lamp

and shorten its life.

MAINTAINING

YOUR

RANGEHOOD

|www.aristonbrand.com pg 9

PRODUCT

SPECIFICATION

www.aristonbrand.com

5364

Australia: 1300 815 589

For service please call:

New Zealand: 09 306 1020

ISS:

MODEL: SERIAL:

230V ~ 50Hz

Motor:Total:

Lights

2307008

ARU75X

100W180W

2 x 40W

5364

Australia: 1300 815 589

For service please call:

New Zealand: 09 306 1020

MODEL: SERIAL:

230V ~ 50Hz

Motor:Total:

Lights

www.aristonbrand.com

ARU52X

100W180W

2 x 40W

ISS: 2307007

www.aristonbrand.com |

pg 10

PROOF OF

PURCHASE

ATTACH YOUR PROOF OF PURCHASE

FOR FUTURE REFERENCE
