Operation & Use
The unit may be used as a light, fan, single twin or double twin heat lamps or
any combination thereof, simply by switching on the desired function switch
as identified on the 4 gang switch wallplate.
Switch off all functions when finished.
When running the heat lamps and in steamy atmospheres it is recommended
that the fan is kept running also.
Care and Cleaning:
Dust and grime will build up on the unit and should be regularly removed.
1. Ensure the unit is switched off at the 4 gang wall switch and allow lamps to
cool.
2. Using a wrung out dampened cloth, wipe the fascia and globe faces.
3. Dry off using a soft dry cloth. Avoid the use of harsh detergents, scouring
pads, solvents, polishes, abrasive or aerosol cleaners, as they may damage
surfaces on the product.
Replacement Lamps:
Ensure power is switched off and allow lamps to cool completely before
replacing lamps.
Heat Lamps - Hard Glass Infra red ES type 4 x 275W 240Vac
Reflector backed Lamp - R80 ES 100W 240Vac
Warranty
Arlec guarantees this product in accordance with the Australian
Consumer Law.
Arlec also warrants to the original first purchaser of this product (“you”)
from a retailer that this product will be free of defects in materials and
workmanship for a period of 12 months from the date of purchase; provided
the product is not used or installed other than for the purpose, or in a manner
not within the scope of the recommendations and limitations, specified by
Arlec, is new and not damaged at the time of purchase, has been properly
installed by a licensed electrician or contractor who is licensed to install
electrical products in the place in which the product was installed and in
accordancewithArlec’sinstallationinstructions,hasbeenmaintainedin
accordance with the recommendations specified by Arlec, has not been
subjectedtoabuse,misuse,neglectordamage,hasnotbeenmodiedor
repaired without the approval of Arlec and has not been used for, or installed
in premises which are used for, commercial purposes (“Warranty”).
If you wish to claim on the Warranty, you must, at your own expense, return
the product or that part of the product which you believe is defective in
materials and workmanship, and provide proof of original purchase, your
name, address and telephone number and a certificate of installation or other
document required by law for the installation of electrical products in the
place in which the product was installed issued by the licensed electrician
or contractor who installed the product, to Arlec at the address below within
12 months from the date of purchase. Please note that the Warranty does
not cover removal or re-installation of the product or that part of the product
which you believe is defective.
Arlec will assess any claim you may make on the Warranty in the above
mannerandif,inArlec’sreasonableopinion,theWarrantyapplies,Arlecwill
at its own option and expense replace the product (or part of the product)
with the same or similar product (or part of the product) or repair the product
(or part of the product) and return it to you or refund the price you paid for the
product. Arlec will bear its own expenses of doing those things, and you must
bear any other expenses of claiming on the Warranty.
The Warranty is in addition to other rights and remedies you may have under
a law in relation to the product to which the Warranty relates.
Our goods come with guarantees that cannot be excluded under the
Australian Consumer Law. You are entitled to a replacement or refund for a
majorfailureandforcompensationforanyotherreasonablyforeseeableloss
or damage. You are also entitled to have the goods repaired or replaced if
the goods fail to be of acceptable quality and the failure does not amount to a
majorfailure.
Installation Instructions
This product must be mounted with the lowest point at least 2 metres above
the floor, with a minimum distance of 400mm from any vertical wall surface.
The product must be supported on a minimum of two alternate sides and can
beinstalledagainstajoistusingthreescrewsthroughholeslocatedinthe
flange provided that clearances for two vertical sides are maintained with a
15mm minimum clearance.
If adequate support is not available for the heat lamp & fan, it may be
necessary to provide extra supports.
If installing in restricted roof space using the supplied flue duct. make sure
the product is located within 1.5m of an outside, well ventilated area, with
free access to route the duct to the product.
IMPORTANT: To avoid back flow of gases into the room, site the
external end of the duct well away from open flues of gas or
open fire appliances.
Installation
1. After determining the location of the product, mark out and cut a
290mm x 290mm aperture in the ceiling using these instructions as
a template. In positioning the product, make sure no structural
or load bearing materials are removed or altered in any way.
2. Remove all lamps from the product. Remove the lamp surround by releasing
four springs (one in each corner) through the lamp openings.
3. Push the product into the ceiling aperture, ensuring the fan outlet is facing
an unrestricted area.
4. Secure using a minimum of 3 screws through the flange of the product on
two alternate sides into solid fixing material. (Fig. 04).

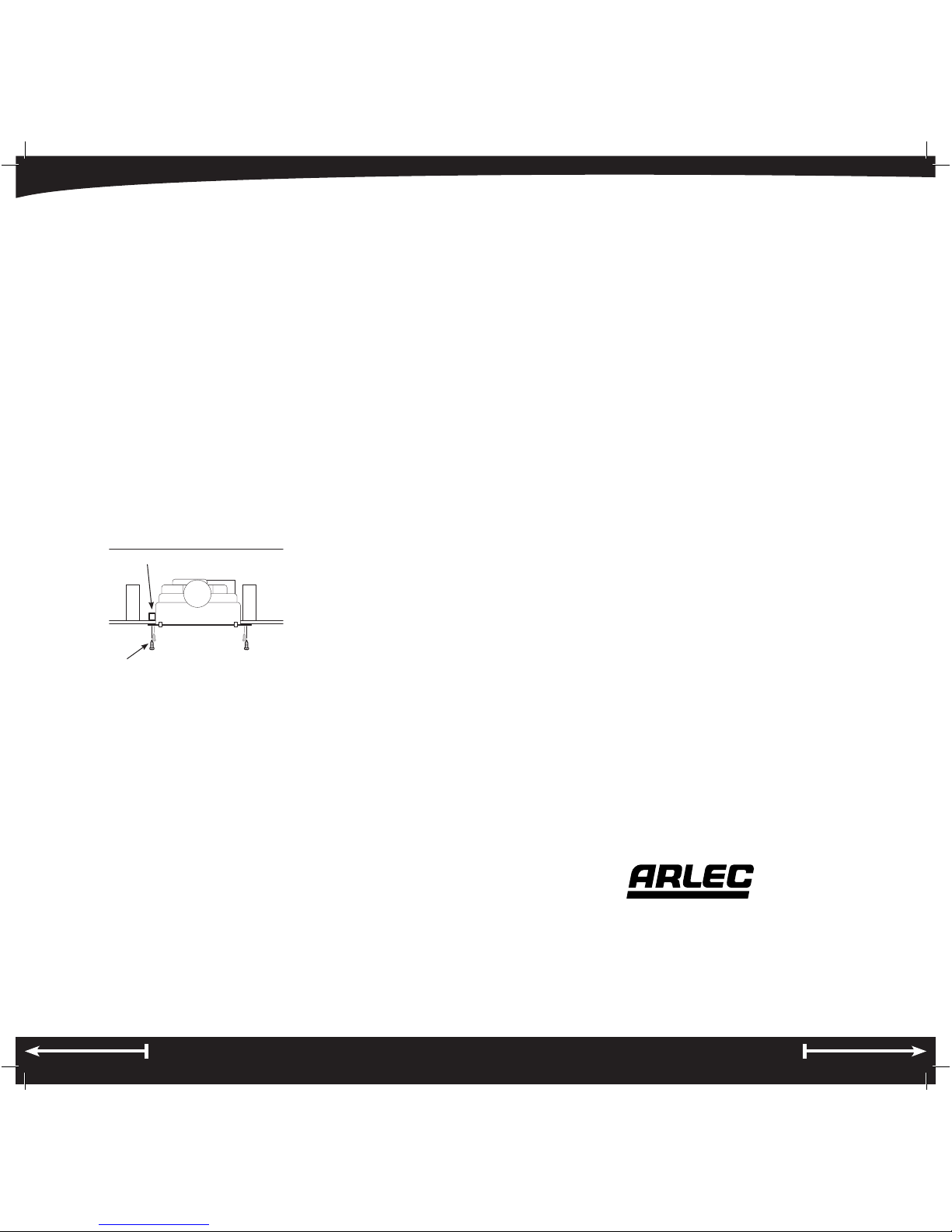

Side Elevation
Heat Lamp & Exhaust Fan Fig. 04
NOTE: When installing in a restricted roof space, Arlec suggest
fitting of the supplied flue duct to the fan outlet and electrical
connections prior to inserting into the ceiling aperture.
Wiring
1. A four gang switch is supplied with the unit. This switch must be used in
order to provide proper connection to the power supply.
2. Connect the wiring to the four switches and terminal block as marked, refer
to the wiring diagram above.
Final Assembly
1. Make sure the power is located to the product. Assemble the lamp
surround to the product and secure with the four springs. Note: A
clearance should exist between the ceiling and the surround.
2. Insert the infra-red lamps and the centre lamp into the sockets and screw
well in. ensuring a good electrical contact to for correct operation.
3. Connect power and check for correct operation of the heat lamps, centre
lamp and fan.
Secure with min. of
3 supplied screws
on alternate sides
Additional fixing
material if required
