BCVPIR60 SERIES Vandal Proof IR Bullet Cameras

PERFECT NIGHT TIME IMAGES

The ARM BCVPIR60 series bullet cameras are built to

survive some of the toughest outdoor conditions.

The dual layer, zinc-alloy housing can withstand

500lbs of direct force and stay on target. Toughness is

not their only asset, both 420 and 550 line models are

equipped with an aspherical 4.3mm lens not found in

most bullet style cameras. High quality images start

with a great lens, aspherical lenses create brighter

and clearer pictures. The cameras dual voltage design

can operate using either 12VDC or 24VAC power and

the cable management mount prohibits easy access

to power and video cables. The 550 line model is

equipped with a high quality chipset that generates

outstanding high resolution images. The ARM

BCVPIR60 series is feature-packed with:

Up to 550 Lines of Resolution

■

500lb of Force Mounting System■

Aspherical 4.3mm Lens■

60’ IR Range■

Dual Voltage Power■

Cable Management Mount■

Camera shown is

C550BCVPIR60

Good Looks,

Built Tough.

www.armelectronics.com 1. 888.771.4544 [email protected]

BCVPIR60 SERIES Vandal Proof IR Bullet Cameras

FEATURES + BENEFITS

High Performance

Up to 550 Lines of Resolution

State of the art imaging

devices create clear, high

quality images.

Aspherical Lens Technology

High quality images start with

a great lens. Aspherical lenses

create brighter and clearer

pictures by focusing more

light onto the cameras image

sensor.

60” IR Range

The 18 built-in infrared LED’s

allow you to see objects as

far as 60’ away in complete

darkness.

500LB of Force Mount

Extremely tough mounting

system can withstand 500lb of

force and still keep the camera

on-target.

Convenience

Dual Voltage Power

These cameras operate

eciently on both short 12VDC

or long 24VAC power runs.

Multiple Camera Models

Choose a resolution that

ts your application. The

420 line model provides

excellent pictures and the high

resolution 550 line models

picture quality is outstanding.

Auto Gain Control

No need for experimenting

with dip-switch congurations

for lighting. These cameras

automatically increase or

decrease Gain for any lighting

condition.

Total Security

Super Tough Housing

The dual layer, high-tech, zinc-

alloy housing is 1/4 inch thick

and protects the camera from

most attacks.

Heavy Duty Cable

Management Mount

Heavy duty mount keeps

your camera on target and

a pass-through cable design

eliminates the chance of

exposed wires being cut.

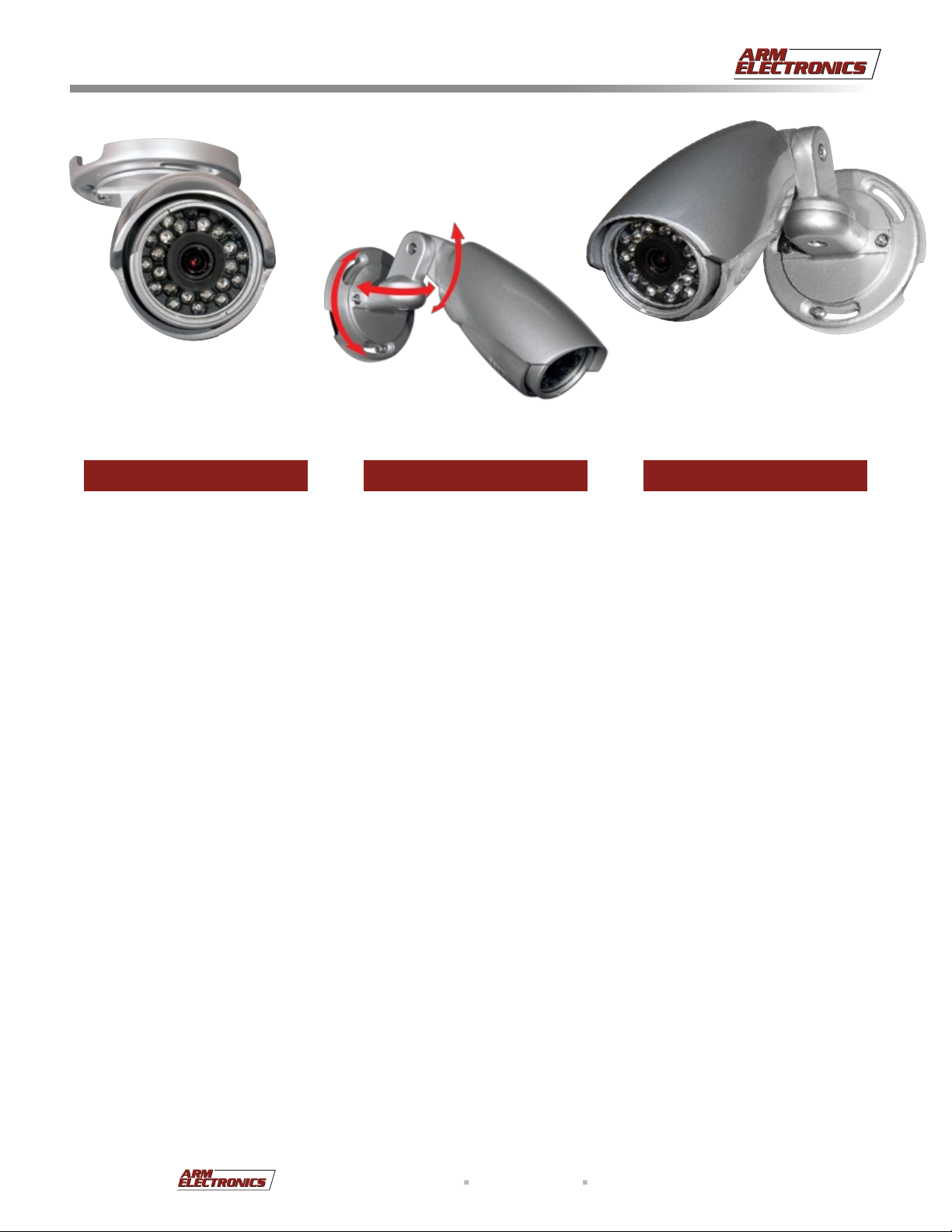

3-Axis Mount

Perfect positioning on any wall

or ceiling application is easy

for these cameras with the

included 3-axis mount.

IP66 Weather Proof Rating

Impervious to dust and strong

jets of water these cameras

operate perfectly, rain or shine.

I Need...

C420BCVPIR60 C550BCVPIR60

STANDARD RESOLUTION 

HIGH RESOLUTION 

DAY/NIGHT IMAGES  

INFRARED LED'S 60’ RANGE 60’ RANGE

DUAL VOLTAGE  

3.3”

r 1.34”

2.6”

8.6”

ø3.3

www.armelectronics.com 1. 888.771.4544 [email protected]

BCVPIR60 SERIES Vandal Proof IR Bullet Cameras

MODEL NUMBERS | LINE ART | ACCESSORIES

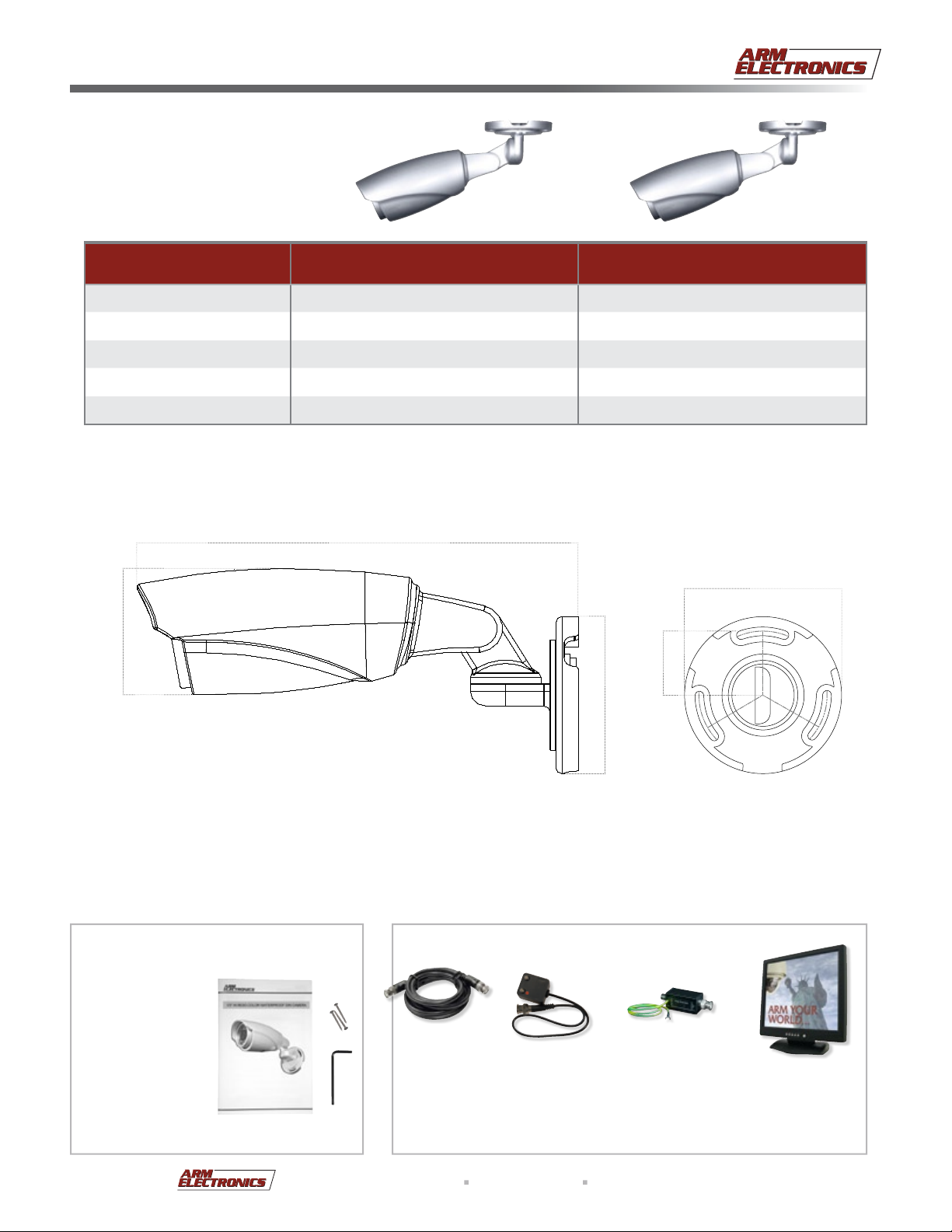

LINE ART – BCVPIR60 SERIES

Both Units Include:

(1) User Manual

(1) Adjustment Wrench

(3) Mounting Screws

INCLUDED ACCESSORIES

CBL3BNC

3’ BNC Cable

Also Available in

6’, 25’, 50’ and 100’

VCCORD

1000’Twisted Pair

Video Balun with

15” BNC Cable

CSP1

5AMP Max Current

Coaxial Surge

Protector

LCD1920HG

19” LCD Monitor

Also Available

in 15” and 17”

RECOMMENDED ACCESSORIES

www.armelectronics.com 1. 888.771.4544 [email protected]

BCVPIR60 SERIES Vandal Proof IR Bullet Cameras

TECHNICAL SPECIFICATIONS

Specications C420BCVPIR60

Imaging Device 1/3" SONY CCD

TV System NTSC

Pixels 512(H)x492(V)

Scanning System 2:1 Interlace

Sync. System Internal

Resolution More than 420 TV lines

IR LED Wavelength 850nm

IR LED Range 60'

IR LED Count 18

Lens Aspherical Lens 4.3mm

Minimum Illumination 0.1 Lux / F1.6

Minimum Illumination (IR On) 0.0 Lux

S/N Ratio More than 48dB

Gamma Charateristic 0.45

Video Output 1 Vp-p, 75 Ohm Composite BNC

Electronic Shutter Auto and up to 1/100,000

Back Light Compensation Full Auto

Auto White Balance ATW With MCT (Multi-Color Temp.)

Auto Gain Control Full Auto

Power Supply DC12V / AC24V (Dual power -/+10%)

Consumption 550mA (IR On)

Operating Temperature 14°F to 113°F

Storage Temperature -22°F to 140°F

Dimensions (LxWxH) 2.64" x 3.35" x 8.9"

Weight 2.2lbs

Weatherproof Rating IP66

Specications C550VPIR60

Imaging Device 1/3" SONY Hi-Res Super HAD CCD

TV System NTSC

Pixels 768(H)x494(V)

Scanning System 2:1 Interlace

Sync. System Internal

Resolution More than 550 TV lines

IR LED Wavelength 850nm

IR LED Range 60'

IR LED Count 18

Lens Aspherical Lens 4.3mm

Minimum Illumination 0.2 Lux / F1.2

Minimum Illumination (IR On) 0.0 Lux

S/N Ratio More than 48dB

Gamma Charateristic 0.45

Video Output 1 Vp-p, 75 Ohm Composite BNC

Electronic Shutter Auto and up to 1/100,000

Back Light Compensation Full Auto

Auto White Balance ATW With MCT (Multi-Color Temp.)

Auto Gain Control Full Auto

Power Supply DC12V / AC24V (Dual power -/+10%)

Consumption 550mA (IR On)

Operating Temperature 14°F to 113°F

Storage Temperature -22°F to 140°F

Dimensions (LxWxH) 2.64" x 3.35" x 8.9"

Weight 2.2lbs

Weatherproof Rating IP66
