Artec PMA3-10 Manuale utente
PMA3-8, PMA3-10
MASTER
VOLUME
POWER
SWITCH
POWER
INDICATOR
AC
POWER
INLET
FUSE
250V1A
LEVEL
CONTROL
BASS
CONTROL
TREBLE
CONTROL
GAIN
CONTROL
Ch1 Input
For general high
impedance instrument
(ex:electric guitar)
Ch2 Input
For low impedance
and balanced signal
(ex: microphone)
For general low
impedance
signal
Ch3 Input
For low impedance
line-out signal
(ex: CDP or MP3)
For general low
impedance
signal
AIR VENT
LINE OUT
For connect with
a recorder or one more
PMA3

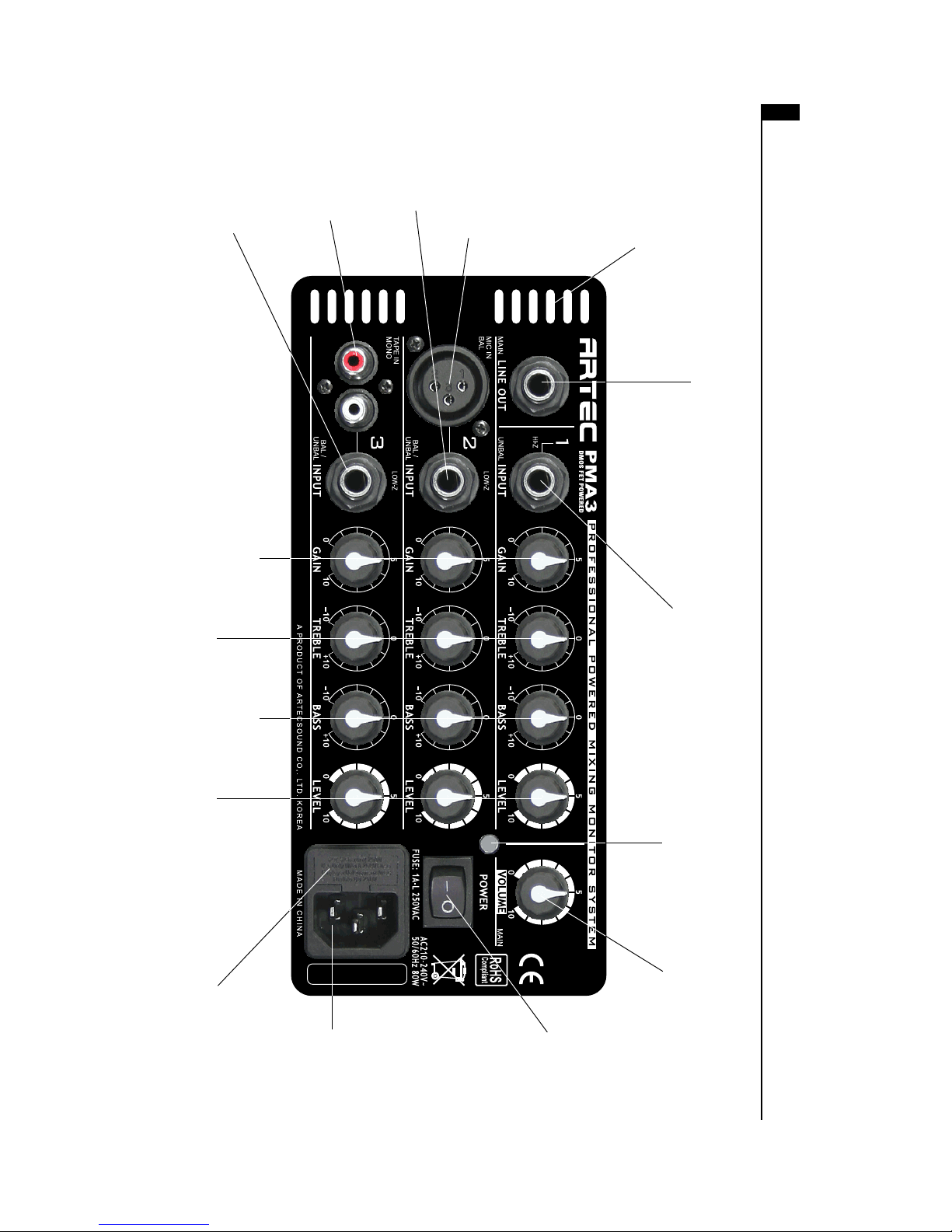

CONTROL PANEL

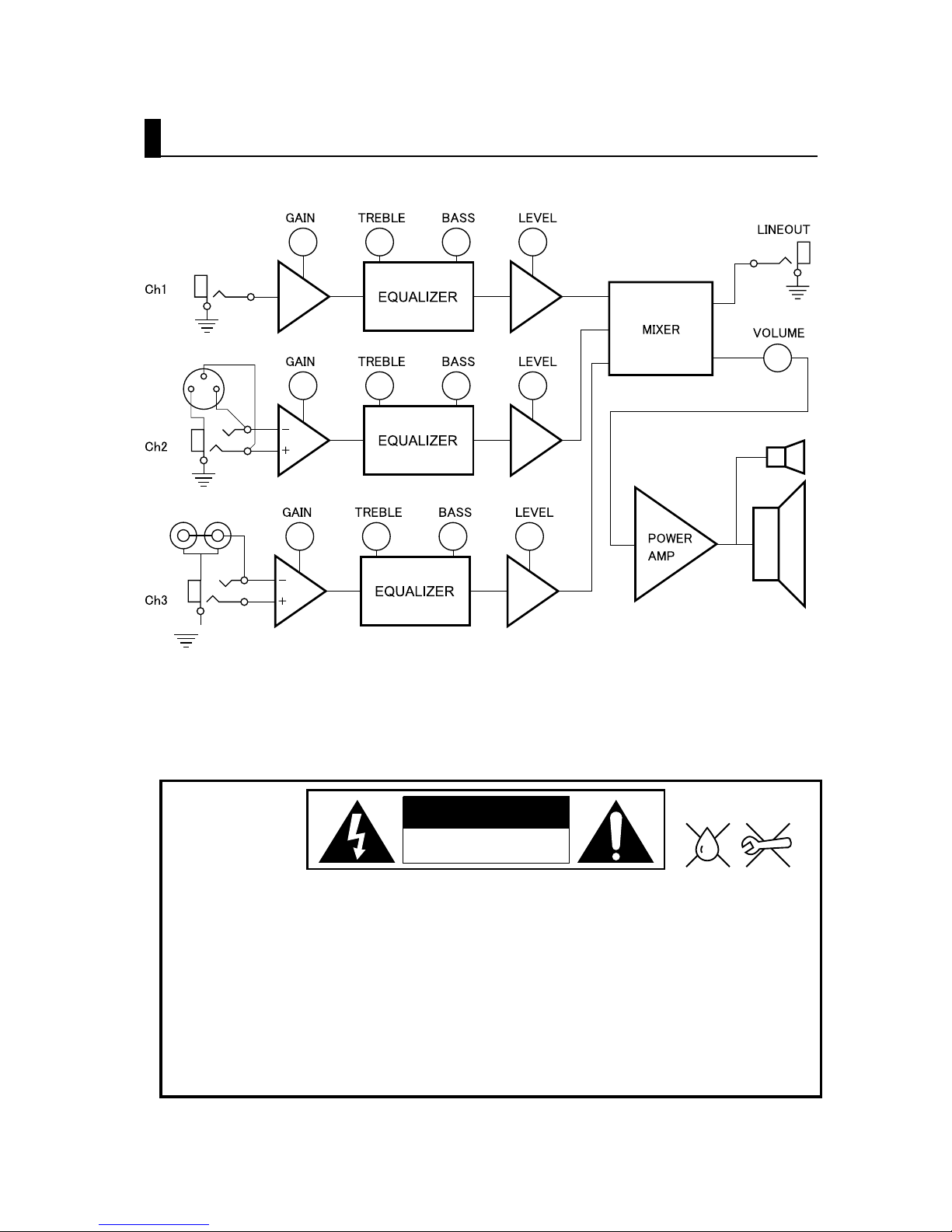

PMA3 BLOCK DIAGRAM
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
IMPORTANT SAFETY INSTRUCTIONS
- DO NOT OPERATE NEAR ANY HEAT SOURCE AND DO NOT BLOCK ANY VENTILATION OPENINGS ON THIS APPARATUS.
- ONLY CONNECT POWER CORD TO A POLARIZED, SAFETY GROUNDED OUTLET WIRED TO CURRENT ELECTRICAL CODES
AND COMPATIBLE WITH VOLTAGE, POWER, AND FREQUENCY REQUIREMENTS STATED ON THE REAR PANEL OF THE
APPARATUS.
- ONLY USE ATTACHMENTS, ACCESSORIES, STANDS, OR BRACKETS SPECIFIED BY THE MANUFACTURER FOR SAFE
OPERATION AND TO AVOID INJURY.
- WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK OR FIRE, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.
- SERVICE MUST BE PERFORMED BY QUALIFIED PERSONNEL.
- OUR AMPLIFIERS ARE CAPABLE OF PRODUCING HIGH SOUND PRESSURE LEVELS. CONTINUED EXPOSURE TO HIGH
SOUND PRESSURE LEVELS CAN CAUSE PERMANENT HEARING IMPAIRMENT OR LOSS. USER CAUTION IS ADVISED AND
EAR PROTECTION IS RECOMMENDED IF UNIT IS OPERATED AT HIGH VOLUME.
SPECIFICATION
- Equalizer (common)
Bass : -10dB ~ +10dB @ 180Hz
Treble : -10dB ~ +10dB @ 2kHz
- Output frequency range
50Hz ~ 12kHz
A PRODUCT OF ARTECSOUND CO., LTD. KOREA MADE IN CHINA

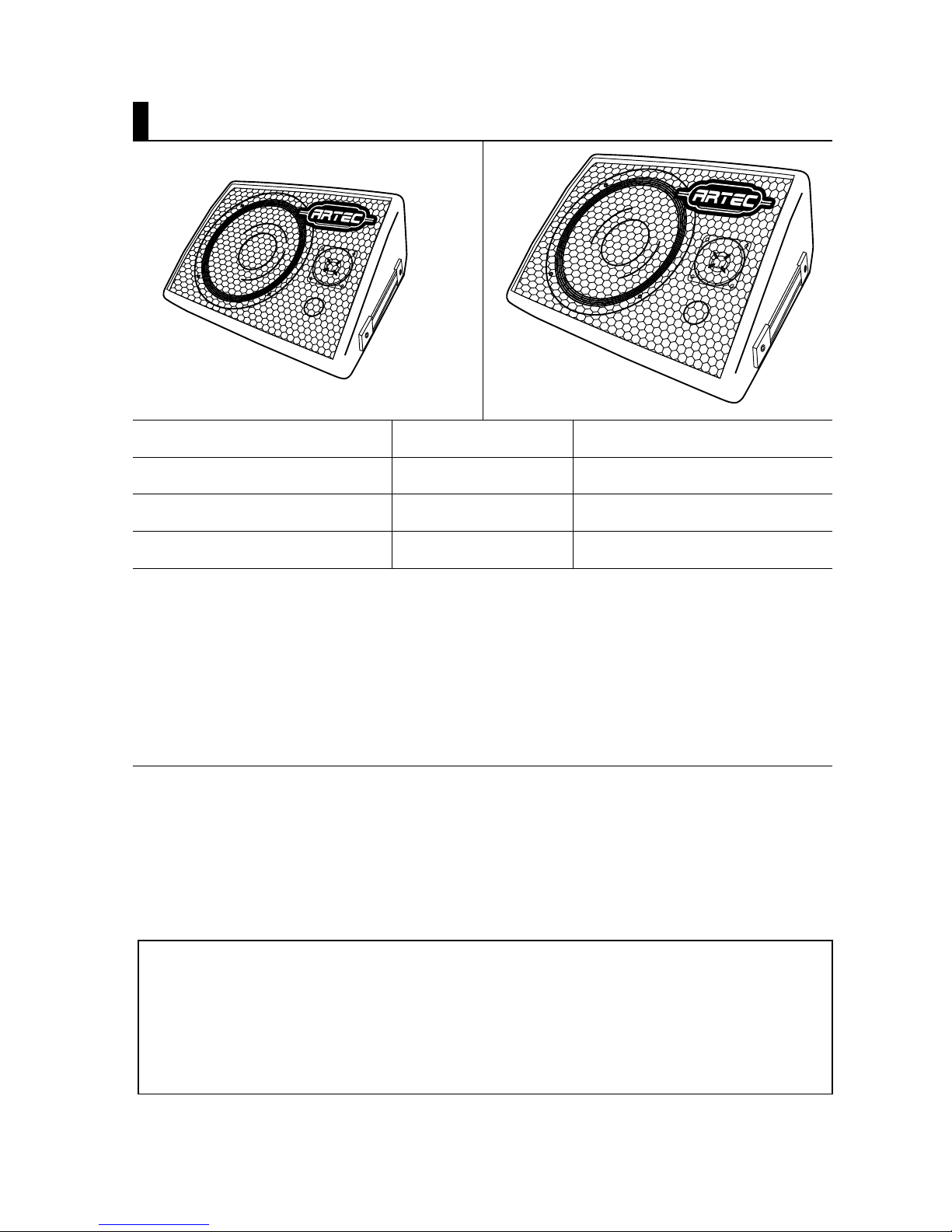

PMA3-8 PMA3-10
DIMENSION
SPEAKER
OUTPUT
AC POWER
250 x 440 x 380 (mm)
10 inch LF + 1 inch HF
35 watts music power
80W @ 230V50Hz
200 x 360 x 310 (mm)
8 inch LF + 1 inch HF
25 watts music power
60W @ 230V50Hz
Input impedance Max. input level max. gain
Ch 1 1/4inch jack
Ch 2 XLR jack
Ch 2 1/4inch jack
Ch 3 RCA jack
Ch 3 1/4inch jack
- Lineout
1/4inch jack
output impedance : 2kohm
- Stand Access Hole
35mm (diameter)
500kohm +8dBV 70dB
50kohm +10dBV 60dB
50kohm +10dBV 60dB
50kohm +10dBV 60dB
50kohm +10dBV 60dB
