ARTHUR HOLM AH22DRM Manuale utente
DynamicReceptionMonitor
User Guide
AH22DRM
HDCP compliant motorised adjustable reception monitor
Danish craftmanship
Mediterranean soul
Technology Serving Desing
3
TABLE OF CONTENTS
EC REGULATIONS AND SECURITY 6
SAFETY INSTRUCTIONS 6
SYSTEM DESCRIPTION 8
CONTROLS 10
OSD MENU 11
INPUT CONNECTORS 14
INPUT RESOLUTIONS 14
INFORMATION ON DISPOSAL 15
WARRANTY TERMS AND CONDITIONS 16
WELCOME
Thank you for purchasing an ARTHUR HOLM product.
Our product range has been designed for a seamless integration and for
a maximum reliability.
Please, read this installation and operating instructions carefully and keep
them in a safe place for future reference.
We remain at your entire disposal if you have any suggestions that would
help us improve our products.
Henrik Holm
General Manager
5
ABOUT US
The Company
Arthur Holm has its origins in the Danish furniture designer Jorgen Alex
Jensen, who was active during the sixties and the seventies. His design
inspiration and his concept of ergonomics have been continued by his
family, who is the design force behind Arthur Holm product range. The
result of combining Scandinavian design tradition with Mediterranean
creativity, exibility and emotion is a wide product range built on more
than 25 years of craftsmanship.
Arthur Holm offers a professional product range where tomorrow’s
technology is shaped into valued materials with design exibility and
customisation, specially created to enhance communication in reception,
collaboration, conference and meeting areas.
The art of customisation
Arthur Holm offers a range of ingenious products whose designs are based
on quality materials and the latest technology. Products which endow
meeting and conference rooms with silent, ergonomic, innovative and
aesthetic solutions that integrate into the furniture, hang from the walls as
works of art or are used as interactive points of information.
The world of Arthur Holm
Arthur Holm offers a selection of unique, elegant, versatile, exible and
ergonomic products that are being used in meeting and conference
rooms, reception areas, huddle rooms, control rooms, auditoriums and
public zones of leading companies throughout the world.
The numbers speak for themselves! We currently own 33 product patents,
have presence in over 45 countries with products and solutions inmore
than 25,000 installations.
It will be our pleasure to work with you, designing your unique and
personalised environment. Our broadcast electronic engineers will
provide the latest technology while our design team will offer you the most
exclusive appearance.
Our team puts its heart, passion and pride in all our designs.
6
SAFETY INSTRUCTIONS
Plugs
• Do not dismantle any part of the monitor power connector.
• Disconnect the power plug from the AC outlet when the monitor is not
going to be used for an indenite period of time.
Power and extensions cords
• Use the appropriate power cord with the correct plug type.
• Do not overload wall outlets or power cords.
• Make sure the total ampere passed through a extension cord does not
exceed the maximum allowed by the cable used.
• Do not place anything on the power cord.
• Do not locate this product where a person may walk or trip over the
cord.
EC REGULATIONS AND SECURITY
ATTENTION: Do not disassemble or modify the device in any way.
This symbol warns of the presence of dangerous un-insulated
voltages inside some of the components, of sufcient magnitude
to expose people to risk of electronic shock.
This symbol draws attention to important use and maintenance
instructions in the manual that accompanies the unit.
This symbol indicates that the equipment conforms to the norms
established by the European Community.
7
Wiring connected to hazardous voltage requires installation by
qualied personnel or the use of ready-made exible cables.
For your security, your equipment must be connected to an
electrical outlet with grounding connection protection.
Since the plug is used to disconnect the device, the operating
electrical outlet must be in an easily accessible place.
Environment
• Install the equipment on an elevated, at surface.
• Install the equipment in a ventilated area.
• Avoid exposing the equipment to:
∙Rain or water
∙Excessive heat, cold or humidity
∙Area exposed to direct sunlight
∙Dirty areas
∙Equipment generating strong magnetic elds
• Avoid placing open containers of liquid, near the equipment.
• Keep a minimum distance of 30 mm in order to have good ventilation.
• Never place above the device any sources of ames such as lighted
candles, etc.
• If you are using the device in extreme weather conditions and/or
tropical climates, the equipment should be installed in a room which
ensures a reasonable level of temperature and humidity.
SAFETY INSTRUCTIONS
8
SYSTEM DESCRIPTION
Applications
The professional Arthur Holm DynamicReceptionMonitor is designed
using the latest professional technologies to ensure a perfect
workplace. It offers a non-obstructive design in which all technical
interfaces and cables are internal, so the front desk is free of cables
and obstructive components, creating a cleaner work environment.
The DynamicReceptionMonitor has been designed to be integrated in
tables or desks. The base of the monitor is installed on the surface and
its connectivity is placed below the table, making the installation clean
and minimalistic.
The elegant monitor housing is made of milled aluminium and stainless
steel and it includes an antiglare protection glass with black marking.
The stainless steel arm of the monitor offers a motorised adjustable
height for a perfect t.
Features
• Ergonomic.
• Motorised adjustable height.
• Adjustable viewing angle (horizontally and vertically).
• 140 degrees rotation.
• Exquisite materials.
• 24/7 Design.
• Three times longer lifespan than a standard monitor.
• Maintenance free.
• HDCP Compliant.
• Energy saving.
• Energy saving.
• Easy to install.
• Passive cooling.
9
SYSTEM DESCRIPTION
Box Contents
Before the installation of your monitor, please check the contents of the
shipping box, it must contain the following items:
• Monitor
• Power cord
• User guide
• Power supply 100-240Vac, 50-60Hz. Output 12V
Important Note: This device can only work with the power supply
included in the shipping box. This power supply can not be replaced by
any other rather than the original one.
Connections
Power connection:
1. Plug the power cable from the power supply into an AC socket of
100-240 Vac, 50-60Hz.
2. Plug the 12Vdc cable into the socket on the unit.
Signal connection:
1. Use the HDMI cable with HDMI female connector to connect a
HDMI input signal.
Use high quality HDMI cables with 2 m of maximum length.
10

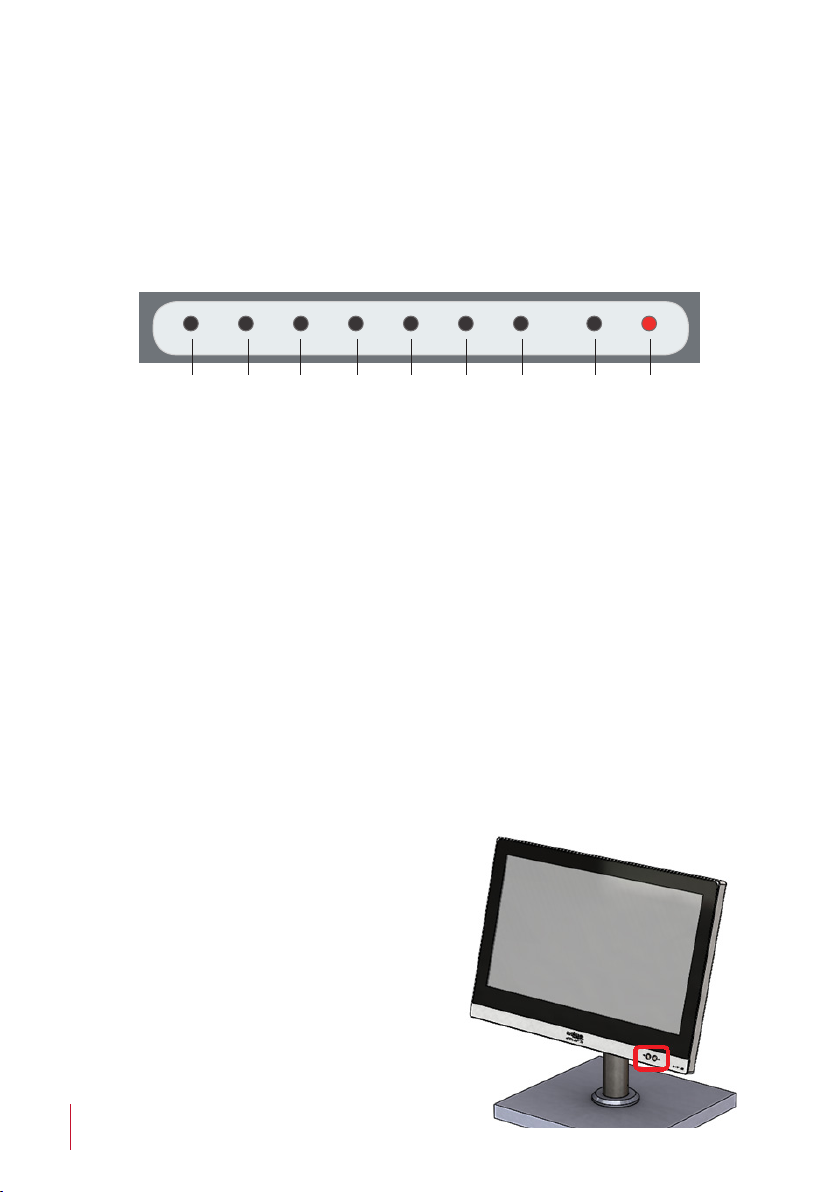

MENU SELECT DOWN UP LEFT RIGHT SOURCE LED POWER
CONTROLS
OSD monitor control
The OSD buttons, to control or set-up the monitor, are located on the
lower body housing of the system:
MENU Activates the OSD menu on screen. Exits the OSD menu
when is active
SELECT Selects the OSD menu function
DOWN Cursor control down on the OSD menu
UP Cursor control up on the OSD menu
LEFT Cursor control left on the OSD menu
RIGHT Cursor control right on the OSD menu
SOURCE Signal input selection (No function in this model)
LED Indicates operation status
POWER Monitor power ON/OFF
The up and down height adjustment
control buttons are located in front
of the screen. Press these buttons
to raise the screen up or down, and
release the buttons when the screen
is on the desired position.
