Rail-Split extreme User Guide
Rail-Split extreme Specication
Mechanical
yHousing: DIN rail case
yMaterial: Lexan Plastic - UL94-V0 rated

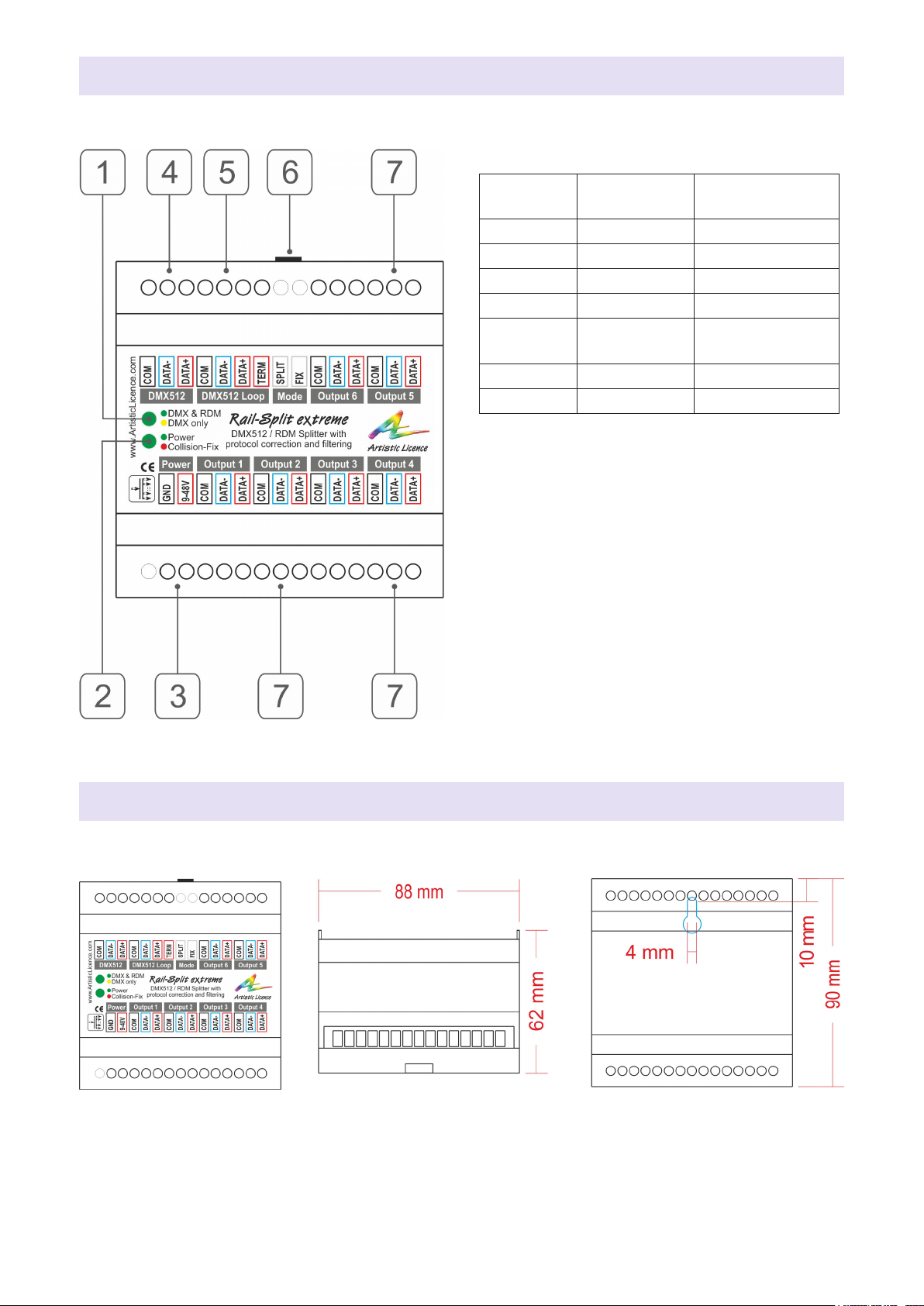

yOverall dimensions: 90 mm (H) x 88 mm
(W) x 62 mm (D)
yWeight: 0.2 kg
yMounting: 35 mm DIN rail or surface
mount
yCountry of manufacture: UK
Environmental
yOperating temperature: 0°C to 40°C
yStorage temperature: -10°C to +50°C
yOperating relative humidity (max): 80%
non-condensing
yIP rating: IP20 indoor use only
yCertication: CE, WEEE, RoHS
yWarranty: 2-year (return to base)
Power & Electrical
yInput voltage: 9-48 VDC
yInput connector: 2-pin screw terminal
(1 no.)
yInput power (max): 8 W
yDuty cycle: 100% @ 25°C
yDC fuse: internal resettable fuse for
control electronics

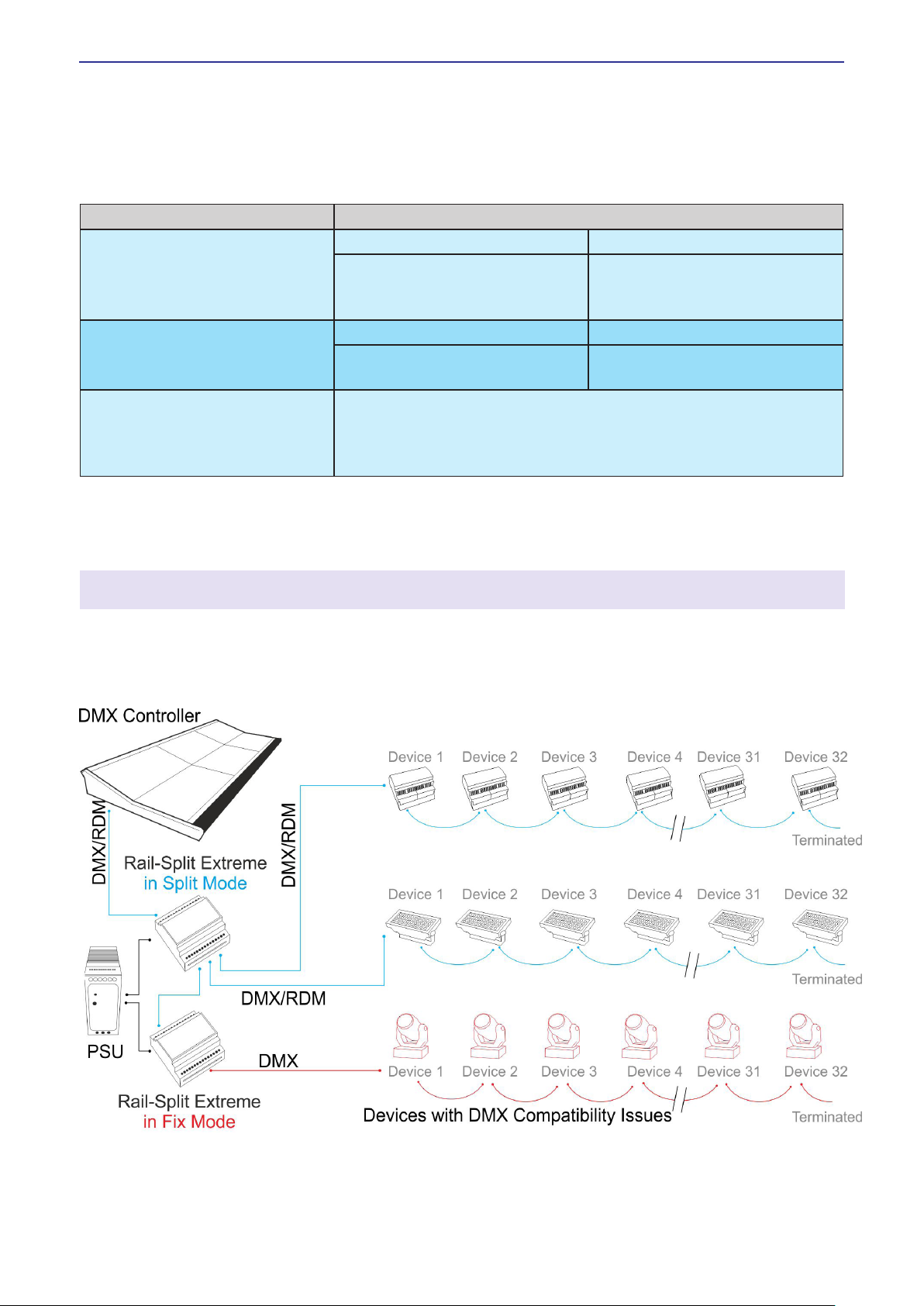

DMX512 Outputs
yMode: PSU referenced
yIsolation: n/a
yElectrocution protection: All outputs
protected against continuous connection
to 425 VAC (self-healing)
y Surge protection (sacricial):
- IDC 30,000A (8/20uS) 1 operation
- IDC 20,000A (8/20uS) 10 operations
- IDC 20A (10/1000uS) 1500 operations
DMX512 Input & Loop
yMode: Optically isolated
yIsolation: 1 kV
yElectrocution protection: Input & Loop
protected against continuous connection
to 425 VAC (self-healing)
ySurge protection (sacricial):
- IDC 30,000A (8/20uS) 1 operation
- IDC 20,000A (8/20uS) 10 operations
- IDC 20A (10/1000uS) 1500 operations
Control
yInput Protocols: DMX512, DMX512 (1990),
DMX512-A, RDM V1.0 (E1.20 - 2006
ESTA Standard)
yOutput Protocols: Same as input
Data Connections
y3-pin Screw Terminal DMX Input (1 no.)
y3-pin Screw Terminal DMX Loop (1 no.)
y3-pin Screw Terminal DMX Output (6 no.)
LED Indication
yPower / DMX / RDM
Package Contents
yRail-Split extreme
yUser guide
Ordering Info
yProduct code: Rail-Split extreme
Accessories (not included)
yPSU-9-1.5-FER
