Artistic License AL4000 Manuale utente
AL4000
DMX512
Processors
Revision 5.0 September 2010
www.ArtisticLicence.com
2
3
DMX512 Processor Range Overview............ 8
AL4002 Three Phase Dimmer ................... 11
AL4005 Demux Controller....................... 22
AL4006/9 Analogue & Relay Controller ....... 34
AL4007 Demux Controller....................... 41
AL4008 Relay Controller ........................ 48
AL4016 Single Phase Dimmer ................... 54
AL4020 Multiplex Controller.................... 63
AL4100 Servo Motion Controller ............... 70
AL4400 PWM Dimmer Processor................ 80
AL4800 Moving Lamp Processor ................ 85
AL2001/AL3001 Three Phase Dimmer ......... 98
C O N T E N T S
4
5
Overview
Artistic Licence offers a range of products tailored to the specific
requirements of product manufacturers in the Lighting Industry.
The AL4000 DMX512 Processor (aka Dimmer Chips) range include
microprocessor solutions for a wide selection of lighting control
products. The range is usually supplied at chip level for integration at
the design phase. We can, however, supply board level solutions or
indeed entire turnkey product design.
Originally aimed at small companies without the R&D facilities to
develop microprocessor equipment, we now supply major lighting
manufacturers around the world.
We guarantee that a Dimmer Chip will simplify your next design.
Check out our web site for the latest releases.
www.ArtisticLicence.com
AL4002
Three Phase Dimmer
The AL4002 is a 68 pin PLCC device. It provides all the control
features required for a medium specification three phase digital
dimmer.
Both analogue and DMX512 inputs are supported. Features include
four dimmer curves, preheat, consecutive or alternate phase outputs,
good data indication and fan speed control.
DMX base address is set by external thumbwheel inputs.
AL4005
Demux Controller
The AL4005 is a 40 pin DIL device. It provides all the control
features required to develop a 96 channel DMX512 to analogue
converter.
DMX base address is set by external thumbwheel inputs.
AL4006/9
Analogue & Relay Controller
The AL4006 and AL4009 are 40 pin DIL devices. They both provide
two analogue and sixteen switched outputs. Excellent for automating
smoke machines etc.
DMX base address is set by external thumbwheel inputs.
I N T R O D U C T I O N
6
AL4007
Demux Controller
The AL4007 is a 40 pin DIL device. It provides all the control
features required to develop a 72 channel DMX512 to analogue
converter.
DMX base address is set by external thumbwheel inputs.
AL4008
Relay Controller
The AL4008 is a 40 pin DIL device. It provides all the control
features required to develop a 24 channel DMX512 to switched relay
converter. Individual DMX channels are used to set the state of each
relay.
DMX base address is set by external thumbwheel inputs.
AL4016
Single Phase Dimmer
The AL4016 is a 40 pin DIL device. It provides all the control
features required for a medium specification, sixteen channel, single
phase digital dimmer.
DMX512 input only is supported.
DMX base address is set by external thumbwheel inputs.
AL4020
Multiplex Controller
The AL4020 is a 40 pin DIL device. It provides a DMX output that
represents the htp merge of received DMX512 and up to 72 analogue
inputs. The device can also be used as a simple analogue to DMX512
converter.
DMX base address is set by external thumbwheel inputs.
AL4100
Dual Servo Controller
The AL4100 is a 40 pin dip device. It receives DMX512 and uses the
information to position control two DC servo motors. Perfect for
colour scrollers, colour wheels, moving yokes, moving lamps and
animatronics.
AL4200
Up Down Relay Controller
The AL4200 provides all the control features required for a four
channel, forward - reverse relay driver.
Applications include drape release and general purpose animatronic
effects.
The AL4200 is the core technology used in the DMX-Kabuki.
7
AL4400
PWM Dimmer Controller
The AL4400 provides all the control features required for a high
specification DC - PWM dimmer.
Applications include low voltage lamp dimming, LED, LEP, EL and cold
cathode colour mixing.
The AL4400 is the core technology used in the Power-Pipe and
Colour-Fill.
AL4800
PWM Moving Lamp Controller
The AL4800 provides all the control features required for a medium
specification moving lamp or moving yoke.
The basic configuration provides micro-stepping (high resolution)
outputs for pan and tilt. Pin inputs allow 2 settings for pan motor
type and 4 settings for tilt motor type.
The colour wheel and gobo wheel motors are also micro-stepping
motors and assumed to be continuously rotating with inputs for a
home sensor.
The iris motor is also a wave drive stepper motor channel with end
stop sensor.
Applications include moving lamps, moving yokes, colour wheels and
general purpose animatronics.
Custom variations of this part can be produced subject to order
quantity.
AL2001
/ AL3001
Three Phase Dimmer
This two chip solution provides the engine for a powerful three phase
DMX and analogue digital dimmer. Features include LCD drive, keypad
input, analogue and DMX512 input, dimmer curves, channel preheat
and all data stored in flash ram.
It provides all the control features required for a high specification
three phase digital dimmer.
8

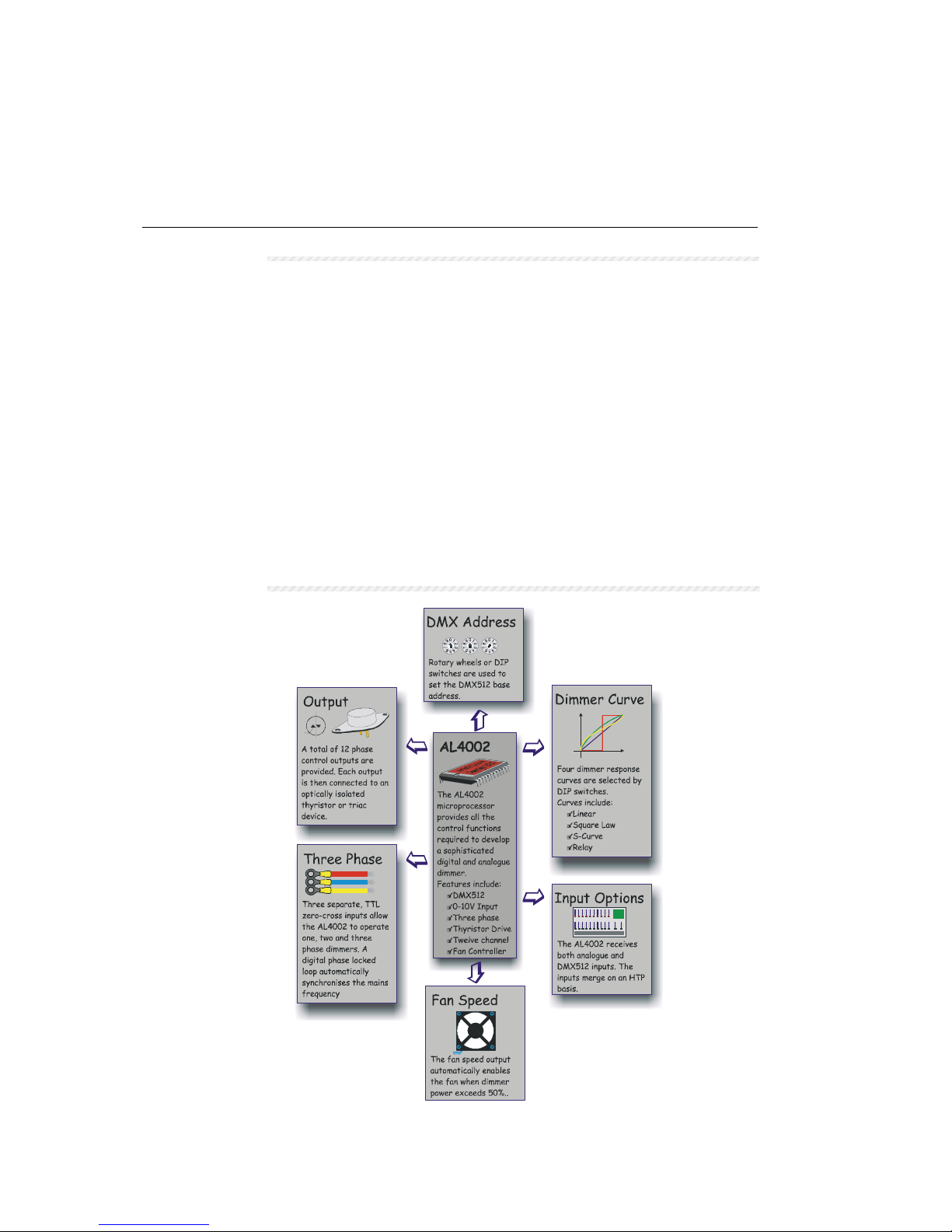

Overview
The AL4002 is a 68 pin PLCC device. It provides all the control
features required for a medium specification three phase digital
dimmer.
Both analogue and DMX512 inputs are supported.
Key features:
•12 Phase position modulated outputs
•Automatic mains frequency and phase tracking
•Four dimmer curves
•Preheat
•Consecutive or alternate phase outputs
•Good data indication
•Fan speed control
•DMX base address is set by external thumbwheel inputs
•Individual channel test at 50% & 100%
T H E A L 4 0 0 2 T H R E E P H A S E D I M M E R
9
Pin Function In / Out
1 NC -
2 VCC I
3 Output 1 (PH1-1) O
4 BCD input (HUN1) I
5 BCD input (HUN2) I
6 BCD input (HUN4) I
7 BCD input (HUN8) I
8 Output 12 (PH3-4) O
9 Output 11 (PH3-3) O
10 Output 10 (PH3-2) O
11 Output 9 (PH3-1) O
12 BCD input (TEN8) I
13 BCD input (TEN4) I
14 BCD input (TEN2) I
15 BCD input (TEN1) I
16 RESET (Active low) I
17 TEST (Connect to 0V) I
18 NC -
19 GND I
20 VCC I
21 NC -
22 NC -
23 Analogue Bus D (AN-D) I
24 Analogue Bus C (AN-C) I
25 NC -
26 NC -
27 NC -
28 NC -
29 VCC (Analogue) I
30 GND (Analogue) I
31 Analogue Bus A (AN-A) I
32 Analogue Bus B (AN-B) I
33 Analogue Address (ANAD1) O
34 Analogue Address (ANAD0) O
35 NC -
36 GND I
37 VCC I
38 Zero Cross Input. Active Low (ZC3) I
39 NC -
Pin
Functions
40 Curve select (CURVE1) I
10
Pin Function In / Out
41 Curve select (CURVE0) I
42 NC -
43 TTL DMX512 Input (RX) I
44 Phase Output Sequence (ORDER) I
45 NC -
46 NC -
47 BCD input (UNIT2) I
48 BCD input (UNIT1) I
49 VCC I
50 Crystal Connection (OSC1) I
51 Crystal Connection (OSC2) O
52 NC -
53 GND I
54 Good Data, Lo=Good (GOOD) O
55 BCD input (UNIT4) I
56 BCD input (UNIT8) I
57 Fan drive, Hi=Fast (HIFAN) O
58 Zero Cross Input. Active Low (ZC2) I
59 Zero Cross Input. Active Low (ZC1) I
60 AUX I
61 Output 8 (PH2-4) O
62 Output 7 (PH2-3) O
63 Output 6 (PH2-2) O
64 Output 5 (PH2-1) O
65 Output 4 (PH1-4) O
66 Output 3 (PH1-3) O
67 Output 2 (PH1-2) O
68 GND I
Pin
Functions
