Artize LEXA SUPERIOR WHIRLPOOL Manuale utente
OWNER'S MANUAL
LEXA
SUPERIOR
WHIRLPOOL
Safety, Operation, Maintenance, And Warranty
Safety Guidelines
This manual contains information for YOUR SAFETY and will also help
in PREVENTING PROBLEMS. To help you recognise these items of
importance, this document uses the following symbols. PLEASE read
the manual and pay special attention to these sections.
02
SAVE THESE INSTRUCTIONS!
Urgent Safety Information
A Hazard That Will Cause Serious Injury
Important Safety Information
A Hazard That Might Cause Serious Injury
Information To Prevent
Damage To Equipment
Important Instructions and
References
DANGER !
WARNING
CAUTION
Model:
Serial/ Invoice No.:
Owner's Record
Date of Installation:
Name of Installer:
Telephone:
This information may be required for service and warranty.
03
IMPORTANT SAFETY INSTRUCTIONS
Basic precautions to be taken to prevent fire hazards, electrical shocks, personal injury or damage
when using your unit. READ AND FOLLOW ALL INSTRUCTIONS!
• Risk of lethal electric shock in Hydroelectric product. To reduce risk of electric shock, connect your product only to circuits protected
by a Ground-Fault Circuit-Interrupter (GFCI) or Residual Current Device (RCD)-sensitivity not more than 30 Milliamp (mA)
• CIRCUIT INTERRUPTER (GFCI). A GFCI should be provided by the entrepreneur electrician and should be routinely tested. To test the GFCI,
push the test button. The GFCI should interrupt power. Push the reset button. Power should be restored. If the GFCI fails to operate in this
manner, there is a ground fault, indicating the possibility of electrical shock. DO NOT USE THE UNIT. Disconnect the unit and have the
problem corrected by a qualified electrician before using
• Never operate electrically connected devices in or near the bath. Never drop or insert any object into any opening. Do not use electrical
appliances while in the tub
• To reduce the risk of injury, do not allow children to use this unit unless they are closely supervised at all times. Those requiring supervision
should never be allowed to use the units unattended
• Use the unit only for its intended use as described in this manual. Do not use attachments not recommended by the manufacturer
• Never drop any objects into any openings/holes within the product.
• Do not use the oxypool if the protective cover is not installed on the suction intake. Keep foreign objects, including hair, away from the
suction intake as they could block the intake or get caught in it. For comfort and safety, persons with long hair should tie their hair in a bun
to keep it out of the water and away from the suction fitting. Keep your head above water at all times
READ AND FOLLOW ALL INSTRUCTIONS
DANGER !
04
• Persons under a doctor's care, pregnant women, persons with high or low blood pressure, heart disease, diabetes, or any serious illness,
should not use this unit without prior consultation with their physician. Never use this unit while under the influence of any drug or alcohol.
• The maximum temperature of the water should never exceed 104°F (40°C).
IMPORTANT SAFETY INFORMATION
WARNING
• To reduce risk of injury, enter and exit the bath carefully.
• Do not fill the tub beyond the air volume controls or the overflow.
• Never operate the oxypool system if there is less than 2" (5 cm) of water over the highest whirlpool jet (except for the back jets) or if the
bathtub is empty.
• Do not bathe pets in your whirlpool. Their hair could clog the pump.
• Make sure the water temperature does not exceed 104°F (40°C). Damage and discoloration of the acrylic surface may occur.
• The whirlpool should be drained after each use.
• Oil-based additives must not be used, and cleaning instructions must be followed. Do not use harsh abrasives or solvents for cleaning
your whirlpool.
INFORMATION TO PREVENT DAMAGE TO EQUIPMENT
CAUTION
• SAVE THESE INSTRUCTIONS •
05
Dear Product Owner,
Thank you for choosing an Artize product. The minute you sit back and relax
in your new product you'll see and feel the difference. In your whirlpool, jets
are strategically placed to create a soothing, swirling flow of relaxing water.
It's the WHIRLPOOL action which you'll only experience in Artize products..
Now relax and enjoy your bath in your new ARTIZE WHIRLPOOL.
Sincerely,
Artize.
06
Whirlpool Specifications------------------------- 07
Product Dimensions----------------------------- 08
LEXA superior Bathtub With Ms Frame
LEXA superior Bathtub 190 X 140 With
Superior Whirlpool
Installation Legend Diagram-------------------- 10
Pre-installation Requirements------------------- 11
Tools For Installation
Before You Start
Installation Procedure---------------------------- 13
Electrical Supply and Safety Devices
Components Identification
Artize Whirlpool Components-------------------- 17
Skirt With Removable Panel-Field Installed----- 18
Ecu Terminal Connection Diagram-------------- 19
Operating The Controls-------------------------- 20
After Blow Or Dry Out Function----------------- 21
How To Use Your Whirlpool---------------------- 22
User Maintenance Instructions------------------ 23
Cleaning The Tub Surface
Cleaning the Pump and Plumbing System
Troubleshooting----------------------------------- 24
Whirlpool System
Air System----------------------------------------- 25
CONTENT
07
WHIRLPOOL SPECIFICATION
TECHNICAL INFO
Size
Depth
Material
Reinforcement
Back jets
Air jets
Feet jets
Water jets
Pump Superior
Air Blower
Heater
Chromotherapy
Headrest
Overflow Cum Filler
Keypad
Power Rating (Max)
1900*1400x530/mm
530mm
Acrylic
PU
8
20
4
6
1.47HP
1.13HP
1.5kw
Yes (2)
Yes
Yes
Yes
3.55KW
SAFETY
3 Tier Testing Yes
Steel Frame Yes
Sanitisation/
Cleaning System Yes
Food Grade Pipe Yes
Level Sensor Yes
Digital Yes
Manual No
Cross No
Smart No
Body 5 years
Electrical 2 years
Jets 5 years
SENITIZATION
CONTROLLER
WARRANTY
LEXA SUPERIOR WHIRLPOOL (ARTIZE190X140)
S. No. DESCRIPTION REMARKS
1 Packing Weight 120Kg
2 Dry Weight 95Kg
3 Water Capacity (Ltr) 580Ltr

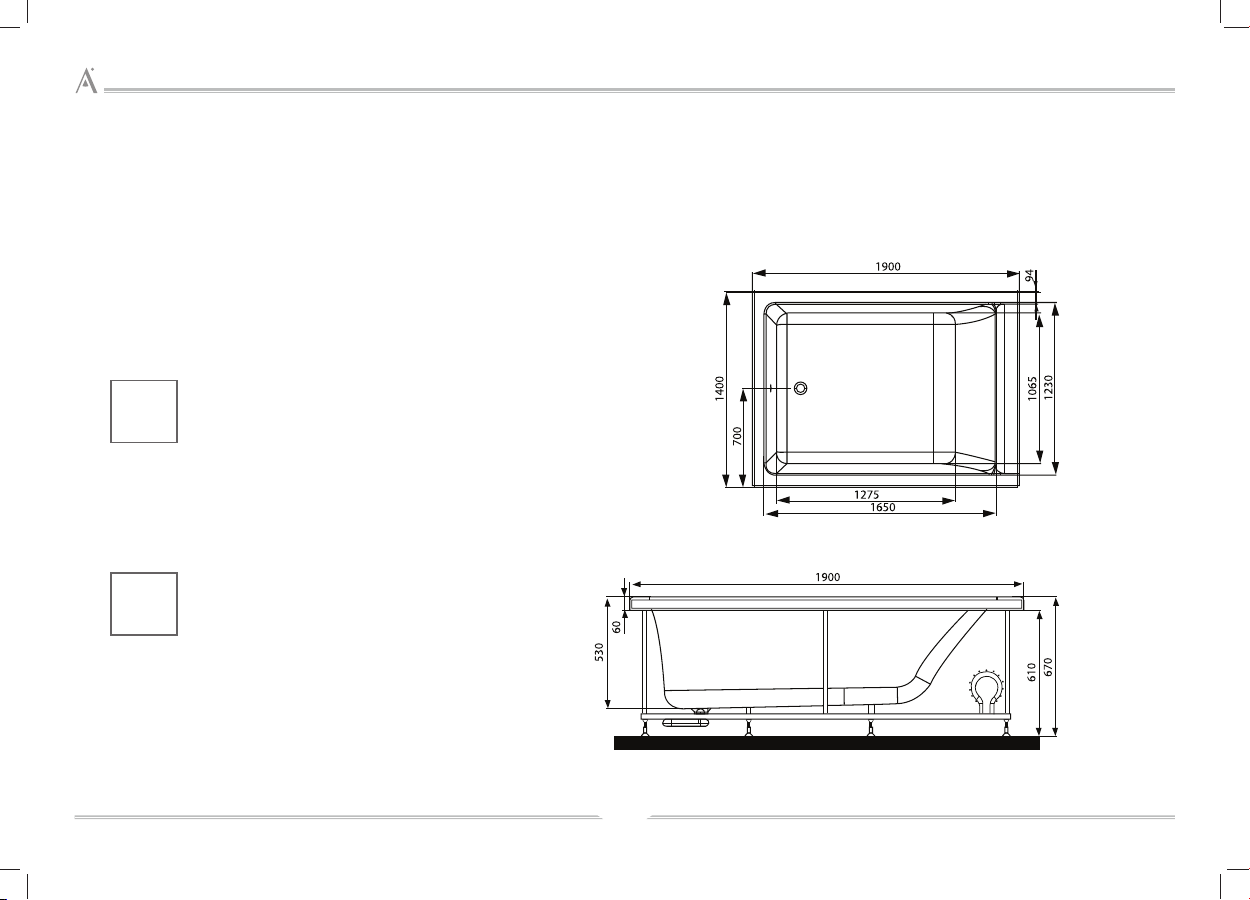

PRODUCT DIMENSIONS
LEXA SUPERIOR BATHTUB WITH MS FRAME
ABT-WHT-LEXA190FX : ARTIZE LEXA 1900 x 1400 X 530
BUILT-IN BATHTUB WITH POWDER COATED MS FRAME
Top View
A
Side View
B
08
9

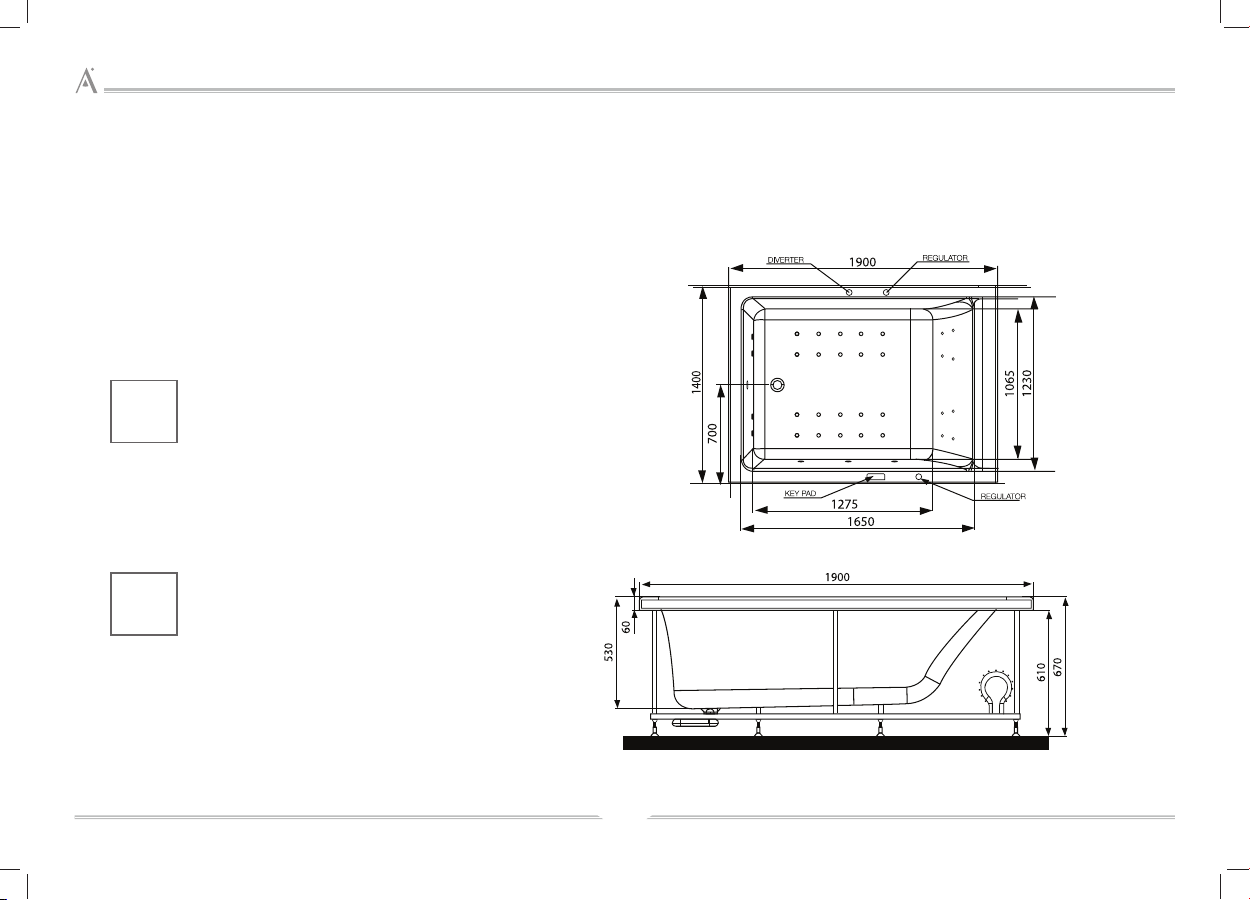

LEXA SUPERIOR BATHTUB 190 X 140 WITH SUPERIOR WHIRLPOOL
AWL-WHT-LEXA190CX : ARTIZE LEXA 1900 x 1400 X 530
SUPERIOR WHIRLPOOL AND AIRPOOL COMBI SYSTEM
Top View
A
Side View
B
