TABLE OF CONTENTS

ABLE OF CONTENTS

Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

How Your Aruba Spa is Built . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Tools Required For Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Items Required For The Installation Of Your Spa . . . . . . . . . . . . 4

Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Positioning Your Spa . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Yard Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Deck Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Indoor Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Electrical Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Start Up Preparations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Initial Start-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Spa Operations Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Topside Control Component Identification. . . . . . . . . . . . . . . . . 12

Filter Cycles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Hydrotherapy Jets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Ozonators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Trouble Shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Chemical Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Initial Start-up Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Water Maintenance Schedule. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Conducting Proper Water Tests. . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Chemical Table Of Equivalents Chart . . . . . . . . . . . . . . . . . . . . . 23

Problems Associated With Improper Water Balance . . . . . . . . . 23

Care For Your Spa. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Draining Your Spa . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Filter Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Spa Surface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Special Cold Weather Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Trouble Shooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Circulating System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Weekly Maintenance Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

INTRODUCTION

Dear

Dear Ar

Aruba Customer

uba Customer,

Thank you for purchasing an

Aruba Spa. At Aruba Spas

our philosophy is simple,

build the best spa, back it

with an excellent warranty

and with comprehensive

customer service. The 2003

Aruba Spa includes many

features, which are designed

to ensure that your spa is

dependable and simple to

operate. This manual will

guide you

through the

set-up,

installation

and start-

up of your

new spa. It

will explain

how to

operate and

care for

your spa.

We believe

reading this

entire

owner’s

manual is

the sim-

plest way to ensure the full

enjoyment of your new

Aruba Spa. It is most impor-

tant that you read and fol-

low the safety instructions

included in this manual.

You should become familiar

with all of the safety guide-

lines listed in this manual

and make sure you follow

them while using your spa.

At Aruba what we know

how to do best is build spas.

We have learned that quality

through simplicity is the best

way to build a spa. We

believe that knowing how

your spa is built will make

installing and operating it

easier, so the first part of this

manual explains how your

spa is built. Please take the

time to read this section of

your owner’s manual.

It is important that you keep

this manual for reference

purposes. We have tried to

make sure

this manual

includes all

the infor-

mation you

will need

about your

spa.

If you have

any further

questions

or need

additional

information

please call

one of our

customer

service representatives at 1-

800-609-2227. We are certain

that you will find owning an

Aruba Spa as relaxing as

using it.

The highlighted terms are

used throughout this manu-

al to indicate facts that are

particularly important for

your safety, and for main-

taining your spa in good

working order.

HAZARD

Denotes risk of personal injury.

WARNING

Denotes a circumstance that

could cause personal injury or a

circumstance where damage to

the spa’s surface, structure or

equipment could occur.

IMPORTANT

Denotes extremely important

information.

HOW

W Y

YOUR

OUR ARUB

ARUBA SP

A SPA IS BUIL

A IS BUILT

At Aruba, building spas is our passion. We believe that qual-

ity through simplicity is the best way to build a spa. Over

the years we have refined our spa construction process to

achieve the best results. We are proud of the results that we

have achieved using the methods described below and hope

that knowing how your spa is made will make installing and

operating it easier.

The building process starts with the shell of the spa. At

Aruba Spas we use the thickest acrylic sheet available. Using

a thicker acrylic sheet is important because the spa shell is

formed by placing a heated acrylic sheet over a vacuum-for-

mer, which molds it into the shape of the spa. As the acrylic

sheet is formed it stretches and thins. Using a thicker acrylic

sheet ensures a stronger and more durable surface.

Fiberglass backing is then applied to provide structural sup-

port for the acrylic shell. A triple bond system is used to

ensure a complete bond is formed between the acrylic spa

shell and the fiberglass structural support. A unique type of

resin is applied as a skin coat to the outside surface of the spa

shell. This skin coat is then backed by an additional layer of

fiberglass reinforced resin. The skin coat forms a chemical

bond between the acrylic spa shell and the fiberglass struc-

tural support. This triple bond system ensures the long last-

ing integrity of both the spa shell and spa surface.

After fiberglassing, the holes for the jets are precision drilled

through the spa shell. The rough surface of the fiberglass

backing around the holes is then machined and smoothed.

We take this extra step in manufacturing to ensure the jets

seat against a smooth surface for a tight fit and seal.

The plumbing system is then installed and lines are attached

to each of the jets. A manifold is installed at each junction

between the main plumbing line and the lines leading to the

jets. Running a short line from the manifold directly beneath

the jets provides the best water pressure and allows the jets

to operate at their full capacity. Once the spa is plumbed it is

water tested as part of our quality inspection process to

ensure that there are no leaks.

The spa shell is then lowered into the framed cabinet or “spa

skirt”. At Aruba Spas we use this innovative process to

ensure the structural integrity of our spas. Wooden supports

are then custom fitted by hand to the areas underneath the

seats and stairs to provide additional strength to these areas.

This process recognizes that every spa is not identical and

ensures individual inspection and custom fitting of each spa.

The spa shell is then insulated with 2 LB closed cell foam. As

Aruba Spas are made in Canada we know Canadian weath-

er conditions. With this in mind we use enough insulation to

get the maximum obtainable R factor from our insulating

foam. The use of closed cell foam ensures that water cannot

be absorbed into the insulation. The insulation also locks all

supports into place and secures the spa to the spa skirt.

The electronic operating system, which controls the heating,

filtration and lighting systems is then installed and pre-test-

ed in our factory. We have selected a well designed operat-

ing system that is easy to use and features a number of ener-

gy-saving options and safety options such as child lock-out.

The final touch to the spa is the attractive spa skirt with

strong, stable corners and removable side panels fitted into

the frame to allow easy access to all plumbing. The spa skirt

is made from solid tongue-in groove, red cedar and is

designed to use shorter lengths of wood that may otherwise

not have been utilized. We only use wood that has been har-

vested from select-cut forests using environmentally respon-

sible techniques.

GETTING ST

GETTING STAR

ARTED

TED

Your spa comes complete with the following items:

• HTC-4 R12 tapered Grey Spa Cover with locks and Spa

Cover Limited Warranty.

• Digital Pack and Topside Unit

• Aqua Flo Flow-Master Owners Manual

• Aruba Spas Limited Warranty Registration

• Allen Key

Please check to make sure you have received all these items.

In addition, if you have ordered any extra accessories please

check to make sure that they have been included with your

spa.

TOOLS REQUIRED FOR INSTALLATION

• Voltmeter

• Ammeter

• Ohmmeter

• Screwdrivers (Phillips & flat head)

• 2 wire restrainers

• Wire cutters

• Wire strippers

• #6 AWG 3 wire Chg: (plus ground) if spa is more than 30ft

from the Main Breaker Box.

ITEMS REQUIRED FOR THE

INSTALLATION OF YOUR SPA

• At least four people are required at time of delivery to

place your spa into position.

• 220 Volt Electrical Service

• An Electrician to do the electrical connection.

• 50 Amp GFCI circuit breaker. (see page 8)

• An Allen Key to open and remove the access panel. (sup-

plied by Aruba Spas)

1) Children should not use spas

or hot tubs without adult super-

vision.

2) Do not use spas or hot tubs

unless all suction guards are

installed to prevent body hair

entrapment.

3) People using medications

and/or who have an adverse

medical history should consult a

physician before

using a spa or

hot tub.

4) People with

infectious dis-

eases should not

use a spa or hot

tub.

5) To avoid

injury, exercise

care when enter-

ing or leaving a

spa or hot tub.

6) Do not use

drugs or alcohol

before or during

the use of a spa

or hot tub to

avoid uncon-

sciousness and

possible drown-

ing.

7) Pregnant or

possibly preg-

nant women should consult a

physician before using a spa or

hot tub.

8) Water temperature in excess

of 40 degrees C (104 degrees F)

may be injurious to your health.

9) Before entering a spa or hot

tub, check the water tempera-

ture readout on the topside con-

trol.

10) Do not use a spa or hot tub

immediately following strenu-

ous exercise.

11) Prolonged immersion in a

spa or hot tub may be injurious

to you health.

12) Do not permit electric appli-

ances (such as light, telephone,

radio, or television) within 1.5

meters (5 feet) of a spa or hot

tub.

13) Maintain water

chemistry in accor-

dance with manufac-

ture’s instructions.

HYPERTHERMIA

Hyperthermia occurs

when the internal

temperature of the

body reaches a level

several degrees

above the normal

temperature of 37

degrees C (98.6

degrees F). The

symptoms of hyper-

thermia include

drowsiness, lethargy

due to an increase in

the internal tempera-

ture of the body. The

effects of hyperther-

mia include:

• Unawareness of

impending heat

• Failure to perceive heat

• Failure to recognize the need

to leave the spa

• Fetal damage in pregnant

women

• Unconsciousness and danger

of drowning

IMPOR

IMPORT

TANT SAFETY INSTRUC

ANT SAFETY INSTRUCTIONS

TIONS

WARNING

It is most

important that

you read

these safety

instructions

before

using your

spa.

HAZARD

The use of

alcohol or

drugs greatly

increases the

risk of hyper-

thermia in

spas.

POSITIONING

POSITIONING Y

YOUR SP

OUR SPA

Your spa is self-contained. You can place it on a deck, patio,

in your yard, or indoors. Proper site location is an important

element of the overall enjoyment of your new spa, so make

sure you take enough time to properly plan out the position-

ing of your spa. The following information is provided to

help you determine where to place your spa. If you have any

questions or concerns about where to locate your spa, please

contact our customer service department.

YARD INSTALLATION

Position your spa above ground in an area with good

drainage, on a level surface that contacts the spa fully. The

ideal base is a concrete pad, however compacted gravel,

paving stones or railway ties may also be used. Locate the

spa so the equipment door is readily accessible. The equip-

ment has to be above grade and not subject to flooding. If

using compacted gravel, it must be on a firm level base and

it must be contained in a secure wood or concrete border so

that the loose gravel cannot shift once the spa is in place.

DECK INSTALLATION

Before placing your spa on a deck or other raised platform,

you must have the structure checked for its loading capacity

by an Engineer or competent Contractor. Before placing the

spa on the deck, you should place 1.5” high-density foam

insulation under the spa. This helps insulate the spa and pre-

vent the transmission of noise. At the same time providing

the underside of the spa with extra insulation.

WARNING

One must support the entire base of the

spa, from the outside edges to the centre, to

support its weight. Improper placement of

your spa may void the warranty.

IMPORTANT

Check with your local building codes with

regards to fencing and gate requirements.

Your spa measures 84”x84”x34” the dry

weight is 650 lbs, with water 4000 lbs.

INDOOR INSTALLATION

Before attempting to place the spa indoors check the door

openings to ensure that they are large enough for the spa to

fit through. In addition, you must have the structure

checked for its loading capacity by an Engineer or competent

Contractor. The minimum loading capacity required is 100

lbs per square foot. The spa should be placed in a well-ven-

tilated area so that excess condensation can be removed from

the area where the spa is located. Locate the spa so the

equipment door is readily accessible for maintenance and

service needs, and ensure you have an area with proper

drainage.

You may also wish to think about the following considera-

tions before installing your spa:

• location to facilitate adult supervision if children are using

the spa

• location relative to trees (falling leaves and shade)

• exposure to sunlight

• landscaping and night-time lighting

• view from your house

• wind direction

• storage area for maintenance equipment and chemicals

• adjustment of sprinklers so they do not hit spa or spa cab-

inet

WARNING

Do not permit electric appliances (such as

light, telephone, radio, or television) within

1.5 meters (5 feet) of a spa or hot tub.

ELECTRIC

ELECTRICAL CONNECTION

AL CONNECTION

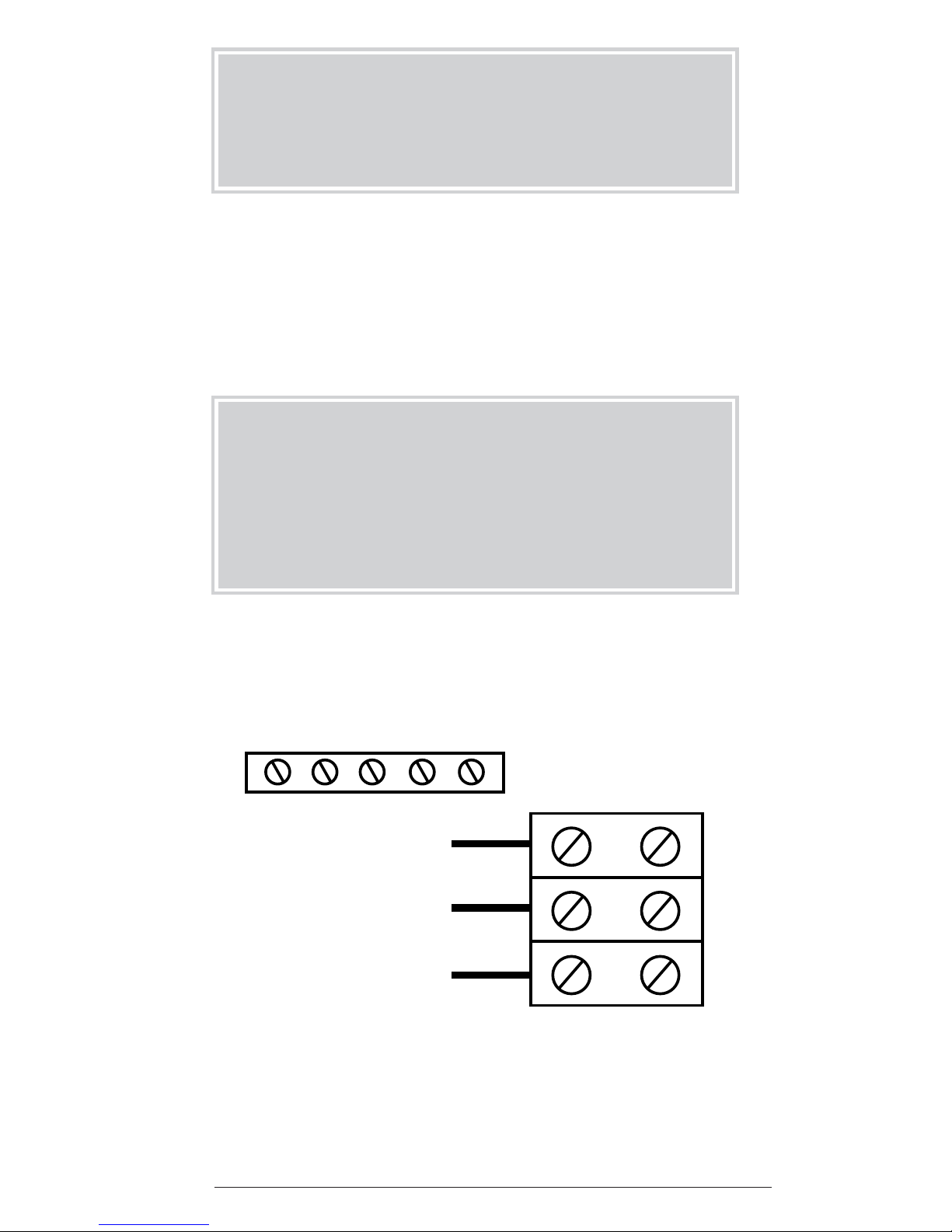

A certified electrician must make all electrical connections to

your spa, in accordance with all applicable electrical codes

for your area. The spa’s GFCI breaker must be sized in accor-

dance to electrical requirements of spa. The Full Load

Amperage (FLA) is recorded on the spa’s nameplate.

ELECTRICAL CONNECTION ACCESS

To access Electrical connections:

Electrical connections are within the spa pack. There are 2

wire access locations on either side of the front panel. The

electrical requirements are 220V with a neutral.

IMPORTANT SAFETY INSTRUCTIONS

1. Read and follow all instructions.

2. A ground terminal is located inside the supply terminal

box. To reduce the risk of electric shock this terminal must

be connected to the grounding means provided in the electric

GND

WARNING

Failure to use a GFCI breaker for electrical

connection to your spa could result in seri-

ous harm or death. No electrical power

should be available near the spa without

GFCI protection.

WARNING

Electrical codes change from Province to

Province. Check with your electrician for

the electrical codes in your area.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Aruba Spa Vasca idromassaggio

Aruba Spa

Aruba Spa Hot Tub Models 2003 Manuale utente

Manuali Vasca idromassaggio popolari di altre marche

Bestway

Bestway Lay-Z-Spa 54189 Manuale utente

Jacuzzi

Jacuzzi ARGA ARG101C0110 Manuale elenco delle parti

Morphy Richards

Morphy Richards Essentials PC4006 Manuale utente

Softub

Softub PRESTIGE Manuale utente

JNJ SPAS

JNJ SPAS SPA-318 Manuale di installazione

KIRAMI

KIRAMI Comfort Family Manuale utente

QCA Spa

QCA Spa VS501 PAK (VL260 TOPSIDE) Manuale utente

HoMedics

HoMedics FB-655HJ-GB Manuale utente

Everyday Hot Tubs

Everyday Hot Tubs 530 Manuale utente

anko

anko SS-601A Manuale utente

Jacuzzi

Jacuzzi Duetta 6042 Manuale utente

Pooli

Pooli OS030979B Manuale utente

Jacuzzi

Jacuzzi alimia Manuale utente

ab Solares Smart Spa Manuale utente

CalderaSpas

CalderaSpas CalderaSpas Utopia Series Manuale utente

Outsunny

Outsunny 848-047V70 Manuale utente

Aquatic

Aquatic INFINITY 1 Manuale utente

Master Spas

Master Spas MP Force Manuale utente
