Aruba 6400 Series Manuale utente
START HERE: Installation, Safety, and Regulatory
Information for the Aruba 6400 Power Supply Units
All product documentation
For the latest Installation and Getting Started Guide and other documentation for your Aruba switch products, visit
the Aruba Support Portal at the following link: https://asp.arubanetworks.com/downloads. Filter for the
publications you want. See the rest of this guide for important presetup information for the R0X35A/R0X36A power
supplies.
WARNING: There are no user-serviceable parts in the Aruba R0X35A/R0X36A power supplies. For
product service needs, contact your Aruba representative.
Applicable products
Aruba 6400 1800W Power Supply R0X35A
C16 Inlet Adapter
Aruba 6400 3000W Power Supply R0X36A
C20 Inlet Adapter
Power supply unit (PSU) precautions
To avoid personal injury or product damage when installing the PSU, read the following installation precautions and
guidelines.
*5200-6586*
© Copyright , Hewlett Packard Enterprise Development LP
Part Number: 5200-6586
Published: August 2019
Edition: 1, Printed in Singapore
CAUTION:
•Before connecting to power, install and secure the appropriate inlet adapters using the provided
screw. Do not connect the inlet adapters to power while outside the chassis. Do not remove the inlet
adapters from the chassis before disconnecting the power cord.
• If a PSU must be removed and then reinstalled, wait at least ve seconds before reinstallation.
Otherwise, damage to the chassis may occur. The PSU needs this time to dissipate any retained
power.
• Ensure that your power source circuits are properly grounded. Then connect the chassis to the
power source by using the power cord supplied with the chassis or power supply unit.
• Use only Aruba-approved and recommended power cords. See Power cords and inlet adapters on
page 2 for proper power cord selection.
• If your installation requires a dierent power cord than the one supplied with the chassis or PSU, be
sure that the cord is adequately sized for the chassis or PSU current requirements. In addition, be
sure to use a power cord displaying the mark of the safety agency that denes the regulations for
power cords in your country/region. The mark is your assurance that the power cord can be used
safely with the chassis and PSU.
• Do not install the chassis and power supplies in an environment where the operating ambient
temperature exceeds the environmental specications. (For environmental information, see the
latest Installation and Getting Started Guide for your switch.)
• Ensure that the chassis PSUs do not overload the power circuits, wiring, and over-current protection
in your facility. To determine the possibility of overloading the supply circuits, add the ampere
ratings of all devices installed on the same circuit as any of the chassis PSUs. Then compare the total
with the rating limit for the circuit. The maximum ampere ratings are printed on the devices near the
AC power connectors.
Power cords and inlet adapters
IMPORTANT:
• Use only an Aruba 6400 C16 Inlet Adapter with an R0X35A Aruba 6400 1800W Power Supply.
• Use only an Aruba 6400 C20 Inlet Adapter with an R0X36A Aruba 6400 3000W Power Supply.
Using C16 Inlet Adapters with the 3000W Power Supplies, or using C20 Inlet Adapters with 1800W
Power Supplies is not supported.
Aruba includes the power cords and inlet adapters intended for use with your Aruba 6400 switch. Dierent
countries/regions may require dierent power cords. For a list of the power cords that apply to your Aruba 6400
switch, see the section that lists power cords and inlet adapters in the latest edition of the switch Installation and
Getting Started Guide.
CAUTION: Only Aruba-approved power cords and inlet adapters may be used with Aruba devices. See
the power cord and inlet adapter documentation provided in the latest version of the Installation and
Getting Started Guide for your switch. Lost or damaged power cords must be replaced only with Aruba-
approved power cords. If your installation requires a dierent power cord than the one supplied with
the switch and/or power supply, use a power cord that displays the mark of the safety agency that
denes the regulations for power cords in your country/region. The mark is your assurance that the
power cord can be used safely with the switch, power supply, and inlet adapter.
Page 2
WARNING: Do not use a damaged or nonrecommended power cord with your switch. Using such
power cords voids the switch and power supply warranty. It can also cause serious electrical problems,
including injury or death to personnel, and damage to the switch and other property. If you cannot
verify that you have a power cord approved for use with your switch model, contact your authorized
Aruba dealer or sales representative for assistance.
WARNING: Remove all power cords from the switch before mounting or dismounting the switch.
Japan power cord
warning
Aruba 6400 Power Supply safety and regulatory information
NOTE: For important safety, environmental, and regulatory information, see Safety and Compliance
Information for Server, Storage, Power, Networking, and Rack Products, available at http://www.hpe.com/
support/Safety-Compliance-EnterpriseProducts.
Table 1: Electrical information for Aruba modular power supplies using direct AC voltage
Switch product SKU Maximum current per
power supply
AC voltage Frequency
range
Any Aruba 6405 Switch populated with the
R0X35A 1800W power supplies and C16
inlet adapters
12A for 110-127VAC
10A for 200-240VAC
110-127 /
200-240 50/60 HZ
Any Aruba 6405 Switch populated with the
R0X36A 3000W power supplies and C20
inlet adapters
16A for 110-127VAC
16A for 200-240VAC
Any Aruba 6410 Switch populated with the
R0X35A 1800W power supplies and C16
inlet adapters
12A for 110-127VAC
10A for 200-240VAC
Any Aruba 6410 Switch populated with the
R0X36A 3000W power supplies and C20
inlet adapters
16A for 110-127VAC
16A for 200-240VAC
NOTE: The C16 inlet adapters are designed to operate with the R0X35A (1800W) power supplies, and
the C20 inlet adapters are designed to operate with the R0X36A (3000W) power supplies. For more
information on power supply and inlet adapter operation, see the latest Installation and Getting
Started Guide for your switch model.
Page 3

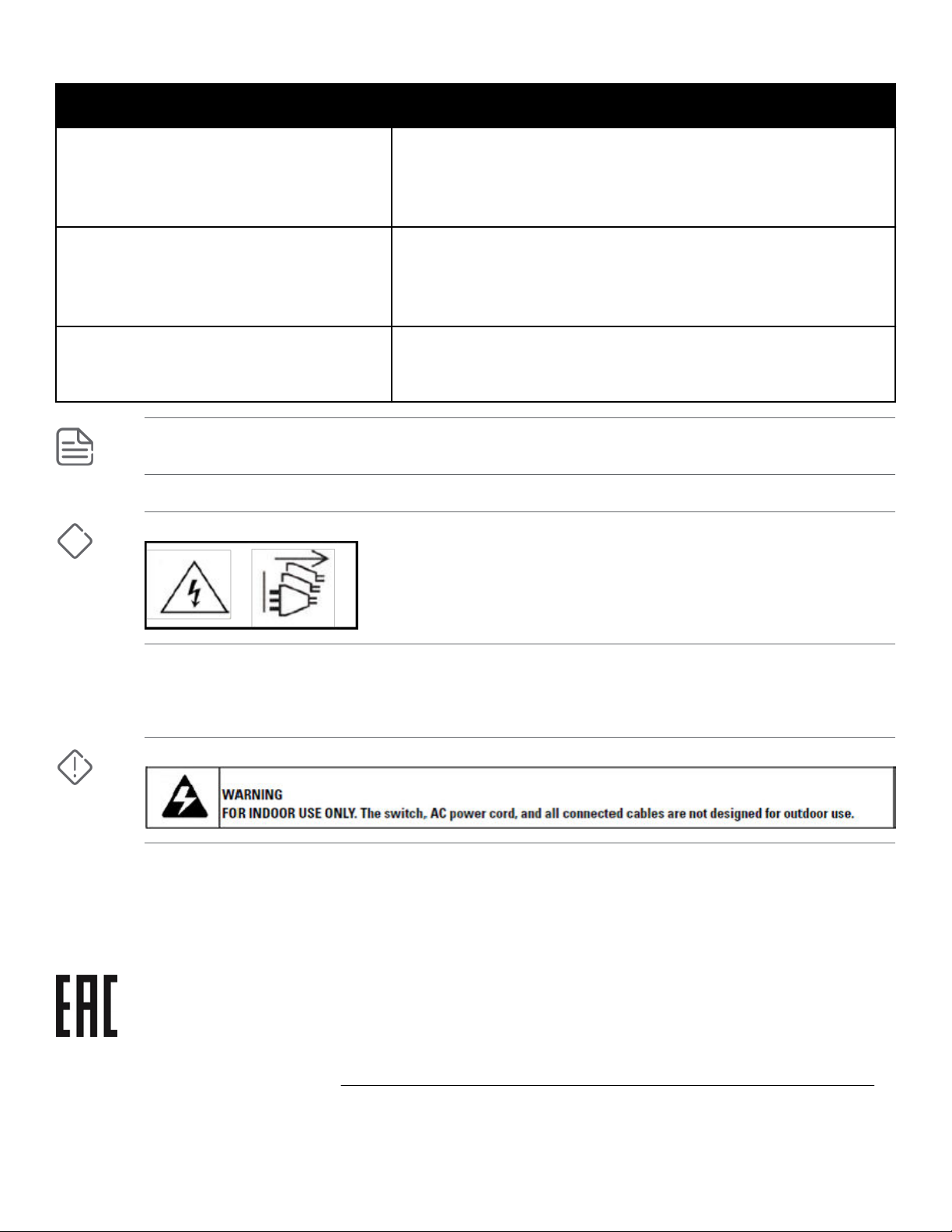

Safety and regulatory information for Aruba 6400 PSUs
Item Range
Safety-EU: EN 60950-1:2006 +A11:2009 +A1:2010
+A12:2011 +A2:2013
EN62368-1, Ed.2
Safety-World Wide: IEC 60950-1:2005 Ed.2; Am 1:2009+A2:2013
IEC62368-1, Ed. 2
IEC 60825-1:2014 (Applies to products with lasers)
North American: UL60950-1, CSA 22.2 No 60950-1
UL62368-1 Ed. 2
NOTE: Environmental and other switch and modular power supply specications, such as acoustics
data, are included in the latest Installation and Getting Started Guide for your switch.
Shock hazard
CAUTION: Shock hazard. To completely remove power from the switch, disconnect all power cords.
Indoor wiring warning
This product and all interconnected equipment must be installed indoors within the same building, including all
associated LAN connections as described by Environment A of the IEEE 802.3af standard.
WARNING: Interior Wiring.
Australia/EU/New Zealand EMC Class A warning
This product is a class A product. In a domestic environment, this product may cause radio interference in which
case the user may be required to take adequate measures.
Belarus Kazakhstan Russia marking
For manufacturer and local representative information, see Safety and Compliance Information for Server, Storage,
Power, Networking, and Rack Products at http://www.hpe.com/support/Safety-Compliance-EnterpriseProducts.
Page 4
Brazil statement and contact information
WARNING: Este equipamento deve ser conectado obrigatoriamente em tomada de rede de energia
elétrica que possua aterramento (três pinos), conforme a Norma NBR ABNT 5410, visando a segurança
dos usuários contra choques elétricos.
Se você precisar de mais apoio, você pode entrar em contato conosco pelo Centro de Informações Hewlett Packard
Enterprise (0800-710-2029 / +55 11 2377-0002 / +55 11 2377-1002)
Chinese safety warning
For the Chinese safety warning, see Safety and Compliance Information for Server, Storage, Power, Networking, and Rack
Products at http://www.hpe.com/support/Safety-Compliance-EnterpriseProducts.
European community
The product herewith complies with the requirements of Directive 2014/35/EU relating to electrical equipment
designed for use within certain voltage limits, Directive 2014/30/EU relating to electromagnetic compatibility,
Directive 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic
equipment and carries the CE marking accordingly.
WARNING: This product is a class A product. In a domestic environment, this product may cause radio
interference in which case the user may be required to take adequate measures.
Japan VCCI Class A statement
Korea EMC Class A statement
사용자 안내문
이 기기는 업무용 환경에서 사용할 목적으로 적합성평가를 받은 기기로서
가정용 환경에서 사용하는경우 전파간섭의 우려가 있습니다.
Taiwan EMC warning
Preview of installing the PSU
NOTE: This section previews the steps for installing the Aruba 6400 power supplies. To nd detailed
installation steps, information on conguration tools, and other instructions and information, see the
latest Installation and Getting Started Guide for your switch.
CAUTION: Always remove the power cord from an installed power Inlet Adapter before removing the
adapter from the switch. Do not connect a power cord to a power Inlet Adapter when the adapter is not
properly installed in the switch.
Page 5
1. After the switch chassis is securely mounted, remove the bezel from the front panel.
2. Remove a power supply unit (PSU) slot cover from the front of the switch.
3. Slide a PSU into the uncovered PSU slot until it seats rmly in place, with the front of the PSU ush with the
switch front panel. When inserting the PSU in the slot, ensure that the PSU is top up; that is, with the PSU release
tab to the right.
4. Remove the slot cover from the rear power inlet slot corresponding to the PSU you installed in step 3.
5. Slide the power Inlet Adapter into the rear slot that corresponds to the front slot in which you installed the PSU
in step 3. Ensure that the adapter seats rmly with the release tab to the right, and the power inlet face is ush
with the rear panel of the switch. Secure the power Inlet Adapter to the chassis with the provided screw.
6. Repeat steps 2 through 5 for each PSU you want to install.
7. Replace the bezel on the front panel of the switch.
Documentation feedback
Send any errors, suggestions, or comments to Documentation Feedback ([email protected]).
